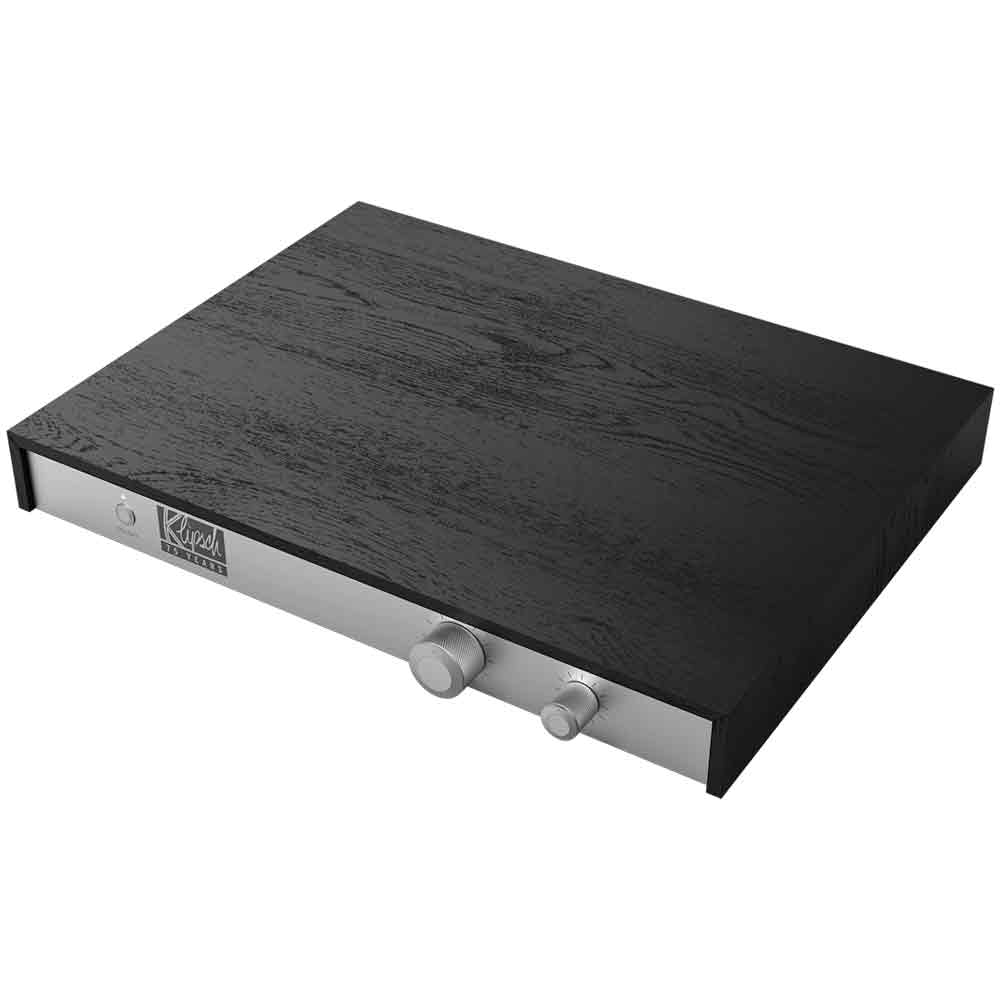

Klipsch Active Crossover Heritage Active DSP for Klipschorn & La Scala

Klipsch Active Crossover Heritage Active DSP for Klipschorn & La Scala - Klipsch

Active Crossover
Our new Active Crossover uses trickle-down technology—the Heritage Active DSP, optional with Klipschorn® AK7 and La Scala® AL6 loudspeakers, is the same active DSP we offer with our Klipsch Jubilee floorstanding loudspeakers. The difference is the firmware, which we designed specifically to embrace and enhance the sound of Klipschorns and La Scalas.

BETTER BALANCE
Tuned precisely to the Klipschorn or La Scala audio spectrums, the Heritage Active DSP aligns time and phase while boosting frequencies and balancing EQ. This process produces a flat, color-free response that brings out the best in every Klipschorn AK7 or La Scala AL6 speaker.

SYNCHRONIZED SOUND
Using signal processing technology, the Heritage Active DSP analyzes the crossover and adjusts for horn throat depth and wavelength, delaying the signal to specific speakers to ensure that all sound arrives simultaneously at the listener’s ears.

POWER. DETAIL. EMOTION.
PWK’s dream lives on in every legendary Heritage loudspeaker we make. Built to last a lifetime, each high-performance, handsomely crafted speaker will bring joy to your home for decades to come.

What to expect in the box:

• Active Crossover Heritage Active DSP

Product Details:

• FREQUENCY RESPONSE: 10Hz-45kHz (+/- 0.5 dB)
• POWER: Figure-8 IEC, AC 100-240V ~50/60Hz, 50W
• HEIGHT: 2.75” (70mm)
• WIDTH: 17” (432mm)
• DEPTH: 14.125” (359mm)
• WEIGHT: 8.9lbs(4kg)

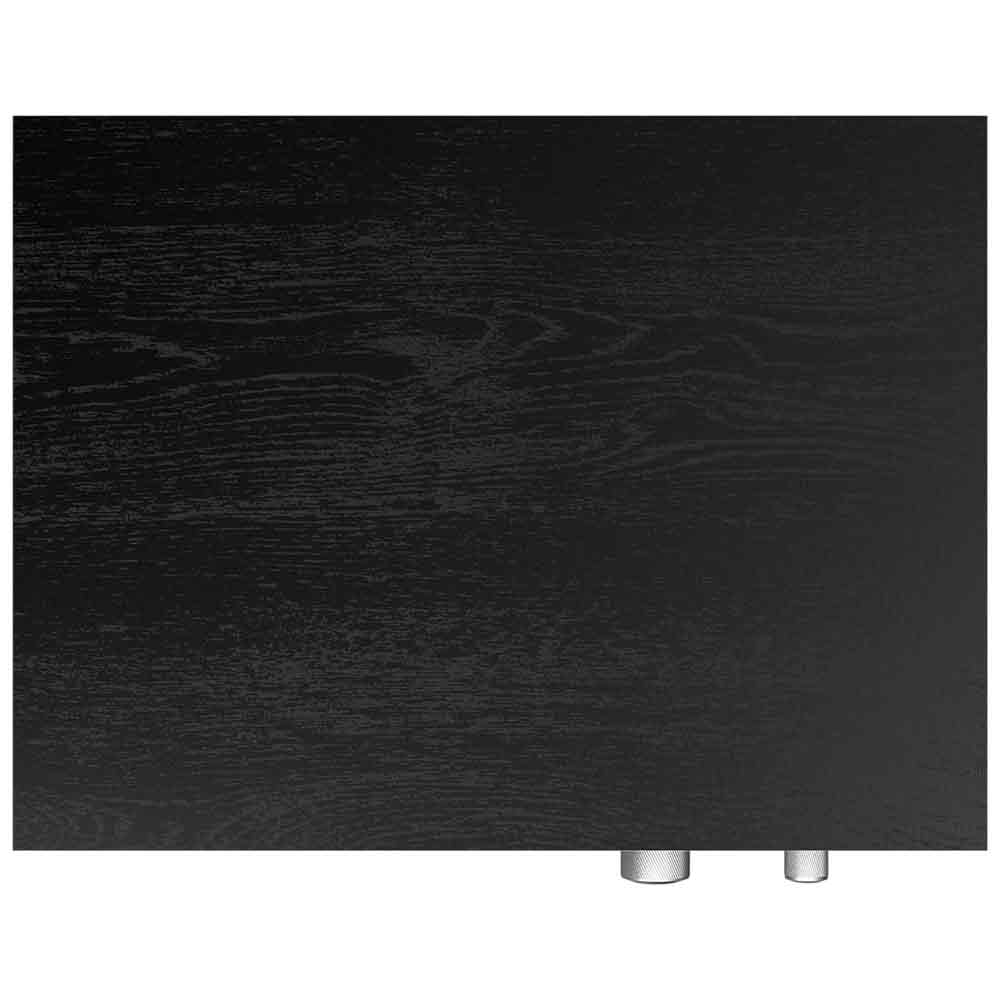

• FINISH: Black Ash
• ENCLOSURE MATERIAL
• Veneered MDF
• 1/2” Plywood
• Steel Front Plate
• INPUT OPTIONS
• Auto Power Switch
• Balanced/Unbalanced Input Switch
• -9-0dB Pad Switch
• XLR
• Impedance: 10kOhm with RFI Protection
• Max. Input Level: 4Vrms
• RCA
• Impedance: 10kOhm
• Max Input Level: 2Vrms

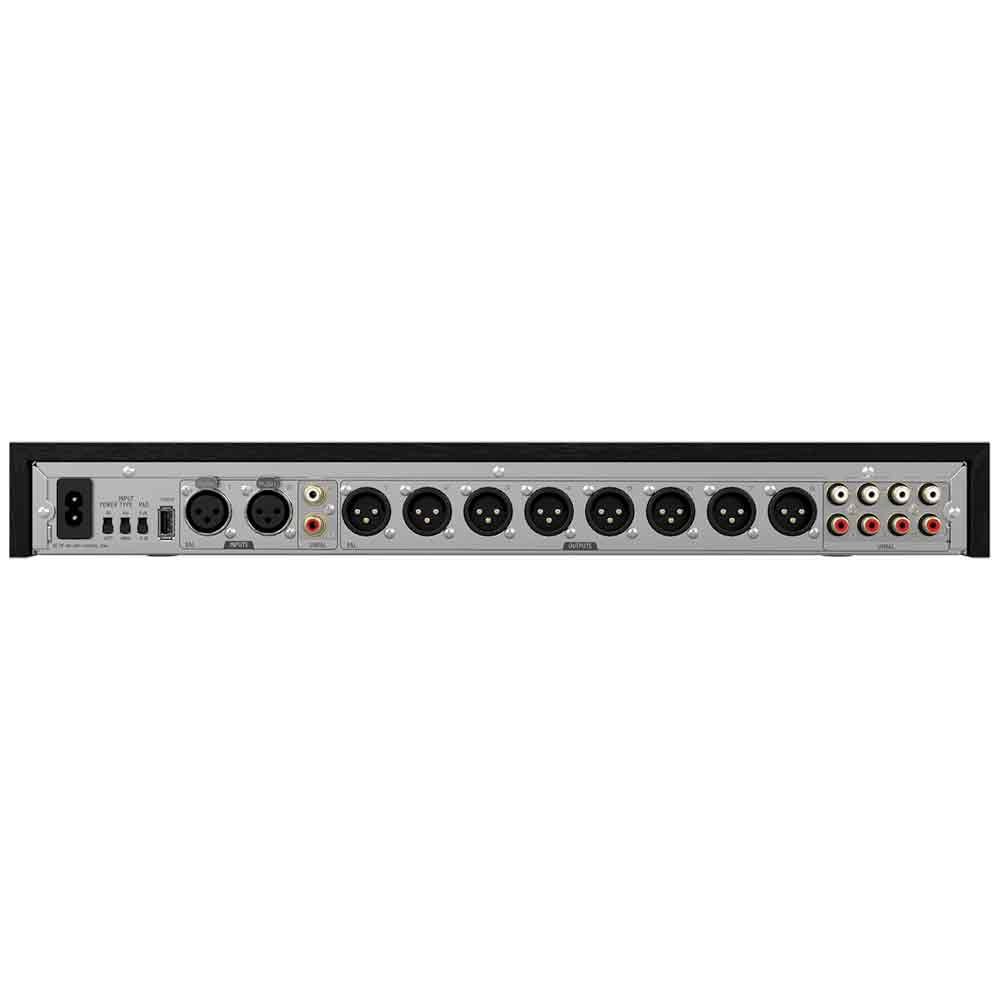

• INPUTS
• 2x Balanced XLR
• 2x Unbalanced RCA
• OUTPUTS
• 8x Balanced XLR
• 8x Unbalanced RCA
• OUTPUT SPECS
• Full Scale THD (balanced) = -105dB = 0.0005%
• 20-20kHz THD @ 1Vrms =-95dB = 0.001%
• Dynamic Range >= 115dB
• Signal to Noise = 115dB
• MISC
• Klipschorn Version UPC: 743878092479
• La Scala Version UPC: 743878092486
