Klipsch Klipschorn AK7 Premium Fully Horn-Loaded Loudspeaker (Pair) - Klipsch
Build your legacy
The Klipschorn®, the first Klipsch speaker ever produced, is bolder and more beautiful than ever. The new Klipschorn AK7 Premium Loudspeaker features book-matched veneers in Black Ash, American Walnut, and new American Auburn colorways, as well as a new extended phase plug, cinema-grade 3" compression driver, patented Tractrix mid-range horn with Mumps technology, and an optional active external DSP designed to bring out the best in our legacy loudspeaker.
Where it all began
For over 75 years, the Klipschorn has defined high-efficiency home audio. The first Klipsch speaker ever produced, and in continuous production longer than any other, the Klipschorn is the manifestation of Paul W. Klipsch’s approach to sound, designed to bring the power, detail, and emotion of live music out of the club and into the living room.

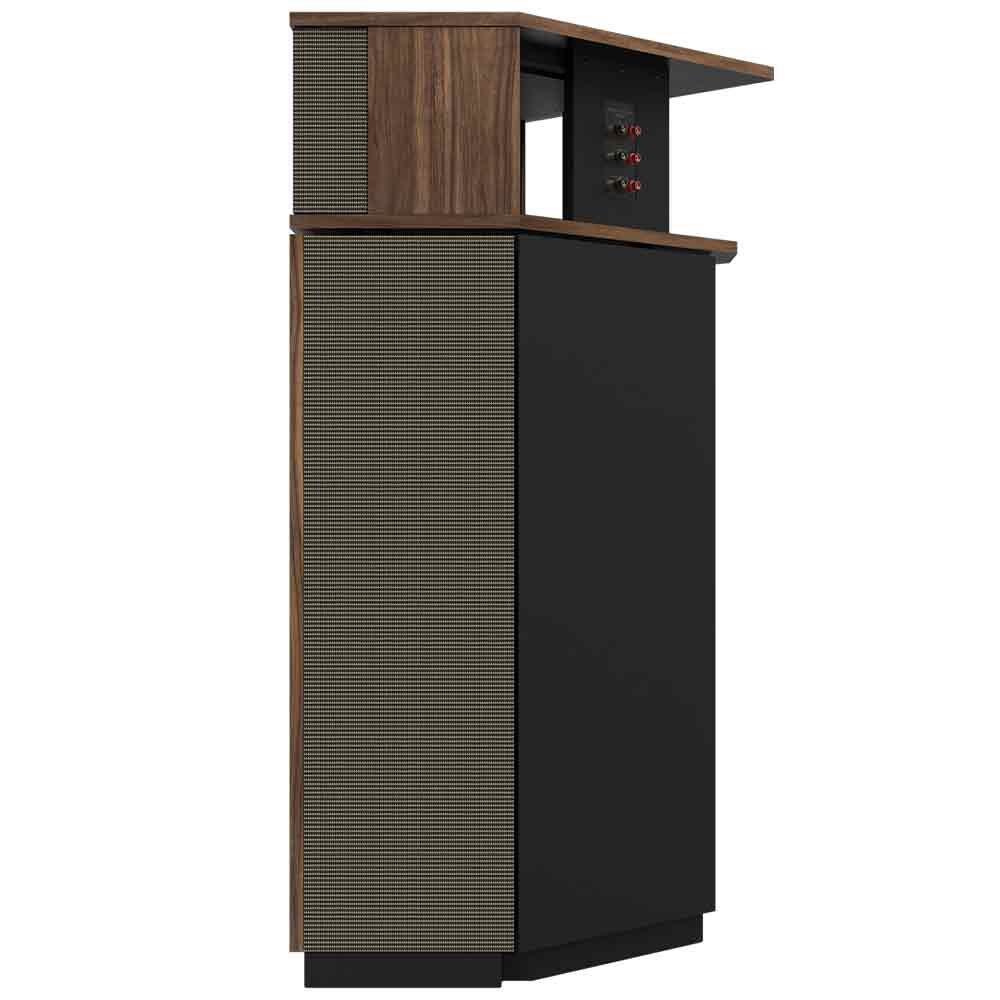

Active & passive setups

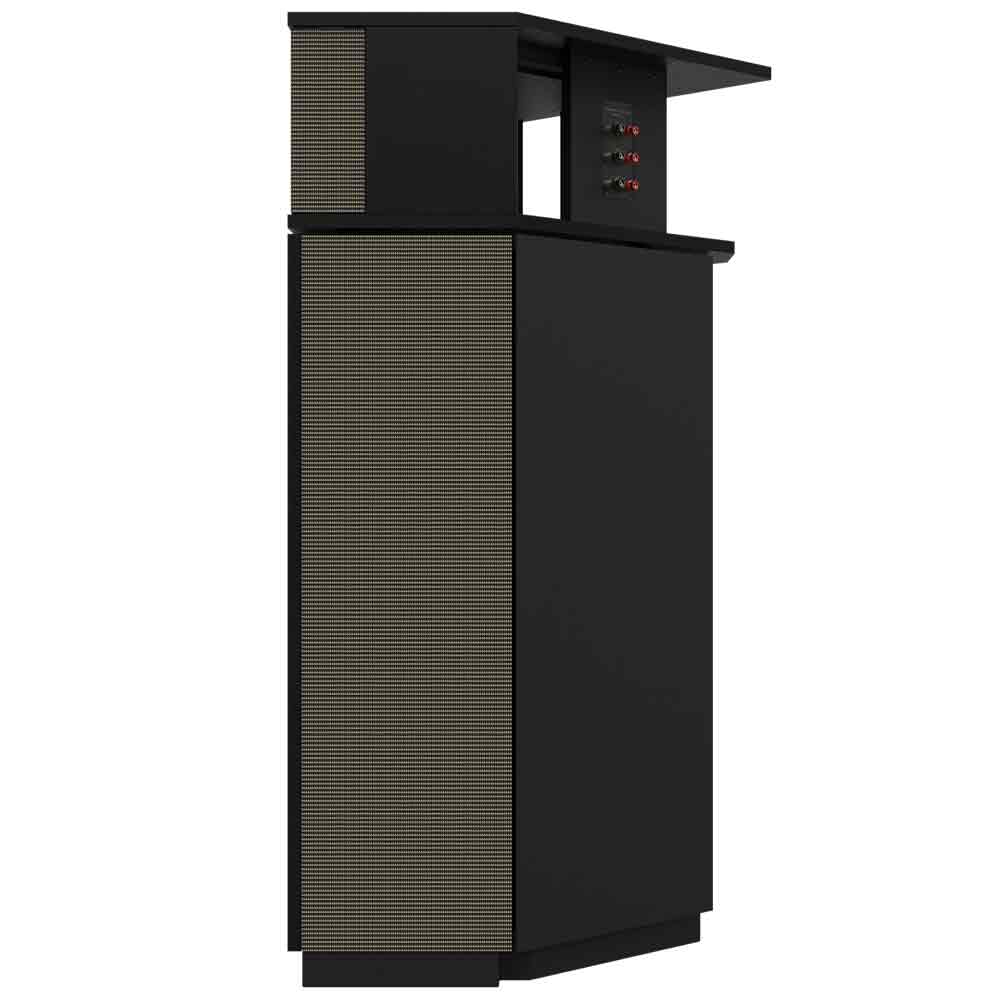

To accommodate the Heritage Active Crossover and give listeners more options, we’ve modified the I/O panel. It now includes passive and active inputs and a passive output, so customizing your setup is easy. We’ve also moved the panel to the speaker’s back for a cleaner look from almost any angle.
THREE-WAY, HORN-LOADED EFFICIENCY
The Klipschorn’s three-way, horn-loaded system makes it leagues more efficient than the average loudspeaker. For the AK7, we couple each driver to a precisely measured horn and optimize it for one of three pass-bands. This design generates greater acoustic power with less wattage, producing crystal clear sound with minimal distortion across the frequency spectrum.
EXTENDED PHASE PLUG FOR HEAVENLY HIGHS
We’ve paired our K-771 compression driver with a new, patented, extended phase plug to prevent cancellations and equalize wavelengths for cleaner dispersion. That means you get more coverage and clarity than ever before.
3" COMPRESSION DRIVER PUMPS UP THE POWER
Our new, cinema grade, mid-range K1133 compression driver adds a full inch to the drivers on previous AK6 models. Hand-built in Hope, Arkansas, the larger compression area increases sound pressure to the horn’s throat for more voluptuous volume.

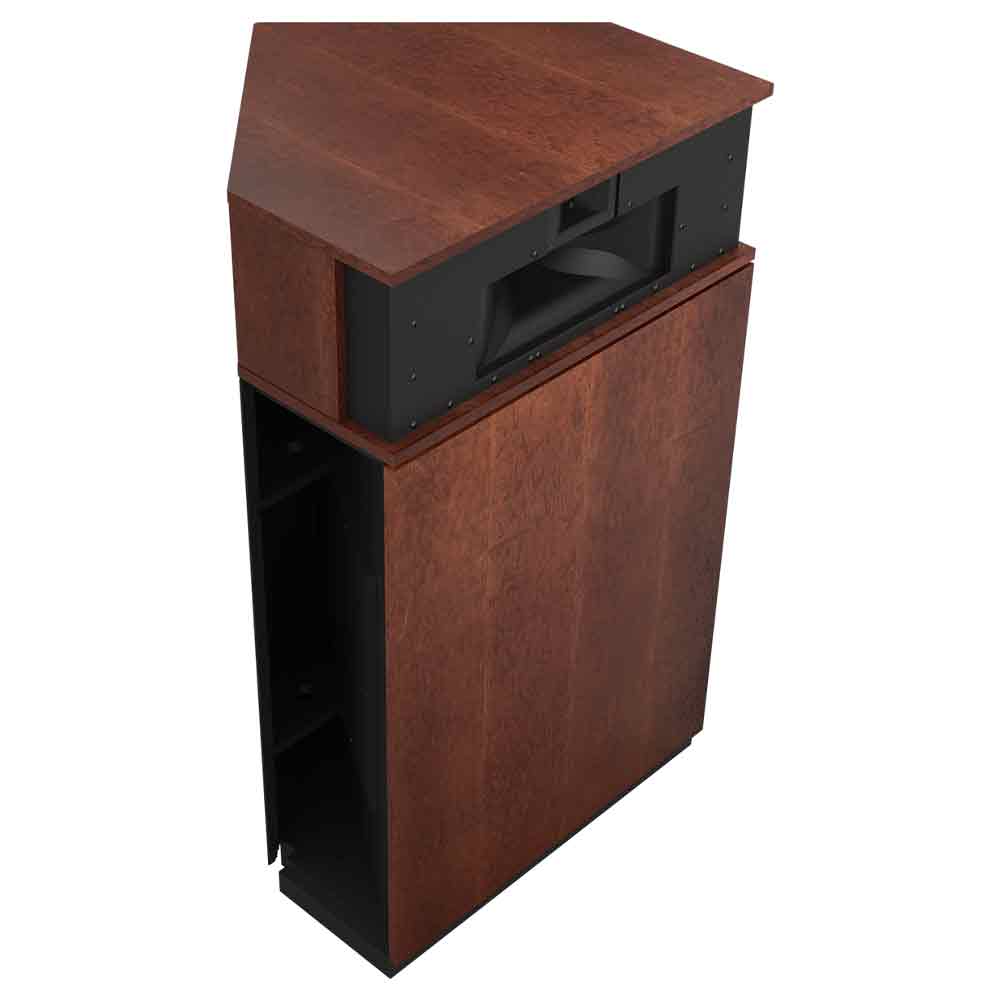

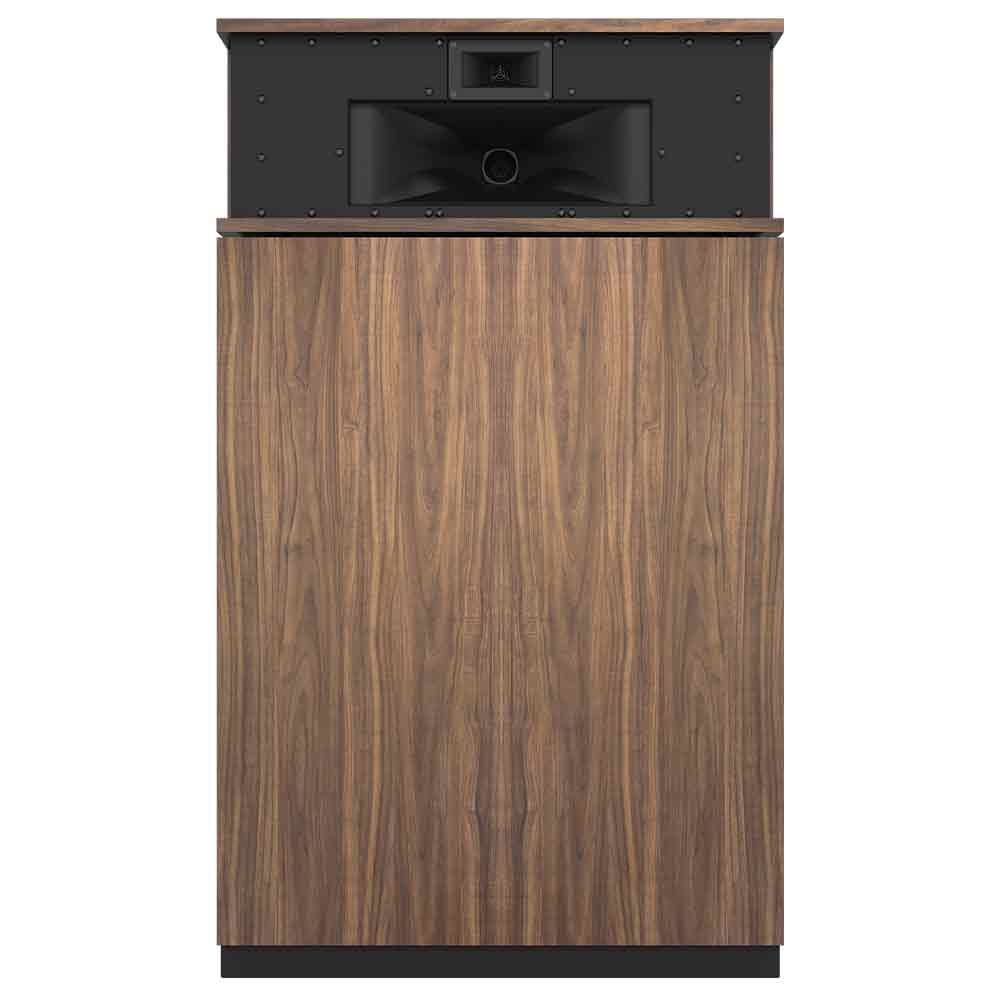

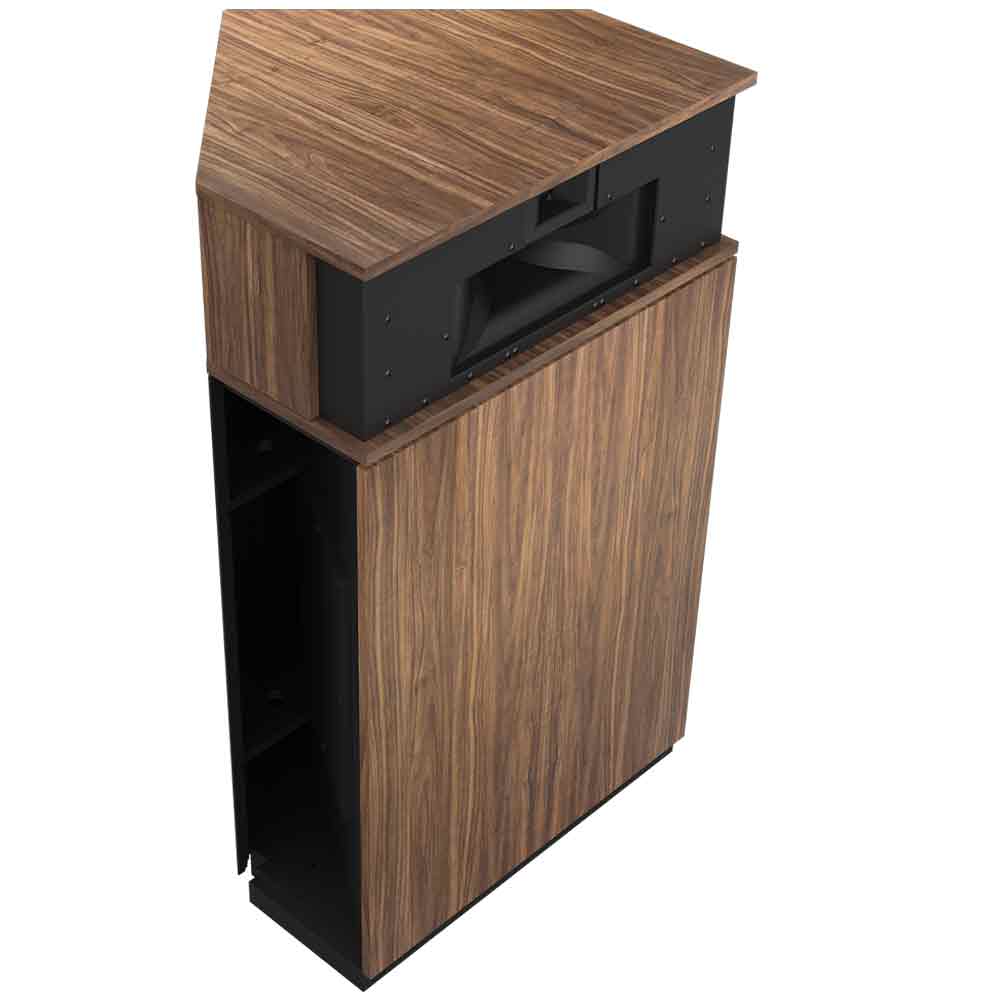

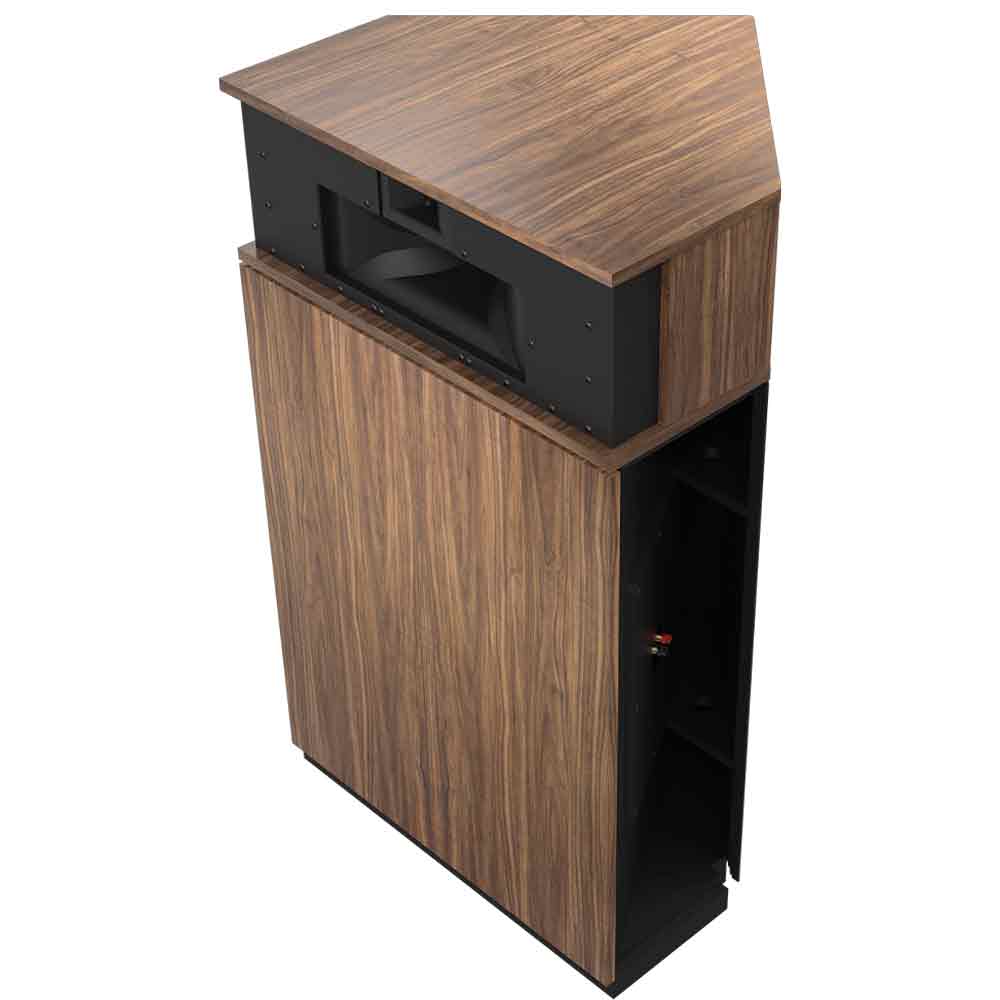

SPREAD THE SOUNDSTAGE WITH TRACTRIX AND MUMPS
The AK7 gets the Tractrix® treatment. The new K-406M patented Tractrix mid-range horn features a shorter, 2" throat for unparalleled presence and precision. Mumps technology improves coverage, adding small contours to help maintain frequency response to the horn’s edge.
BRING OUT THE BASS
The Klipschorn’s fully enclosed low-frequency horn, paired with the powerful K-33-E 15" woofer, delivers deep, rich bass with remarkable clarity and impact. Its innovative folded horn design increases bass extension and efficiency.

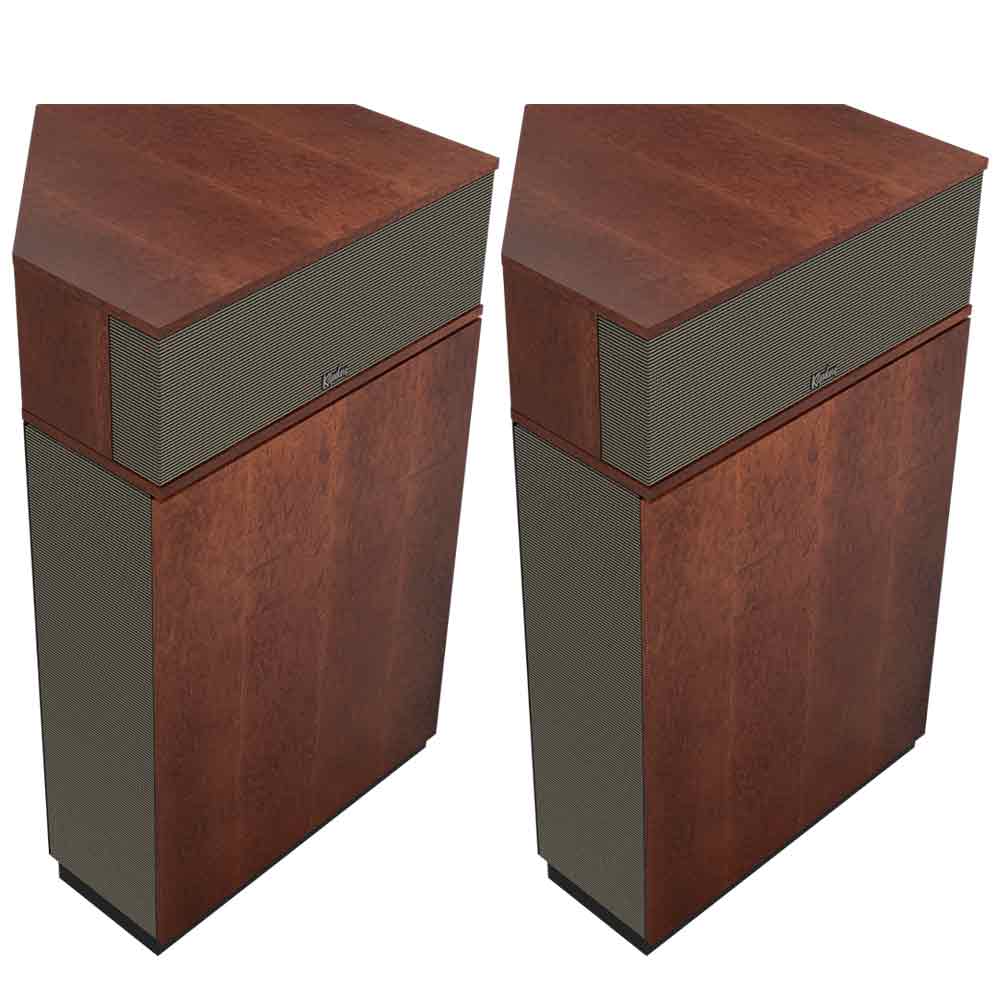

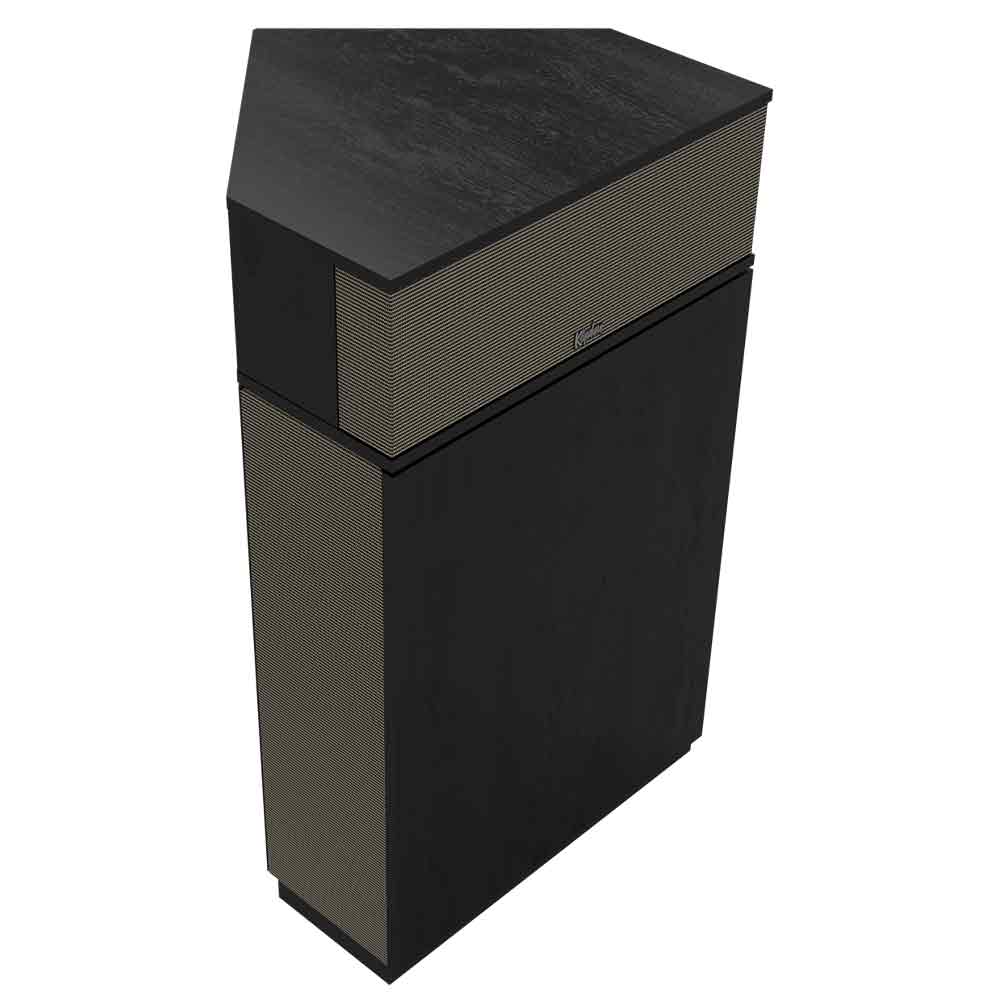

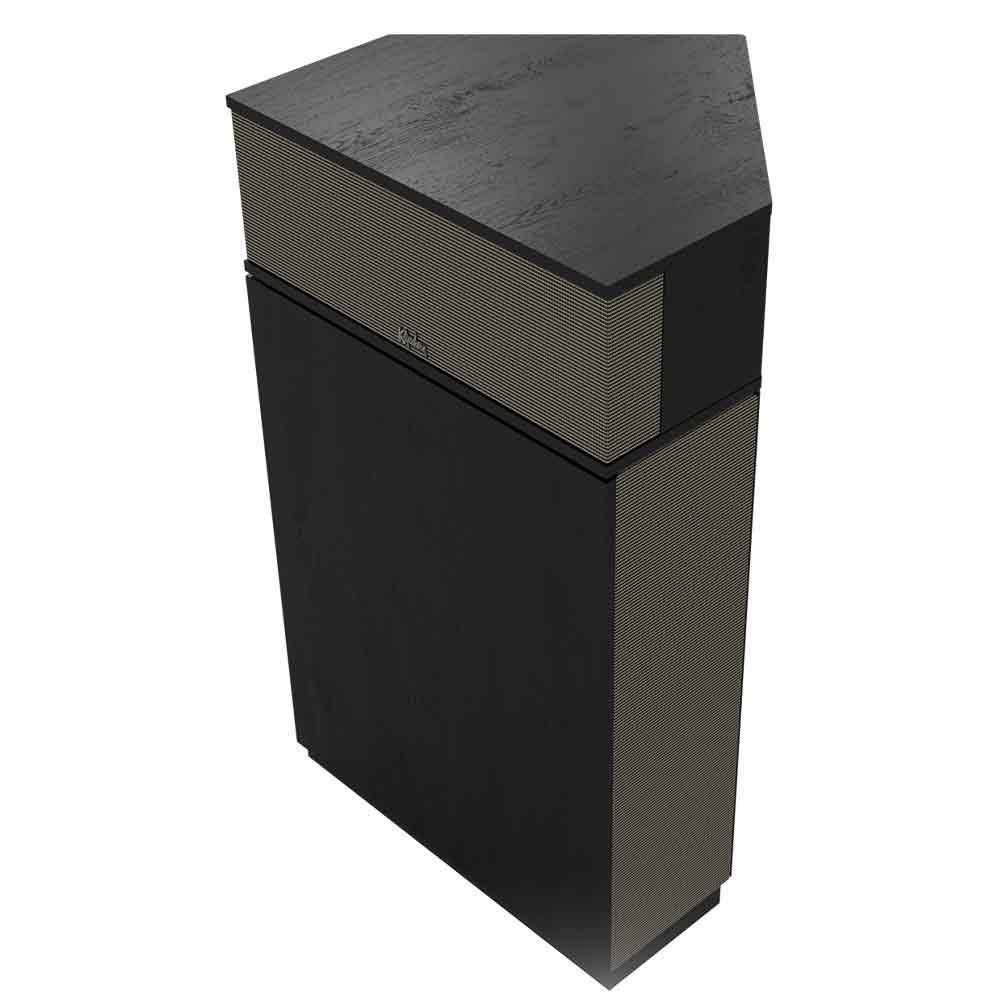

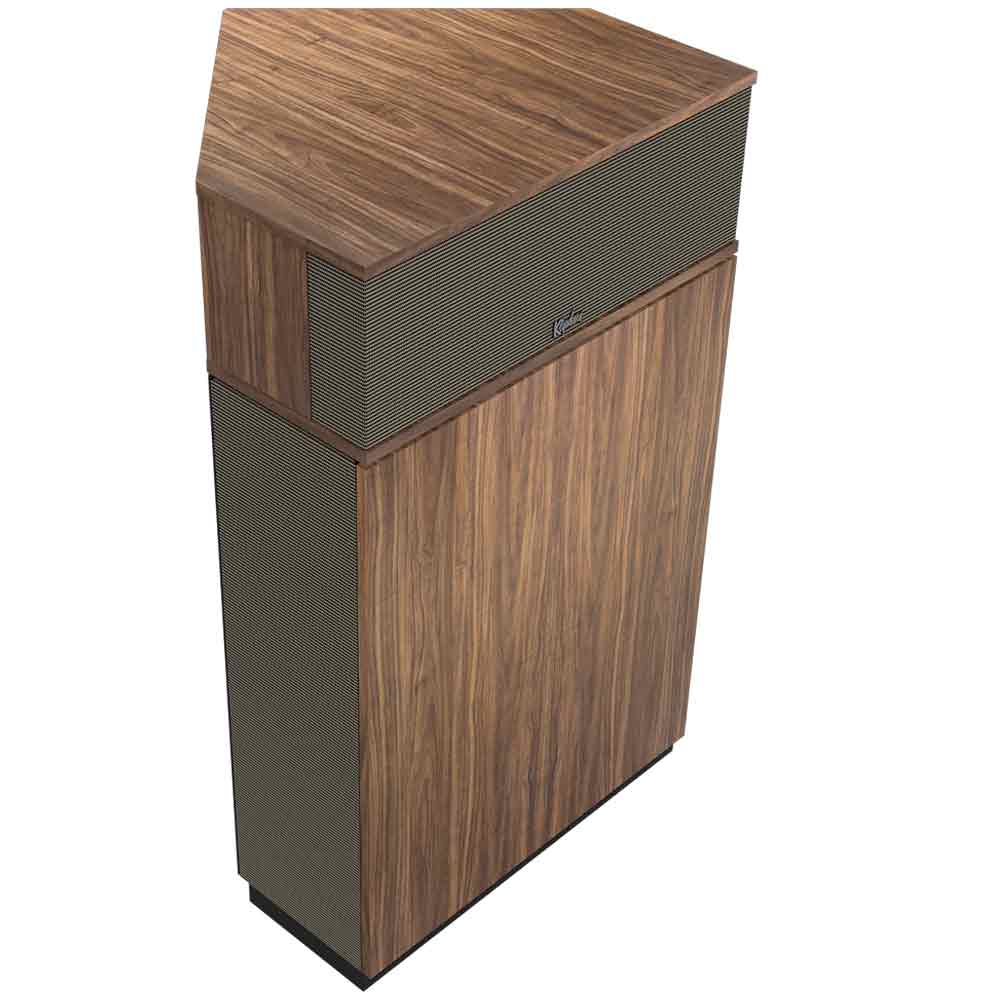

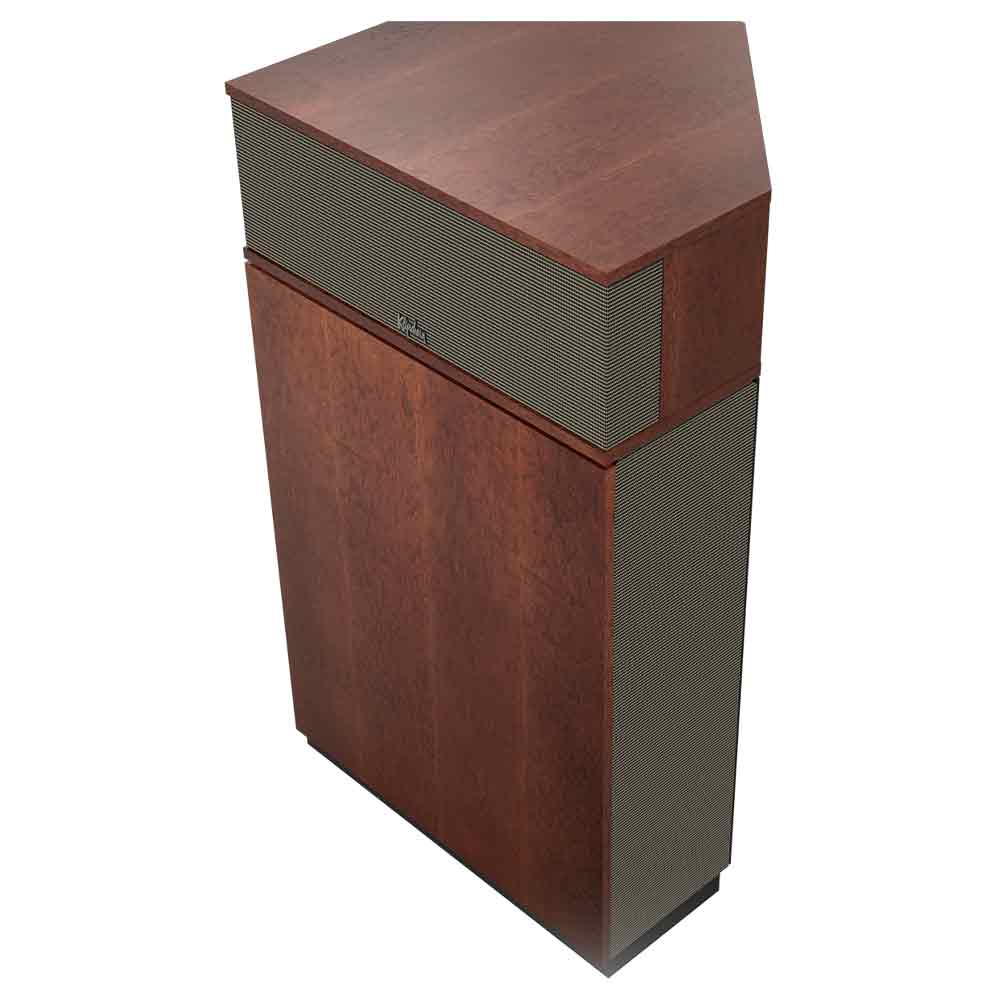

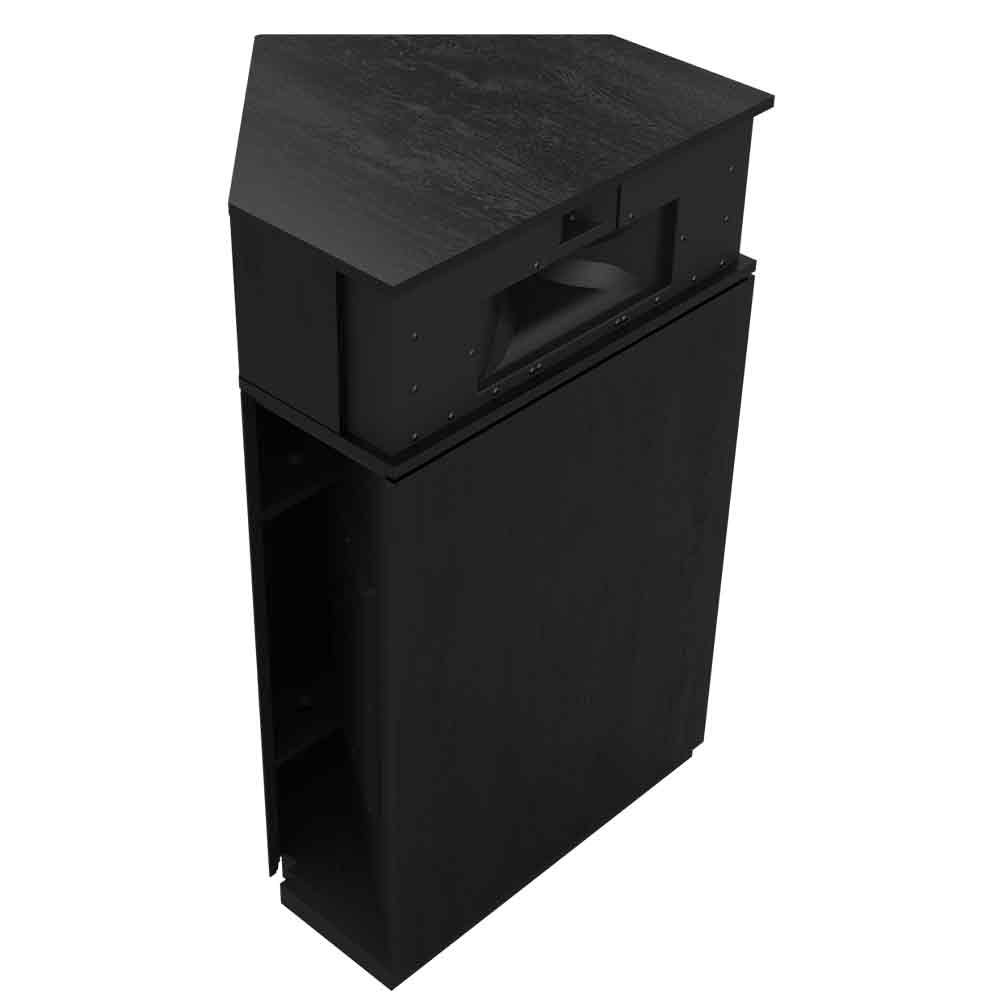

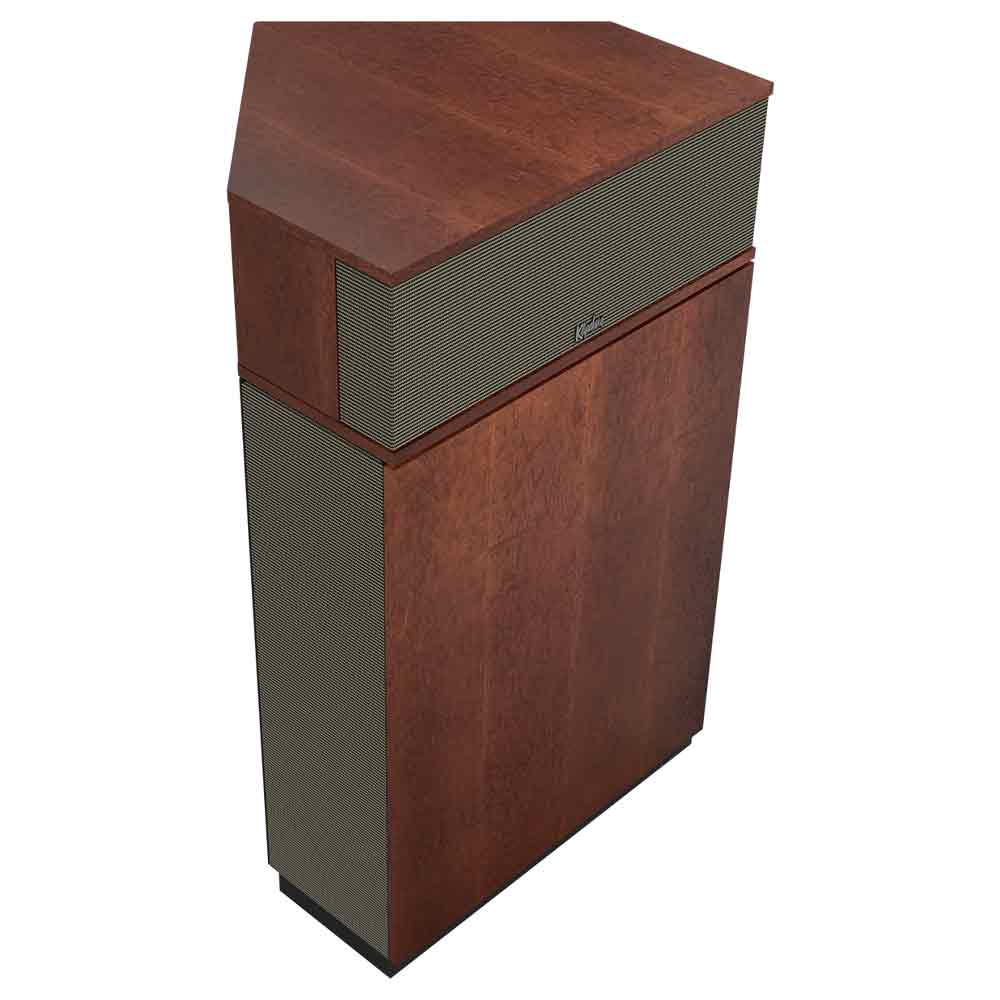

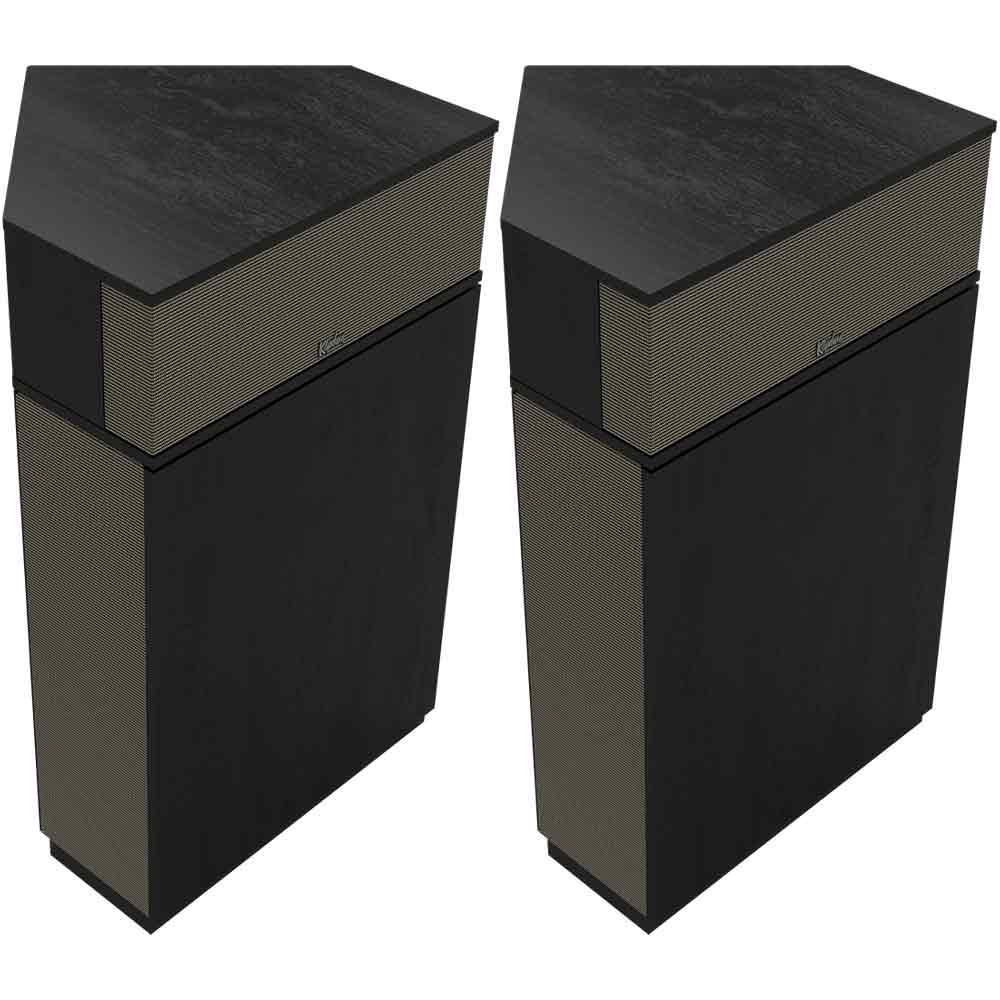

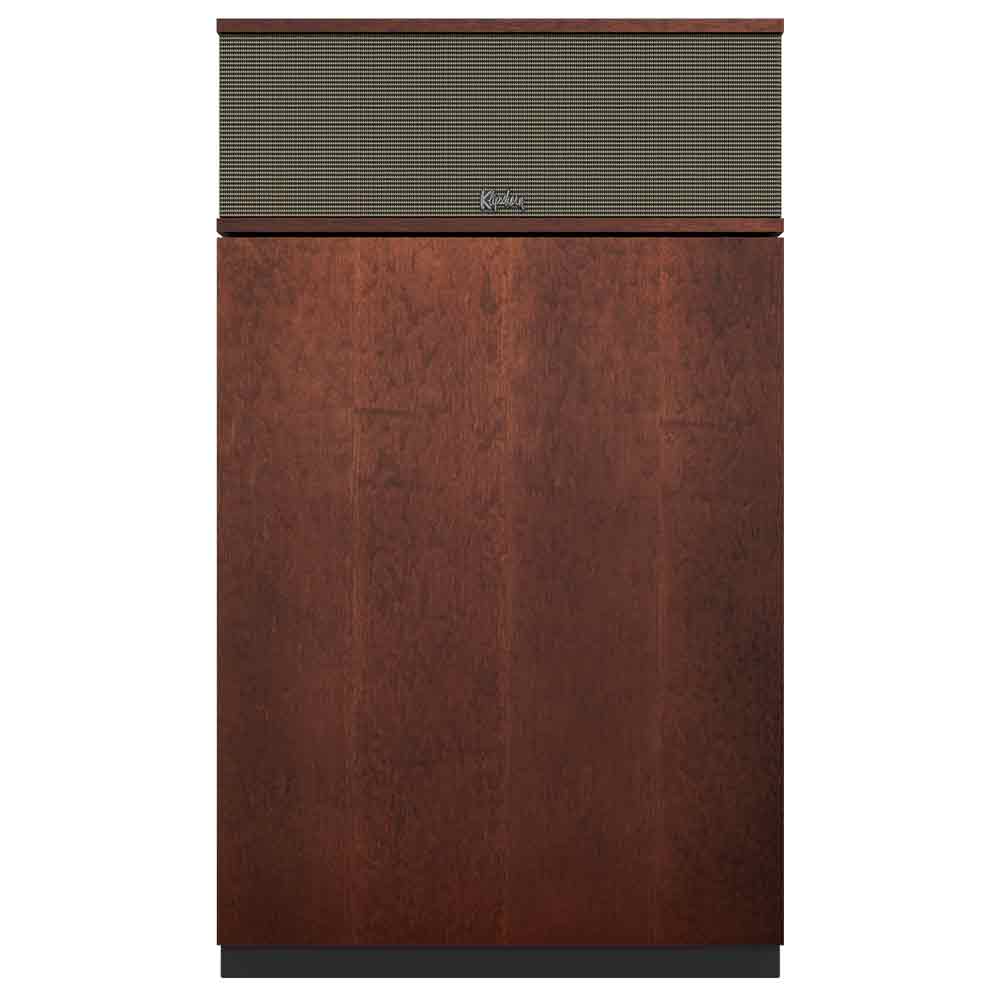

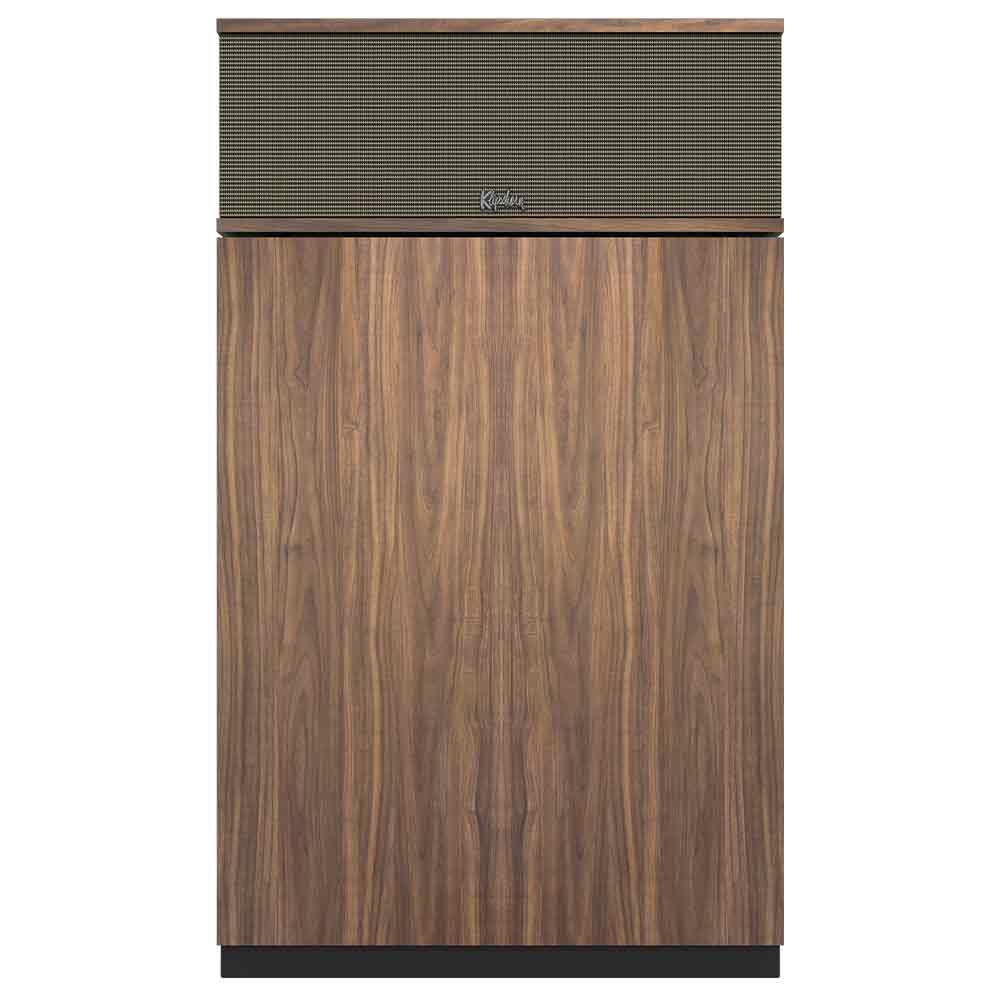

Book matched in 3 finishes

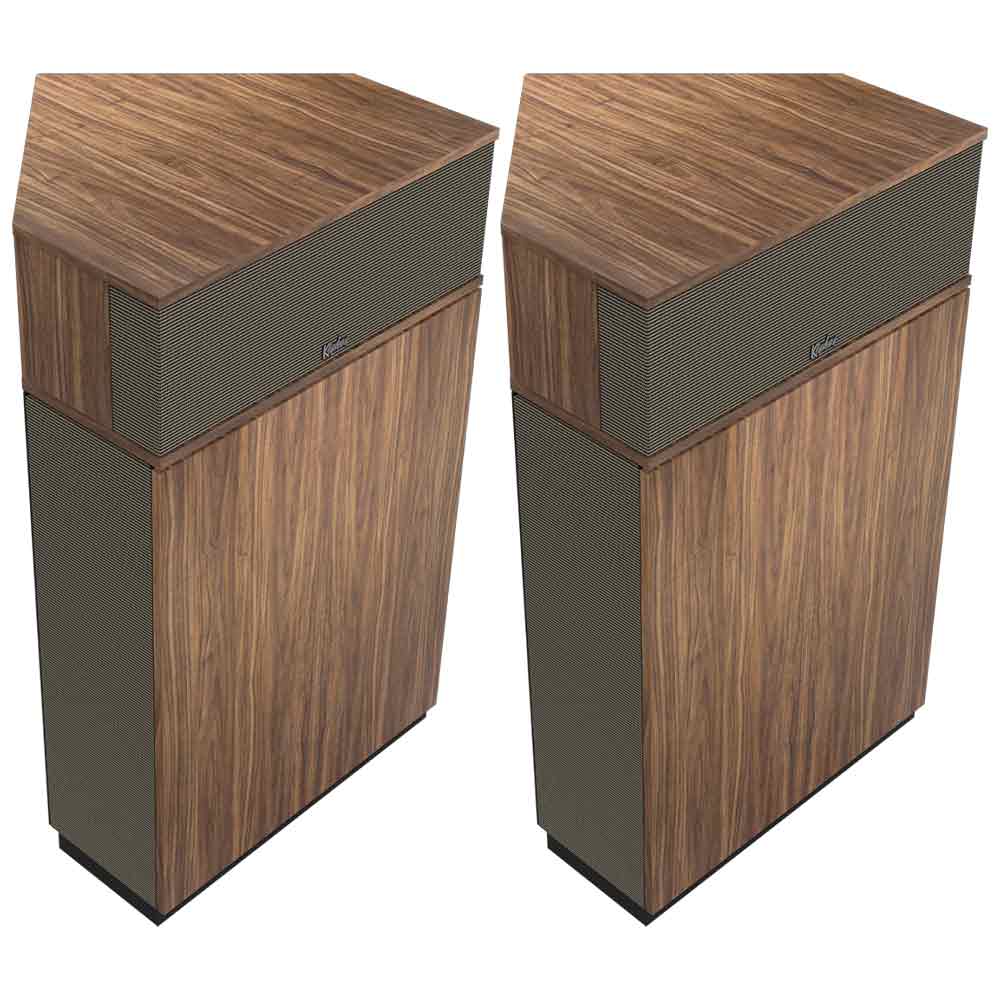

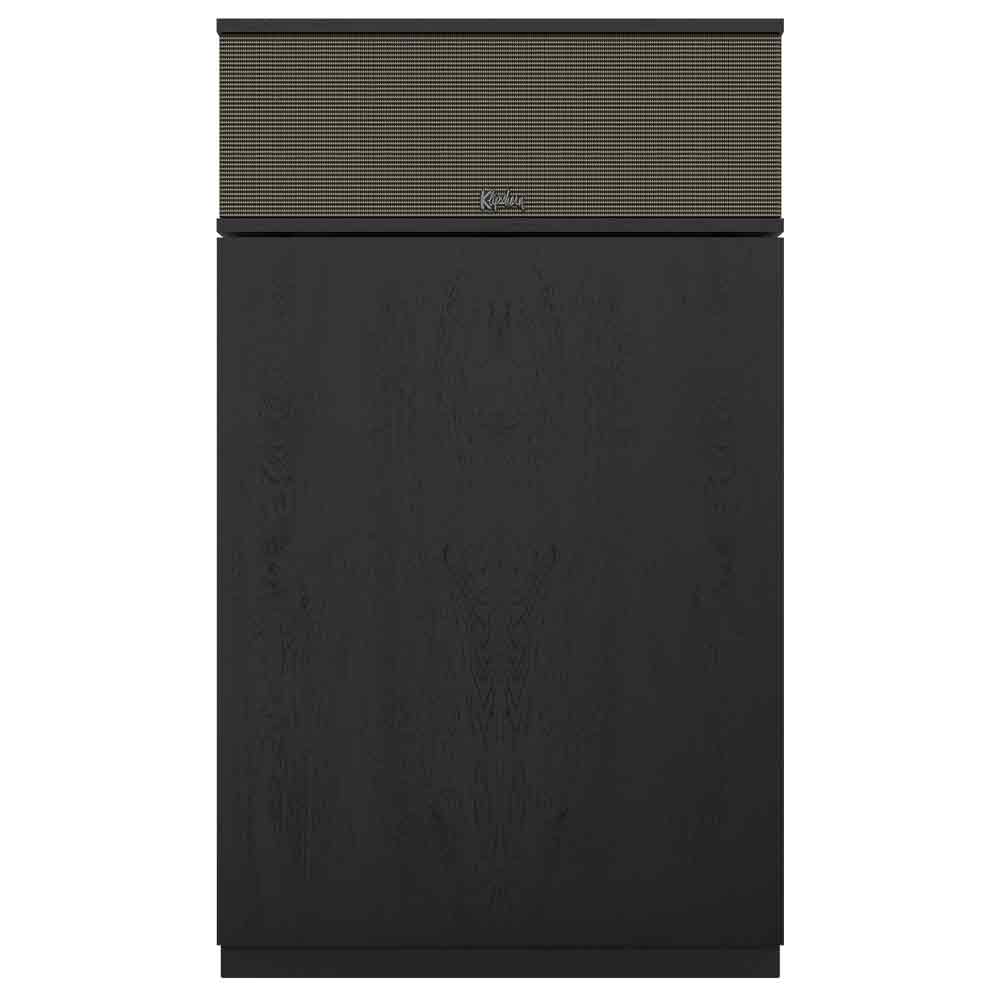

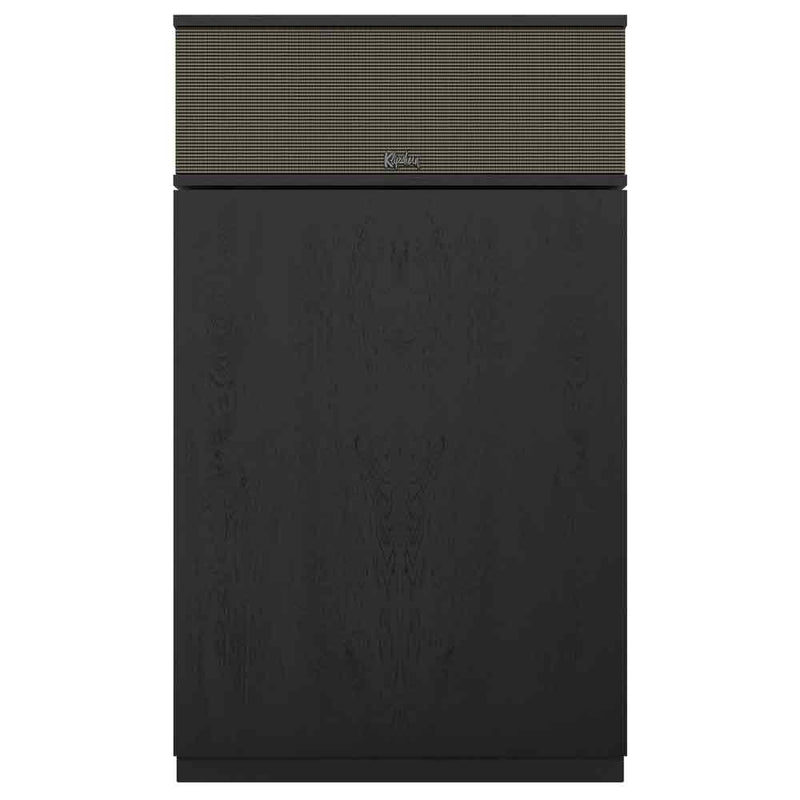

Each Heritage Series speaker features a natural wood, book-matched veneer in one of three finishes: American Walnut, American Auburn, and Black Ash.
What to expect in the box:
- Klipschorn AK7 Premium Fully Horn-Loaded Loudspeaker (Pair)
Product Details:
- FREQUENCY RESPONSE: 34Hz-19kHz (+/- 4 dB), 1/8 space anechoic
- SENSITIVITY: 103dB, Pink noise, 2.83V, 1m. 34 Hz-19kHz
- POWER HANDLING: (CONT/PEAK) 100W/400W
- MAXIMUM SPL: 120dB, pink noise, 1m, 20v, 34Hz-19kHz
- NOMINAL IMPEDANCE: 8 ohms, 4 ohm minimum at 50Hz
- CROSSOVER FREQUENCY: 380Hz, 2900Hz
- HIGH FREQUENCY DRIVER: K-771 compression driver with extended phase plug on a K-792 horn
- MIDRANGE: K-1133-HP 3” compression driver on a K-406 horn
- LOW FREQUENCY DRIVER: K-33-E 15” woofer in a fully horn loaded system
- ENCLOSURE MATERIAL: Veneered MDF, 1/2” plywood
- INPUTS: 5 way metal binding post
- HEIGHT: 53.25” (135.25cm)
- WIDTH: 31.5” (80cm)
- DEPTH: 28.125” (71.5cm)
- WEIGHT: 260lbs(118kg)
- FINISH: American Auburn, Black Ash, or American Walnut
- GRILLE CLOTH: Silver Metallic
- UTILIZES PATENTS: 11902738, 7686129
- ACTIVE NETWORK FREQUENCY RESPONSE: 34Hz-20kHz (+/- 2.5 dB), 1/8 space anechoic
