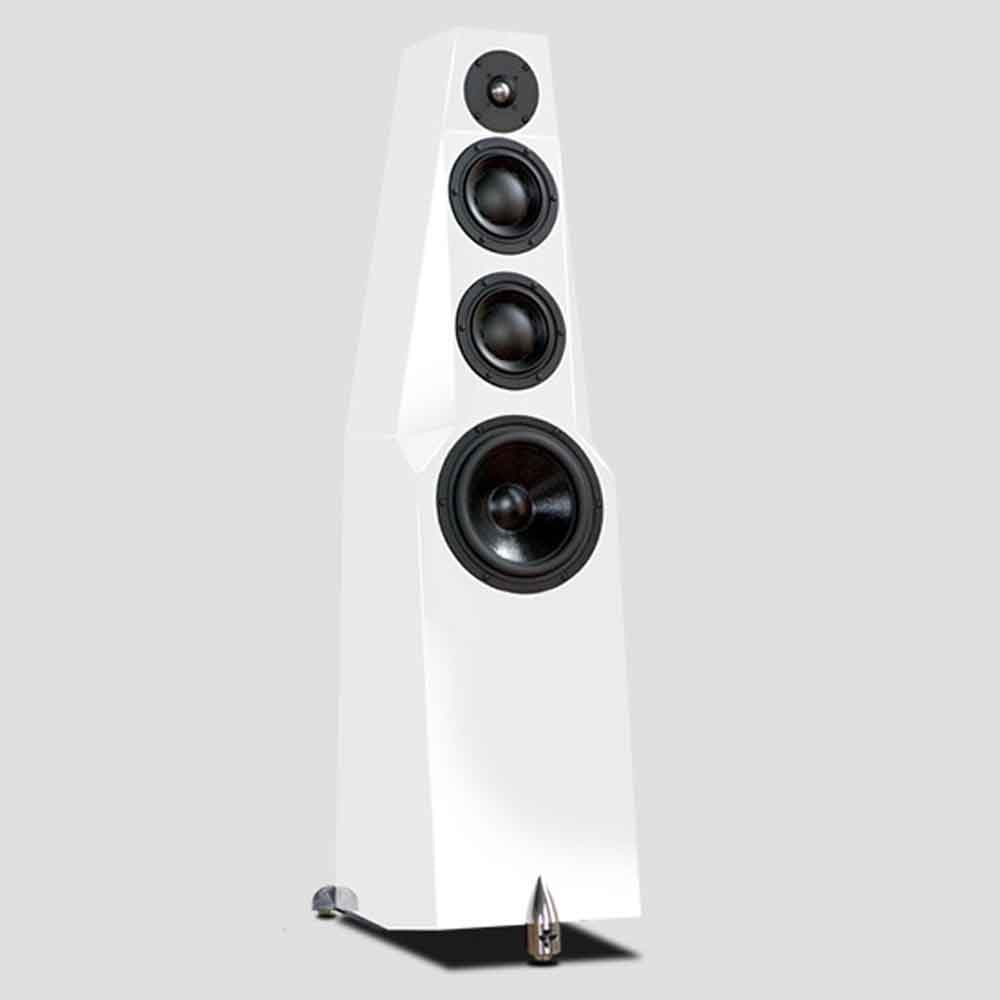

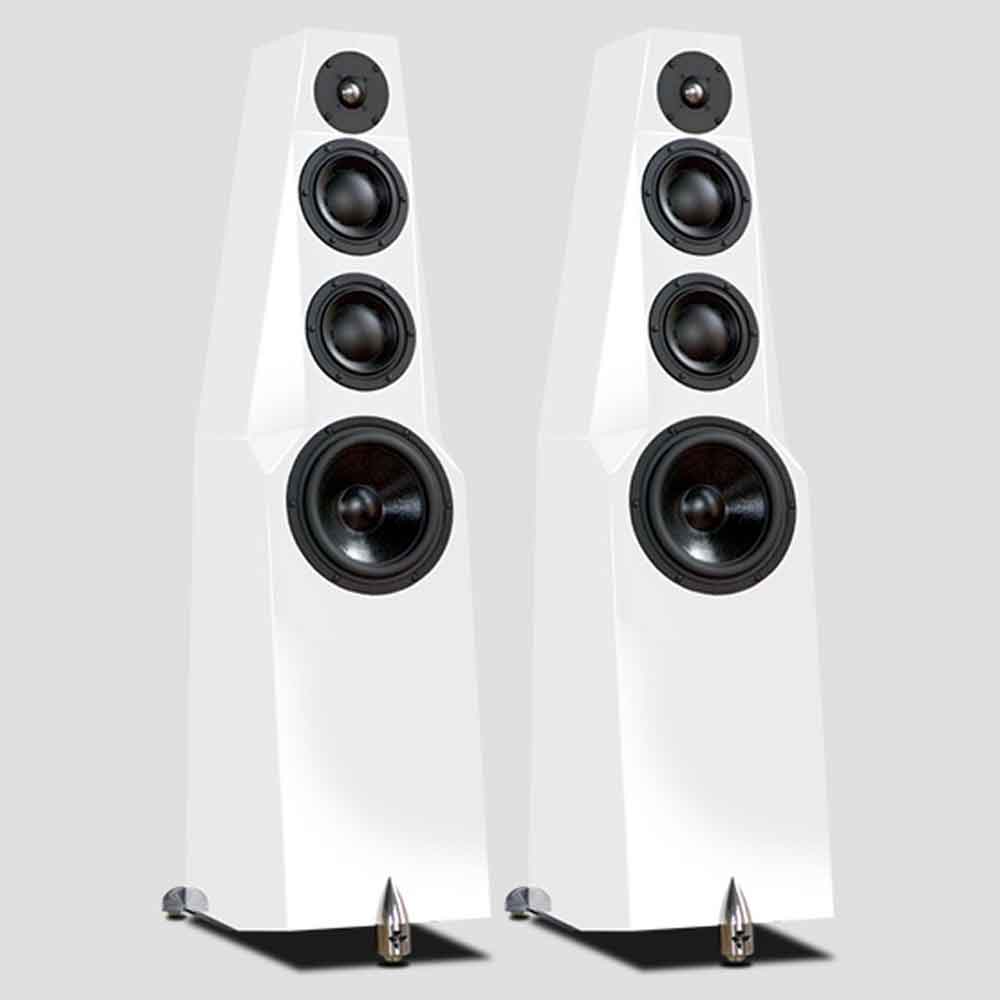

Totem Wind Design in Ice (Pair) - Totem
Blowing in the Wind
Going a step further than the original Wind Floorstanding, the Wind Design is refined to the highest sonic tolerances.
Designed like a musical instrument, the Wind Design delivers sonic expressivity to the absolute, pulling you inside the music.
Dressed for uncompromising musical renditions, the Wind Design’s six-layer multicoated finishes results in additional structural rigidity. The deep luster finish not only adds shine but also allows for a more cohesive acoustic behavior. At the base of the front baffle is a new articulating claw that is adjustable for slanting back the baffle for precise spatial alignment. The rear skid-plate decoupling system allows for additional spatial performance.
Customized Drivers
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to be kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.
Handmade Crossovers
Totem crossovers don’t require many parts because of the synergy between our customized drivers, but the components are the world’s best. Our crossovers aren’t built on PCB’s because the laminated conductive tracks are weak and inconsistent. Instead they are secured to a thin piece of fiberboard or insulated polymers and components are mechanically crimped together because it simply sounds better. When we must solder, we choose WBT Silver Solder, the purest in the industry.
Artisanal Cabinet Construction
Meticulously hand crafted for peak performance that lasts decades. Lock-Miter assembly is an intricate woodworking procedure where edges physically interlock together. The resulting cabinet is up to 5 times stronger than conventional V Groove cabinets. Internal and external veneering resists warping, structurally fortifies, and ensures consistent peak performance. Industry unique Borosilicate damping manages dissipation, keeps the cabinet musically alive, and never deteriorates. Popular materials like poly fillers eventually decay, dramatically affecting the performance. Variable Density Fiberboard is denser at the extremities than the interior to reduce repetitive nodes and resonances.
Connectors
Premium WBT connectors are the preferred choice by all audiophiles. WBT connectors lets the signal through without interfering or affecting it. Superior connectors like WBT connectors will prevent any signal loss and get the most out of the entire system.
Sound Isolation
The ultimate in decoupling and honing Totem speakers. This unique claw can be adjusted to modify the angle of the cabinet for optimal bass loading, phase/space articulation, and fine tuning the relationship between the speaker and environment. An aluminum plate including two formed feet at the base of the speaker eliminates resonances between the floor and speaker enclosure, perfecting bass response and soundstage dimensions.
What to expect in the box:
Product Details:
- Design Highlights
- Superior sonic architecture
- Complex cabinet geometry
- Absolute surreal holographic imaging
- Design 6-layer multicoated polyester design finishes
- Exclusive (4x) driver 3-way speaker system
- On- and off-axis point source imaging
- Specially damped, long-throw woofer
- Special low resonance tweeter with chamber
- Multiple midranges
- Extreme-quality hard-wired crossover
- Specifications
- Frequency Response: 24 Hz – 21 kHz ± 3 dB (in room)
- Recommended Power: 80 – 250 W
- Woofer: 8.5″ / 21.59 cm cast frame, specially damped.
- Midrange: 2×5.5″ with 3″ / 7.62 cm voice coil. Cast frame. High power handling, wrap around neo magnet structure, accurate linear throw
- Tweeter: 1″ / 2.54 cm alloy dome flexible linear suspension, low resonance, chamber
- Impedance: 4 ohms
- Sensitivity: 87 dB
- Dimensions (w x h x d): 10.7″ x 44.3″ x 14″ / 27.18 x 112.522 x 35.56 cm (over max. size)
- Placement from rear wall: 3′ – 7′ / 91.44 – 213.36 cm
- Placement distance apart: 6′ – 14′ / 182.88 – 426.72 cm
- Break-in Time: 200 – 250 hours
- Crossover Frequency: Woofer to mids, 2nd order / 2nd order, mids to tweets 2nd order 2nd order
- Speaker Terminals: Bi-wireable, Gold WBT connectors
- Weight: 74.8lb / 34kg
