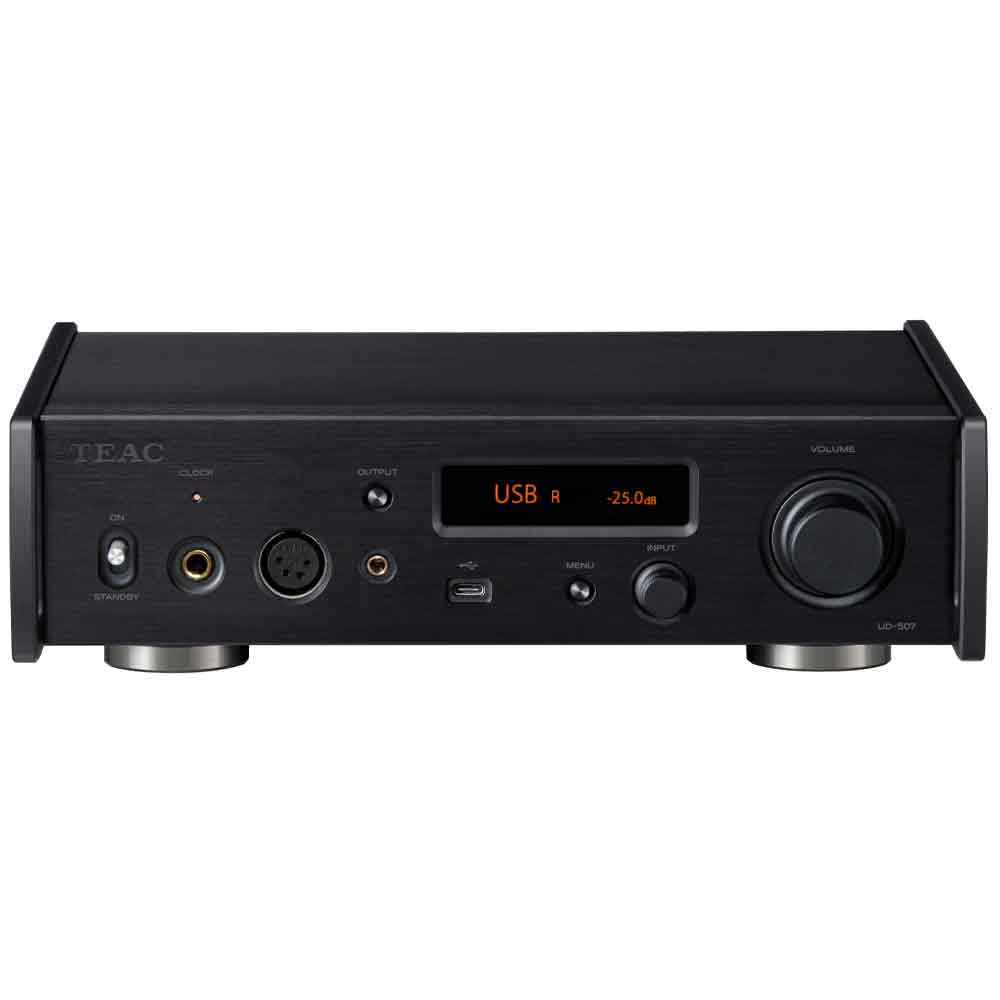

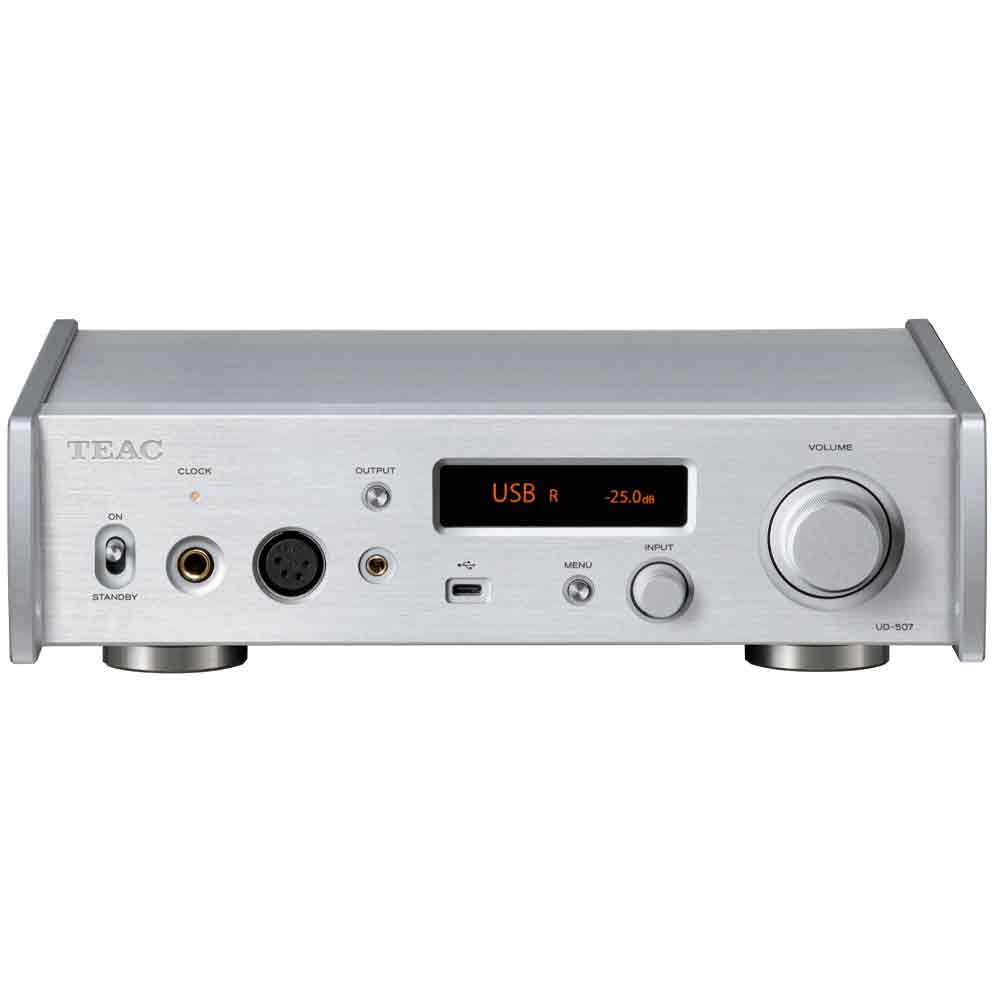

TEAC UD-507 USB DAC/Headphone Amplifier/Preamp - TEAC
Completely redesigned 500 Series DAC/Preamp/Headphone amplifier with high-end 700 Series design concept in a compact A4-size package.
The UD-507 is equipped with TEAC’s proprietary “TRDD 5” discrete DAC, designed with musicality as the top priority. Following in the footsteps of TEAC's acclaimed 701 series, the new “TRDD 5” discrete DAC offers a clear soundstage and accurate imaging, providing listeners with a truly immersive musical experience.
Fully Balanced Dual Monaural Headphone Amplifier
The UD-507 is a headphone amplifier featuring the TEAC-HCLD2 high current line driver, which is characterized by its high current supply capability.
Compared to the previous model, the maximum output power has been greatly improved by strengthening the power supply, resulting in a generous driving power of 1,200mW + 1,200mW (balanced output at 100 ohm load), which is comparable to a dedicated headphone amplifier without DAC. The power amplifier gain can be switched between 3 positions (Low/Mid/High) to fine-tune the output to best match the sensitivity and impedance of the headphones.
High-Quality Preamplifier with Multiple Analog/Digital Inputs
The UD-507 incorporates the TEAC-QVCS high precision analog volume attenuator and the powerful TEAC-HCLD2 high current line buffer circuit.
With five digital inputs and two analog inputs (unbalanced and balanced), a wide variety of devices can be connected.
What to expect in the box:
- UD-507 USB DAC/Headphone Amplifier/Preamp
- Power cord
- Remote control (RC-1334)
- AAA Batteries for remote control × 2
- feet cushions × 3
- Owner's Manual (with warranty)
Product Details:
- Supported formats
- USB input: 16/24/32 bit
- PCM: 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k Hz
- DSD: 2.8M/5.6M/11.2M/22.5M Hz
- Coaxial digital input
- PCM: 16/24 bit, 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
- DSD: 2.8MHz (supported with 176.4kHz/24-bit DoP format)
- Optical digital input
- PCM: 16/24 bit, 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
- DSD: 2.8MHz (supported with 176.4kHz/24-bit DoP format)
- DAC section
- USB DAC: In-house designed Discrete DAC TRDD5
- Up-conversion: up to 384kHz/32-bit PCM, 22.5MHz DSD

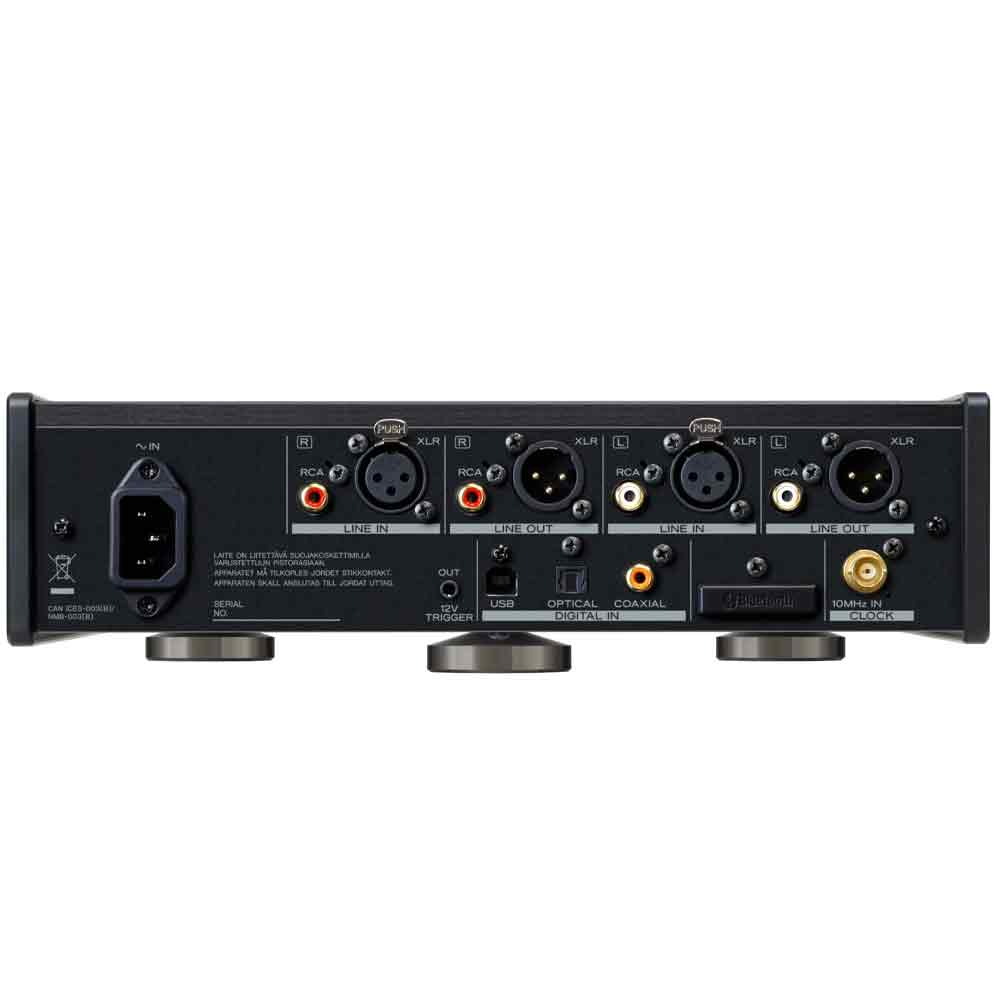

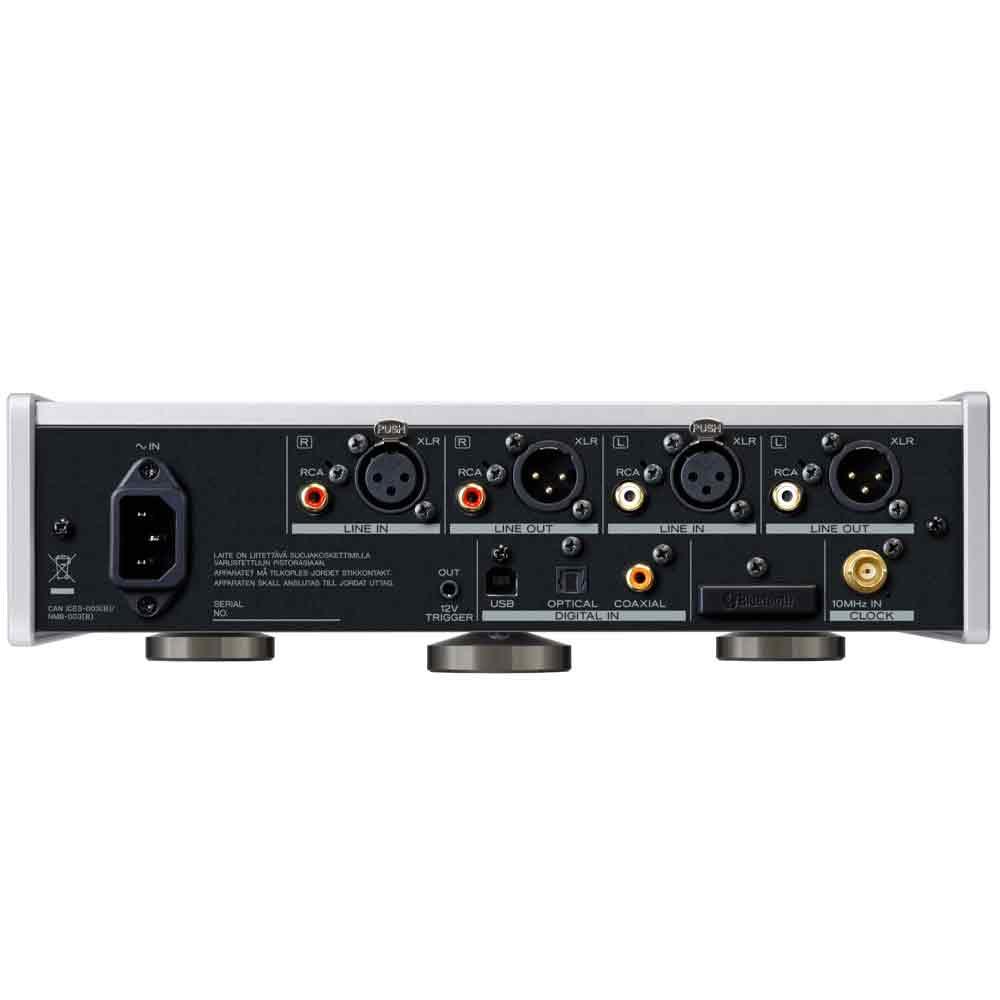

- Audio inputs
- USB
- USB Type-C port × 1
- USB Type-B port × 1
- USB version: 2.0
- Transfer Mode: Asynchronous mode transfer, Bulk Pet
- Compatible Software: TEAC HR Audio Player (Windows, Macintosh)
- COAXIAL digital (rear): RCA pin ×1 (gold-plated)
- Input level: 0.5Vp-p
- Input impedance: 75Ω
- Optical digital (rear): TOS-link ×1
- Input level: -24.0 to -14.5dBm peak
- Analog (Balanced): XLR ×1 pair (gold-plated)
- Input impedance: 50kΩ
- Input sensitivity: 5Vrms
- Analog (Unbalanced): RCA pin ×1 pair (gold-plated)
- Input impedance: 24kΩ
- Input sensitivity: 2.5Vrms
- Bluetooth®
- Bluetooth® version: 4.2
- Output class: Class2 (Range: approx. 33ft/10m)
- Supported profiles: A2DP, AVRCP
- Content protection: SCMS-T
- Supported codec: LDAC™, LHDC, Qualcomm® aptX™ HD, aptX™, AAC, SBC
- No. of paired device: maximum 8 devices
- No. of multipoint connection device: maximum 2 devices
- Audio outputs
- XLR balanced: XLR ×1 pair (gold-plated)
- Maximum output level: 1kHz, full scale, into 10kΩ
- 0dB setting: 2.0Vrms
- +6dB setting: 4.0Vrms
- Output impedance: 40Ω
- RCA unbalanced: RCA pin ×1 pair (gold-plated)
- Maximum output level: 1kHz, full scale, into 10kΩ
- 0dB setting: 2.0Vrms
- Output impedance: 20Ω
- Headphone outputs
- Connector 1: 1/4” (6.3mm) TRS stereo jacks × 1 (gold-plated)
- Connector 2: XLR 4pin jack ×1 (gold-plated)
- Connector 3: 4.4mm 5-pole Pentaconn jack ×1 (gold-plated)
- Maximum output
- Balanced: 1200mW + 1200mW (into 100Ω)
- Active Ground: 900mW + 900mW (into 32Ω)
- Unbalanced: 900mW + 900mW (into 32Ω)
- Supported impedances: 16 to 600Ω
- Clock section
- External clock input
- Connector: BNC (gold-plated)
- Input frequency: 10MHz
- Input impedance: 50Ω
- Input level: Rectangle wave: equivalent to TTL levels, Sine wave: 0.5 to 1.0 Vrms
- MISC
- Black Version UPC: 043774036172
- Silver Version UPC: 043774036189
- External control
- 12V Trigger out
- Connector: 3.5mm Monaural Mini jack × 1
- Output level: 12V
- Max. current supply: 100mA
- Audio performance: 192kHz/24bit PCM input, RCA output, DAC mode MULTIBIT
- Frequency Response: 5Hz to 70kHz (+1/–6 dB)
- Total harmonic distortion: 0.01% or less (1kHz, LPF: 20Hz to 20kHz)
- S/N ratio: 105dB or higher (A-weight, 1kHz)
- Power supply
- US/Canada: AC 120V 60Hz
- UK/Europe: AC 220 to 240V 50Hz
- Power consumption: 18W (0.4W in standby)
- Dimensions (including protrusions): 290(W)×85(H)×249 (D) mm / 11.4”(W)×3.3”(H)×9.8”(D)
- Weight: 4.9kg / 10.8lbs
