SVS Ultra Elevation Loudspeakers (Pair)

SVS Ultra Elevation Loudspeakers (Pair) - SVS

The Culmination of Sonic Obsession.
When SVS first launched the Prime Elevation speaker, it turned the home theater world on its ear by delivering a direct radiating Dolby Atmos height effects speaker that vastly outperformed any of the conventional “ceiling bounce” models and in-wall speakers. Since that time many brands tried to copy the approach, but none could deliver the total package of performance and versatility. For this reason, it emerged as one of the most popular home theater speakers in the world paired with all different brands.

Ultra Elevation is a larger, higher fidelity version that unleashes greater dynamic output and deeper low frequency extension. It uses the same multi-angle mounting hardware for the ceiling and wall. Ultra Elevation is an ideal speaker for Dolby Atmos or home theater surround sound channels, especially when placement options aren't perfect.

An angled front baffle, diamond coated aluminum dome tweeters, multi-angle mounting bracket, and other advancements embody the uncompromising approach to speaker design.

These innovations are brought to life with painstaking anechoic and real-world voicing. This final bit of artistry place Ultra Elevation among the finest sounding home theater speakers ever developed.

The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Elevation deeply connects you to the emotion of sound.

Diamond Coated Aluminum Dome Tweeter
Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”

The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

Optimized Angled Front Baffle
Designed for optimal acoustics and dispersion qualities whether used in down-firing, side-firing, or up-firing array.

5.25" Glass Fiber Composite Mid-Woofer
Superb stiffness to mass ratio renders stunning midrange dynamics with flawless tonal accuracy, and deep, accurate bass.

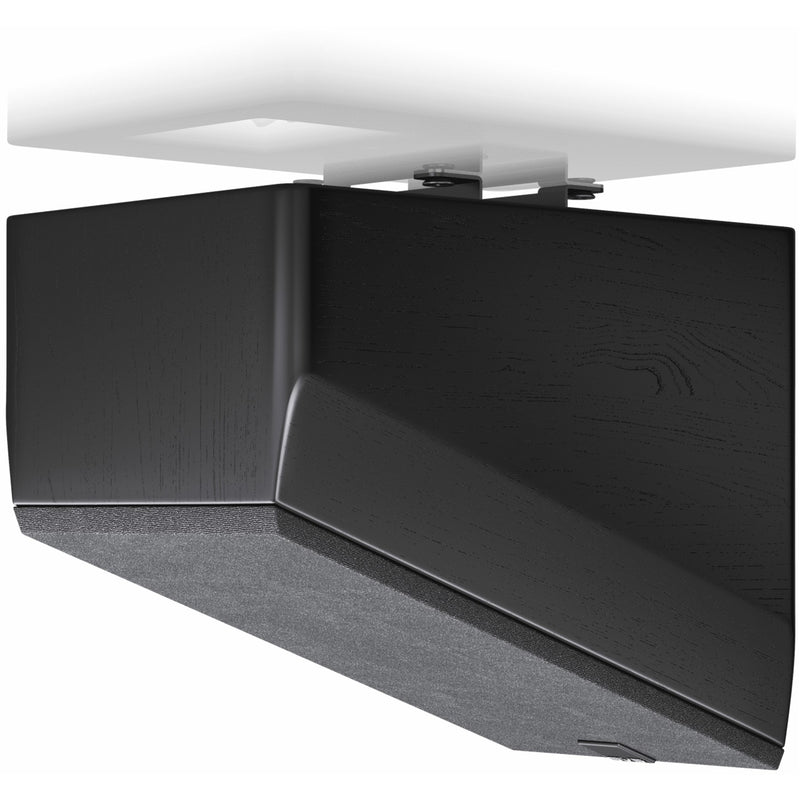

Versatile Placement with Multi-Angle Wall/Ceiling Mount
Ultra Elevation offers unlimited placement options in a room.
Easy mounting to the wall or ceiling with included Multi-Angle Wall Bracket enables installation overheard or directly to a wall in an up-, down-, or side-firing position.

Ideal solution for Dolby Atmos height effects and side/rear/back surrounds

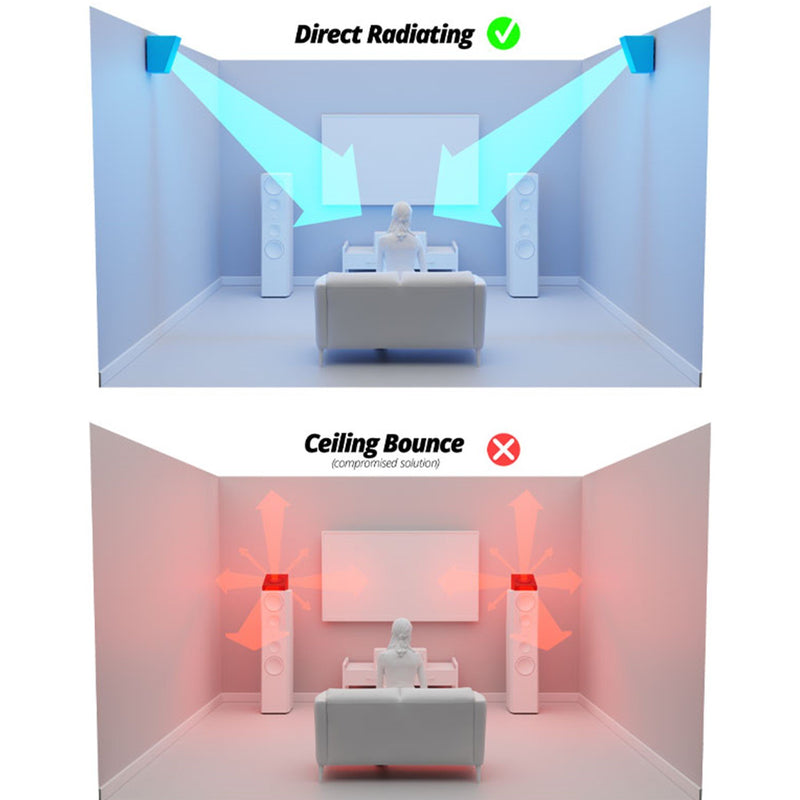

Superior Solution to “Ceiling Bounce” Dolby Atmos Speakers
The conventional approach to Dolby Atmos speakers, bouncing sound off the ceiling from below, requires perfect room conditions and frequency response limiting of the speaker.

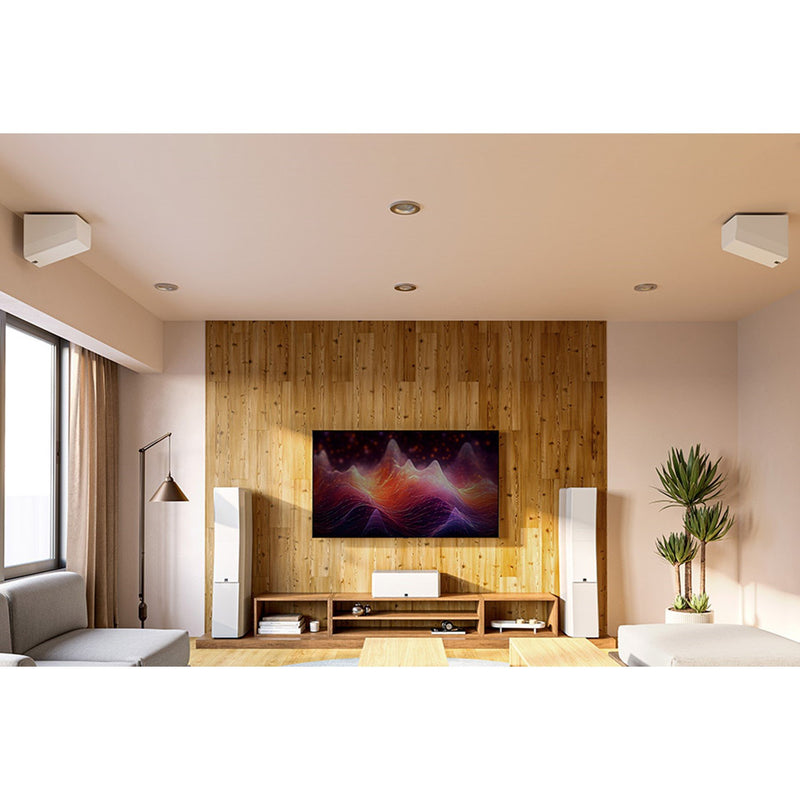

By placing Ultra Elevation on the ceiling or high on a side, front, or rear wall; height effects can be enjoyed at full fidelity in any room, without the compromises of ceiling bounce or in-ceiling speakers.

Unrelenting Attention to Detail
Acoustically tuned enclosure optimizes low frequency tuning and eliminates any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum.

Uncompromising 2-Way crossover with premium components seamlessly blends driver output. Subtle musical details are rendered with breathtaking clarity, while massive dynamics radiate with weight and control.
Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Chamfered front baffle minimizes edge diffraction for optimal off-axis frequency response.

Neodymium magnetic grilles

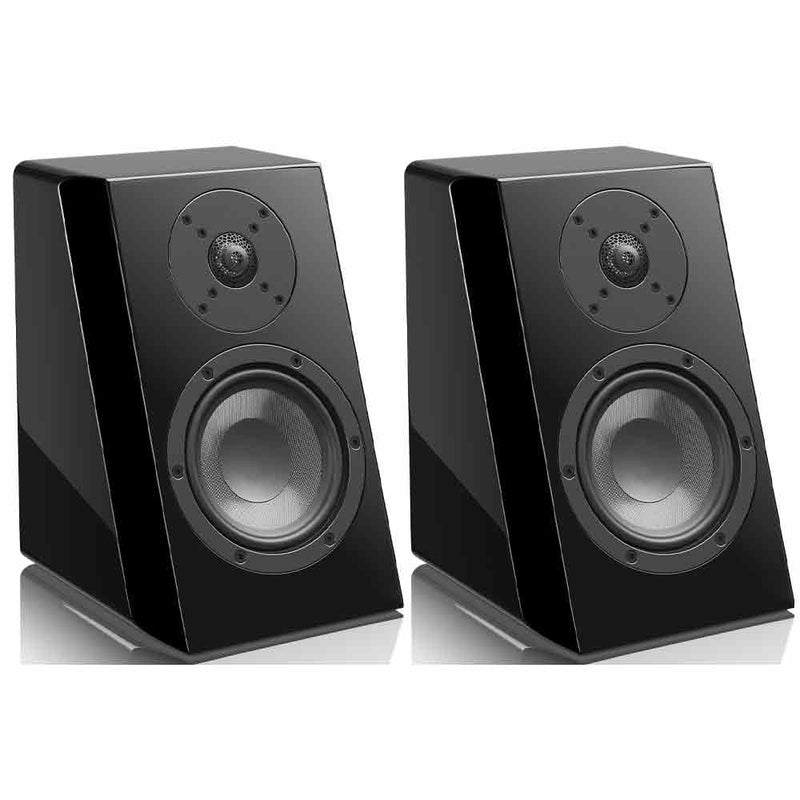

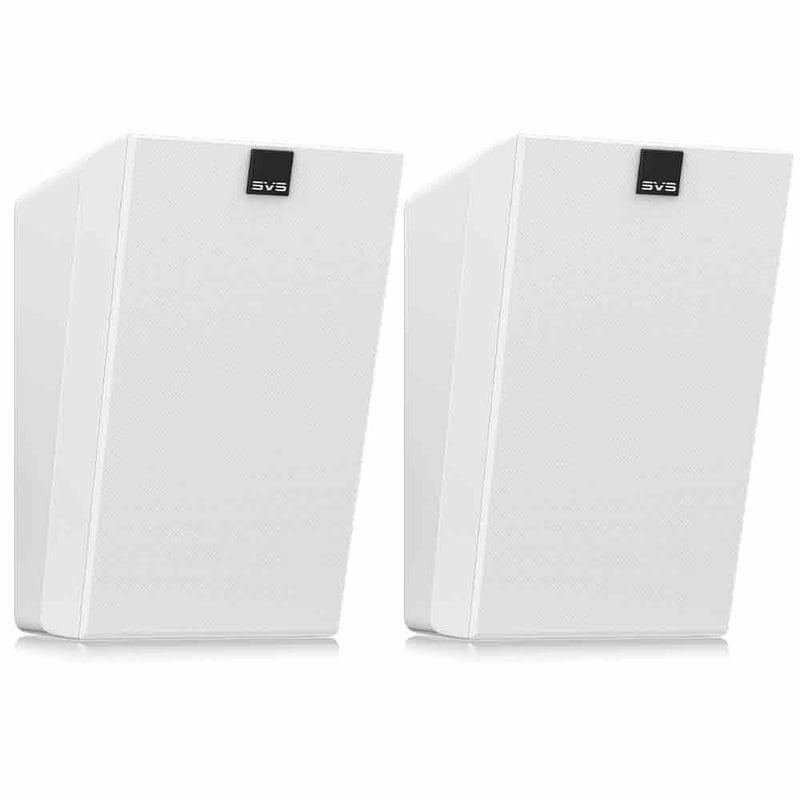

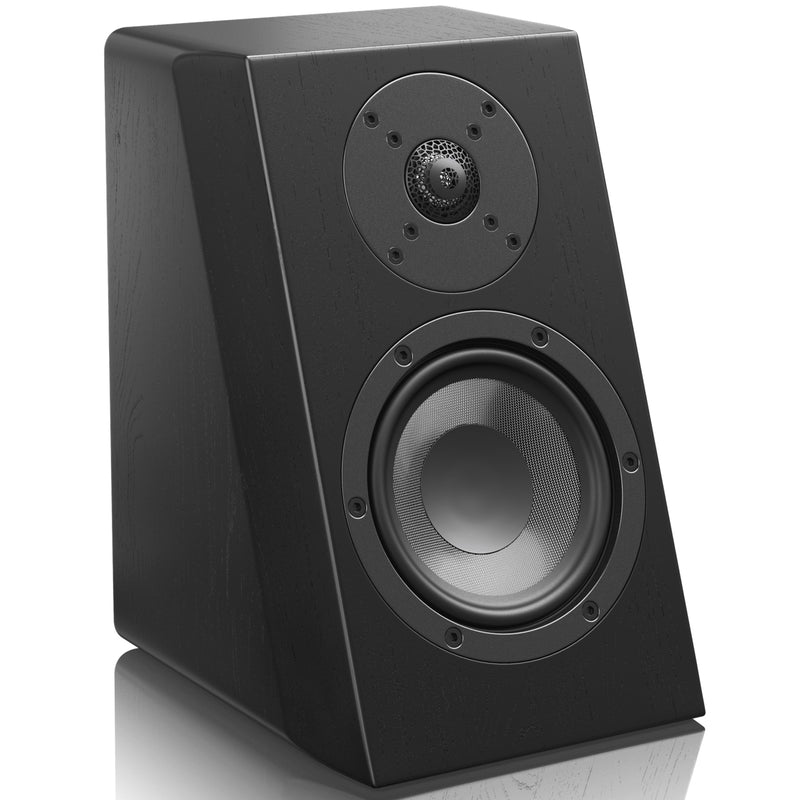

Stunning Piano Gloss Black, Piano Gloss White, and Black Oak Veneer Finish

Product Details:

Frequency Response / Acoustic Data:

• Frequency Response: 48Hz to 40kHz (+/-3 dB)
• Nominal Impedance: 6 ohms
• Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
• Recommended amplifier power: 20 – 150 watts

Speaker Specs:

• Piano gloss black, piano gloss white, real black oak veneer
• Gold-plated 5-way binding posts
• 1.4” wide-flared rear-firing ports

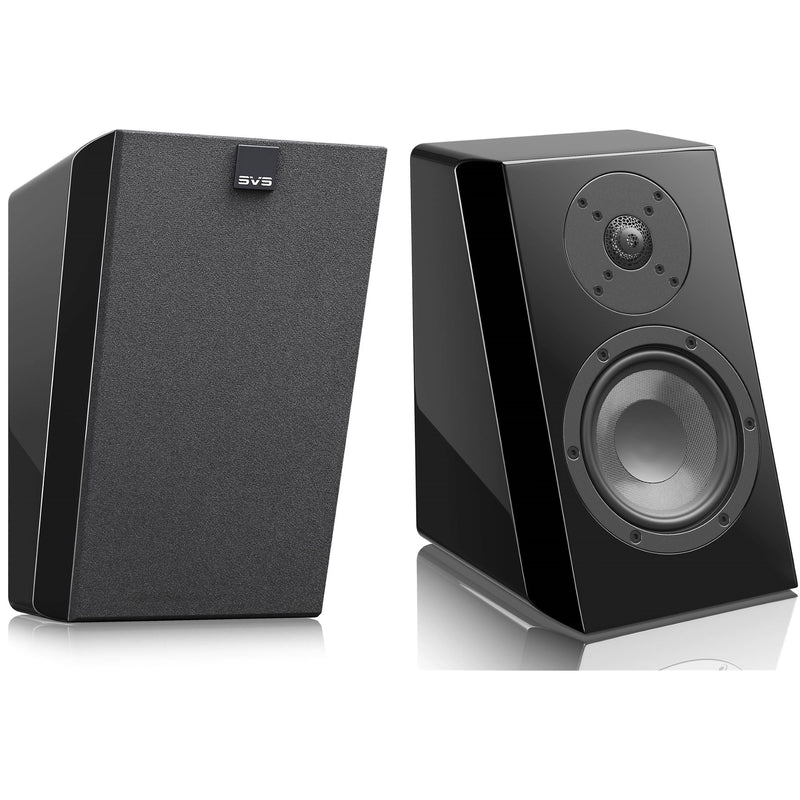

• Cloth grille with magnetic retention system
• Adjustable magnetic SVS Logo on grille which can be oriented according to speaker application
• Elastomer stick-on bumper feet
• Multi-Angle Mounting Bracket system the allows speaker to be hung on a wall or ceiling.
• Magnetic ceiling mount lock included.
• 1/4” brass insert for use with included SVS Multi-Angle Mounting Bracket and other mounting systems.
• Cabinet Dimensions: 11.14” (H) x 7.28” (W) x 8.79” (D) / 283mm (H) x 185mm (W) x 223.2mm (D)
• Overall Dimensions: 11.3” (H) x 7.28” (W) x 9.17” (D) / 287mm (H) x 185mm (W) x 233mm (D) (includes grille, feet, and binding posts)
• Overall Dimensions: 11.14” (H) x 7.28” (W) x 9.82” (D) / 283mm (H) x 185mm (W) x 249.4mm (D) (includes grille and SVS Multi-Angle Mounting Bracket)
• Shipped Dimensions (Pair): 11.6” (H) x 20.9” (W) x 15” (D) / 295mm (H) x 532mm (W) x 381mm (D)
• Weight Packaged Pair: 27.8 pounds / 12.6 kgs
• Weight Unboxed Each: 12.3 pounds / 5.6 kgs

Driver Specs:

• 1” Diamond Coated Tweeter
• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
• Cutting-edge vapor-deposition grows a hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
• Silver tinsel for optimal signal transfer and power handling.

5.25” Mid-Woofer

• Long stroke motor and suspension for high output.
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band.
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover Specs:

• 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
• Tweeter-to-Woofer crossover: 1.9 kHz

Cabinet Specs:

• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
• Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
• FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
• Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
• Black Ash Version UPC: 850029050858
• Piano Gloss Black Version UPC: 850029050841
• Piano Gloss White Version UPC: 850029050834

What to expect in the box:

• Ultra Elevation Loudspeakers (Pair)
• Multi-Angle Wall Bracket
