Reference Rogue Audio Tube Power with Dedicated Monoblock Architecture

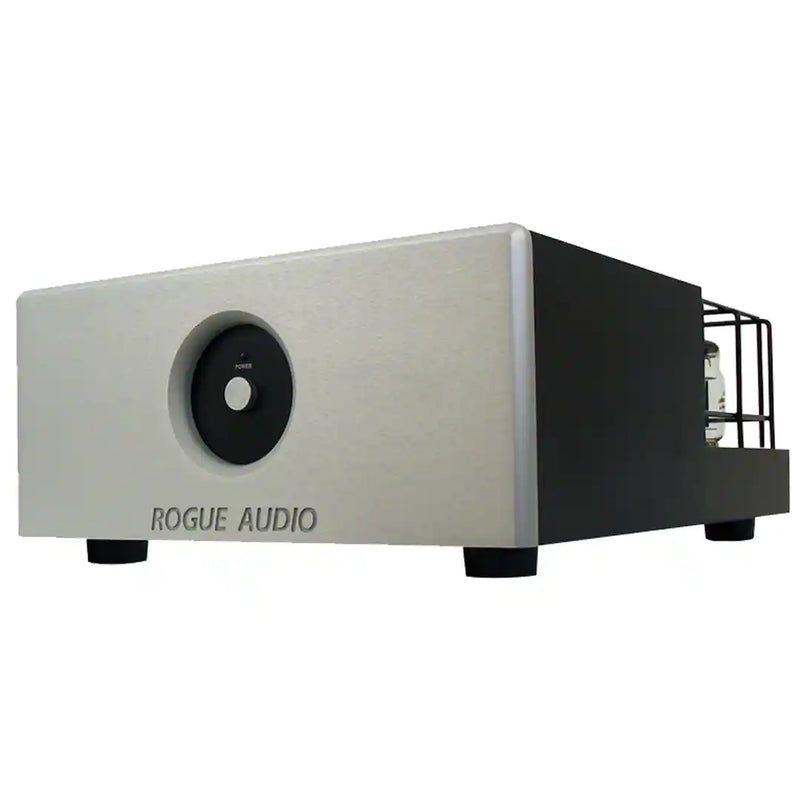

The Rogue Audio M-180 Dark Monoblock Amplifier (Pair) combines the authority of 180 watts of vacuum-tube power per channel with the isolation and dedicated power reserves of true monoblock construction. Each amplifier uses four KT88 output tubes, two 12AU7 driver tubes and one 12AX7 input tube, allowing the pair to deliver large-scale dynamics, expansive imaging and natural tonal richness while maintaining the control required by demanding high-performance loudspeakers.
The Dark version takes the proven M-180 architecture further with premium component and power-supply upgrades intended to increase transparency, transient response and resolution. Balanced XLR and single-ended RCA inputs, selectable Ultralinear and Triode operation, separate 4- and 8-ohm output taps, mechanically isolated transformers and integral bias meters make the M-180 Dark equally suited to meticulously tuned audiophile systems and high-output reference listening rooms.
Highlights & Benefits
-
180 Watts per Monoblock — Each amplifier delivers substantial pure tube power for realistic dynamics, wide headroom and authoritative loudspeaker control.
-
Premium Dark Edition Upgrades — Enhanced power-supply, signal-path and connection components refine transparency, dynamics and low-level detail beyond the standard M-180 platform.
-
Selectable Ultralinear / Triode Operation — Choose Ultralinear mode for maximum power and grip or Triode mode for a smoother, more intimate presentation.
-
Balanced and Single-Ended Inputs — True balanced XLR and RCA inputs provide flexible integration with a wide variety of high-end preamplifiers.
-
Dedicated Monoblock Power Supplies — Separate chassis, transformers and power supplies for the left and right channels maximize channel separation and eliminate shared-channel power-supply interaction.
Technology & Design
Apollo-Derived Tube Circuitry — The Rogue Audio M-180 Dark Monoblock Amplifier (Pair) uses circuitry derived from Rogue Audio's higher-level monoblock designs. Each chassis operates as a completely independent amplifier with its own power supply, tube complement and output transformer.
Massive High-Storage Power Supply — Each monoblock incorporates its own high-capacity linear power supply to provide the reserve energy required for demanding musical transients. The Dark specification further upgrades critical power-supply components to improve dynamics and recovery during complex passages.
Ultralinear and Pure Triode Modes — An external selector allows the amplifier to operate in either Ultralinear or Triode mode. Ultralinear provides the M-180's maximum rated output and stronger low-frequency control, while Triode operation reduces power in exchange for a softer, more relaxed presentation.

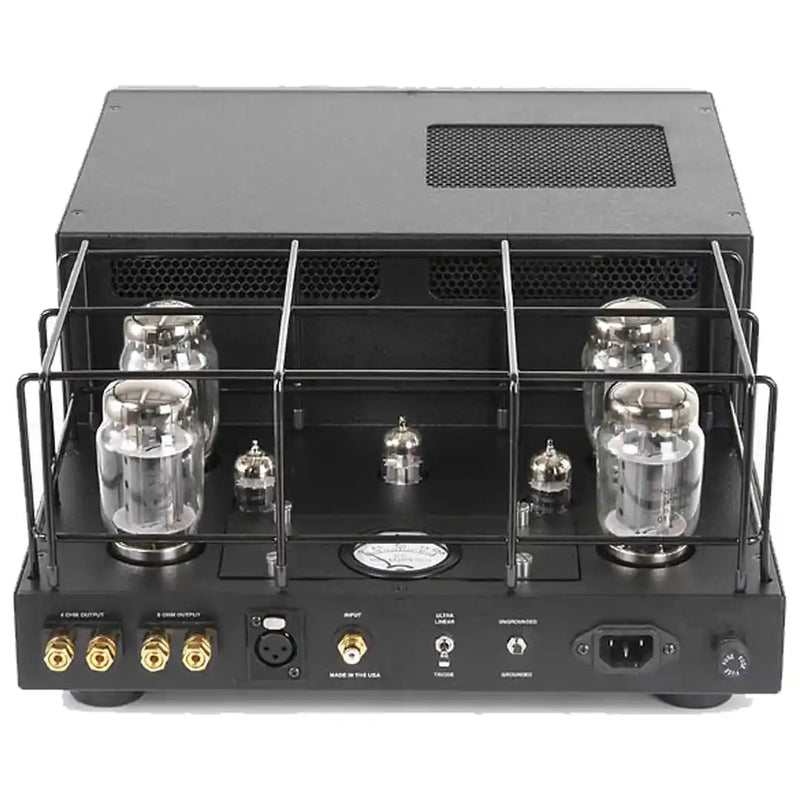

Mechanically Isolated Transformers — Ultra-wide-bandwidth output transformers and power transformers are mechanically isolated from the chassis to reduce transmitted vibration. Heavy two-ounce copper circuit boards, precision components, premium connectors and a welded-wire tube cage complete the amplifier's substantial construction.
FAQ — Rogue Audio M-180 Dark Monoblocks
Is this listing for one M-180 Dark or a pair?

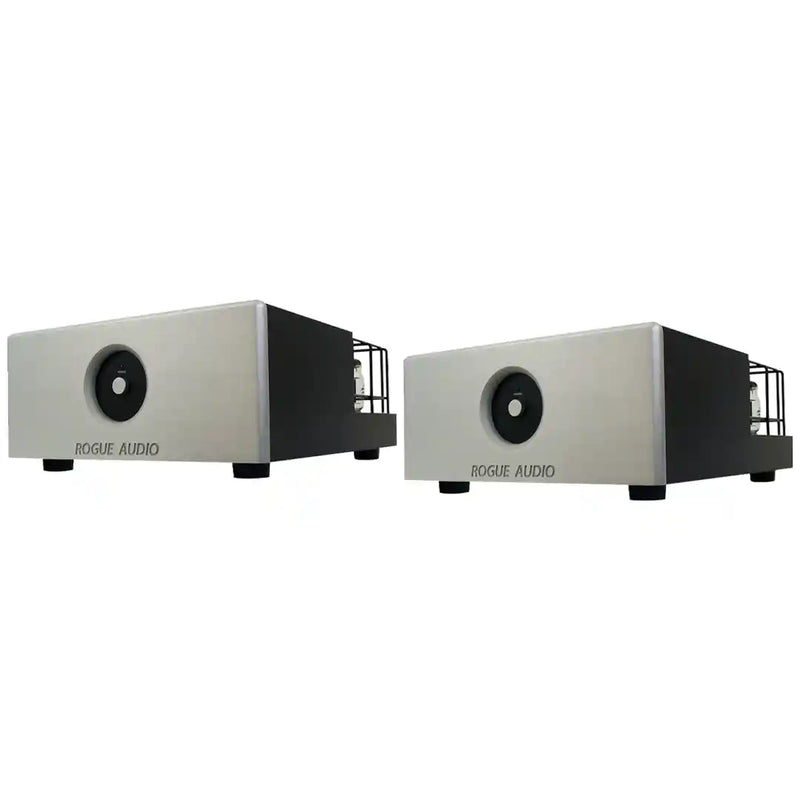

This listing includes a matched pair of Rogue Audio M-180 Dark Monoblock Amplifiers. One amplifier powers the left speaker and the second amplifier powers the right speaker.
What output tubes does the current M-180 Dark use?
Rogue Audio's current specification lists four KT88 output tubes per monoblock, for a total of eight matched output tubes per stereo pair. Each chassis also uses two 12AU7 tubes and one 12AX7 tube.
What is the difference between Ultralinear and Triode mode?
Ultralinear mode provides the greatest available output power, dynamic headroom and loudspeaker control. Triode operation produces less output but can provide a smoother and more relaxed presentation. The preferred mode depends on the loudspeaker, room and listener.
Can the M-180 Dark connect to a balanced preamplifier?
Yes. Each monoblock provides a true balanced XLR input as well as a single-ended RCA input, allowing the amplifiers to integrate with either balanced or conventional unbalanced preamplifiers.
