Rogue Audio DragoN Monoblock Amplifier (Pair) - Rogue Audio

With the success of the DragoN Stereo Amp Rogue was looking to make a defining statement with their award winning tube/Class D hybrid amplifiers.

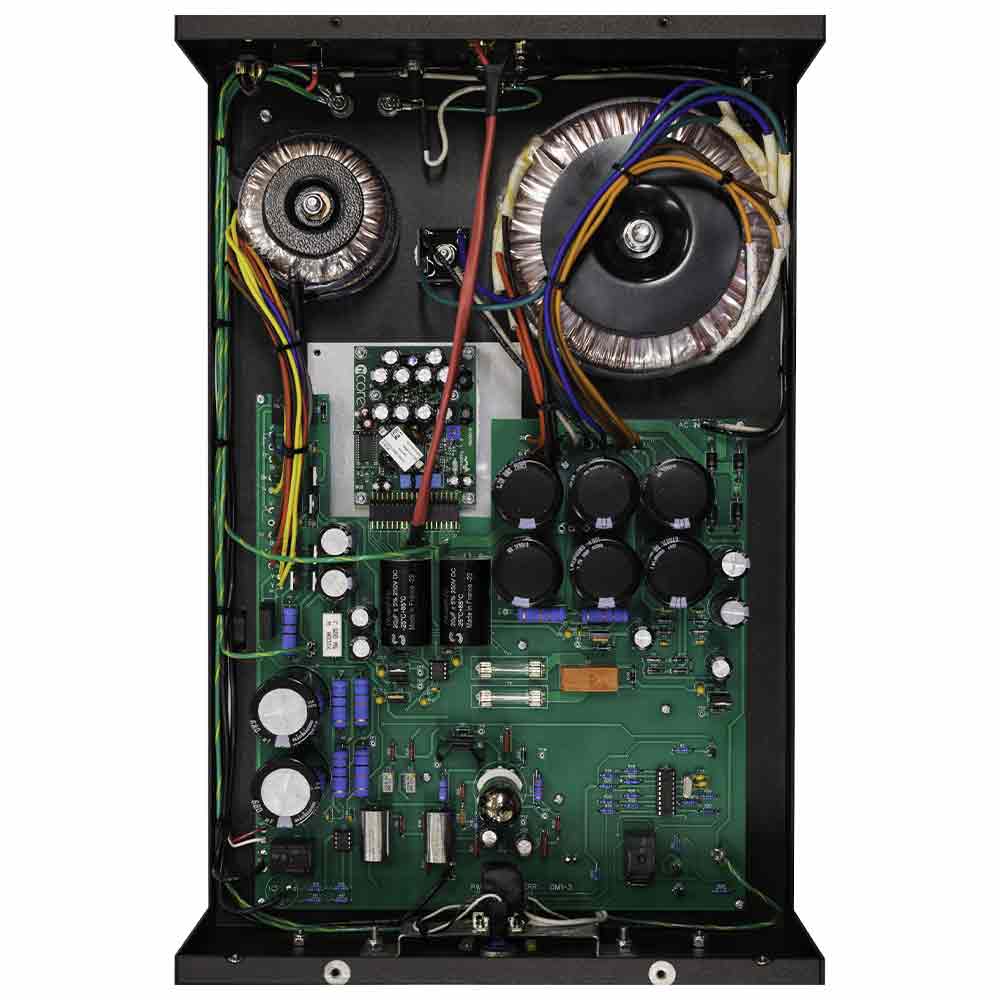

These new amplifiers are much more than simply a tube circuit placed in front of a class D output section. Our proprietary tubeD circuit topology actually integrates the tube section into the amplifier yielding the smooth natural sound that only a tube amp can provide. With uncanny accuracy the Dragon Monoblocks deliver stunning dynamics and transparency without any of the edgy, etched, or grainy sound that often accompanies solid state designs. A low power standby mode allows critical components to remain on and fully warmed up without wasting electricity or tube life. A slow start feature allows the tubes to warm up gradually to eliminate turn-on noise and greatly extend tube life. Three massive linear power supplies are used to power the amplifier circuitry and ultra-high quality parts are used throughout the amplifier. Combined with a stunning appearance, you can be certain that you are investing in an amplifier that truly represents the very leading edge of audio technology.

What to expect in the box:

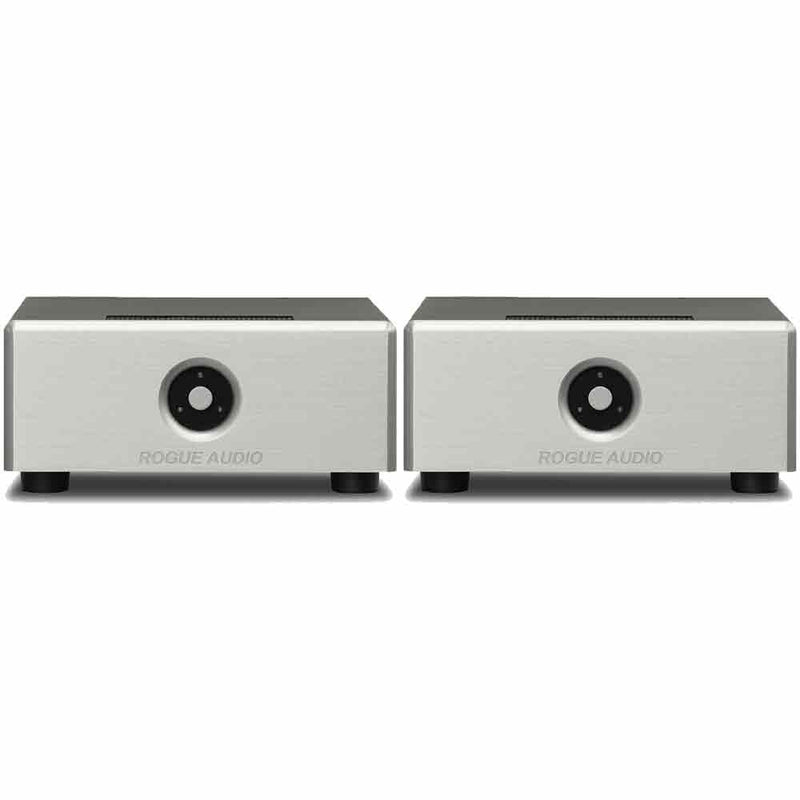

• DragoN Monoblock Amplifier (Pair)

General Features

• NCore Hypex Modules
• Massive high storage power supply
• True balanced and single ended inputs
• Heavy-duty gold plated XLR and RCA inputs
• (2) 12AU7 tubes
• Short circuit protection
• Standby circuit for solid state components
• Slow start circuit for extended tube life
• 1/2" machined and engraved faceplate
• Heavy-duty gold plated binding posts
• All precision components
• Heavy (2 ounce) copper circuit board
• Machined aluminum faceplate
• Matched pairs of signal tubes
• Entirely designed and built in the USA
• Fully tested, burned-in, and auditioned
• 3 year limited warranty (6 months on tubes)

Specifications

• Output power: 325/525 8/4 Ohms
• Frequency response: 20Hz - 20KHz ± 1dB
• THD: <0.1% typ., <1% at rated power
• Input sensitivity: .75V RMS
• Input impedance: 30K Ohms
• Dimensions: 12½"W x 5.5"H x 19"D
• Weight: 33lbs. ea.
• Power requirements: 120/240V - 50/60Hz
