Revel W583 8" In-Wall Loudspeaker - Revel
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Highlights
- Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
- Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
What to expect in the box:

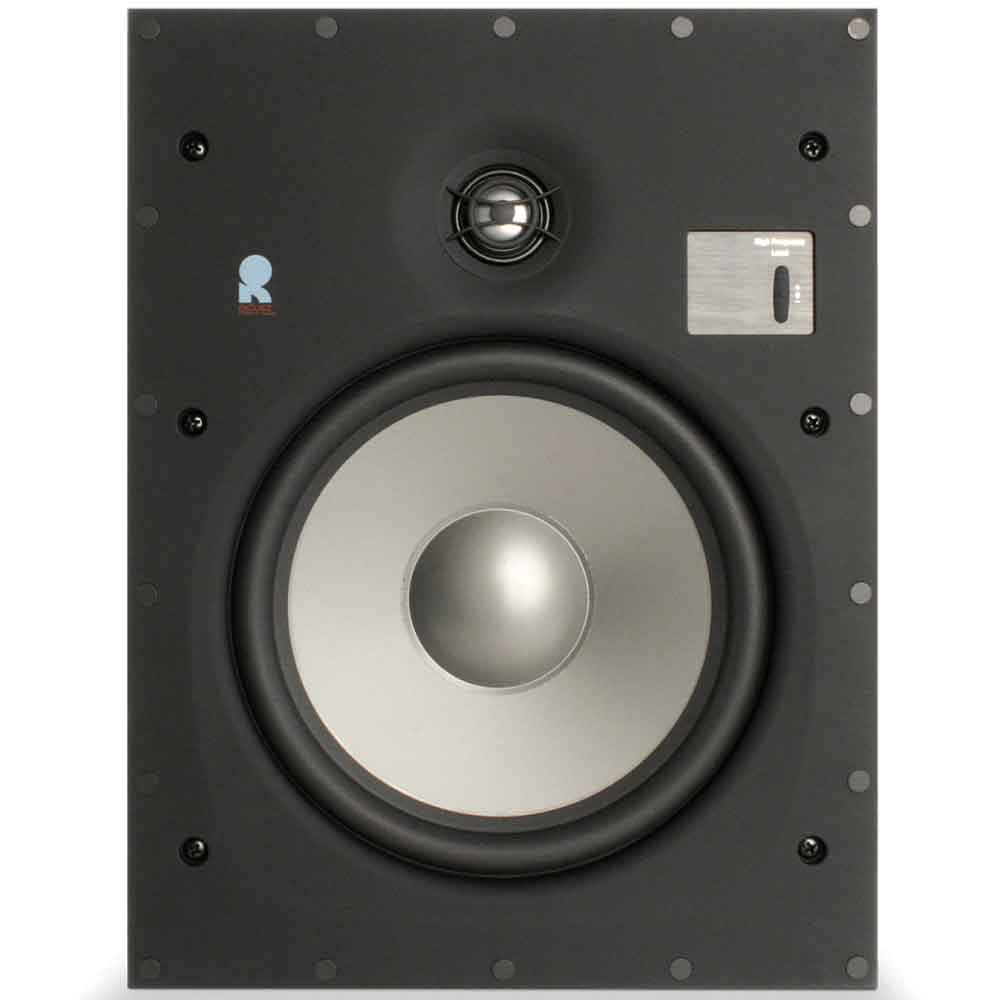

- W583 8" In-Wall Loudspeaker
Product Details:
- General Specifications
- Depth: Mounting depth 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight 7.7 lb (3.5 kg)

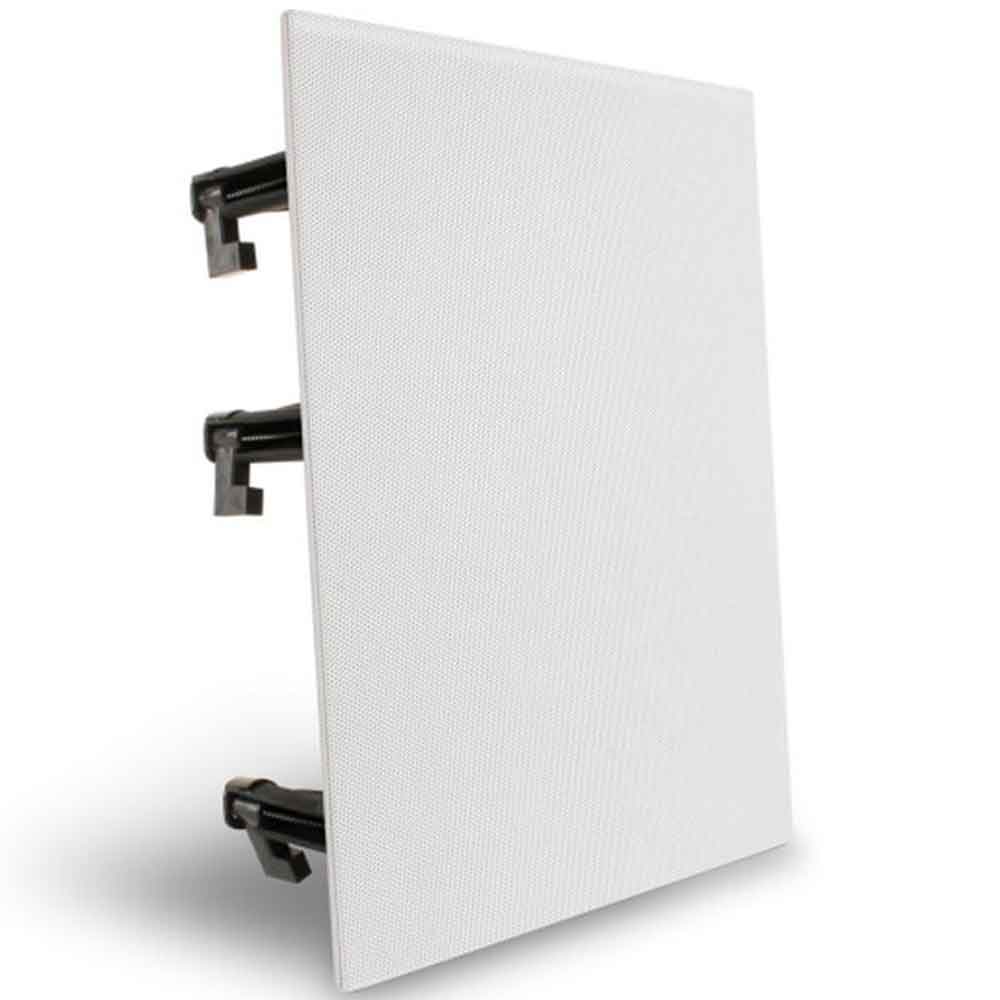

- Features: Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm)
- High Frequency Driver Components: 1" aluminum dome swiveling tweeter with waveguide
- Low Frequency Extension: High Frequency Extension (-10dB) 3-position HF level control
- Low Frequency Driver Components: 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer

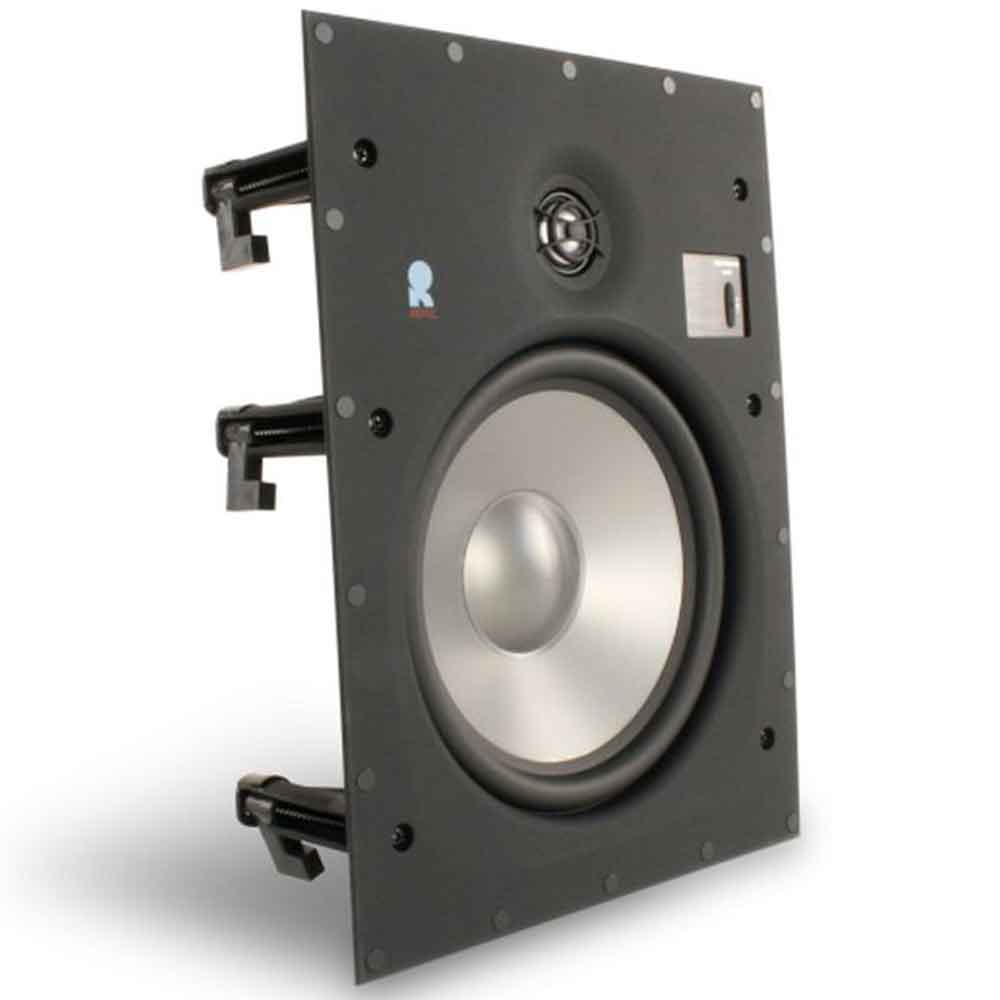

- Mounting: C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)
- Recommended Amplifier Power: 10 - 135 Watts RMS
- MPN: W583
- UPC: 848592000493
