Revel Concerta2 B10 800 Watt 10" Powered Subwoofer

Revel Concerta2 B10 800 Watt 10″ Powered Subwoofer - Revel

The B10 is a powerful 800 watt 10” powered subwoofer that was designed to provide powerful and clear low frequency response. It will add essential bass response to any music or home theater system.

The 800 Watt RMS (1600 Watt peak) amplifier powers the voice coil to provide ample power for the large diaphragm area and long-excursion capability.

Optimize the bass for your room
Nearly all powered subwoofers give you level and crossover adjustments. But only a few provide any real hands-on control of the sound beyond that. That's because sophisticated EQ and slope adjustments are difficult and expensive to implement. Revel considers these an essential part of the subwoofer experience.

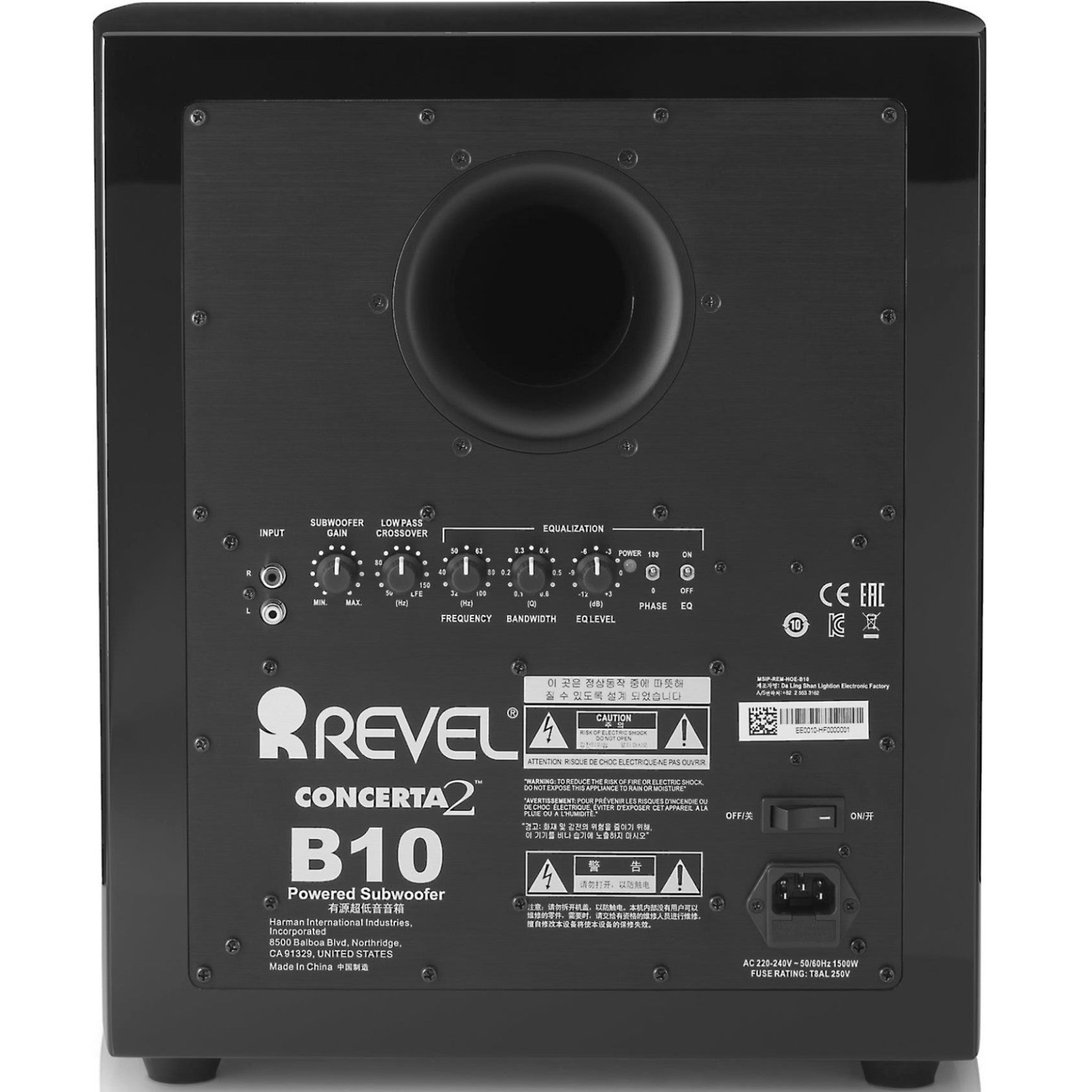

On the B10's back panel you'll find parametric room equalization controls that let you fine-tune the sound for your system and for your room. Call Audiolab so we can help you dial things in to get the best sound.

Careful design
By repositioning the voice coil in the woofer, Revel engineers discovered they could improve the symmetry of the woofer displacement and thereby lower distortion. Additionally, asymmetry attributed to spider non-linearity can also lead to higher distortion. This was solved by adjusting the spider progression to greatly improve the symmetry and as a result, lowered distortion. To finish the enclosure we selected high gloss black and white finishes to highlight the features of this beautiful subwoofer.

Features:

• Derived from Revel’s award-winning Performa3 Series Loudspeakers
• 10" Coated Fiber-Composite Cone
• Constant Pressure Gradient Port Design

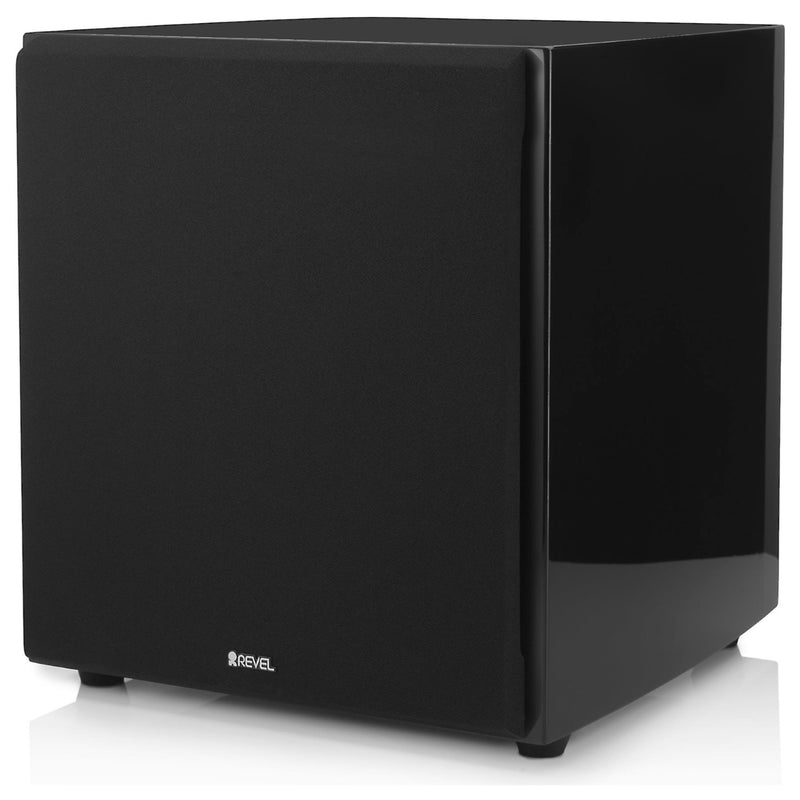

• Detectable grilles with brushed metallic logos

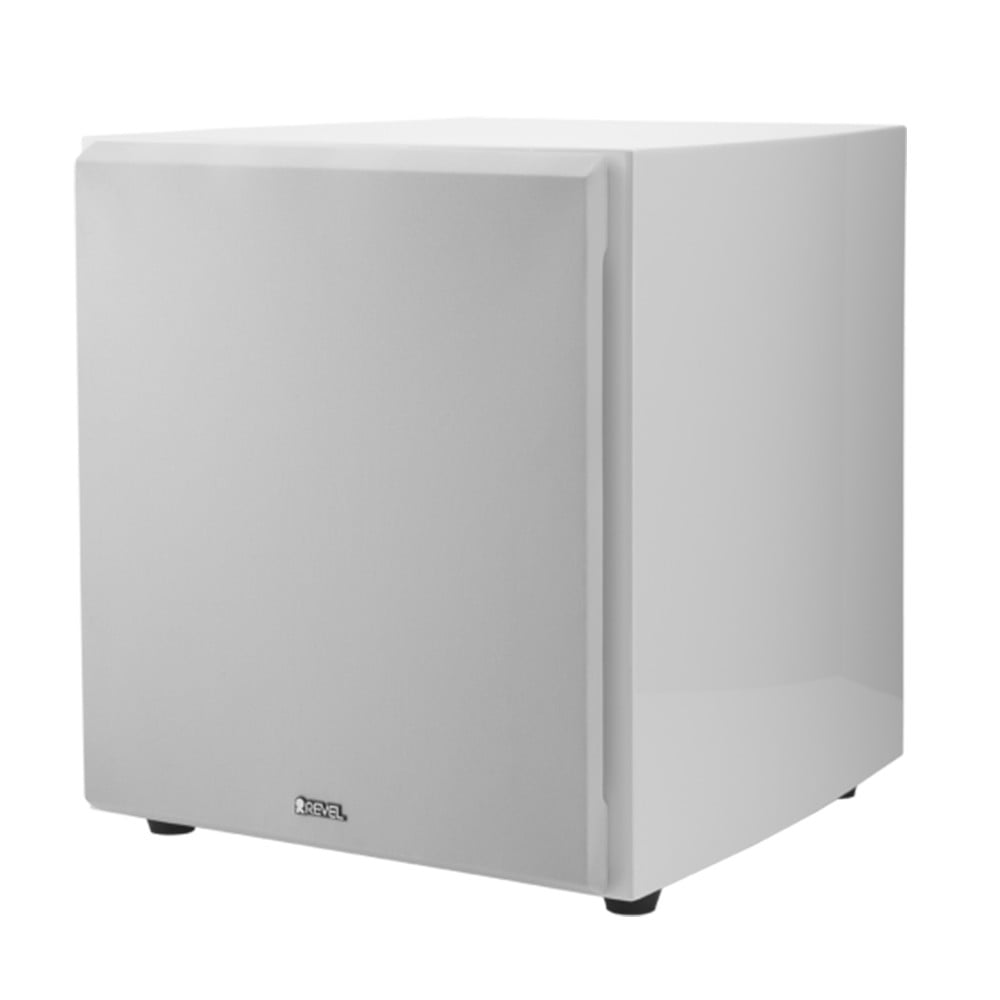

• High-gloss Black and High-gloss White painted finishes
• 800 Watt 10” Powered Subwoofer
• Single band parametric EQ

Product details:

• Built-in 800-watt Digital class D amplifier
• 10" front-firing woofer with coated fiber-composite cone
• Bass-reflex ported enclosure
• Rear-firing port with constant pressure gradient port design for additional output
• Variable volume control
• Variable low-pass crossover (50-150 Hz)
• Parametric room equalization, with controls for frequency, bandwidth, and EQ level
• Low-frequency extension: 35Hz (-3dB), 32Hz (-6dB), 29Hz (-10dB)
• Phase switch (0°, 180°)
• RCA line-level/LFE inputs
• Power switch and auto power-on/standby
• Warranty: 5 years

Dimensions and weight:

• 16-1/2" wide x 14-7/8" high x 15-1/2" deep
• Weight: 53 lbs.

What to expect in the box:

• Revel Concerta2 B10 Powered subwoofer
• 6' AC power cord
• Removeable grille
• Spike feet (4)
• Owner's Manual
