Revel C583 8" In-ceiling Speaker (each)

Revel C583 8" In-ceiling Speaker (each) - Revel

An acoustically adaptable in-ceiling speaker
Revel's C583 in-ceiling speaker combines accurate sound with versatile installation options. Its 1" aluminum dome tweeter is aimable, so you can direct sound towards your listening position. The tweeter also has a three-position output level switch, which lets you tailor the sound to the acoustics of your room.

The C583 is an excellent choice for an in-ceiling stereo system, or as an overhead effects channel of a Revel home theater system. Its 8" woofer provides solid bass and smooth midrange. It even includes both square and round grilles to match your décor.

Revel C583 in-ceiling speaker
The Revel C583 in-ceiling speaker features a three-position tweeter level control which cuts or boosts high-frequency output to suit your room's acoustics.

Trickle-down technology
The C583 benefits from the research and design work that went into Revel's higher-end in-ceiling speakers. For instance, the speaker's integrated tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend together seamlessly.

The C583 also features high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty ensures excellent long-term performance.

Who is Revel?
Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman's state-of-the-art speaker R & D facility in Northridge, California.

Product highlights:

• ideal for an in-ceiling music system or overhead surround effects in a home theater system

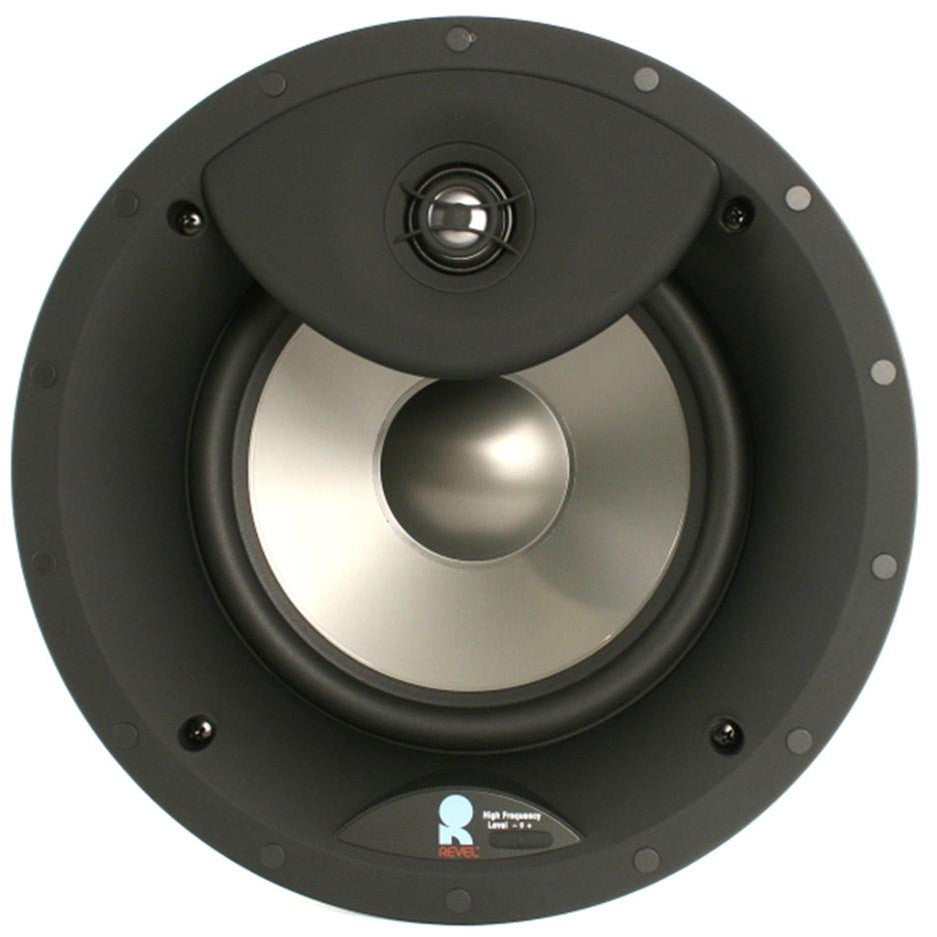

• 8" micro-ceramic composite (MCC) woofer with cast-aluminum frame
• long-throw woofer design with rubber surround for high output and low distortion
• 1" aluminum dome tweeter
• three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room's acoustics
• integrated waveguide provides excellent on- and off-axis performance
• tweeter is aimable to direct high-frequency details towards you

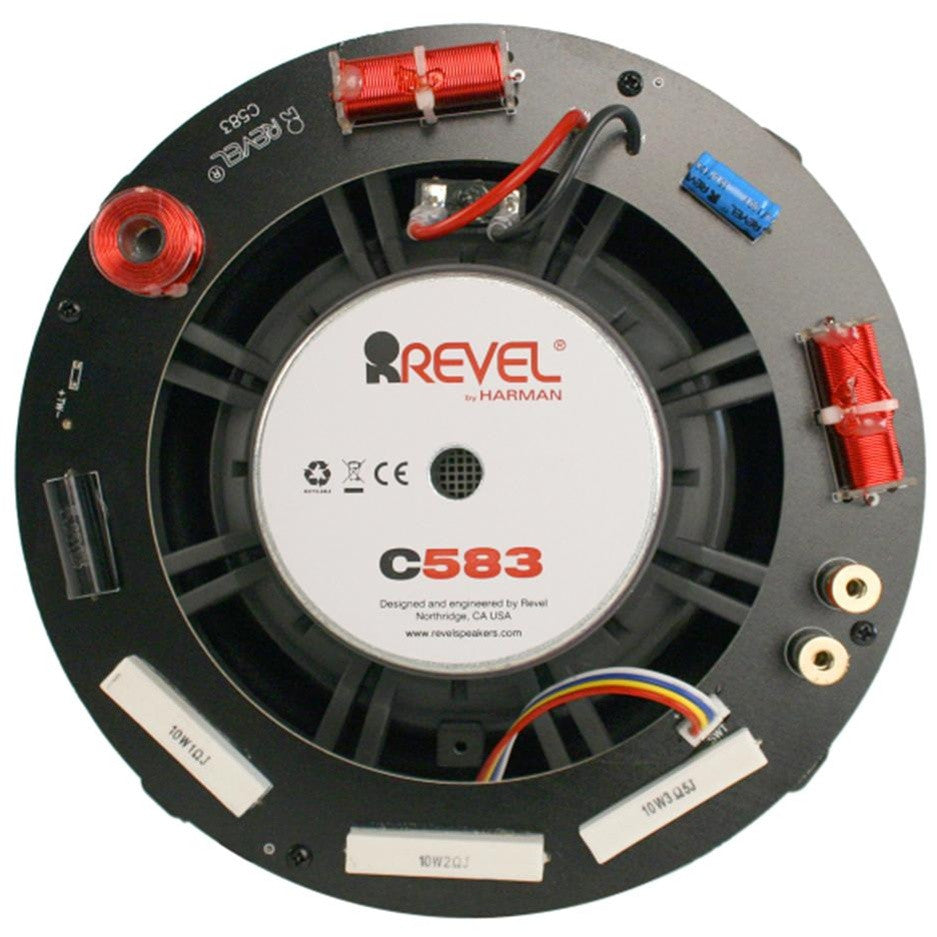

• high-order crossover network delivers accurate timbre reproduction
• recommended amplifier power: 10-135 watts

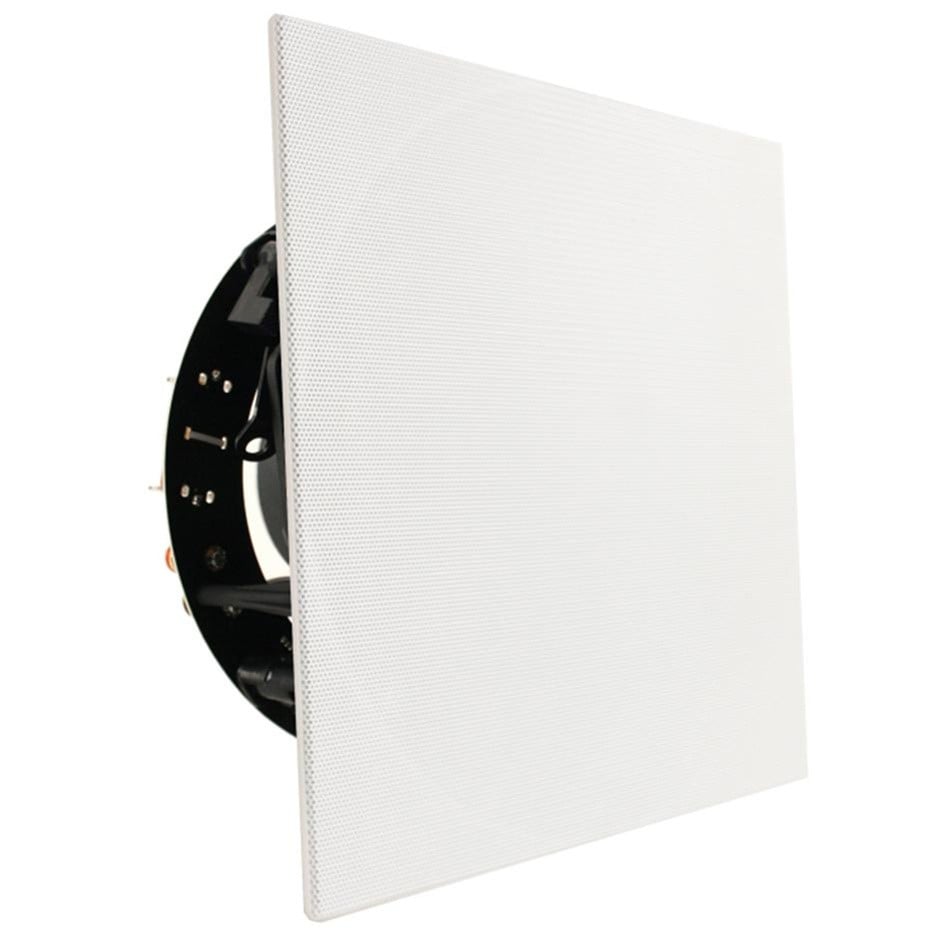

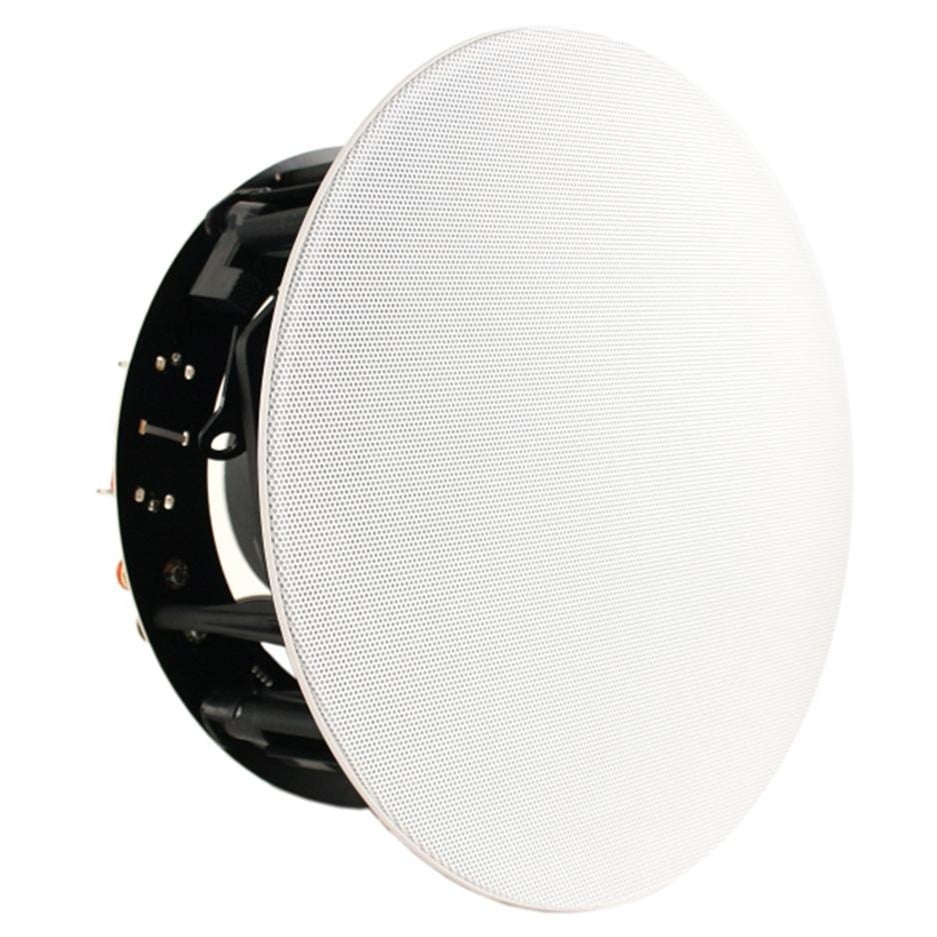

• includes both round and square zero-bezel magnetic grilles
• grilles are paintable to match your décor
• sensitivity: 88 dB
• speaker cutout diameter: 9-5/8"
• mounting depth: 5-1/4"
• square grille dimensions: 10-3/4"W x 10-3/4"H
• weight: 2.8 lbs.
• warranty: lifetime

What's in the box:

• Revel C583 owner's manual
• In-ceiling loudspeaker
• Round grille
• Square grille
• Round scrim cloth
• Square scrim cloth
• 4 Self-adhesive foam strips
• Cutout template
• Instruction Manual
