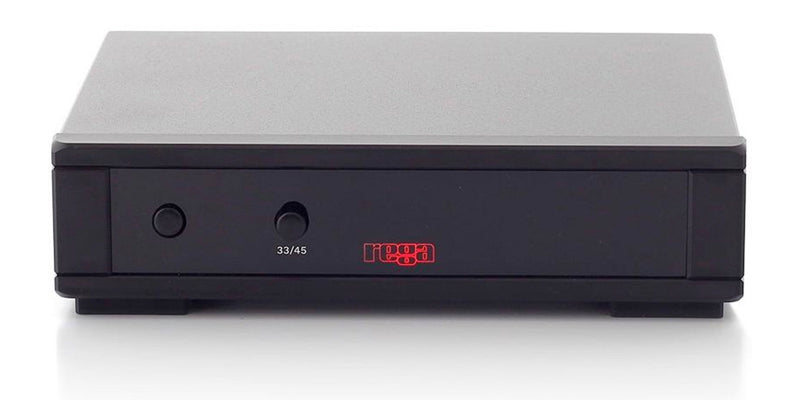

Rega NEO PSU MK2 Power Supply

Rega NEO PSU MK2 Power Supply - Rega

The new Neo MK2 is housed in a redesigned case to bring it in line with other products in the range creating an improved family feel. The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit and the convenience of electronic speed change. The Neo MK2 will make a welcome addition to any compatible Rega turntable by reducing motor noise, improving speed stability and rotational speed accuracy.

The Neo MK2 PSU is compatible with the following Rega turntable models:
P3-24 / RP3 / Planar 3 2016-current / RP6 / P5 / P7 / RP40 special edition / RP8 Or any older Rega turntable fitted with our aftermarket 24v upgrade kit.
Using the same DSP (digital signal processing) generator found in the Planar 10 power supply the Neo MK2 is built upon a high stability crystal.

The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed whilst producing a near perfect sinusoidal waveform to drive the 24v motor. Fine speed adjustment is made via the rear panel using the supplied custom Neo trim tool (supplied).

Planar 6 and Planar 8 turntable models which include the Neo will now ship with the MK2 Neo supplied as standard.

TECHNICAL SPECIFICATIONS:

• • Output to motor bi-phase: 24 V AC protected by resettable fuse
  • Power consumption: 7.2 W
  • Voltage: 24 V AC
  • Power supply: Rega PS1 only
  • Speed control step size: 0.01 RPM
  • USA- Neo TT PSU Special - Black 115V US PS1 60Hz
  • PS1 (UK): Input 230 V ~ 50 Hz 0.07 A /, Output 24 V ~ 350 mA AC
  • PS1 (EU - Euro 2 pin): Input 230 V ~ 50 Hz 0.07 A /, Output 24 V ~ 350 mA AC
  • PS1 (Australian): Input 230 V ~ 50 Hz 0.07 A /, Output 24 V ~ 350 mA AC
  • PS1 (Japan): Input 100 V ~ 50/60 Hz /, Output 24 V ~ 350 mA AC
  • PS1 (Korea): Input 220 V ~ 60 Hz 0.07 A /, Output 24 V ~ 350 mA AC
