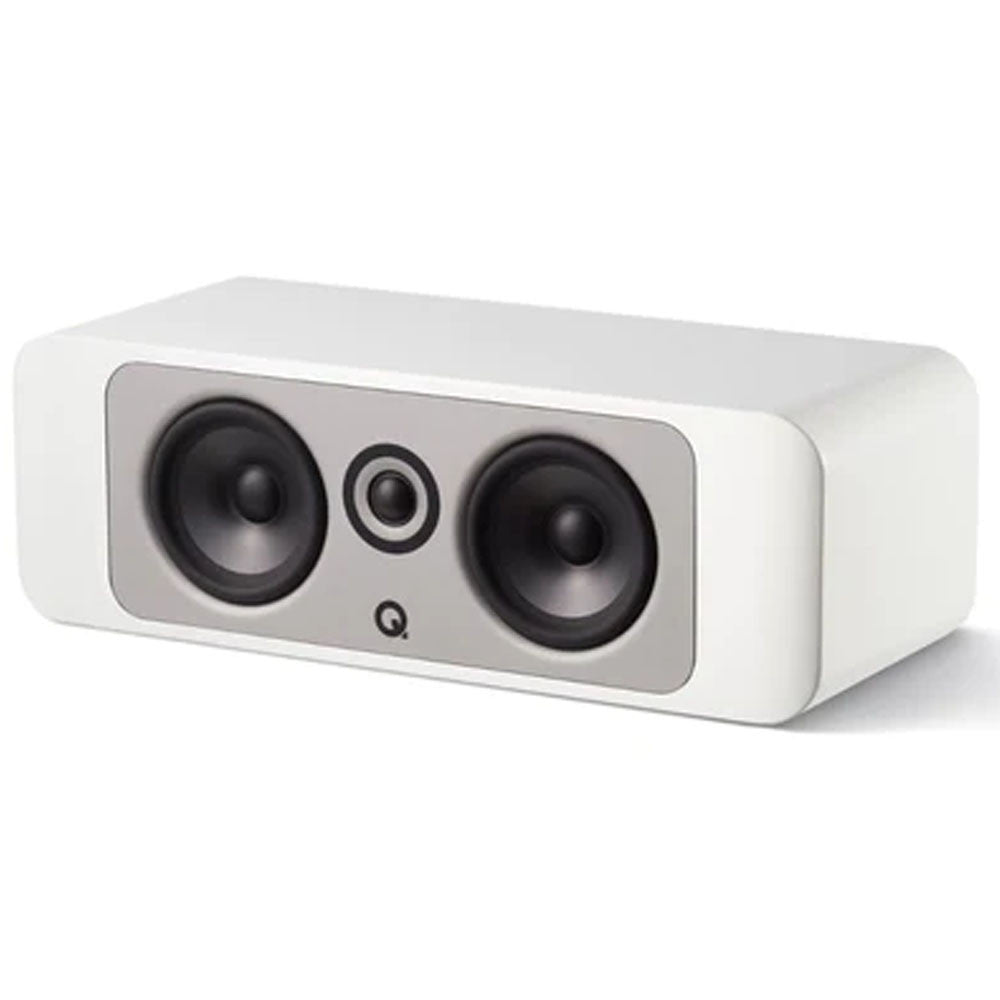

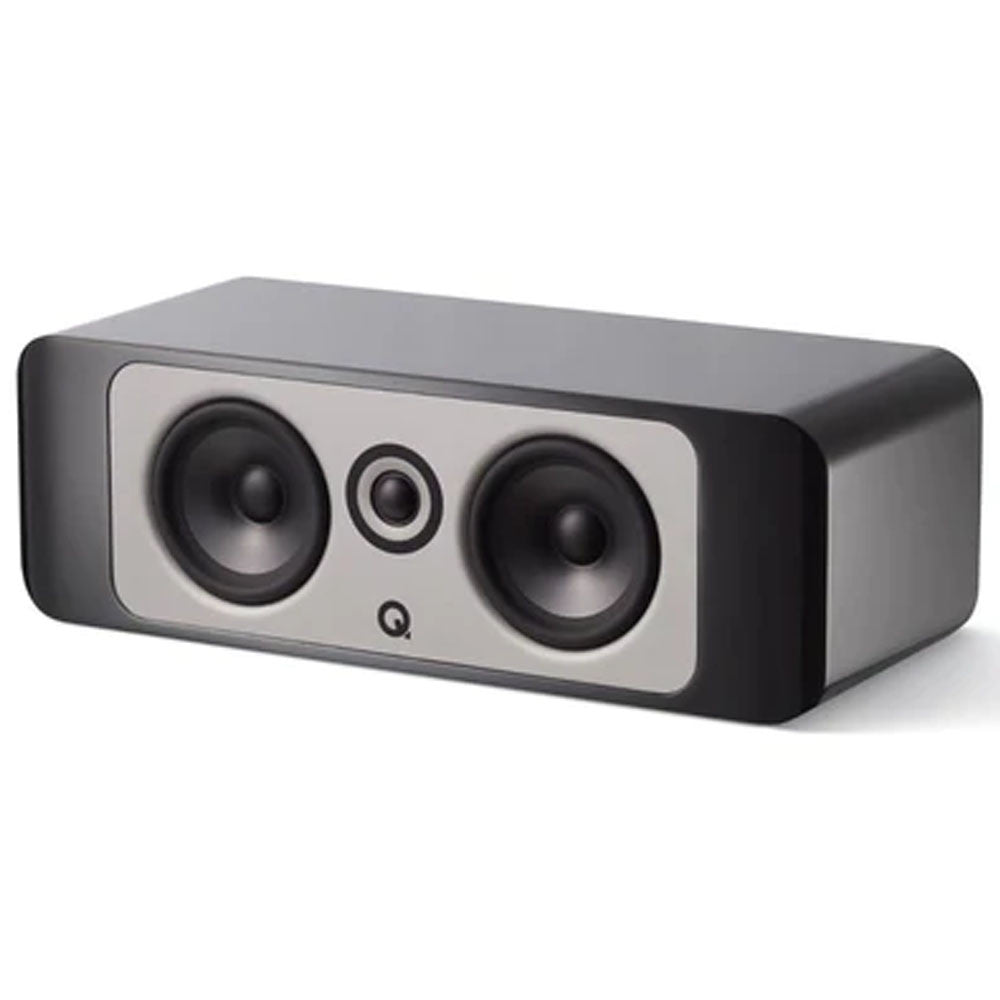

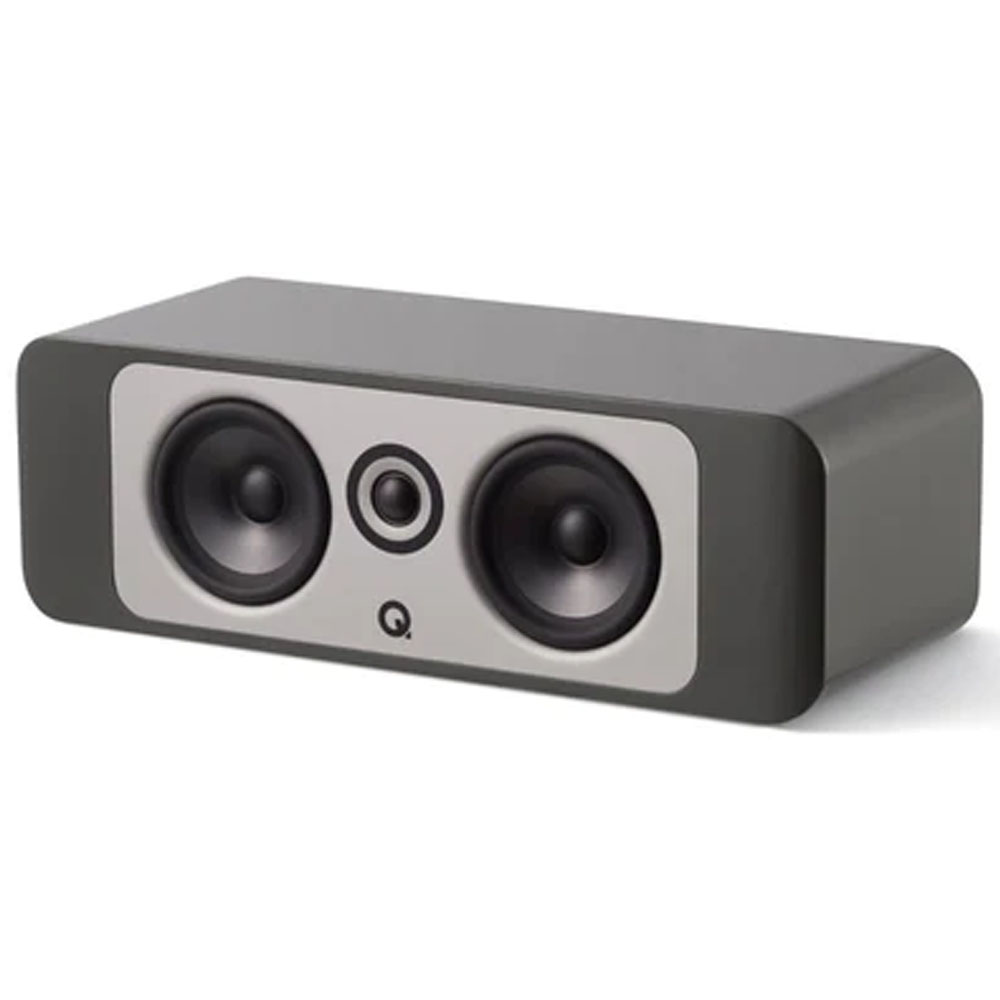

Q Acoustics Concept 90 Center Speaker

Q Acoustics Concept 90 Center Speaker - Q Acoustics

• Gelcore™ cabinet construction reduces higher frequency cabinet noise.
• Isolation suspension base eradicates unwanted external and internal vibrations.
• The driver assembly is mounted to the front aluminum baffle by pretensioned studs to give the correct acoustic seal, while dampening vibrations and minimizing structural coupling of the assembly in the main cabinet.
• Ground-up mid/bass and tweeter driver design for increased power handling.
• High-frequency driver is fully hermetically sealed and mechanically isolated (floating) from the front baffle to protect from internal resonances from the mid/bass driver.
• Crossover design is mounted on the isolation base, to minimize any microphonic pick up and away from electro-magnetic fields radiated by the drive units.

Star role in home cinema
A center channel speaker in a 5.1 home cinema set-up plays a crucial role to convey a realistic surround sound experience. More than just supporting the front left and right channel speakers, a center channel anchors the dialogue while also seamlessly being part of the whole soundstage. As a key player in the Concept 5.1 package, the Concept 90 is our most advanced and striking center channel speaker, featuring many anti-resonance technologies that appear in its Concept stablemates to deliver a focused but captivating cinema sound.

Controlled power
Boasting a three-way design with two 125mm mid/bass drivers flanking a 25mm tweeter, the Concept 90 brings ultra-clear dialogue and spellbinding effects to movie watching sessions through its specially developed driver designs.

With sound synergy important in a home cinema speaker system, the Concept 90 harbors the same hermetically sealed and decoupled tweeter enclosure and driver assembly baffle-mounted design as the Concept 30 and 50. The same isolation base, featuring two plates separated by suspension spheres, is also present to isolate the cabinet from external resonances – a crucial design when the speaker is placed straight onto a TV cabinet, while also providing tighter audio, and greater depth to your music and movies.

Elegant design
Matching the design profile of the Concept 30 and 50, the Concept 90 arrives in a trio of finishes – black, white or silver - designed to blend into any Concept 5.1 speaker system you choose to assemble from the range. At the forefront of any surround sound set-up, this stylish center channel will look at home perched on any cabinet in any interior space.

Gelcore™ cabinet design
All these resonance eliminating innovations are housed in a Gelcore™ cabinet design to deliver a speaker low on interior influences that can color the sound. It ensures the Concept 90 can dispatch crystal clear dialogue and improved depth of sound that will elevate the film watching experience.

Introduced in the original Concept speaker, the Gelcore™ cabinet construction is designed to minimize high-frequency noise. A unique design consisting of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance, whether watching movies or listening to music.

Specifications:

• Bass unit 2 x 125 mm (5.0 in)
• Treble unit 1 x 25 mm (0.9 in)
• Frequency response(-6dB) 67 Hz - 30 kHz
• Nominal impedance 6 Ω
• Minimum impedance 3.7 Ω
• Sensitivity (2.83V @ 1kHz) 90 dB/w/m
• Recommended amplifier power 25-150 W
• Crossover frequency 2.1 kHz
• Distortion (120Hz - 20kHz, @2.83Vrms) <0.2%
• Effective volume 11 L
• Dimensions (per loudspeaker / HxWxD) 184 x 550 x 259 mm (7.2 x 21.7 x 10.2 in)
• Weight (per loudspeaker) 12.3 kg (27.1 lbs)

In The Box:

• 1x Concept 90 speakers
• 2x Foam Bungs
• 1x User Manual
