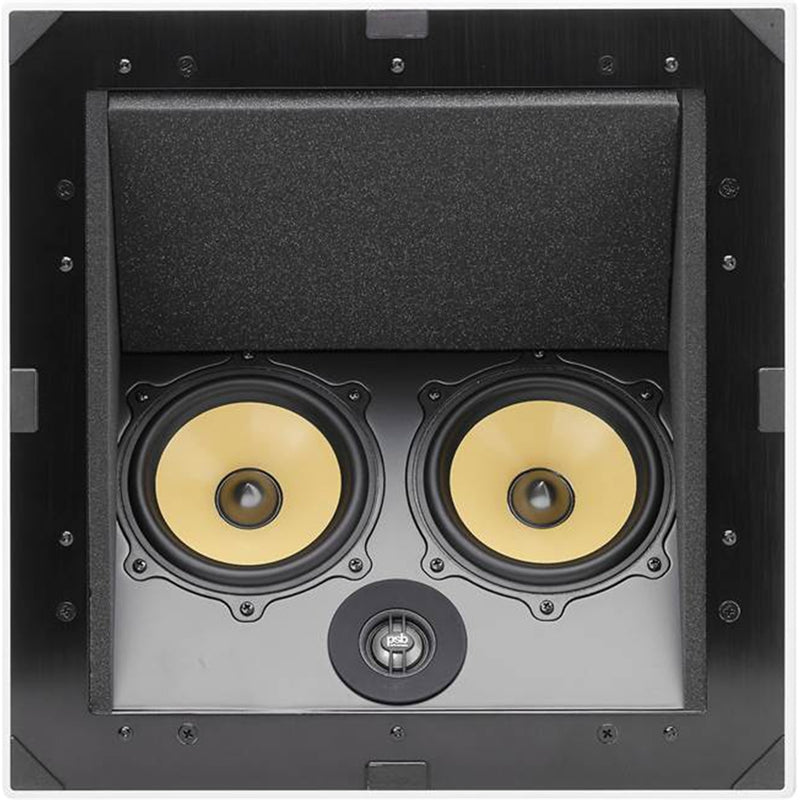

PSB CustomSound Imagine C-LCR Angled In-Ceiling Speaker (Each)
True Audiophile Front-Channel Performance—Hidden in Your Ceiling.
Short Description
Traditional in-ceiling speakers fire straight down, detaching the sound from the action on your screen. The PSB Imagine C-LCR breaks the mold. Featuring a specialized angled baffle and an integrated acoustic back-box, this high-performance speaker accurately directs pristine dialogue and explosive sound effects right to your ears. Get true Left, Center, or Right (LCR) reference theater sound with a zero-footprint design.
Retail Price: $1,499.00 USD
Sold individually. For a complete front-channel setup, order three units.
Key Features
-

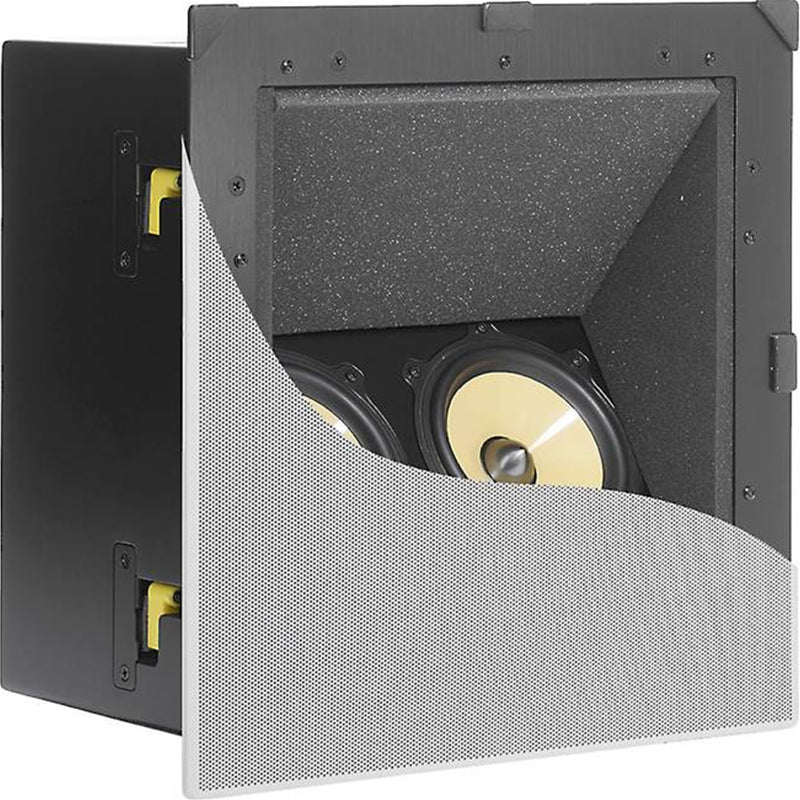

Innovative Angled Baffle: Seamlessly anchors movie dialogue and sound effects directly to the screen instead of overhead, creating a remarkably coherent, lifelike front soundstage.
-
Integrated Sealed Back-Box: Built-in 0.36 cubic foot acoustic enclosure ensures perfectly consistent, predictable bass performance regardless of your ceiling's internal cavity space. It also blocks unwanted sound transfer to adjacent rooms.
-
Imagine Series DNA: Utilizing the exact same driver materials found in PSB’s critically acclaimed freestanding Imagine monitors, ensuring perfect timbre matching for pristine high-end audio fidelity.
-

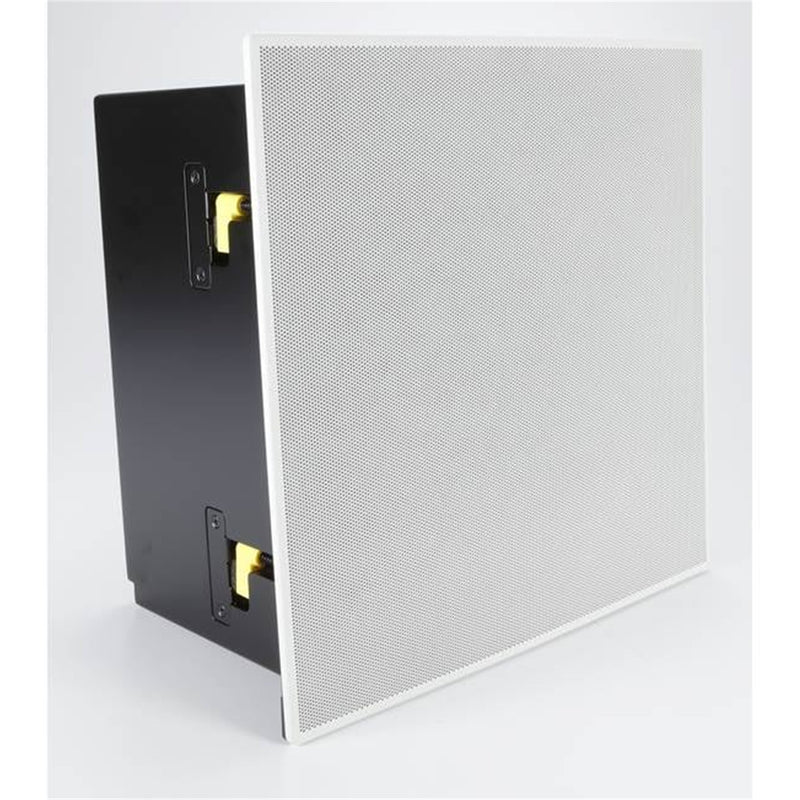

Invisible Integration: Includes a premium, ultra-low-profile magnetic frameless grille with a fabric scrim. The grille is fully paintable to flawlessly blend with any ceiling decor.
Technical Specifications
| Audio Feature |
Specification |
| Speaker Design |
2-Way, 3-Driver In-Ceiling with Integrated Back-Box |
| High-Frequency Tweeter |
1" (25mm) Titanium Dome with Ferrofluid Cooling |
| Low-Frequency Woofers |
Dual 5.25" (133mm) Clay/Ceramic Reinforced Polypropylene Cones |
| Crossover Network |
1,750 Hz, LR4 (4th-Order Linkwitz-Riley) |
| Frequency Response |
65 Hz – 23,000 Hz (±3dB on axis) |
| Sensitivity |
88 dB (Anechoic) / 90 dB (Listening Room) |
| Nominal Impedance |
6 Ohms (4 Ohms Minimum) |
| Recommended Amp Power |
20 – 150 Watts |
| Cutout Dimensions |
13.1875" x 13.1875" (335mm x 335mm) |
| Mounting Depth |
7.75" (196mm) |
| Net Weight |
17.6 lbs (8.8 kg) per speaker |
Engineered for Serious Home Theater

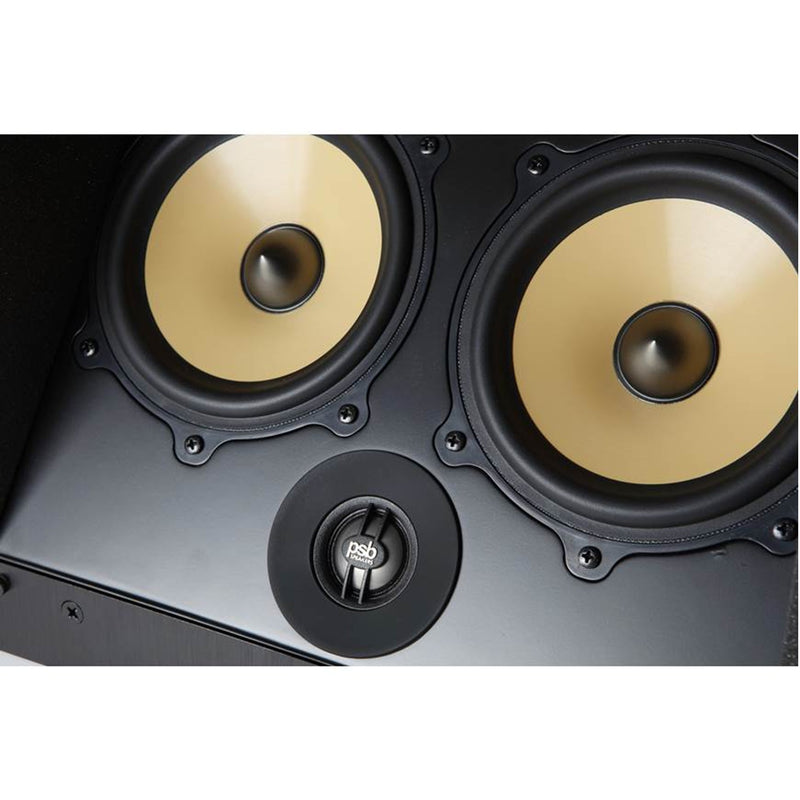

Borrowing premium driver designs from PSB’s audiophile tower speakers, the C-LCR features dual 5.25" clay/ceramic-reinforced polypropylene woofers flanking a centralized 1" titanium dome tweeter. This powerful configuration handles deep dynamic sweeps with speed and control, preventing the midrange bloat and harsh high-frequency refraction that plague cheaper architectural options.
Pro Installer Tip: Because the cabinet is 7.75" deep to maximize its internal air volume for deep bass extension, always double-check your ceiling joist depth before ordering. Installation is a breeze courtesy of the heavy-duty steel and ABS dogleg clamping system.
What's in the Box?
-
(1) PSB Imagine C-LCR Angled In-Ceiling Speaker
-
(1) Paintable White Frameless Magnetic Grille
-
(1) Pre-Construction Cutout Template
-
(1) Quick Start Installation Guide
