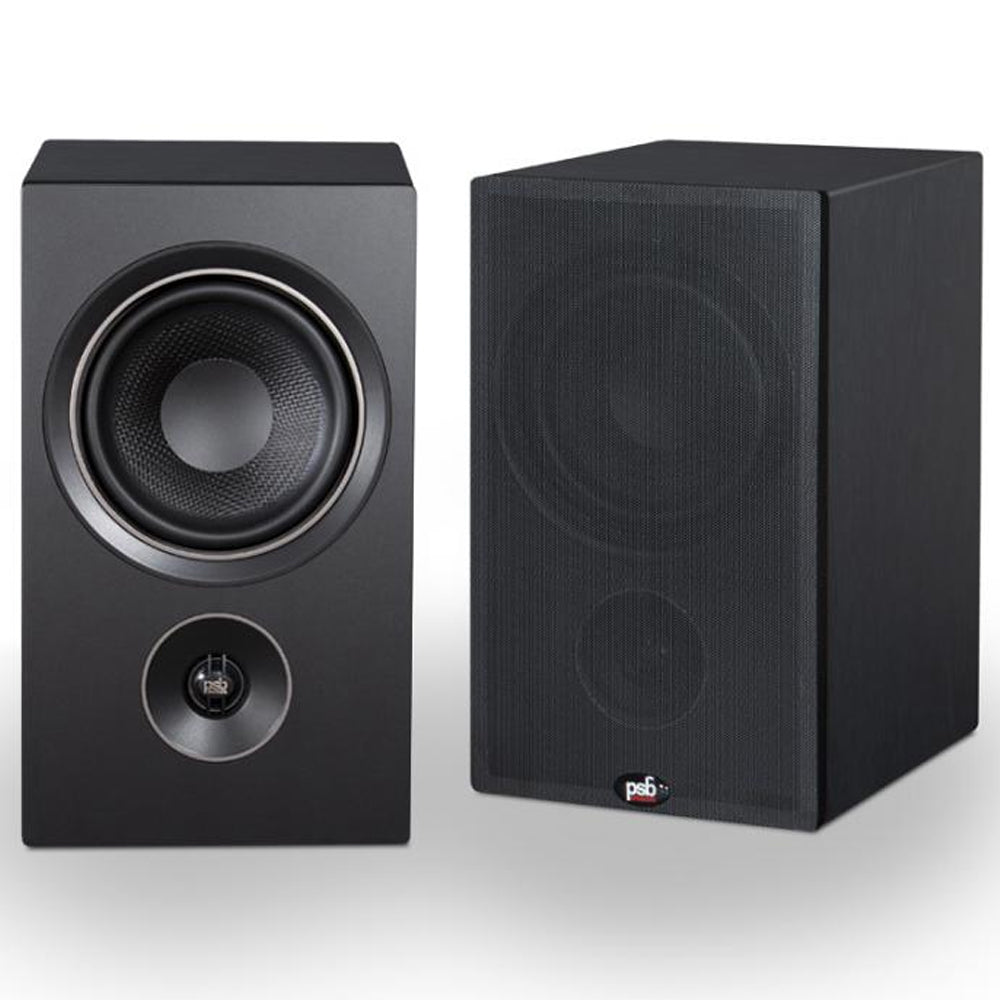

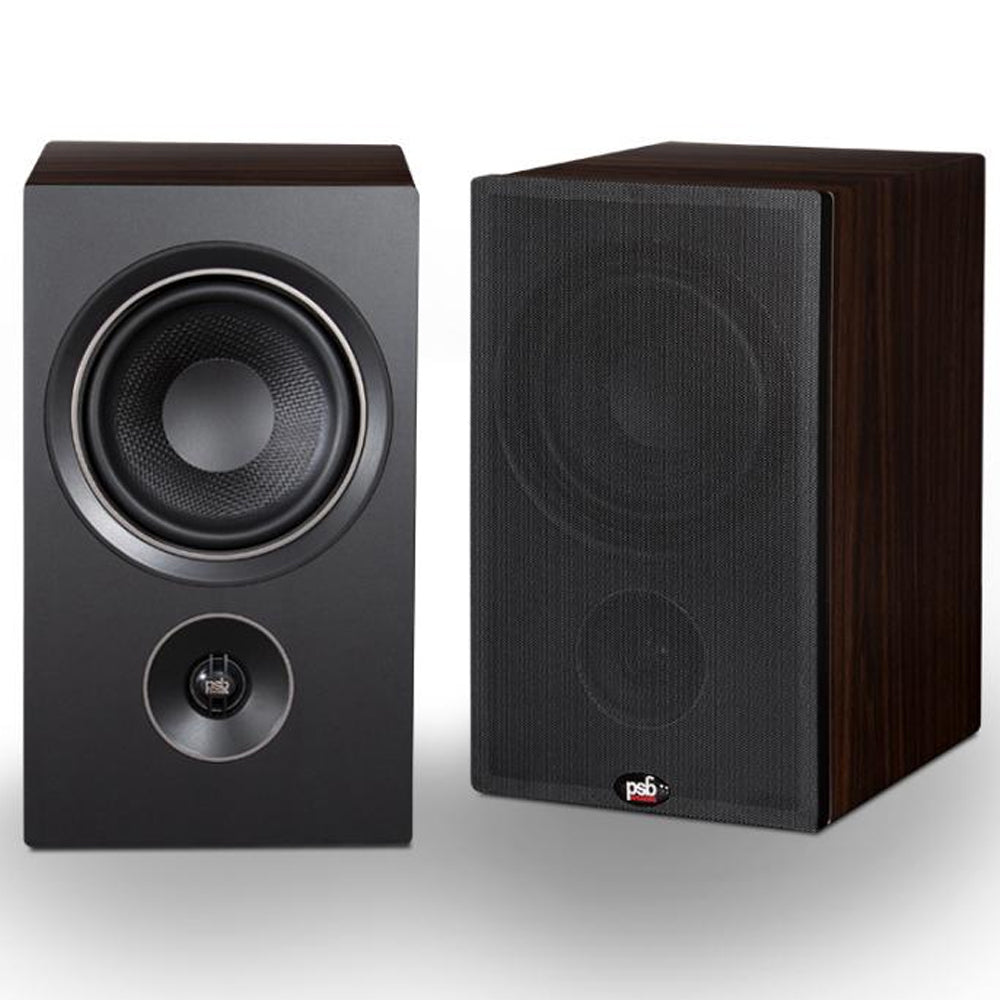

PSB Alpha P5 Bookshelf Speakers

PSB Alpha P5 Bookshelf Speakers - PSB

A timeless two-way bookshelf speaker with a 5.25” woofer, the P5 in the new Alpha Series allows you to transform your system with pristine sound. Featuring a refined bass reflex cabinet and port tube first developed for the original Alpha speaker, the Alpha P5 creates a pure and natural soundstage by utilizing the latest and most advanced driver technologies and magnet structures.

The P5 uses a 0.75” black anodized aluminum dome tweeter to extend the high-frequency response further than any Alpha ever before while lowering distortion to deliver layered sound with detail and clarity. Unlike lesser designs at this price, all the new Alpha Series tweeters employ ferrofluid cooling to prevent dynamic compression and a neodymium magnet for high sensitivity.

Finished with a high-quality wood grain vinyl and magnetically attached grilles that are acoustically transparent, the P5 is perfectly designed to seamlessly disappear into any décor and provide rich, detailed sound.

Features:

• 0.75” Black anodized aluminum dome tweeter with front waveguide
• 4” Textured polypropylene woofer with rubber surround
• Bass reflex cabinet design with a rear-firing port
• Acoustically-transparent detachable magnetic grilles
• Five-way gold-plated binding post speaker terminals
• High-quality woodgrain vinyl finish
• Available in Black Ash or American Walnut
• Specs
• Frequency Response
• On Axis @ 0° ± 3dB: 55-21,000Hz
• On Axis @ 0°±1 1/2dB: 65-20,000Hz
• Off Axis @ 30°±3dB: 65-10,000Hz
• LF Cutoff -10dB: 37Hz
• Sensitivity
• Anechoic Chamber: 87dB
• Typical Listening Room: 89dB
• Impedance
• Nominal: 8 Ohms
• Minimum: 4 Ohms
• Input Power
• Recommended: 10-90 Watts
• Program: 60 Watts
• Acoustic Design
• Tweeter (Nominal): 3/4” (19mm) Black Anodized Aluminum Dome with Ferrofluid and Neodymium Magnet
• Woofer (Nominal): 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround
• Crossover: 2.500Hz, L4
• Design Type: Tuned Port Bass Reflex 2” (49mm) Rear Port
• Construction
• Cabinet Sleeve: 1/2” (12mm) MDF
• Baffle Front: 1” (25.4mm) MDF
• Baffle Rear: 1/2” (12mm) MDF
• Grille Face: Black Steel Micro Perf with Magnetic Attachment
• Frame: 1/4” - 20 Threaded Insert
• Size (W x H x D)
• Net: 6 3/4” x 11 3/8” x 9 1/2” * (170 x 290 x 240mm)
• Weight
• Net: 10.15lb (4.6kg)/each
• Shipping: 22.8lb (10.4kg)/pr
• Finish
• Black Ash or American Walnut in Vinyl Clad
