Pro-Ject Stereo Box DS3 Versatile Integrated Amplifier - Pro-Ject
High-Performance Integrated Amp with MM/MC Phono Stage, Bluetooth & 3x Line Inputs
Stereo Box DS3 is our latest DS3 Series stereo integrated amplifier. It offers an MM/MC phono stage, a Bluetooth receiver as well as 3x line-level inputs. At 150WPC into 4 ohms, it can power even demanding speakers with ease. The sophisticated circuitry is enclosed in a beautifully machined aluminum chassis that shields the electronics from RF/EMI. Stereo Box DS3 is handmade in Europe and available in either black or silver.
Enjoy music through your headphones with the 1/4″ headphone jack or connect your speakers with 4mm banana jacks, spades or bare wire to the gold-plated binding posts. The variable RCA output also allows you to add a subwoofer or a separate power amplifier to your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control for applications such as recording. The supplied remote allows you to affect the analog, motor-driven volume potentiometer and to select your desired input for playback.
Designed & Handmade in Europe
Stereo Box DS3 is carefully designed and handmade in Europe. Our goal is to develop a technically flawless device in a housing that is only as big as necessary. With the timeless design & rigid aluminum chassis, it’s built to last an eternity. With high-quality materials and components throughout in a well-thought-out design, we’re setting a new standard in the performance you can achieve from a box this size and at this price.
Features:
- 2 x 150 watts at 4 ohms output power
- Bluetooth 5.0 – aptX, aptX HD, A2DP profile
- Pro-Ject remote control included
- Analog volume control with motor-driven potentiometer
- Dual-mono design principle
- 3x RCA line inputs
- Powerful 2 x 450mW at 32ohm headphone output
- Fixed & variable output for subwoofer or second zone amp
- Trigger in & out
- Gold-plated RCA connectors
- Rigid aluminum chassis protects against interference
- Magnetic wooden side panels available separately

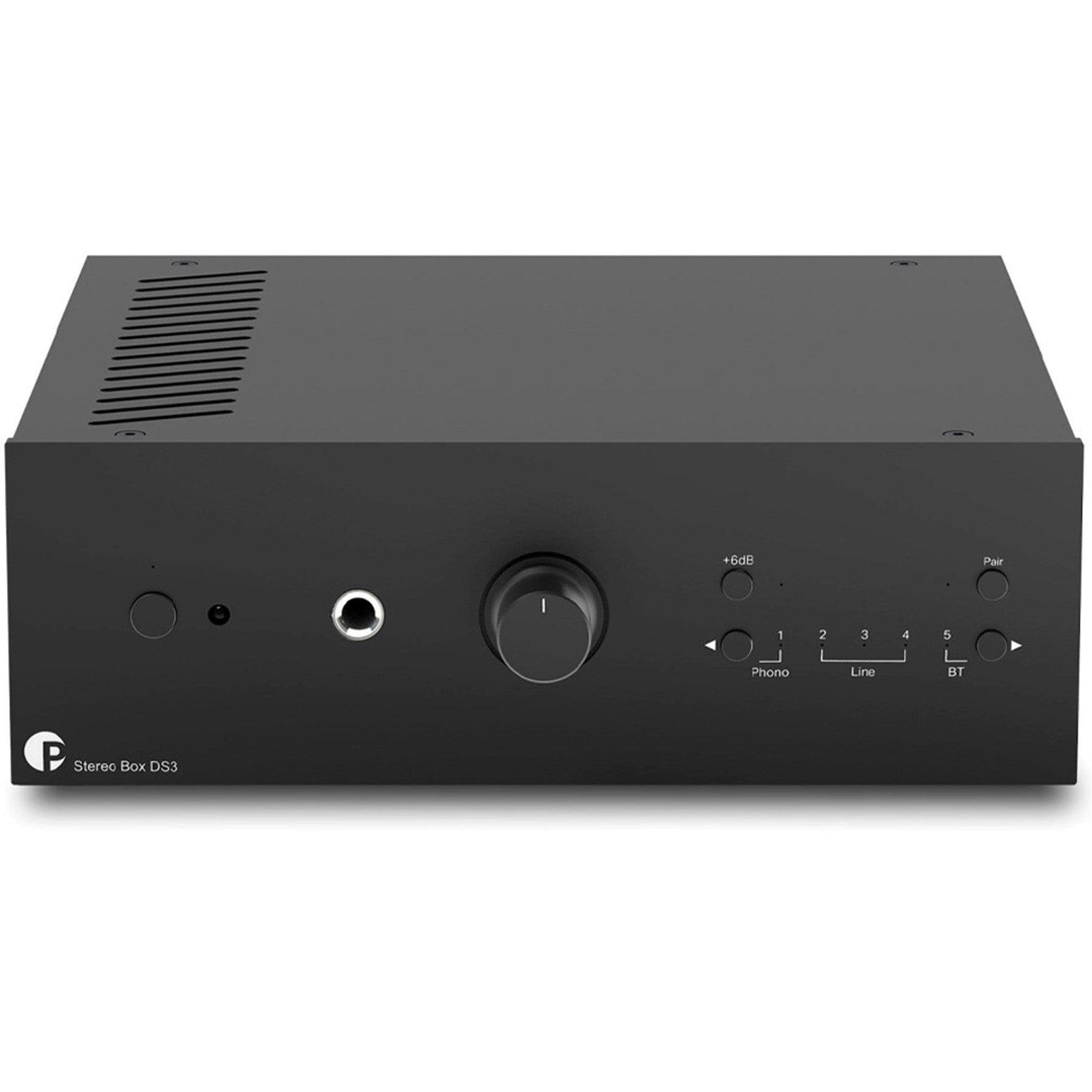

- Available in black or silver
- Made in Europe
Specs:
- Power output: 2x 150W/80W at 4/8 ohms (1%THD)
- Frequency response (20Hz-20kHz): -0.1dB to +0.3dB
- SNR: >98dB (105dB ‘A’ weighted) at 1kHz
- Channel separation: -73dB at 10kHz
- THD: <0.01% at 10W
- Phono input gain (MM/MC): 40dB/60dB
- Phono input impedance (MM/MC): 47k ohms / 100 ohms
- Line level inputs: 3 pair RCA (860mV sensitivity)
- Line input impedance: 50k ohms
- Bluetooth: V5.0, aptX, aptX HD, A2DP profile
- Variable/Fixed line outputs: 1 pair RCA each
- Speaker output: 4mm banana plugs, spades or bare wire
- Power supply: 36V/5.5A DC, 100-240V, 50/60Hz
- Power consumption in standby: <0.5W
- Remote control batteries: 2x AAA 1.5V
- Dimensions (WxHxD): 206 x 71 x 211mm (223mm w/ sockets)
- Dimensions (standard): 8.11 x 2.80 x 8.78″
- Mass (weight): 1800g (4.00 lbs) without power supply
