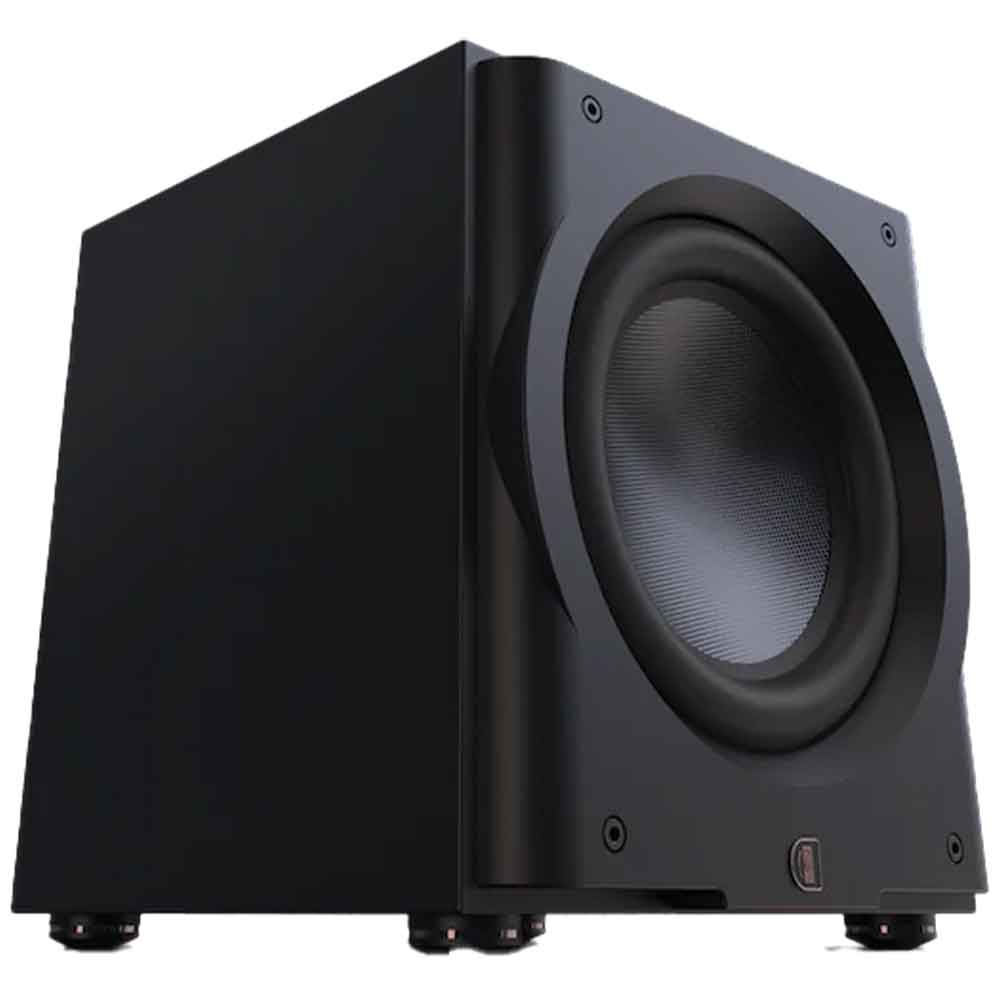

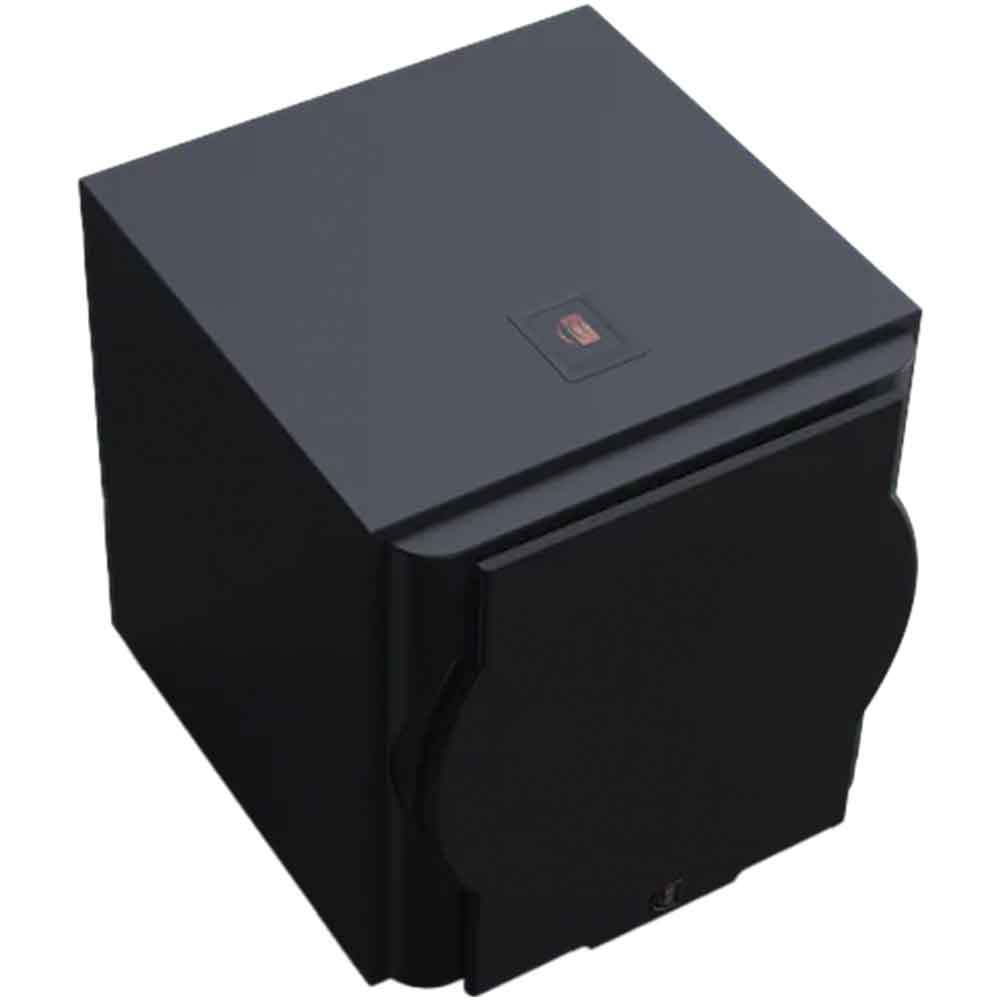

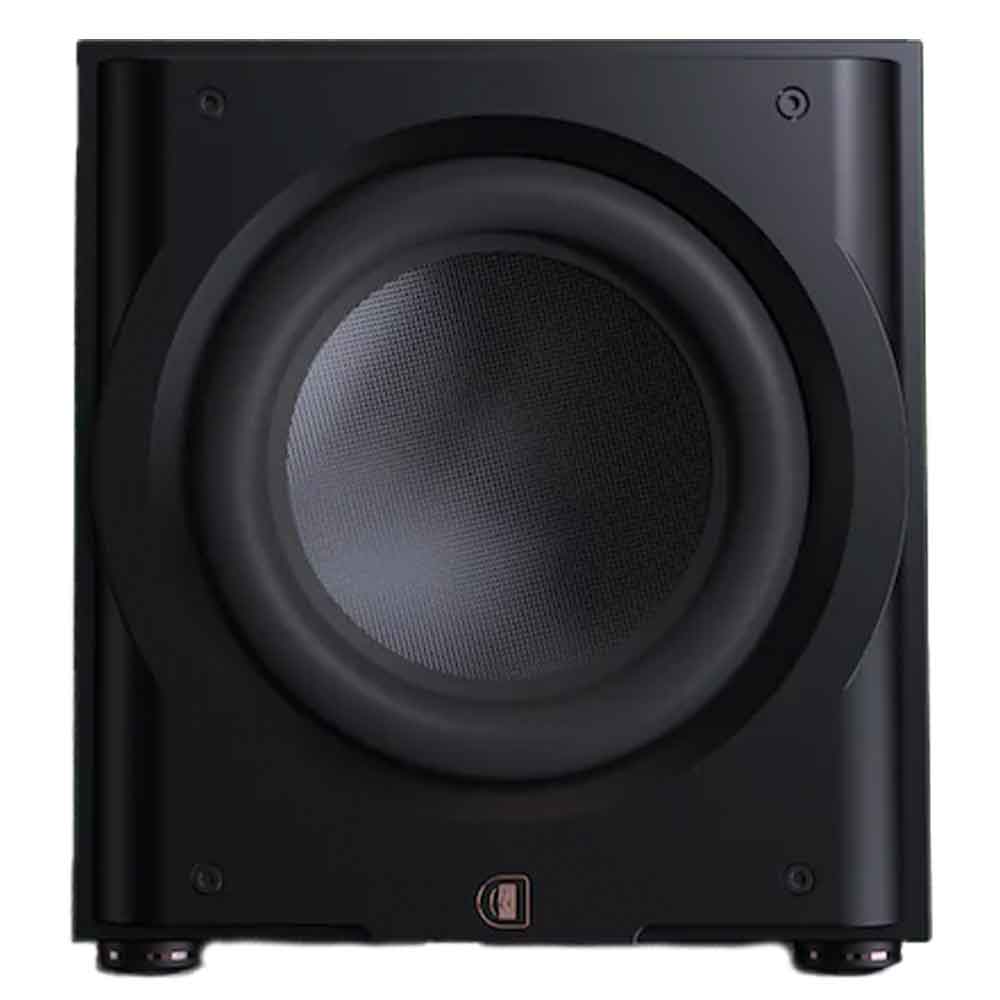

Perlisten R12s Subwoofer

Perlisten R12s Subwoofer - Perlisten

It's all in the details
R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

What to expect in the box:

• R12s Subwoofer

Product Details:

• Alignment: Acoustic suspension
• Amplifier:1.0kW rms
• Display Interface: 2.4" LCD color touchscreen
• App: iOS and Android
• Processor: 32-bit ARM Cortex M4, double precision floating point math
• DSP Engine: Ti DSP 48-bit data paths
• Driver complement: 300mm, Glass fiber diaphragm, +/-23.7mm linear excursion
• Reference sensitivity: 90dB /150mV/ 1.0m
• Frequency Response
• THX EQ: 20-296Hz (-6dB) / 16-380Hz (-10dB)
• Boost (Large Room) EQ: 16-296Hz (-6dB) / 14-380Hz (-10dB)
• Cut (Small Room) EQ: 25-296Hz (-6dB) / 19-380Hz (-10dB)
• Inputs: (1) Balanced XLR, (1) Unbalanced RCA
• Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered
• Parametric EQ: 10-Band PEQ with 3 user presets
• Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
• Phase: Variable 0-270°
• Polarity: Normal / inverted
• Configurable Auto turn-on and 12v Trigger: XLR, RCA
• Dimensions (HxWxD): 428 x 390 x 375mm, 16.9 x 15.4 x 14.8"
• Weight overall: 26.7 kg (58.1 lbs.)
• Available finishes: Satin black
