Perlisten D212s Subwoofer

Perlisten D212s Subwoofer - Perlisten

World-class powered subwoofer

IT'S ALL IN THE DETAILS

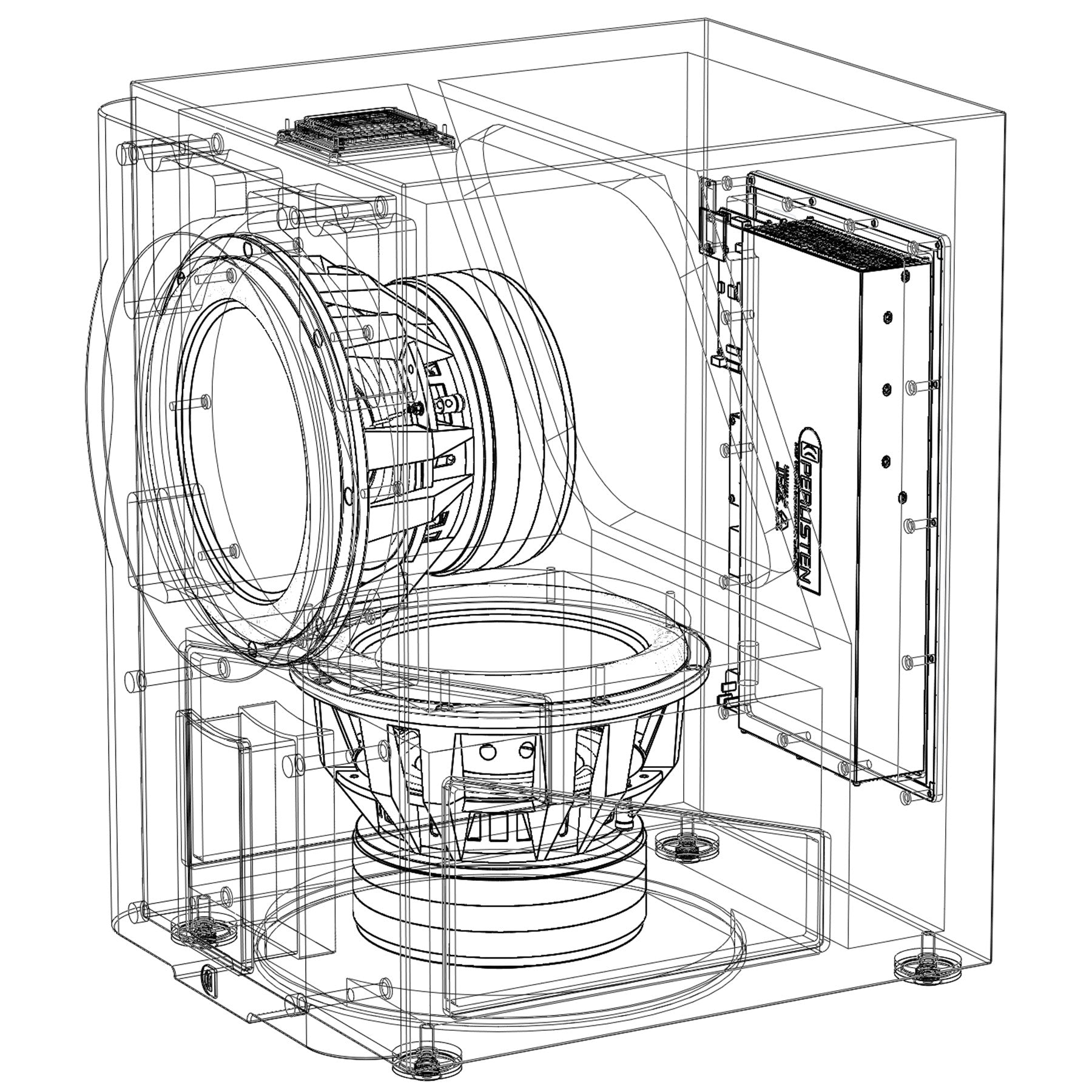

Where sound quality and Transients free of overhang are paramount. Simply no better expression of bass performance than Perlisten’s push-pull subs. Ground up drivers developed by Perlisten’s team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. To take performance to another level, the push-pull drivers reduce even order harmonics distortion by an additional 10-12dB. Powered by Perlisten’s 3.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. All D-Series subs share Perlisten’s 2.4” LCD touchscreen display and ability to control advanced settings using Perlisten’s App. Certified by THX Dominus, The D-Series subs are the world’s first. A testament to the level of design and performance achieved.

Product Details:

• Alignment: Push-Pull, acoustic suspension
• Amplifier: 3.0kW rms short term
• Display Interface: 2.4" LCD color touchscreen
• App: iOS and Android
• Processor: 32-bit ARM Cortex M4, double precision floating point math
• DSP Engine: Ti DSP 48-bit data paths
• Driver complement: (2)300mm, Carbon fiber diaphragm +/-30mm linear excursion
• Reference sensitivity: 92dB / 150mV / 1.0m
• Frequency Response THX EQ: 20-231Hz (-6dB) / 16-245Hz (-10dB)
• Boost (Large Room) EQ: 15-231Hz (-6dB) / 13.5-245Hz (-10dB)
• Cut (Small Room) EQ: 24-231Hz (-6dB) / 18-245Hz (-10dB)

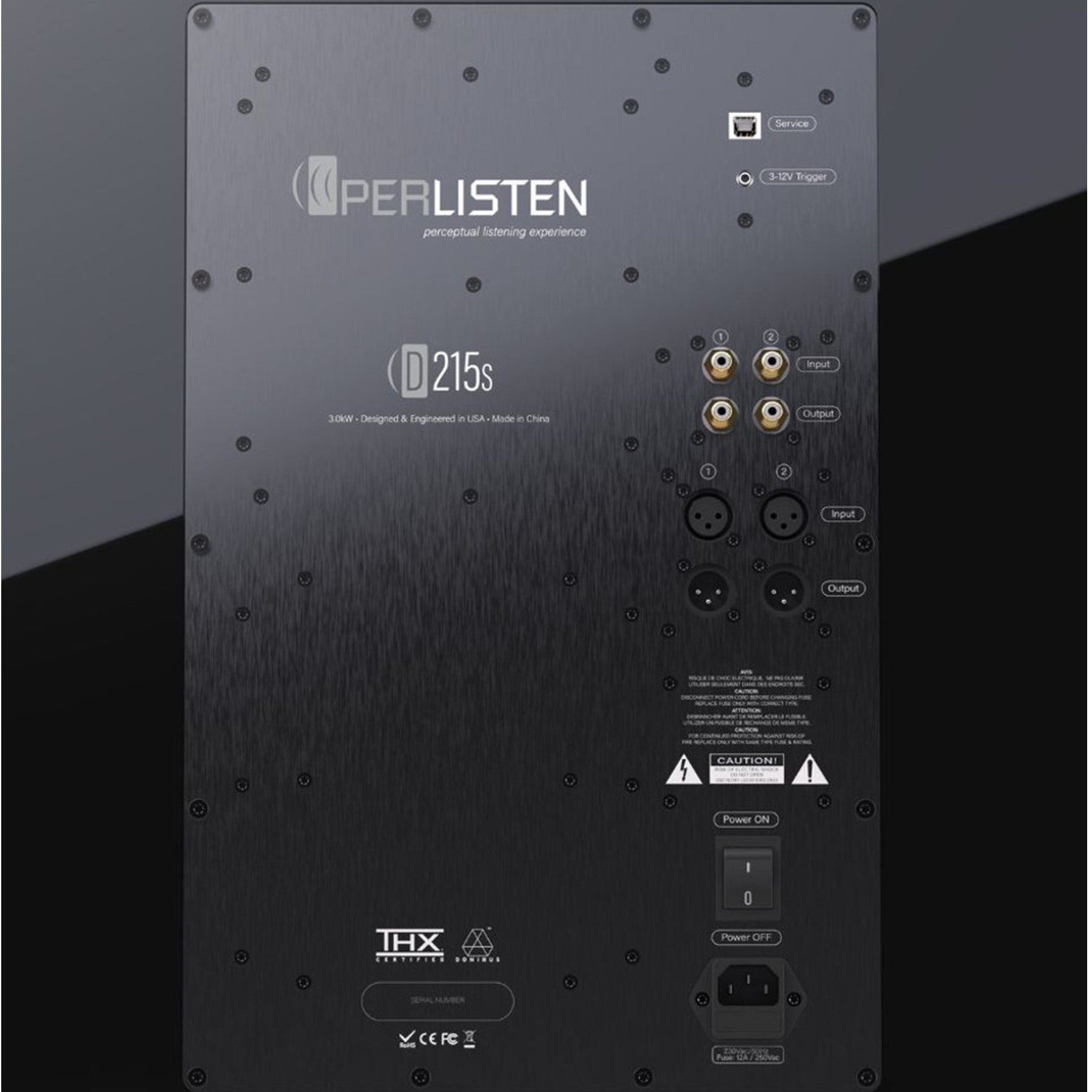

• Inputs: (2) Balanced XLR, (2) Unbalanced RCA
• Outputs: (2) Balanced XLR unbuffered, (2) Unbalanced RCA unbuffered
• Parametric EQ: 10-Band PEQ with 3 user presets
• Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
• Phase: Variable 0-270°
• Polarity: Normal / inverted
• Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
• Dimensions (HxWxD): 668 x 420 x 550mm, 26.3 x 16.5 x 21.6"
• Weight: 68.0 kg (149.6 lbs.)
• Certification: THX Dominus
• Available finishes: Piano black

What to expect in the box:

• Perlisten D212s Subwoofer
