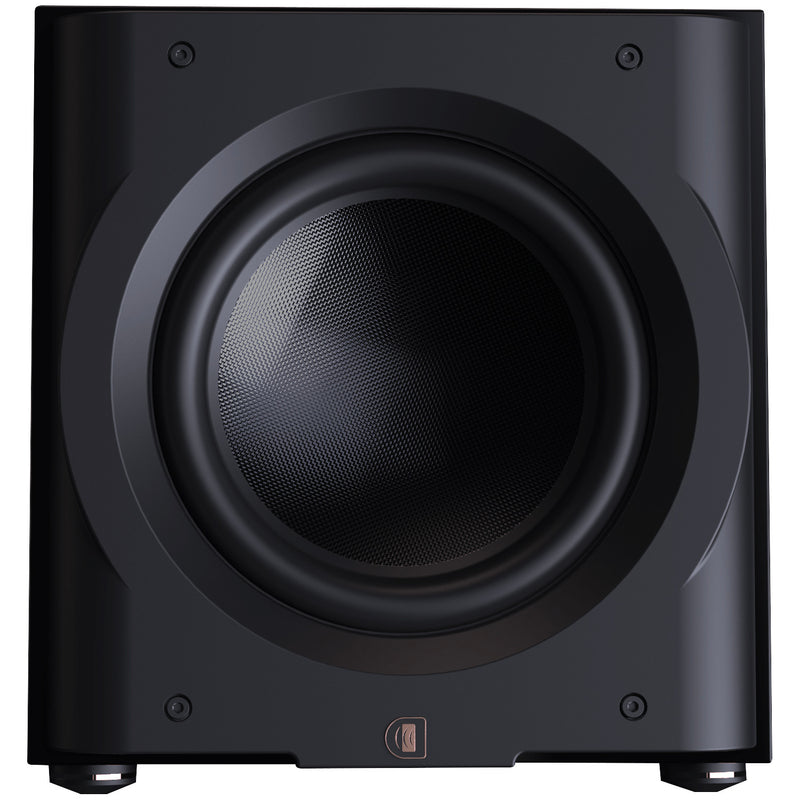

Perlisten D15s Subwoofer

Perlisten D15s Subwoofer - Perlisten

IT'S ALL IN THE DETAILS
Low Q, shallow rolloff response geared for sound quality and smoothly integrating into the listening room. Also, a great choice for using multiple subs to optimize in room response and smooth out seat-to-seat variation. The D15s is the smallest single sub certified THX Dominus available on earth.

Powered by Perlisten’s 2.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. Ground up drivers developed by Perlisten’s team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. All D-Series subs share Perlisten’s 2.4” LCD touchscreen display and ability to control advance settings using Perlisten’s App.

Product Details:

• Alignment: Acoustic suspension
• Amplifier: 2.0kW rms short term
• Display Interface: 2.4" LCD color touchscreen
• App: iOS and Android
• Processor: 32-bit ARM Cortex M4, double precision floating point math
• DSP Engine: Ti DSP 48-bit data paths
• Driver complement: 380mm, Carbon fiber diaphragm +/-30mm linear excursion
• Reference sensitivity: 92dB / 150mV / 1.0m
• Frequency Response THX EQ: 20-320Hz (-6dB) / 16-395Hz (-10dB)
• Boost (Large Room) EQ: 16-320Hz (-6dB) / 14-395Hz (-10dB)
• Cut (Small Room) EQ: 24-320Hz (-6dB) / 18-395Hz (-10dB)
• Inputs: (2) Balanced XLR, (2) Unbalanced RCA
• Outputs: (2) Balanced XLR unbuffered, (2) Unbalanced RCA unbuffered
• Parametric EQ: 10-Band PEQ with 3 user presets
• Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
• Phase: Variable 0-270°
• Polarity: Normal / inverted
• Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
• Dimensions (HxWxD): 528 x 500 x 500mm, 20.8 x 19.7 x 19.7"
• Weight: 46.0 kg (101.2 lbs.)
• Certification: THX Dominus
• Available finishes: Piano black

What to expect in the box:

• Perlisten D15s Subwoofer
