Parasound ZoneMaster ZM4 High Power 2-Zone Distribution Amplifier - Parasound
Features
- 120 watts x4 @ 8 Ω
- 150 watts x4 @ 4 Ω or 2 Ω

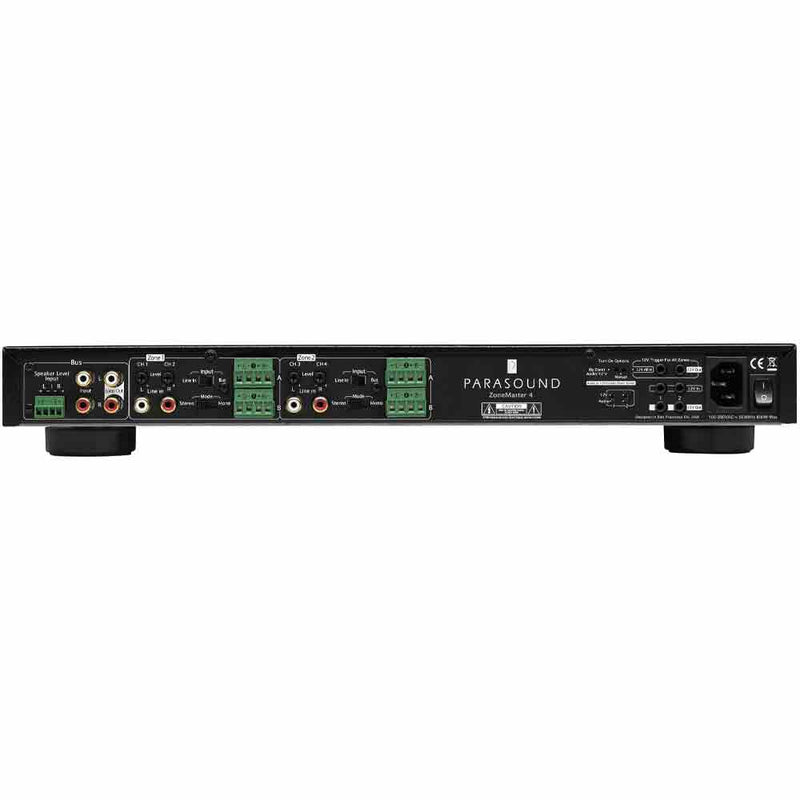

- 8 speaker connections (A and B outputs for both channels)
- High current for stable operation at 2 Ohms
- Class AB input stage plus premium Class D power stage
- Bus input with looping outputs
- Audio sensing auto-on trigger, independent for each zone
- 12 volt auto-on trigger inputs, one for each zone
- Master 12V trigger input to turn all zones on-off together
- Looping 12 volt trigger outputs
- Speaker level input for expanding systems w/out pre out jacks
- Mono mode combines L and R for single speaker applications
- Separate level controls for all 4 channels
- Detachable speaker connectors accept up to 12 gauge wire

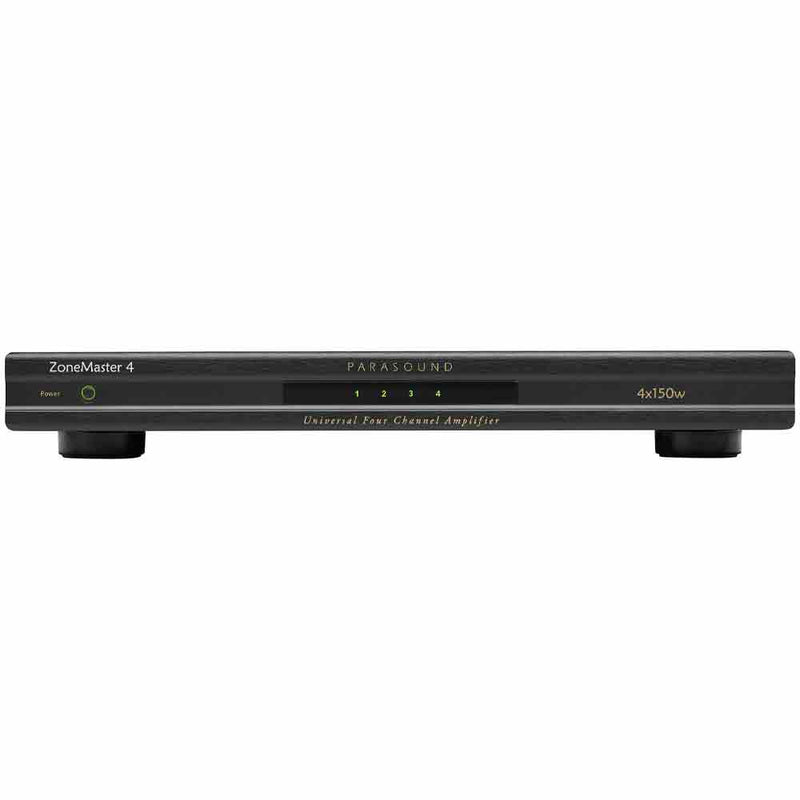

- Short circuit and overheat protection with front panel indicators
- 0.5 watt standby power consumption meets Energy Star & EU specs
- Compact 1u chassis size
What to expect in the box:
- ZoneMaster ZM4
- Rack mount kit
Product Details:
- Power Output – RMS, Both Channels Driven (20 Hz - 20 kHz)
- 120 watts x 4 @ 8Ω
- 150 watts x 4 @ 4Ω or 2Ω
- Minimum Speaker Impedance:
- A+B Outputs of a Single Channel: 2 Ω
- Note: Continuous operation at this minimum impedance might require additional ventilation for the amplifier.
- Frequency Response:
- 20 Hz - 20 kHz, +0/-0.25 dB
- 5 Hz - 50 kHz, +0/-3 dB
- Total Harmonic Distortion:
- < 0.05 % at typical listening levels
- < 1.0% at full power
- Interchannel Crosstalk: 70 dB at 20 kHz
- Total Gain: 29 dB (Level controls set to Maximum)
- S/N Ratio: >112 dB, input shorted, IHF A-weighted
- DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA
- Audio Trigger Requirements: 2 mV audio signal
- AC Power Requirement:
- 600 Watts maximum
- 60 Watts typical (music playing in all zones)
- 30 Watts idle (all zones on)
- 15 Watts idle (one zone on)
- 100-250 VAC 50/60 Hz (automatic)
- Dimensions:
- Width: 17.25" (437 mm)
- Depth: 14.25" (362 mm)
- Depth: 16" (406 mm) with cables connected
- Height, with feet: 2.5" (63.5 mm)
- Height, without feet: 1.75" (45 mm), 1U
- Weight:
- Net: 12 lbs. (5.5kg)
- Shipping: 18 lbs. (8.2 kg)
