Paradigm CI Pro P80-R v2 In-Ceiling Speaker (Each) - Paradigm
ci pro series v2: The Custom Installer’s Smarter Choice
The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
CARBON-X™ Cones
Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.
Advanced Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion
Patented† Active Ridge Technology (ART™) surrounds
Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
Advanced Features for a Solid and Secure Installation
FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.
Pocketed screw holes help to hold the drill steady, making installation a snap.
Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.
Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

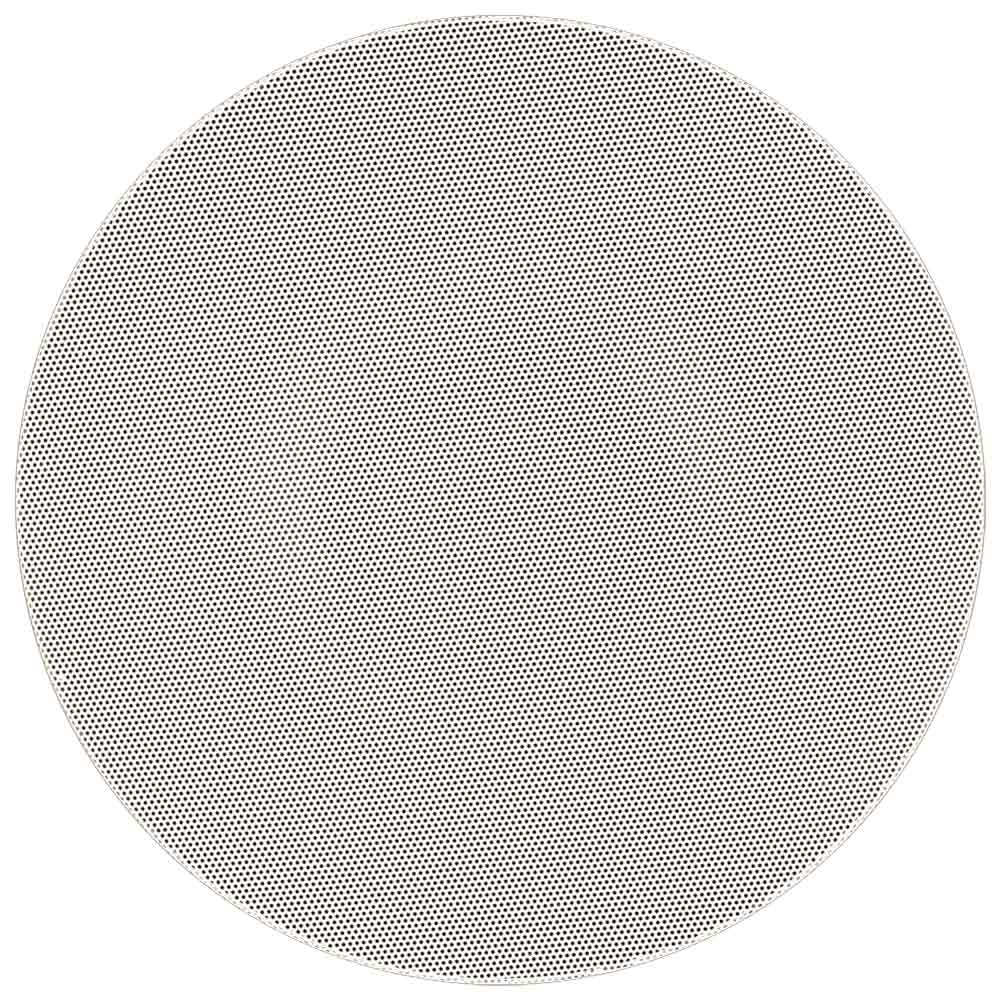

Bezel-Free Micro-Perf Grilles offer a clean aesthetic from room-to-room.
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Partnered with the NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
What to expect in the box:

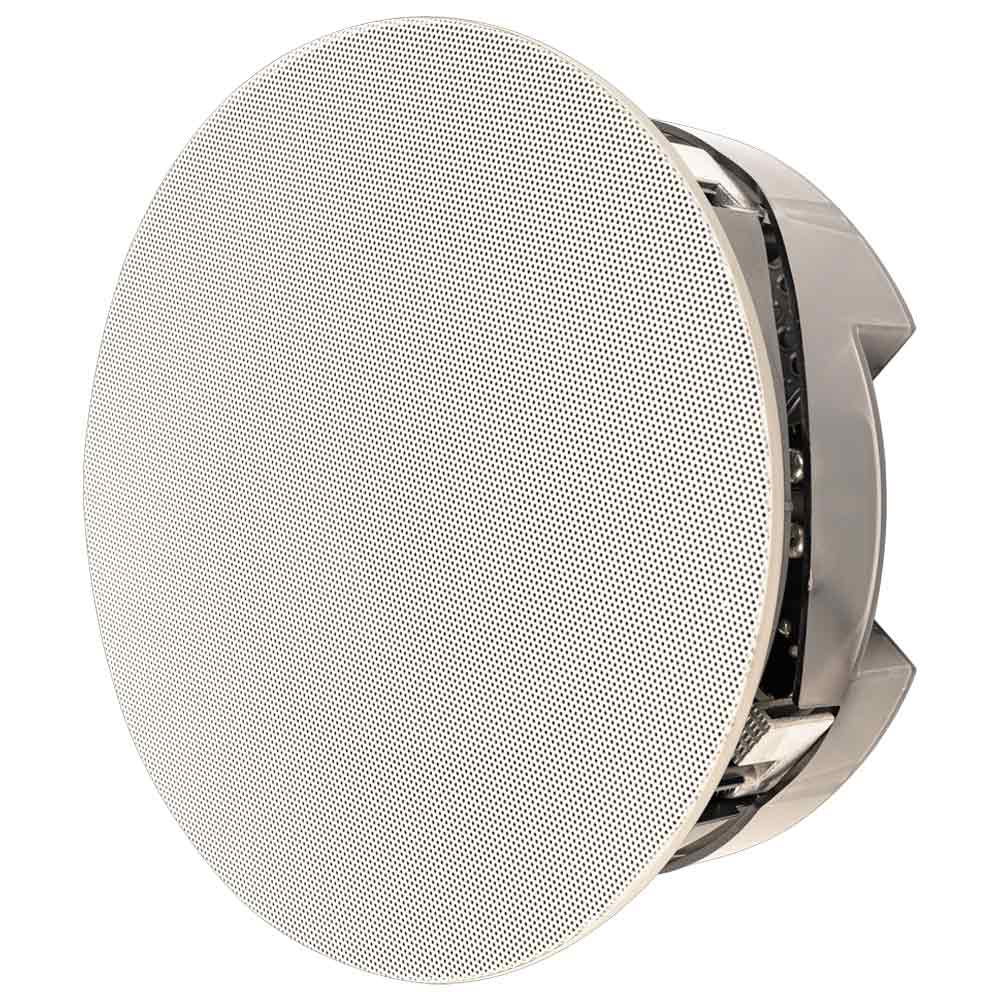

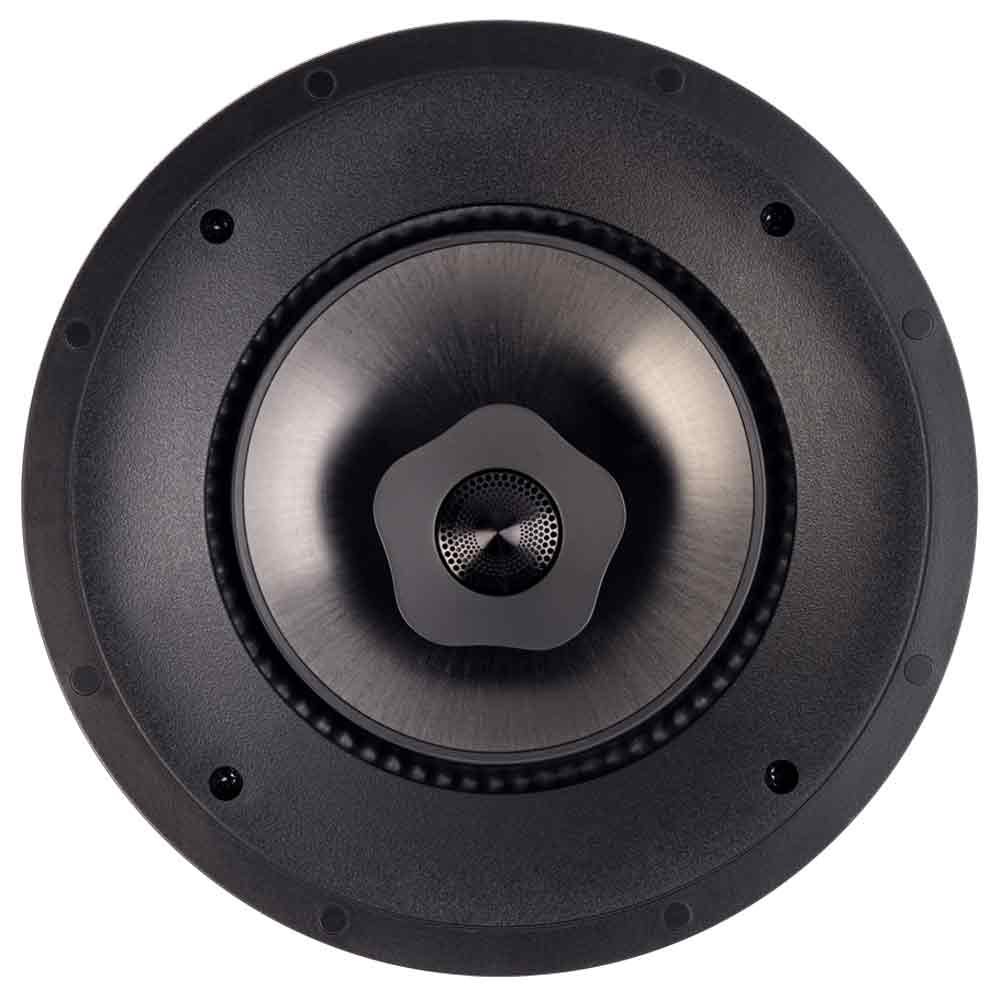

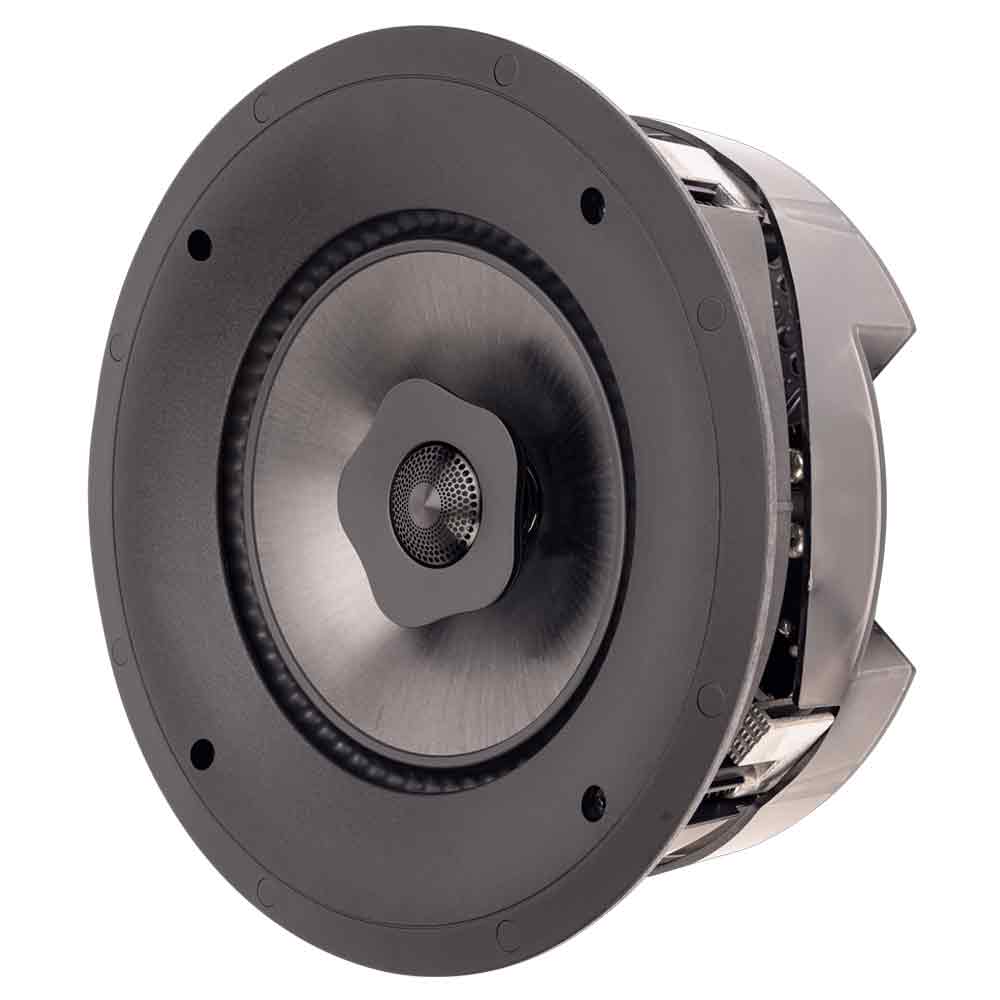

- CI Pro P80-R v2 In-Ceiling Speaker
Product Details:
- DESIGN: 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Nylon Reinforced Baffle
- CROSSOVER: 2nd-order electro- acoustic at 2.5 kHz
- HIGH FREQUENCY DRIVER: 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
- FREQUENCY RESPONSE ON-AXIS: ±3 dB from 64 Hz - 22 kHz
- FREQUENCY RESPONSE 30° OFF-AXIS: ±3 dB from 64 Hz - 18 kHz
- MID/BASS FREQUENCY DRIVER: 8” (20.3cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
- SENSITIVITY ROOM / ANECHOIC: 92 dB / 88 dB
- LOW FREQUENCY EXTENSION: 39 Hz
- SUITABLE AMPLIFIER POWER RANGE: 15-110 W
- MAXIMUM INPUT POWER: 80 W
- IMPEDANCE: Compatible with 8 ohms
- CUT-OUT DIMENSIONS: 9-3/16” (23.4cm) dia.
- MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.): 3-7/8” (9.8cm)
- DIMENSIONS HXWXD (INCLUDES GRILLE).: 10-1/4” (diameter) x 4-1/2” (depth) (26.1cm x 11.4cm)
- WEIGHT: 6.4 lbs (2.9 kg)
- FINISHES: White, paintable grille, black speaker
