Panamax MR4300 9 Outlet Power Management Power Conditioner and Surge Protector - Panamax
9 Outlet Power Management, specifically designed and engineered to provide protection, filtration and power monitoring for your home theater system. Media lights illuminate equipment.
Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.
Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
Features:
- 9 Protected & Filtered Power outlets
- Exclusive Automatic Voltage Monitoring (AVM)
- Protect or Disconnect™ Technology
- USB Charging (0.5V/5V)
- Linear Level 3 Filtration (2 Total Isolated banks) with Dedicated High Current Outlet Bank (4 Outlets)
- Antenna, Cable, or Satellite, LAN and TELCO signal protection
- Rotating & Dimmable Media Lights Illuminate Equipment
- Specs
- General
- Family: MR Series
- Line Voltage: 120 (Volts)
- BlueBOLT Enabled: No
- Power Factor Technology: No
- Number of Outlets: 9
- Number of Isolated Banks: 2

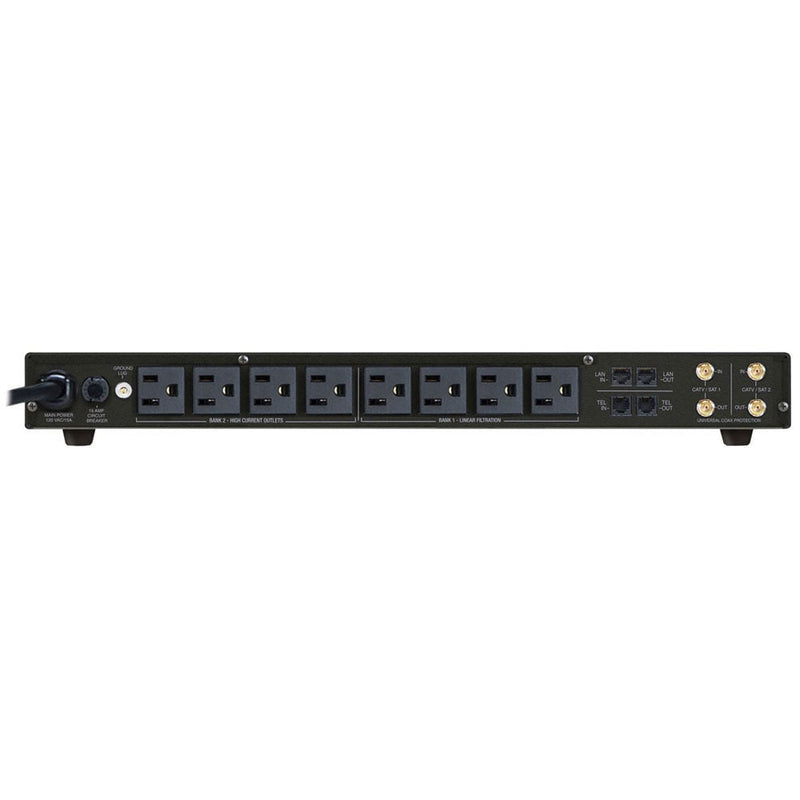

- Outlet Descriptions: All 9 outlets filtered, and surge protected. Bank 2 outlets are high current
- Rack Mountable: Yes
- Rack Ears Included: Yes

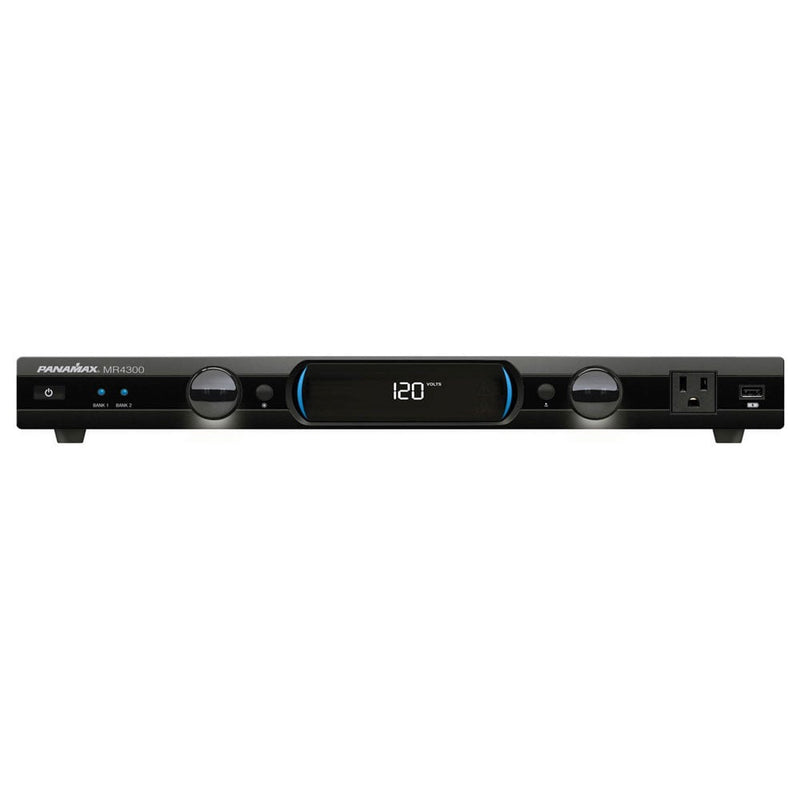

- Front Panel Meter(s): LED voltmeter
- Front Media Light(s): 2 rotating, dimmable media lights
- Control: On/Off control to all outlets through front panel power button
- Voltage Regulation: No
- Compliance: cCSAus
- USB Charging: 1 front panel USB charger
- Low Voltage Trigger: N/A
- AC Power Cord: 8 ft. captive, with low profile plug
- AC Protection
- AC Protection Technology: Protect or Disconnect, Automatic Voltage Monitoring, L-N, L-G, N-G Protection Modes, Thermal Fusing
- Automatic Voltage Shutoff: No
- Under-Voltage Shutoff: 100V ± 2V
- Over-Voltage Shutoff: 140V ±4V
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Level: 200V Peak
- Filtration
- Filtration Technology: LiFT
- Filtration Rating: Bank 1: -70dB min. @ 100kHz, -65dB min. @ 250kHz, -45dB min. @ 500kHz, Max filtration: -80dB @ 150kHz. Bank 2 - High Current, Low Impedance -50dB min. @ 100kHz, -60dB min. @ 250kHz, -45dB min. @ 500kHz, Max filtration: -63dB @ 250kHz
- Signal Line Protection: 1 LAN, 1 Tel, 2 Cable/Satellite
- Other Specifications
- Voltage Protection Rating: 330V
- Single Pulse Energy Dissipation: 1575 Joules
- Response Time: 1ns
- Nominal Discharge Current (UL 1449 3rd Edition): 3,000A/li>
- LAN
- Wires Protected: 8-Wires
- Jacks: RJ-45
- Compatibility: 10/100/1000bT
- Clamping Level: 62V ± 6V @ 1 mA
- TEL Protection - Wires Protected: 2 Wires, 1 Pair (4, 5
- Telco
- Jacks: RJ-11
- Fuseless/Auto-Resetting: Yes
- Clamping Level: 260V
- Coax
- Protection - Shielded < 0.5 dB: Yes Coax - Insertion Loss
- HD 1080 i/p Ready: Yes
- Frequency Range: 0 MHz - 2.2 GHz
- Connections: Female, Gold Plated
- Clamping Level: 75V
- Bidirectional: Yes
- Dimensions(W x D x H): 17 x 6 x 1.75"(2.19" H with feet)
- Weight: 6.5 lbs
- UPC: 050616008938
- MPN: MR4300
