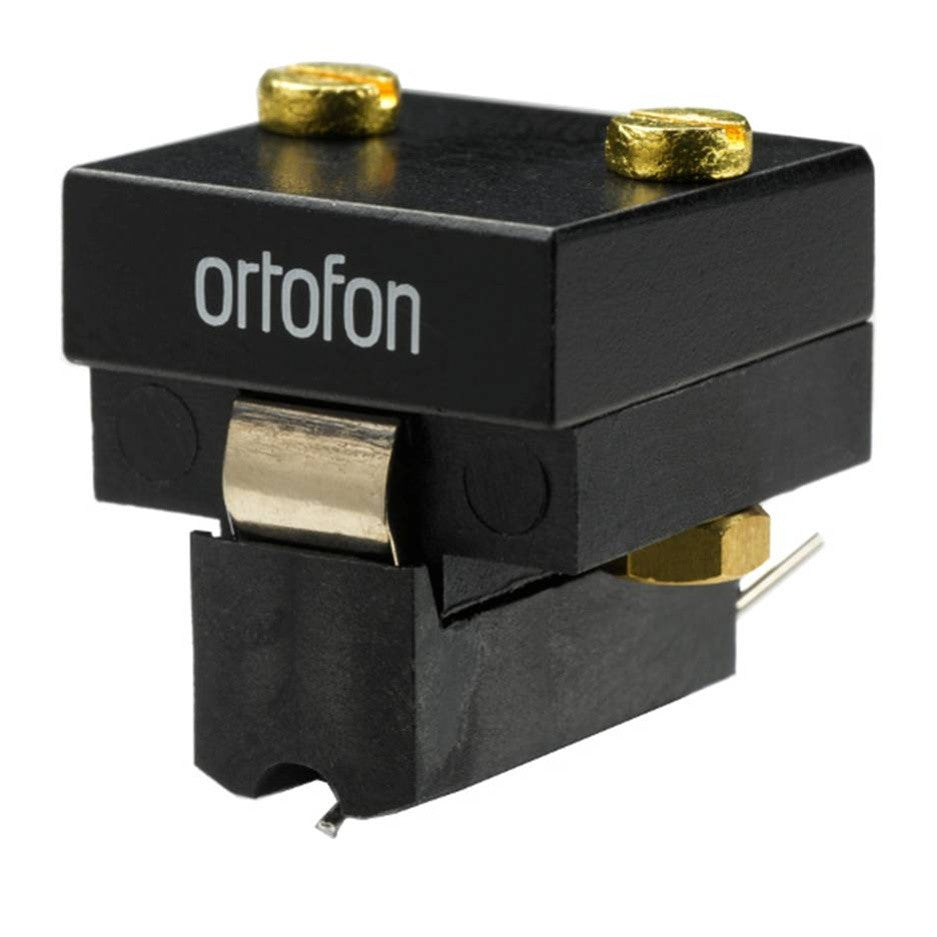

Ortofon SPU Classic N Moving Coil Cartridge

$939.00
$939.00

Available for pickup or local delivery. 1-800-513-8555 for details.

Available In Store

FREE 60 Day Returns

Ortofon SPU Classic N Moving Coil Cartridge

Ortofon SPU Classic N Moving Coil Cartridge

$939.00

Ortofon SPU Classic N Moving Coil Cartridge

$939.00

Ortofon SPU Classic N Moving Coil Cartridge - Ortofon

The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM series, but is sold without the integrated headshell unit. The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile. Listeners who wish to mount the SPU Classic on a traditional headshell may do so, and those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge.

Product Details:

  • Output voltage at 1000Hz, 5cm/sec. 200 ¼V
  • Channel balance at 1kHz < 1 dB
  • Channel separation at 1kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency range at -3dB 20-25,000 Hz
  • Frequency response 20-20,000 Hz ± 3 dB
  • Tracking ability at 315 Hz at recommended tracking force > 65 µm
  • Compliance, dynamic lateral 8 µm/mN
  • Stylus type Nude spherical
  • Stylus tip radius R 18 ¼m
  • Tracking force range 3.0-5.0 g (30-50 mN)
  • Tracking force recommended 4.0g (40 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 6 Ohm
  • Recommended load resistance > 10 Ohm Cartridge weight 13 g
