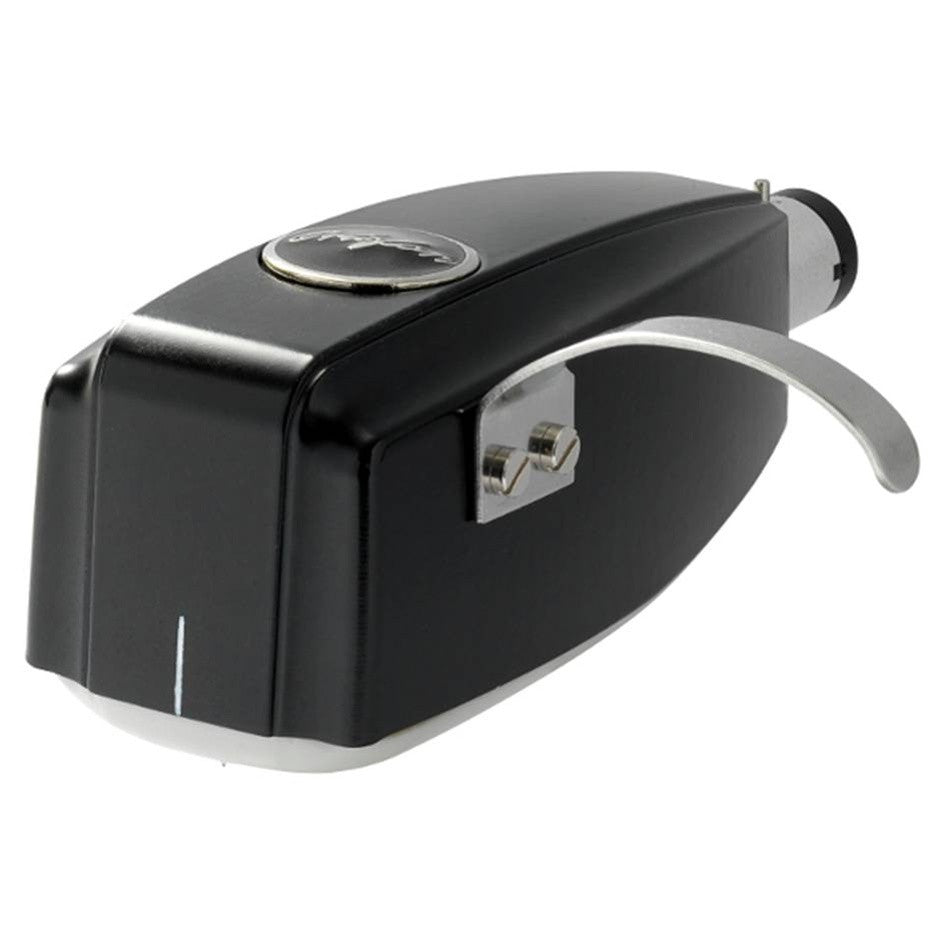

Ortofon SPU Classic GM MKII Moving Coil Cartridge - Ortofon

The SPU Classic GM MKII, known for its dynamic and powerful sound reproduction, is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile. The SPU Classic series embodies the essence of the original Moving Coils and is a perfect solution for the playback of both early and modern and contemporary stereo recordings.

Product Details:

  • Output voltage at 1000Hz, 5cm/sec. 200 ¼V
  • Channel balance at 1kHz < 1 dB
  • Channel separation at 1kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency range at -3dB 20-25,000 Hz
  • Frequency response 20-20,000 Hz ± 3 dB
  • Tracking ability at 315 Hz at recommended tracking force > 65 µm
  • Compliance, dynamic lateral 8 µm/mN
  • Stylus type Nude spherical
  • Stylus tip radius R 18 ¼m
  • Tracking force range 3.0-5.0 g (30-50 mN)
  • Tracking force recommended 4.0g (40 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 6 Ohm
  • Recommended load resistance > 10 Ohm
  • Cartridge weight 32 g
  • Cartridge body material Aluminum/Magnesium Alloy
