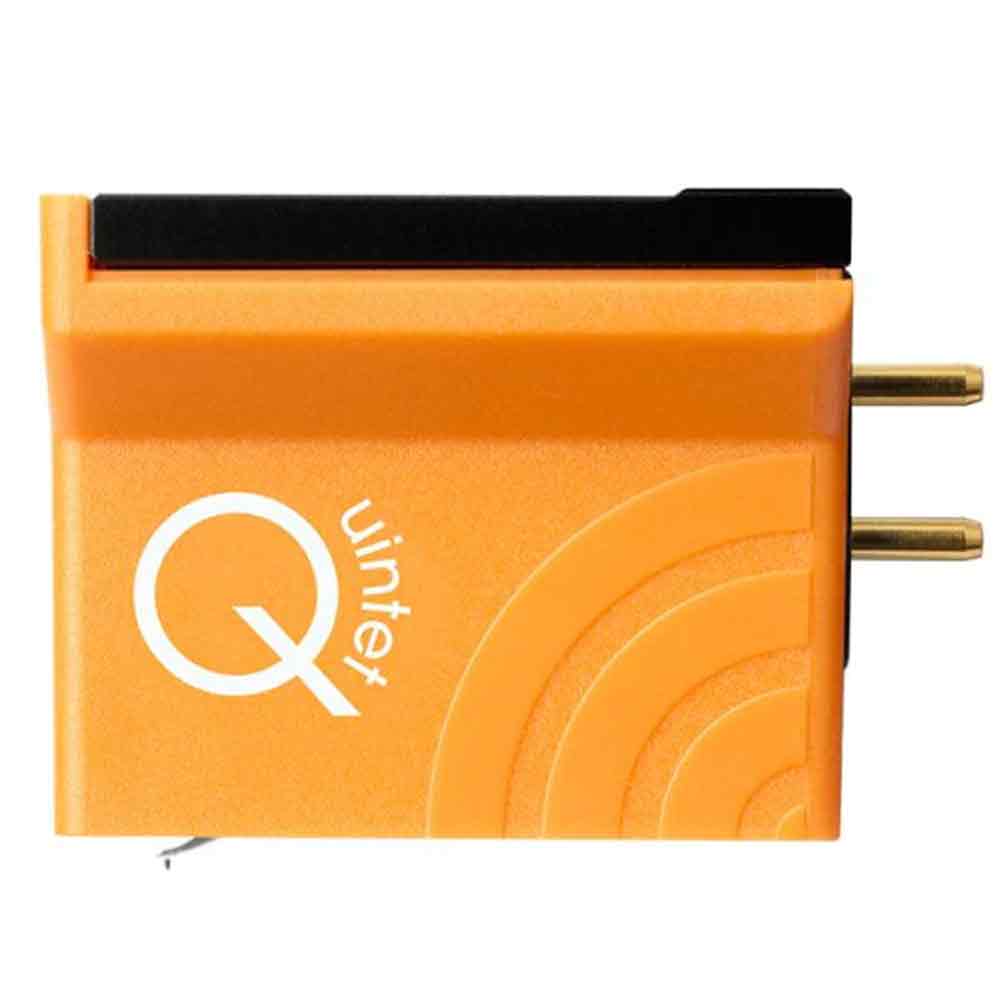

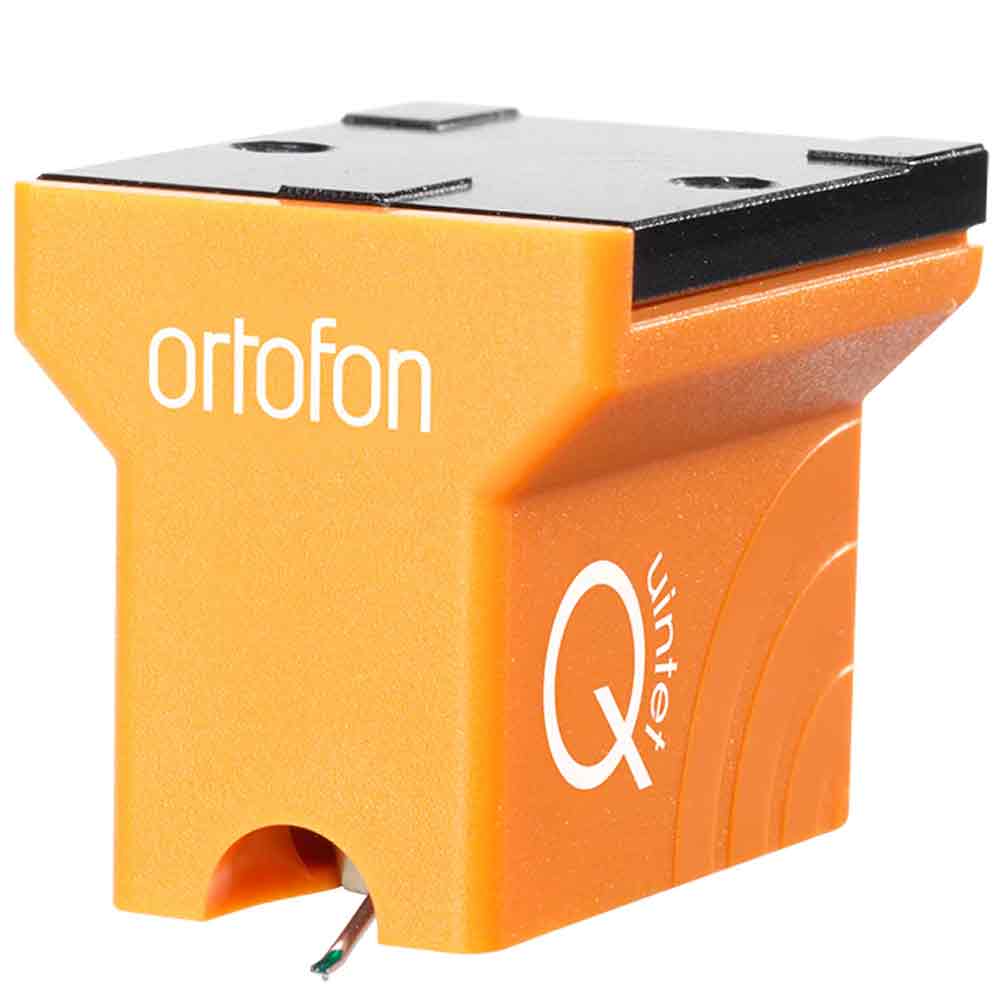

Ortofon MC Quintet Bronze Cartridge

$799.00
$799.00

Available for pickup or local delivery. 1-800-513-8555 for details.

Available In Store

FREE 60 Day Returns

Ortofon MC Quintet Bronze Cartridge - Ortofon

The Quintet Bronze moves into the higher league of the Quintets.

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.

Additionally its larger footprint ensures reduced distortion and record wear.

The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.

Accuracy level
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:

  • A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
  • Neodymium magnets are implemented to achieve an optimal output.
  • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.

MC Quintet Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements.

The Quintet series
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analog sound quality and its continued development of new cartridge models.

Since 1948, Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.

Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminum frame has threaded mounting holes and is fitted easily with the 5 mm or 7 mm screws depending on the thickness of the headshell.

The Quintet series’ right angles, straight lines, stylus visibility, and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

What to expect in the box:

  • MC Quintet Bronze Cartridge

Product Details:

  • Channel balance at 1 kHz: < 1.2 dB
  • Output voltage at 1 kHz, 5cm/sec: 0.3 mV
  • Channel separation at 1 kHz: > 23 dB
  • Frequency response 20 Hz - 20 kHz: +/- 1.5 dB
  • Tracking ability at 315 Hz: 80 μm
  • Compliance, dynamic, lateral: 15 µm/mN
  • Stylus type: Nude Fine Line
  • Stylus tip radius: r/R 8/40 µm
  • Tracking force range: 2.1-2.5 g
  • Tracking force, recommended: 2.3 g
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 5 Ohm
  • Recommended load impedance: > 20 Ohm
  • Coil wire material: Pure 4-nines copper
  • Cartridge body material: PC
  • Cartridge color: Bronze
  • Cartridge weight: 9 g
  • EAN: 5705796271126
