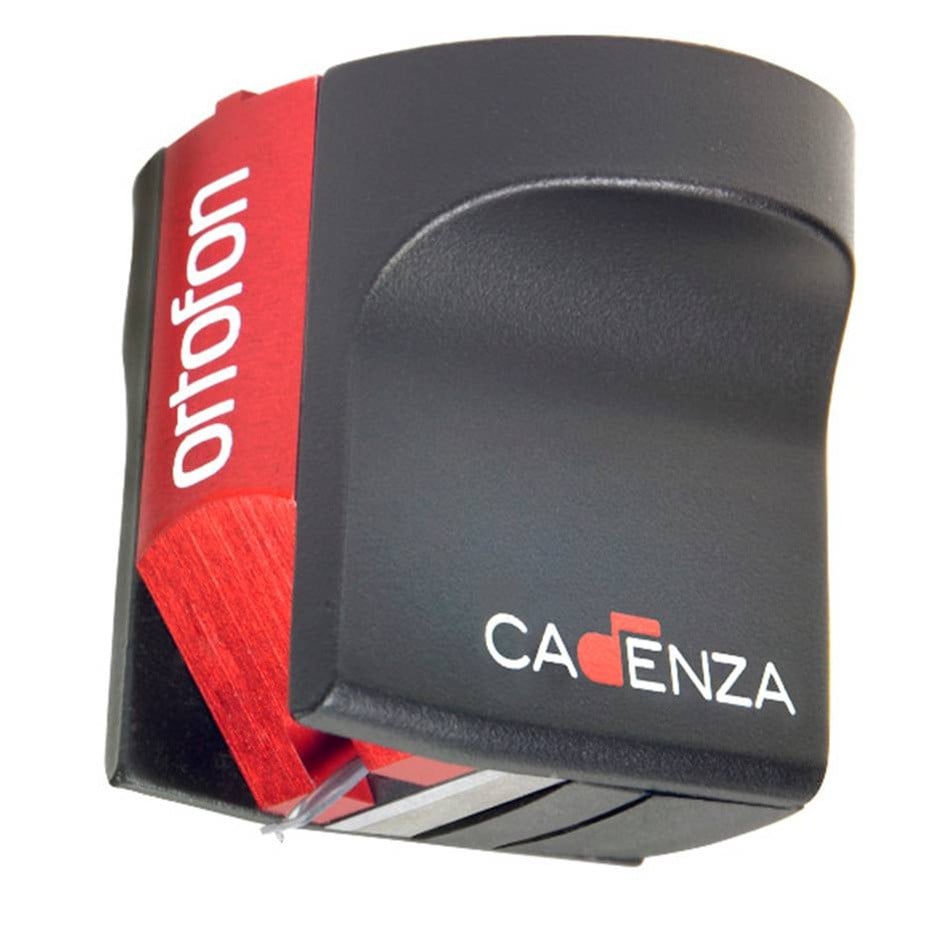

Ortofon MC Cadenza Red Moving Coil Cartridge

$1,479.00
$1,479.00

Available for pickup or local delivery. 1-800-513-8555 for details.

Available In Store

FREE 60 Day Returns

Ortofon MC Cadenza Red Moving Coil Cartridge

Ortofon MC Cadenza Red Moving Coil Cartridge

$1,479.00

Ortofon MC Cadenza Red Moving Coil Cartridge

$1,479.00

Ortofon MC Cadenza Red Moving Coil Cartridge - Ortofon

The Cadenza Red model is using a nude fine line stylus with a cylindrical aluminum cantilever. The stylus tip radius is r/R 8/40 µm. The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance. The sound picture of Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue and has great space and depth in the stereo image.

Product Details:

  • Output voltage at 1000Hz, 5cm/sec. 450 ¼V
  • Channel balance at 1kHz < 1.5 dB
  • Channel separation at 1kHz > 23 dB
  • Channel separation at 15 kHz > 15 dB
  • Frequency range at -3dB 20 Hz - 50 kHz
  • Frequency response 20 Hz - 20 kHz -3dB
  • Tracking ability at 315 Hz at recommended tracking force 80 ¼m
  • Compliance, dynamic lateral 12 ¼m/mN
  • Stylus type Nude fine line, Al. cantilever
  • Stylus tip radius r/R 8/40
  • Tracking force range 2.2-2.7 g (22-27 mN)
  • Tracking force recommended 2.5 g (25 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 5 Ohm
  • Recommended load resistance 50-500 Ohm
  • Cartridge weight 10.7 g
  • Cartridge body material Stainless steel / Aluminum
