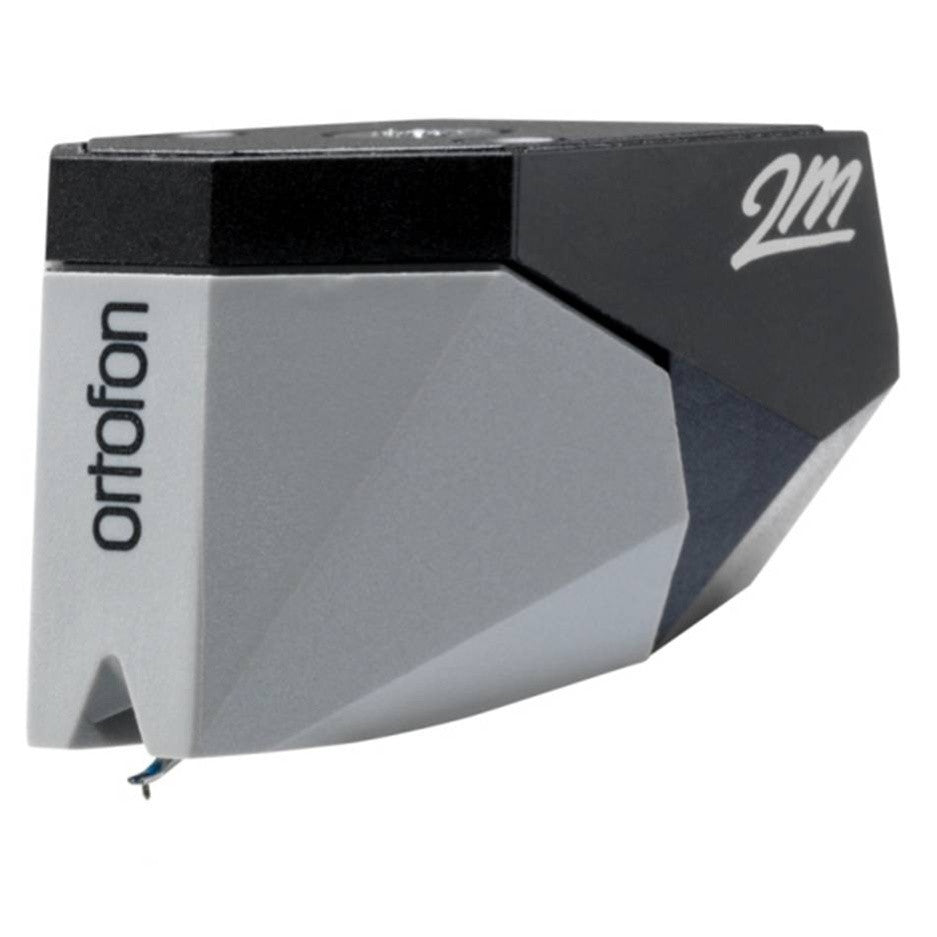

Ortofon 2M 78 MM Phono Cartridge

$165.00
$165.00

Available for pickup or local delivery. 1-800-513-8555 for details.

Available In Store

FREE 60 Day Returns

Ortofon 2M 78 MM Phono Cartridge

Ortofon 2M 78 MM Phono Cartridge

$165.00

Ortofon 2M 78 MM Phono Cartridge

$165.00

Ortofon 2M 78 MM Phono Cartridge - Ortofon

2M are designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound. We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today.

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with the unrelenting commitment of Ortofon to provide the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.


The 2M 78 features a 65um diamond for playback of 78rpm records, and a true-mono engine


Product Details:

  • Output voltage at 1 kHz, 5cm/sec: 4 mV
  • Frequency response 20 Hz - 20 kHz: 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 70 µm
  • Compliance, dynamic, lateral: 18 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 65 µm
  • Tracking force range: 1.6-2.0g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 700 Ohm
  • Cartridge color: Black/Grey
  • Cartridge weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 350 mH
  • Recommended load capacitance: 150-300 pF
  • EAN: 5705796080063

What to expect in the box:

  • 2M 78 MM Phono Cartridge
