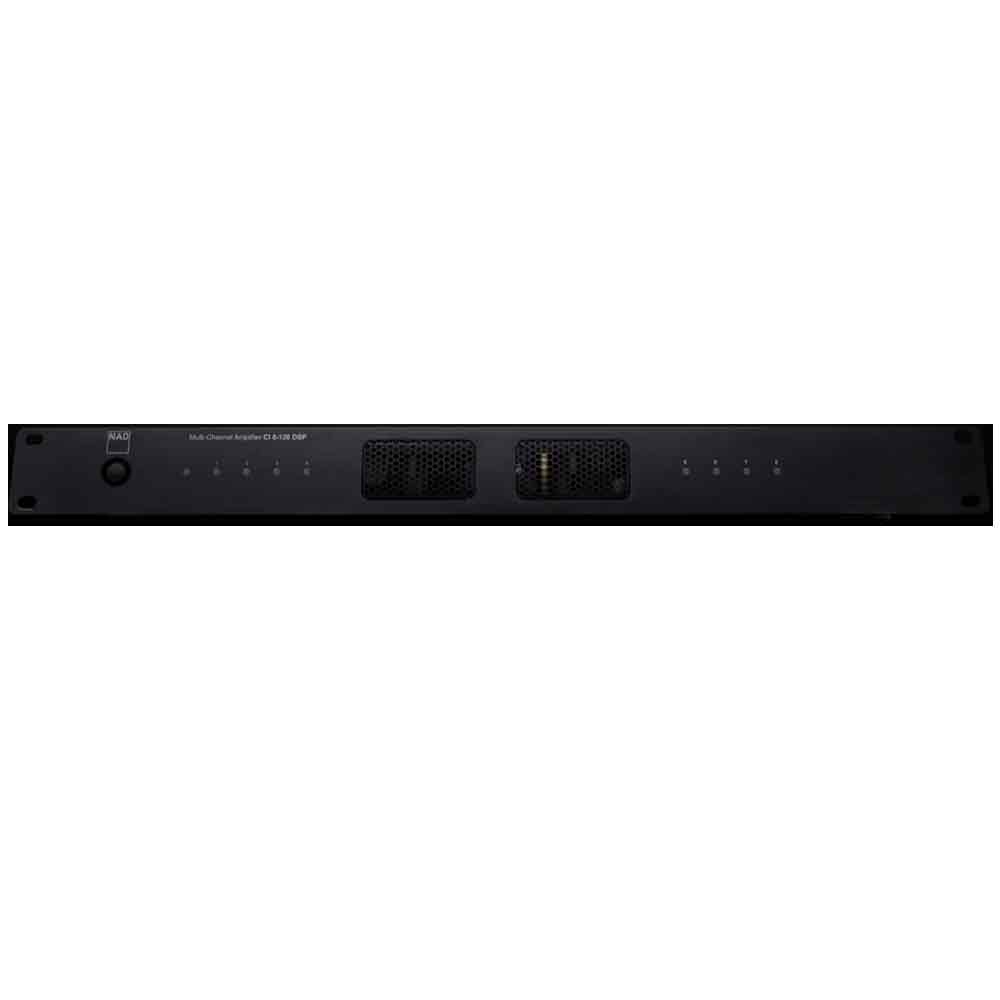

NAD CI 8-120 DSP V2 Multi-Channel Network Power Amplifier - NAD
In this updated version, the CI 8-120 DSP v2, we’ve left the great performance alone and focused on simplifying the set-up, adding new features and improving efficiency.
Full Disclosure Power
The CI 8-120 DSP v2 offers NAD’s world-renowned sonic performance at an unrivalled cost per zone. This powerhouse is capable of delivering a conservative 120 watts per channel at 8 ohms into all channels simultaneously, bridgeable to 200 watts per channel. IHF Dynamic Power in bridged mode is 4 x 350 watts per channel @ 4 ohm.
As per NAD’s FDP ratings, the power we declare is what you can expect in the real world, we rate our amplifiers based on continuous power into 8ohms, with all channels running simultaneously, using a full frequency response and THD at rated power.
To put it simply, the CI 8-120 DSP v2 will drive almost anything you need in your multi-room audio system.
Hybrid Digital Amplification
The CI 8-120 DSP v2 uses a customized version of the proven Hypex UcD output stage to deliver great load invariant power with extremely low distortion and noise floor. Every detail of this design has been carefully executed to bring out the best possible performance. Meticulously designed and built to deal with the demands of the custom installation market, the robust nature of Hybrid Digital amplification makes it ideal for installations. With a high current output and being load invariant, it handles 4 ohm loads as easily as it does 8 ohms and can effortlessly handle long cable runs and difficult speaker loads while maintaining audio quality.
Whether listening to background music at lower volumes or turning it up, NAD delivers a consistent, linear sound, which is clear, detailed and dynamic at all volume levels.
Rack Space Efficiency and Reliability
NAD is keenly aware that reliability is paramount for a professional installer, so all models will be based on tried and true amplification platforms delivering stable and reliable performance. Since rack real estate is always at a premium, NAD CI amps have been designed to take up as little as possible. Thermostatic fans draw in cool air from the front of the unit and out through the rear vents, meaning you don’t need to leave ventilation gaps between each unit for it to stay cool. For the CI 8-150 DSP v2 efficiency and heat dissipation has been improved even further by adding the ability for unused amplifier channels to switch off completely in Zone Sleep mode.
Web UI/DSP
The CI 8-120 DSP v2 is network ready for simple set up, via the custom WebUI. The updated interface still allows fast set up of IO but with new clearer layout, plus the creation of DSP profiles using the Parametric EQ. In addition is a new Dashboard, providing a live read out of the unit’s status, improved power management, faster startup time, user password protection, channel grouping and global input on/off per zone and zone sleep with instant wake time. Over and above the previous V1, there is an expanded DSP suite with Peak and RMS limiters, delay and phase control so that bridged channels can safely be used to power subwoofers. I/O switching and routing can also be managed via compatible control systems with drivers available for Crestron, Control4, Elan & & RTI.
System suggestion
Combine the CI 8-120 DSP v2 with an NAD CI BluOS Enabled audio streamer to create a complete, hi- res multi-room package of incredible value and quality. For a step- up in source performance, the BluOS Enabled Bluesound Node Icon or NAD C658 would also compliment the extra power of the CI 8-120 DSP v2 perfectly and add Dirac Room Correction software capability for stereo or 2.1 setups.
What to expect in the box:
- CI 8-120 DSP V2 Multi-Channel Network Power Amplifier
Product Details:
- Key Features
- 8 Channels x 120 Watts @ 8 Ohms, HybridDigital with Hypex UcD
- Bridgeable to 4 channels X 200 Watts @ 8 Ohms
- Effectively handles long cable runs and difficult speaker loads
- Ethernet port for IP control, custom web UI with virtual I/O panel and performance diagnostics
- DSP with 5 band parametric EQ, plus high and low pass filters, Peak and RMS Limiters, Delay and Phase Control
- Dashboard for remote monitoring
- 4 stereo RCA inputs
- Dual global Inputs/Outputs
- 2U Rack height
- 5W Standby Mode, 3W Network Standby
- 12V Trigger In; IR In/Out
- Thermostatic fan cooling with front vents
- Universal AC Power Supply
- Multiple Power-up options including Auto Sense turn on, as well as Eco Mode
- Control drivers for Crestron, Control4, Elan, RTI, URC.
- GENERAL SPECIFICATIONS
- All specs are measured according to IHF 202 CEA 490-AR-2008 standard. THD is measured using AP AUX 0025 passive filter and AES 17 active filter.
- LINE INPUT, SPEAKER OUT
- Continuous Output Power into 8 Ohms: >120 W (all channels driven) >130 W (two channels driven)
- Continuous output power into 4 Ohms: >135 W (all channels driven)>230 W (two channels driven)
- Continuous output power into 8 ohms at Bridged mode: >200 W (all channels driven)>320 W (two channels driven)
- THD (20 Hz – 20 kHz): <0.05 % (1 W to 100 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio: >88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power (all channels driven): >130 W (1 kHz 8 ohms 0.1 % THD) >150 W (1 kHz 4 ohms 0.1 % THD)
- Clipping power into 8 ohms at Bridged mode: >300 W (1 kHz 0.1 % THD – all channels driven) >400 W (1 kHz 0.1 % THD – two channels driven)
- IHF dynamic power (all channels driven): 8 ohms: 125 W4 ohms: 200 W 2 ohms: 180 W
- IHF dynamic power (two channels driven): 8 ohms: 145 W4 ohms: 260 W 2 ohms: 300 W
- IHF dynamic power (Bridged mode, all channels driven): 8 ohms: 440 W 4 ohms: 350 W 2 ohms: 230 W
- IHF dynamic power (Bridged mode, two channels driven): 8 ohms: 480 W 4 ohms: 380 W 2 ohms: 300 W
- Peak output current: >20 A (1 ohm, 1 ms)Damping Factor>110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency Response: ±0.5 dB (20 Hz – 20 kHz)
- Channel separation: >70 dB (1 kHz)>65 dB (10 kHz)
- Maximum undistorted input level: 2900 mV
- Input sensitivity (for 120 W in 8 ohms, maximum volume): 1150 mV
- Analog Input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
- Trigger IN level: 3 – 30 Vdc
- Standby power: 0.5W
- UPC: 786357003108
- DIMENSION AND WEIGHT
- Dimensions (W x H x D): *483 x 45 x 435 mm (19 1/16 x 1 13/16 x 17 3/16”)
- Shipping Weight: 10 kg (22 lbs)
