All About Music Hall Stealth Turntable

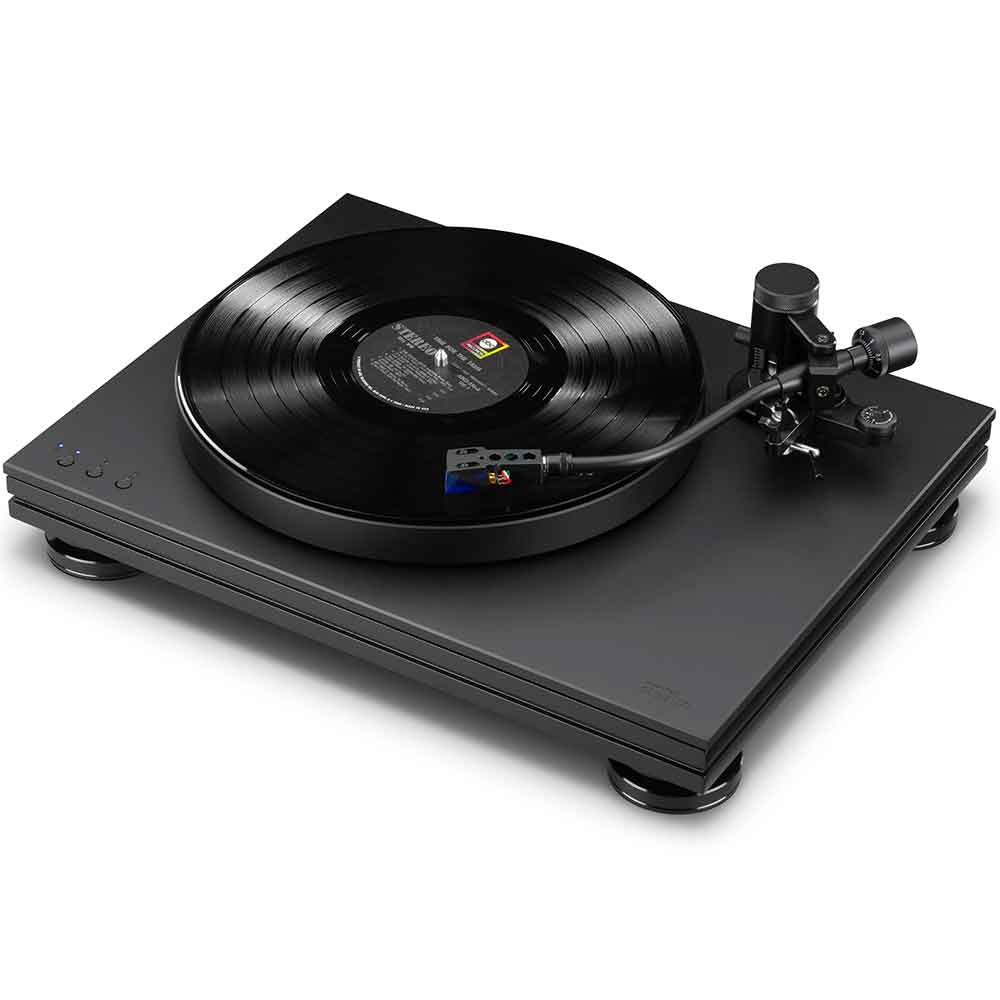

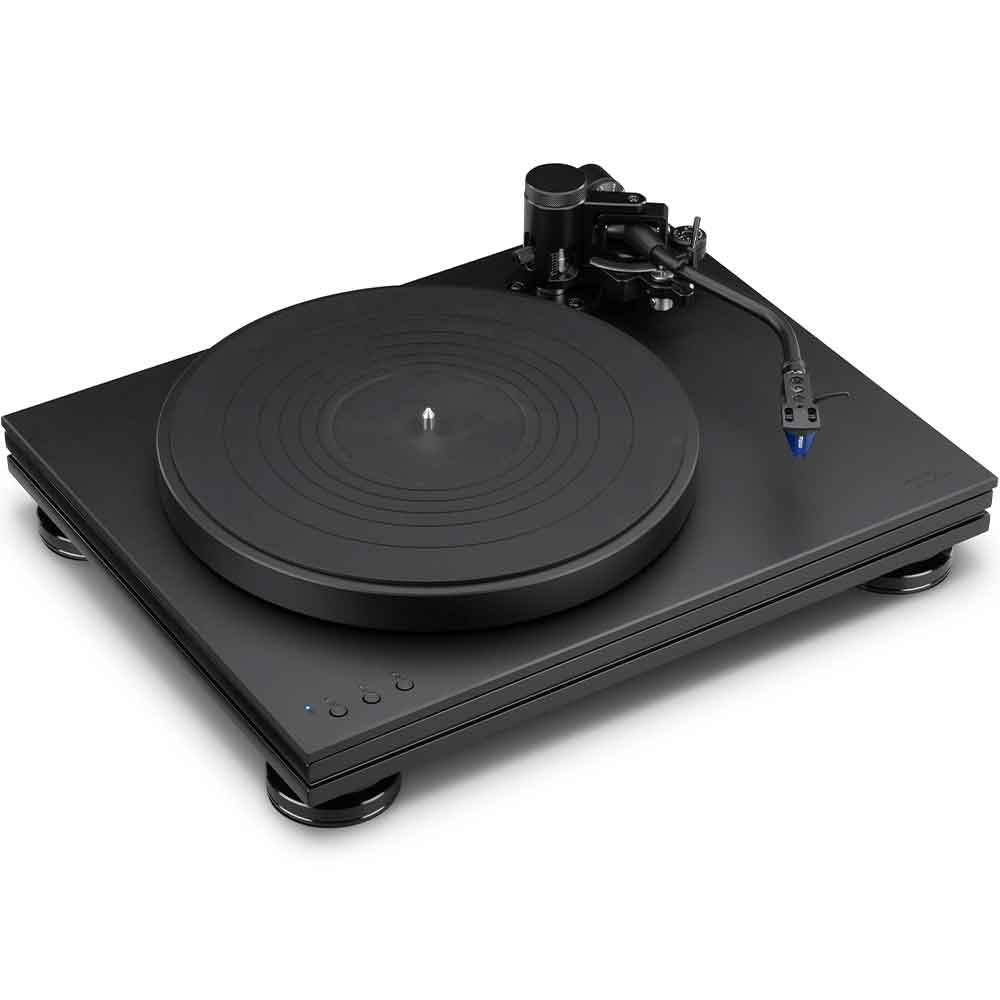

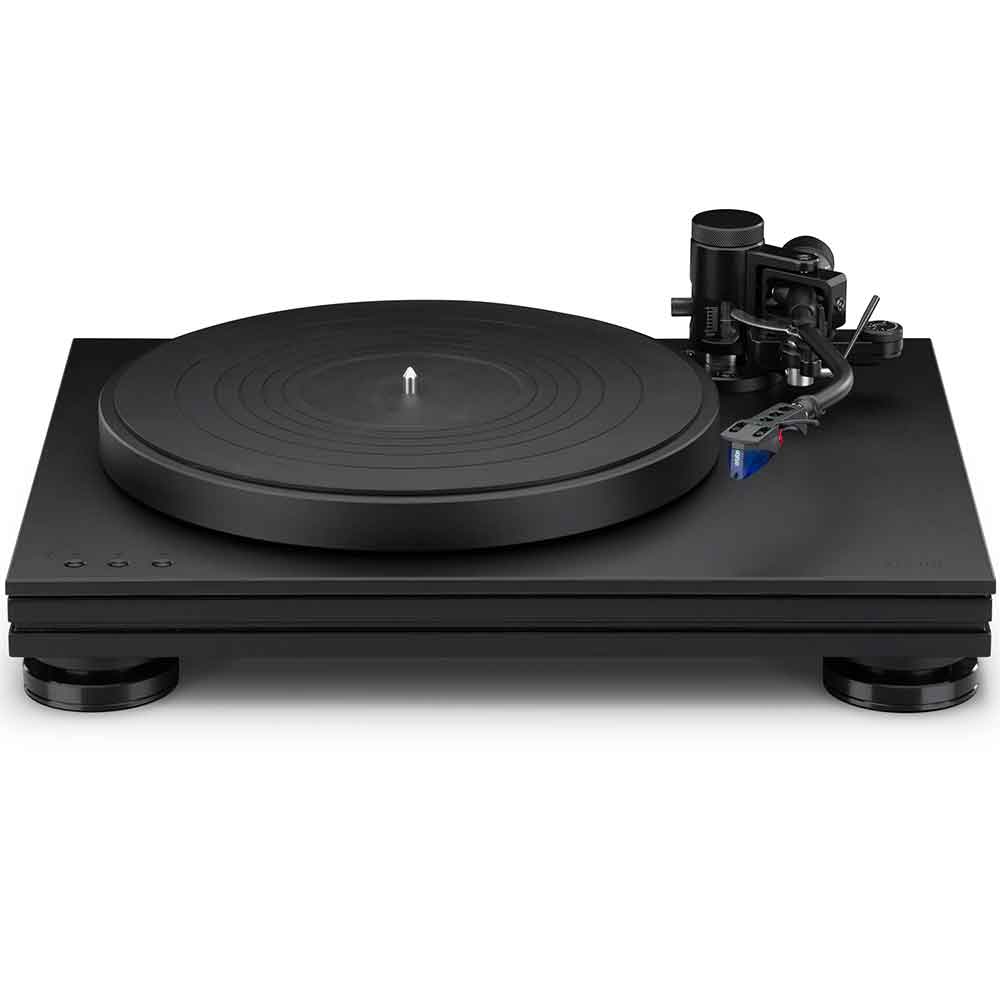

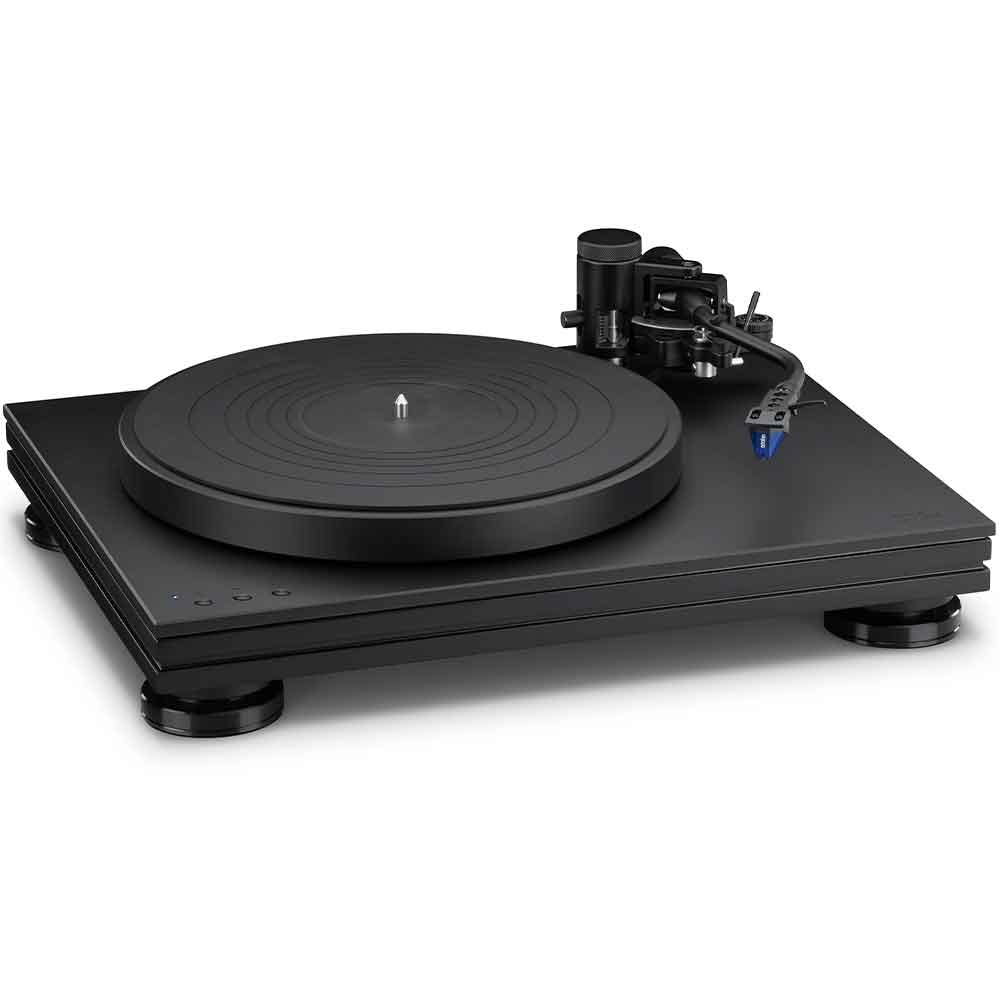

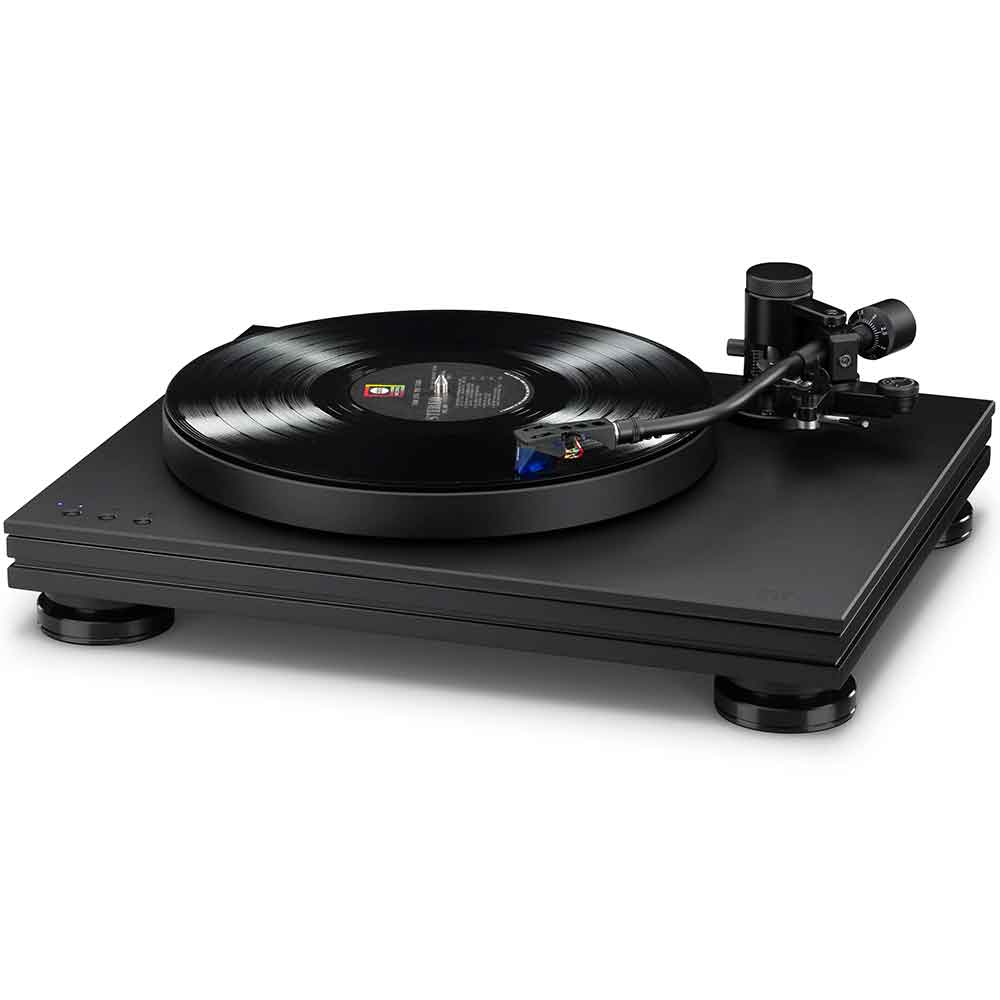

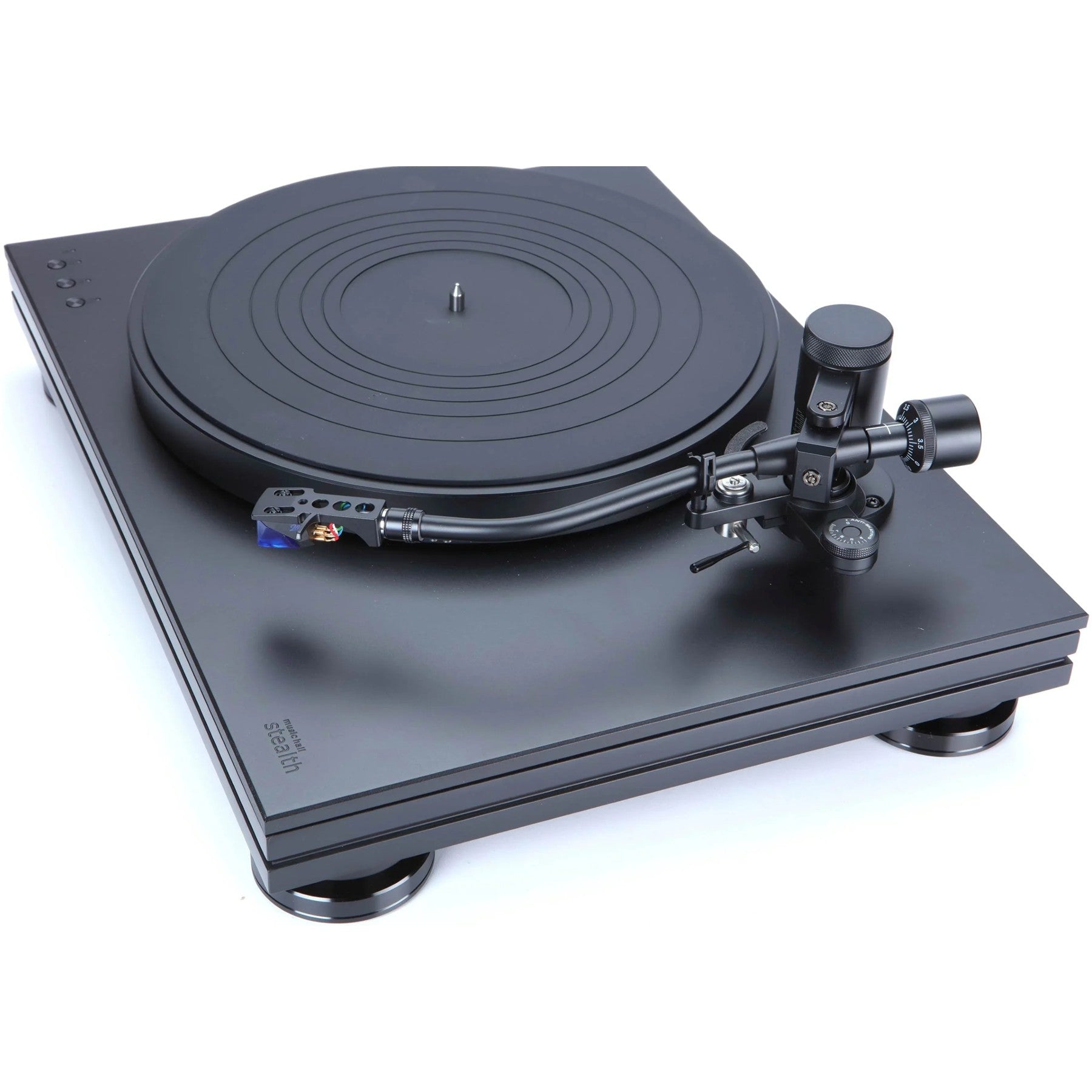

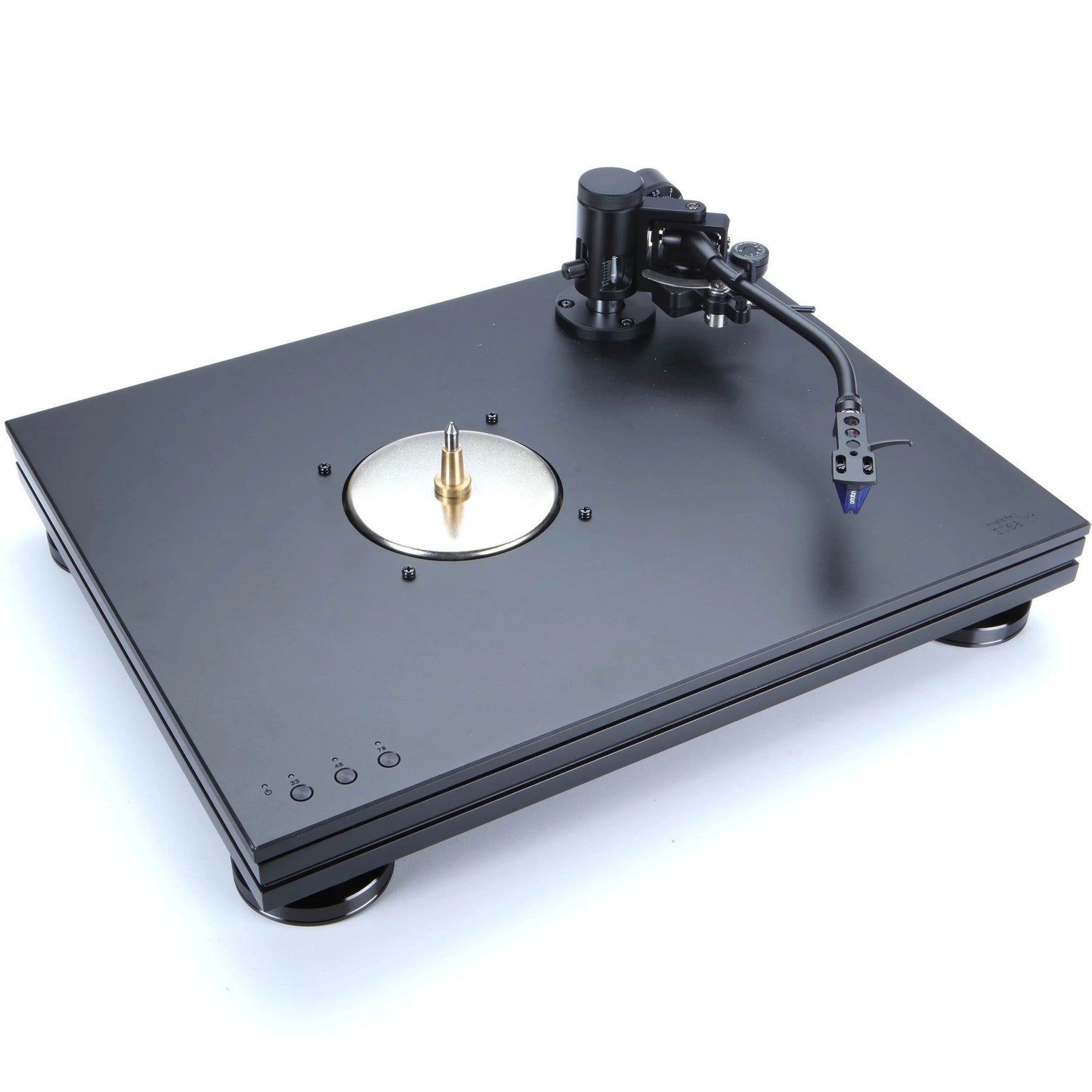

The Music Hall Stealth Turntable is a game changer for vinyl enthusiasts. The first direct drive turntable from Music Hall, the Stealth features a brushless, low-torque motor that automatically stops running at the end of a record. But that's not all - this 24-pound turntable is built with an unusually heavy, multi-layer and well-damped chassis, and large, viscous-elastomer damped height-adjustable feet that attenuate external vibrations.

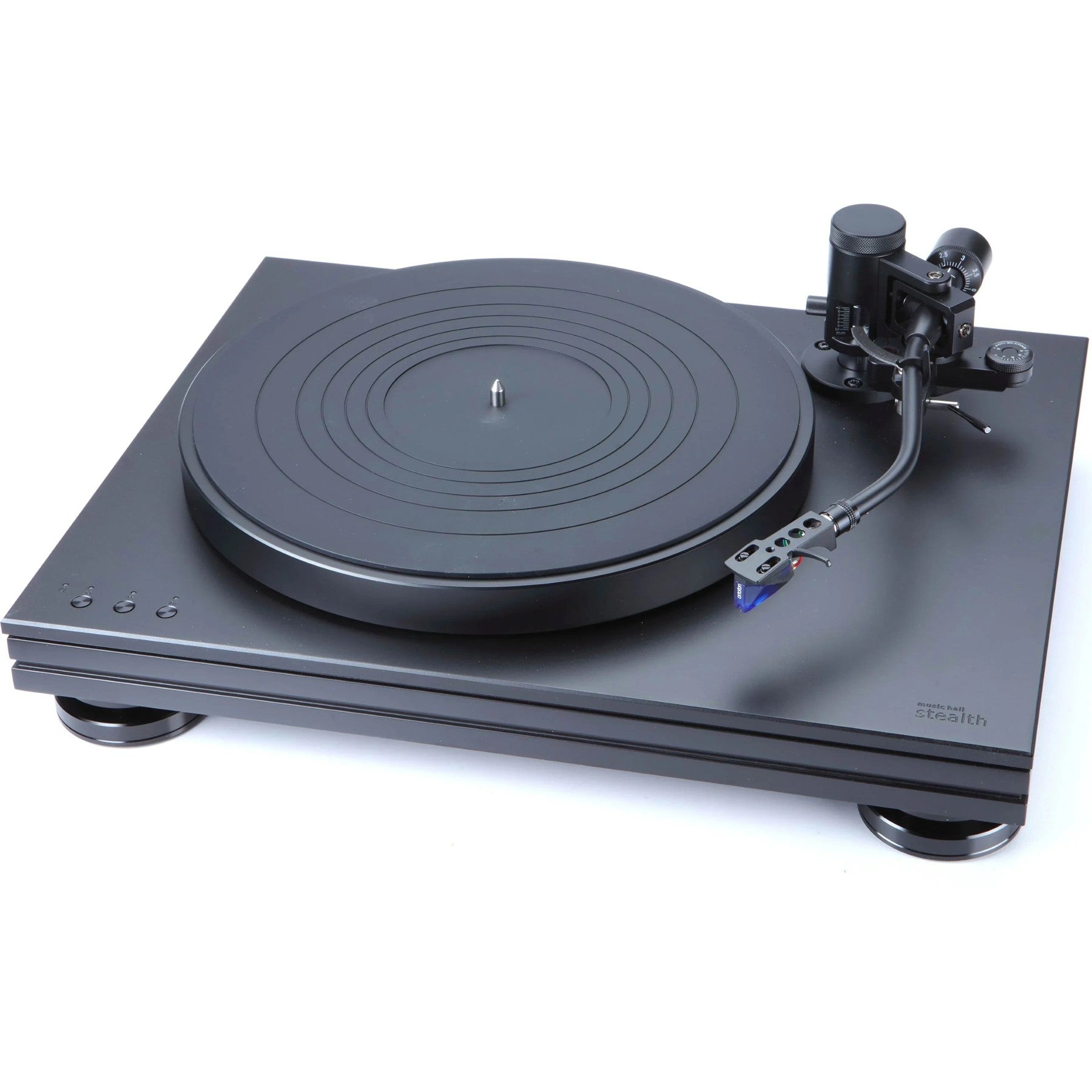

With touch-activated speed controls for ease of use, the Stealth is a 3-speed direct drive turntable that comes complete with an S-shaped tonearm, a detachable headshell, and a factory-mounted, precision aligned Ortofon 2M Blue cartridge. You can adjust the VTA of the aluminum tonearm while the record is playing, and the platter is a hefty 4-pound, elastomer-damped aluminum construction.

The Stealth is not just a beautiful turntable - it's a sound foundation for your vinyl collection. The vibration-damping rubber platter mat and feet work together to reduce unwanted resonance and noise, while the Ortofon 2M Blue cartridge delivers a clear, detailed sound. And when you're done listening, simply use the touch controls to stop the motor, or let the automatic standby mode kick in after 20 minutes of non-use. The Stealth also comes with removable RCA cables and a cloth dust cover for easy storage. Overall, the Music Hall Stealth Turntable is a top-of-the-line choice for vinyl enthusiasts looking for a direct drive design and exceptional performance.

What to expect in the box:

• Stealth Turntable

Product Details:

• Brushless, low-torque motor automatically stops running at the end of a record
• S-shaped tonearm with VTA adjustment and detachable headshell
• Factory-mounted, precision-aligned Ortofon 2M Blue cartridge
• Vibration-damping rubber platter mat and feet reduce unwanted resonance and noise
• Automatic standby mode after 20 minutes of non-use
• Removable RCA cables and cloth dust cover included

Specs:

• Turntable
• Turntable Type: 3-speed full manual, Auto stop
• Cartridge Type: Moving magnetic cartridge
• Motor: Brushless motor (Low torque)
• Driving Method: Direct drive
• Turntable Platter: 305mm (12”) dia. Aluminum die-cast
• Speed: 331/3, 45 and 78rpm
• Wow and Flutter: Typical: Less than 0.07% WTD at 3kHz RMS (CD-4005), Limit: Less than 0.12% WTD at 3kHz RMS (CD-4005)
• Signal-to-noise ratio (for MM): Typical: More than 70dB DIN-B (SS-4242), Limit: More than 65dB DIN-B (SS-4242)
• Speed Tolerance: Constant Speed 3000Hz +/-0.3% (CD-4005)
• Channel Separation: Typical: More than 20 dB at 1kHz (CD-4005), Limit: More than 15 dB at 1kHz (CD-4005)
• Channel Balance: Typical: Within 1.5 dB at 1kHz (CD-4005), Limit: Within 2 dB at 1kHz (CD-4005)
• Phono Output Level: Typical: 5.5mV -3dB/+1dB: 3.894mV6.172mV at 1KHz 5cm/sec (CD-4005), Limit: 5.5mV -4dB/+2dB: 3.471mV6.925mV at 1KHz 5cm/sec (CD-4005)
• Frequency Response (Phono Output): Typical: 20Hz20kHz +/-0.5dB, Limit: 20Hz20kHz +/-1dB
• Brushless motors torque (Direct drive): Typical: More than 1.2kg, Limit: More than 1.0kg

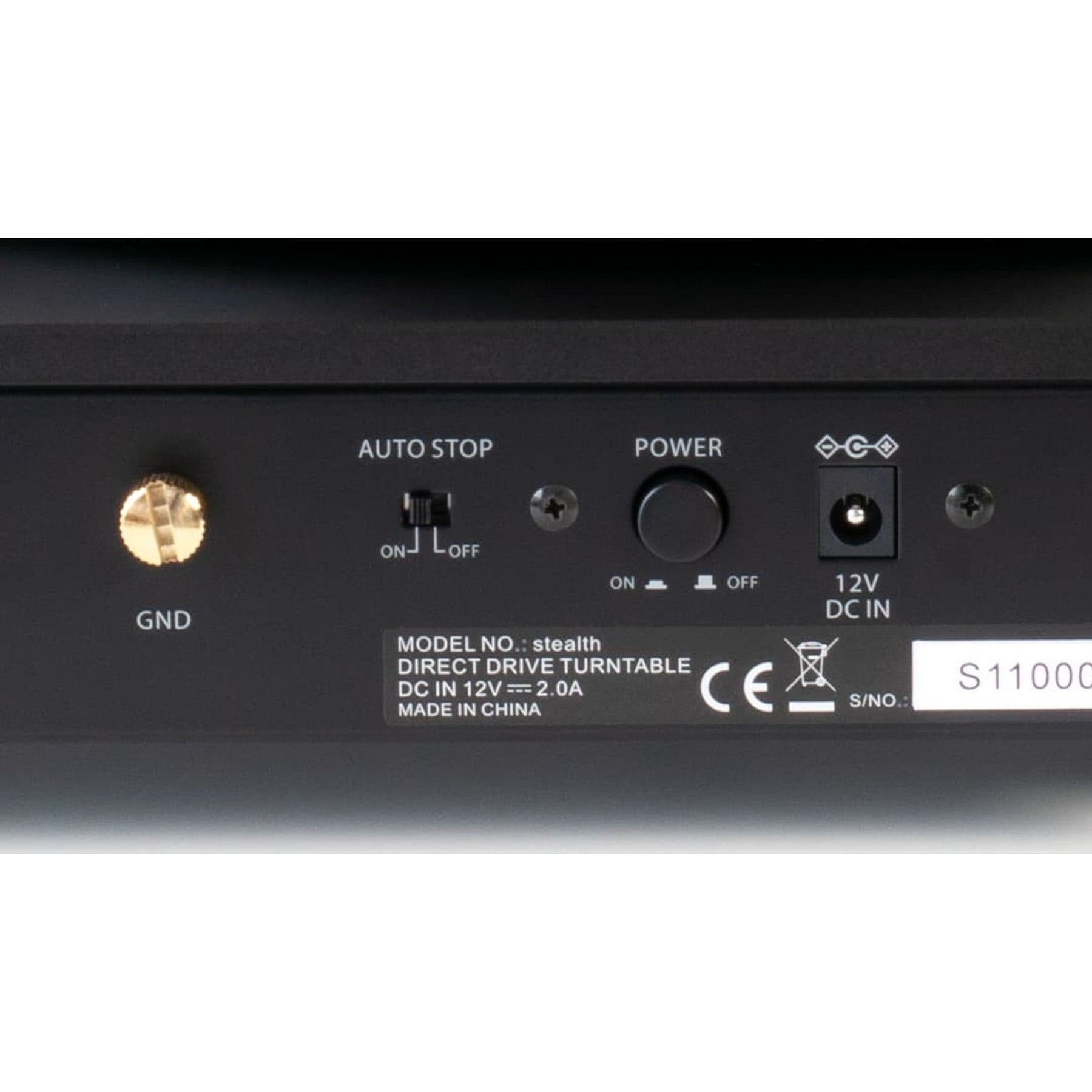

• Power Supply: DC12V，2.0A
• Standby Power consumption: Less than 0.3 W, Auto stop on more than 20 minutes
• Dimensions (WxDxH): 17.83" x 14.24" x 5.78" (455 x 361.67 x 146.7mm)
• Weight: 24 lbs.(11 Kgs)
• Cartridge: Ortofon 2M (Bule)
• Output Voltage: 5.5mV at 1 kHz, (5 cm/sec)
• Channel Separation: Measurement point 1KHz over 25dB
• Channel Balance: 1.5dB or less at 1kHz
• Frequency Response: 20Hz ~ 20kHz +2/-1 dB
• Vertical Tracking Force: 1.6～2.0g (1.8g, Recommended)
• Tonearm
• Type: Static balanced S-shaped tonearm with detachable head shell
• Effective Arm Length: 230mm (9”)
• Overhang: 15mm (0.59”)
• Offset angle: 22⁰
• Tracking Error Angle: Less than 3 degree
• Applicable cartridge weight: 6~10g
• Anti-skating adjustment range: 0~4g
• Height of cue (first track): 8~10.5mm
