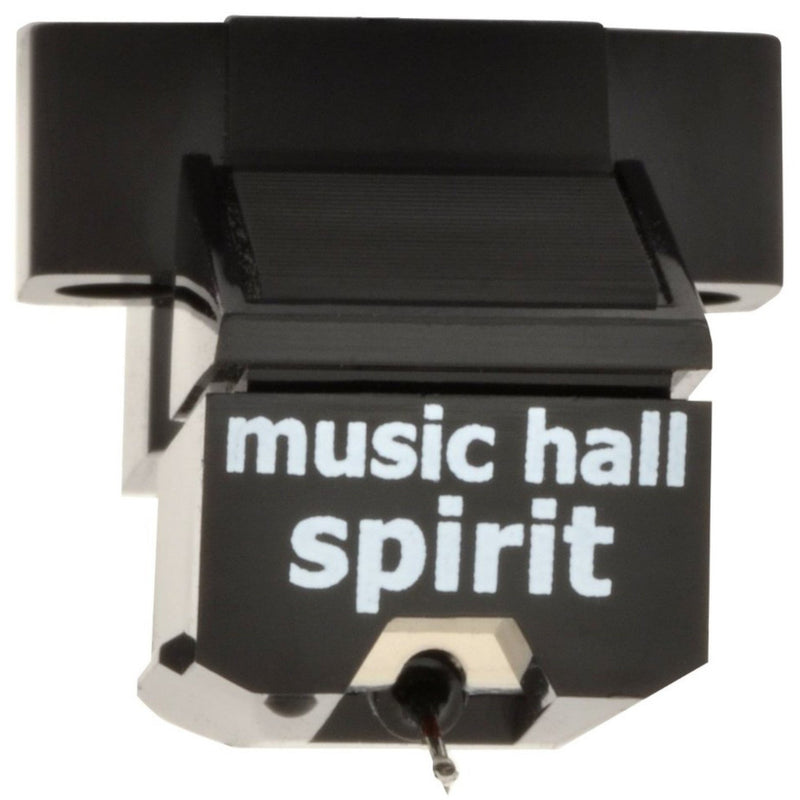

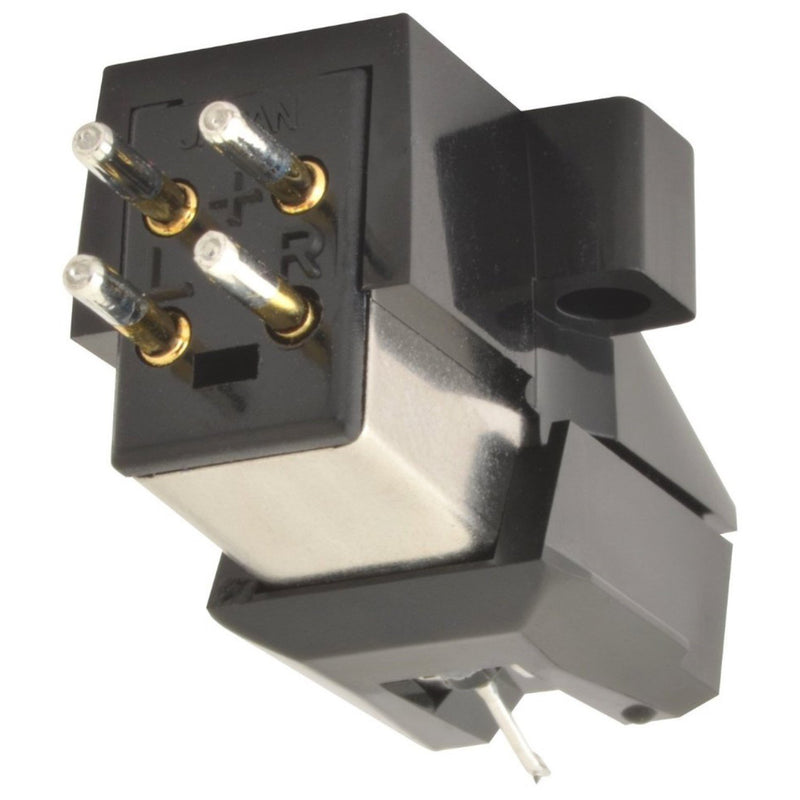

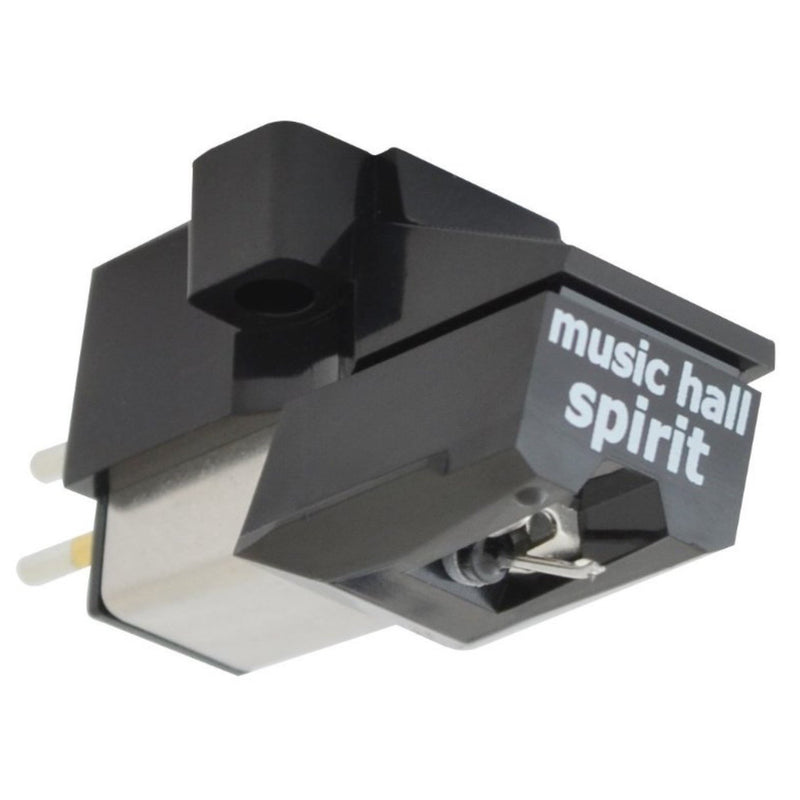

Music Hall Spirit Moving Magnet Phono Cartridge with Elliptical Stylus

Music Hall Spirit Moving Magnet Phono Cartridge with Elliptical Stylus - Music Hall

The music hall Spirit is a supremely musical, moving magnet phono cartridge. Developed and built specially for Music Hall by Audio Technica, this little gem incorporates a low-mass cantilever and an elliptical stylus tip that gets down deep into the grooves (pun intended) and sets the music free.

The Spirit is as easy to use as it is compatible, performing admirably with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.

Features

• frequency response 20Hz – 20kHz ± 3dB
• channel balance 2.5dB @ 1kHz
• channel separation >20dB @ 1kHz
• output 3.5mV ± 2dB
• 1kHz @ 5cm/sec
• vertical tracking angle 20 degrees
• stylus shape elliptical 0.4 x 0.7 mil
• stylus type replaceable
• cantilever alloy tube
• load impedance 47,000 Ohm
• stylus construction bonded round shank
• cartridge weight 5.7g
• fixing center 0.5” (12.7mm)
• playing weight 1.5 – 2.5g (2.0g nom.)
