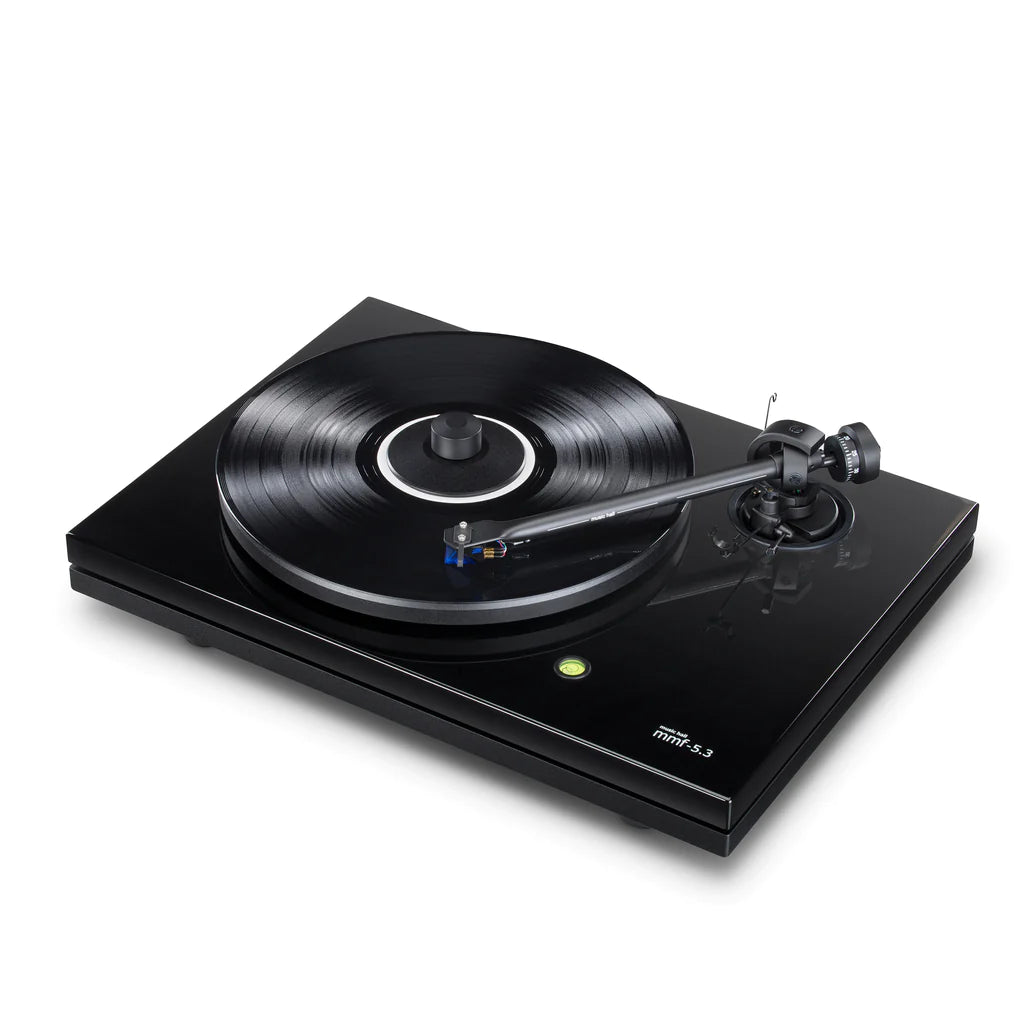

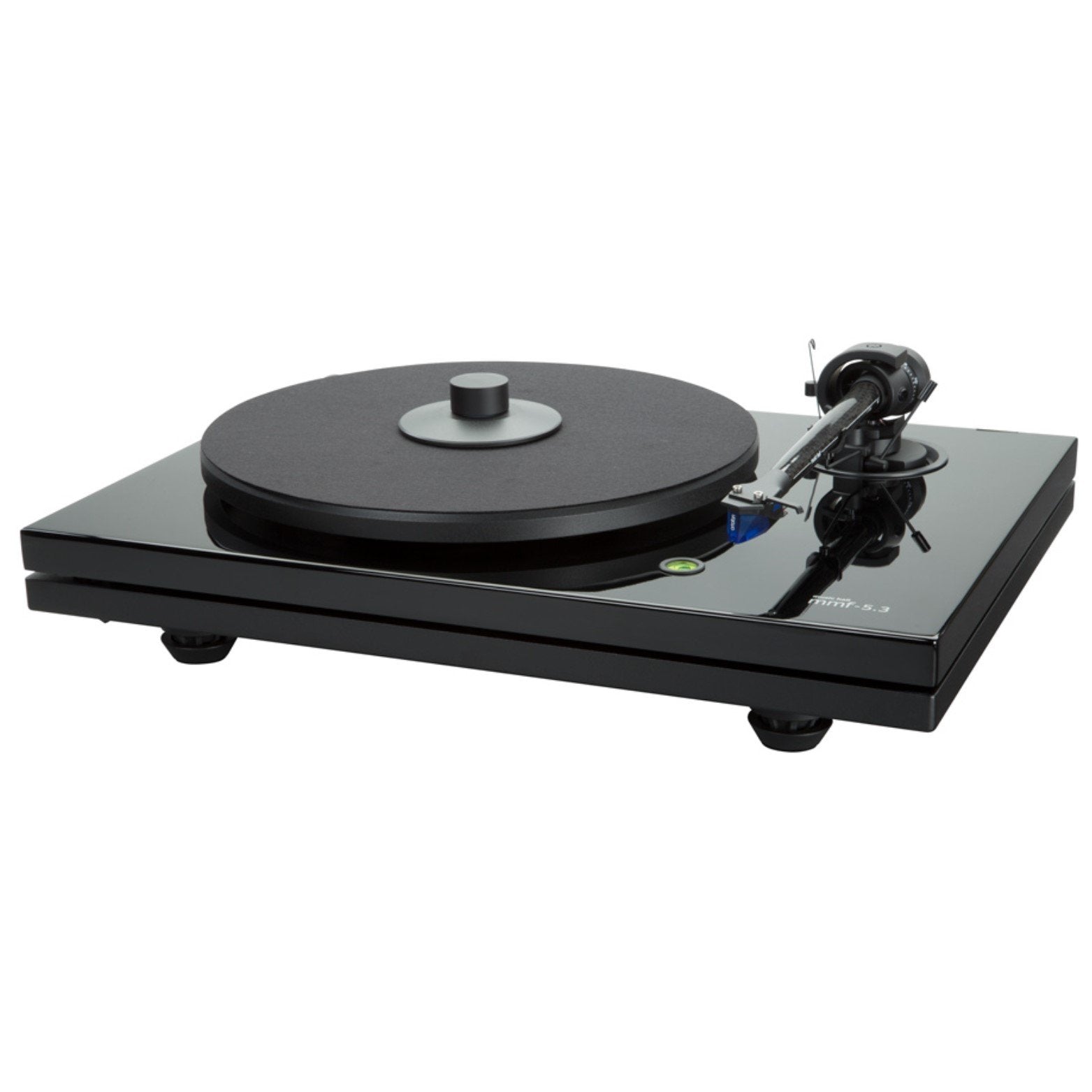

Music Hall Music Hall MMF-5.3 Turntable

Music Hall Music Hall MMF-5.3 Turntable - Music Hall

The music hall mmf-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall.

Distinctive Design
The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.

A Complete Package
Viso-elastic cones separate the two platforms and provide vibration damping.
The mmf-5.3 comes complete with an Ortofon 2m Blue cartridge.

Features:

• music hall’s unique dual-plinth construction
• gorgeous high-gloss piano black lacquer finish
• top tier 9” carbon fiber tonearm
• fully adjustable VTA, azimuth, and dampened arm lift mechanism
• counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability, separately isolated on the lower platform
• two-speed stepped motor pulley for 33 1/3 and 45 rpm
• precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
• alloy platter with soft felt mat screw-on record clamp
• high quality gold RCA connectors
• detachable phono cable
• special vibration damping adjustable feet
• built-in round spirit level for proper leveling
• low noise fully manual belt-drive design
• excellent instruction manual and easy assembly
• dust cover and 45 rpm adaptor included
• Specs
• power supply: 15V / 0-0.8mA DC, universal power supply
• power connection: 100 – 240 Volt, 50 or 60 Hz
• standby power consumption: < 1 W
• speeds: 33 1⁄3 rpm, (manual change to 45 rpm)
• wow and flutter: ± 0.10 %
• speed deviation: ± 0.80%
• rumble max: > – 70 db
• effective tonearm length: 9 in. (230 mm)
• effective arm weight: 250 g (without counterweight)
• effective arm mass: 8.5 g
• overhang: 18 mm
• product dimensions: w18.25” x d13.25” x h5.5”
• weight: 24 lbs. pkg.
