Music Hall Mini MM Phono Pre-Amplifier

Music Hall Mini MM Phono Pre-Amplifier - Music Hall

The Mini is a solid state phono preamp for use with moving magnet and high output moving coil cartridges, designed to amplify an RIAA equalized phono signal to a high level signal.

Features:

• Steel chassis

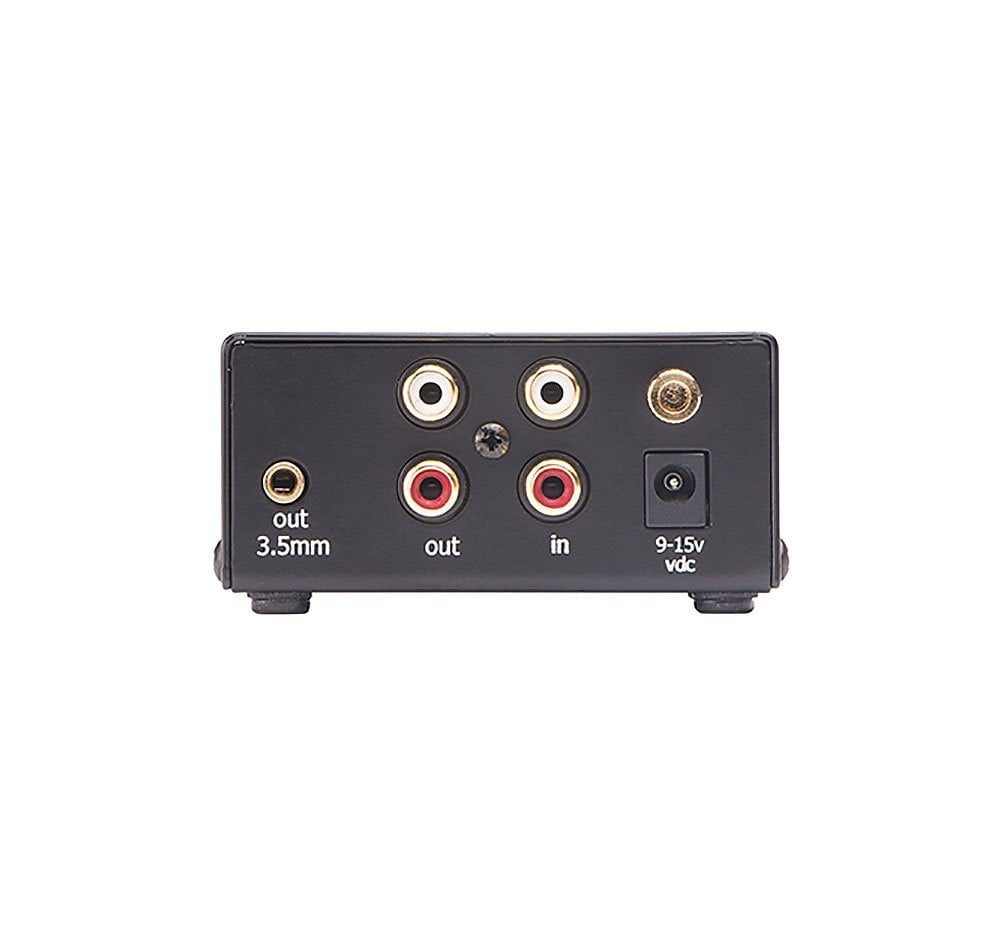

• I/O connectors: RCA, 3.5mm TRS Stereo
• Converts RIAA Phono signals to Line Level

Specs

• RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
• Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
• Input Capacitance: 120pf
• Sensitivity: 5mV for 635mV output
• Input Impedance: 50k Ohms
• Output Impedance: 1K Ohms
• Frequency Response: + / – .5 dB 20 Hz – 20 kHz
• THD: .01% @ 1 kHz
• S/N Ratio: >83 dB unweighted
• PWR: 9 – 15 VDC
• Dimensions (W x D x H): 3.25 x 2 x 1.5”
• Weight: 1 lb
• What’s In The Box: Music Hall Mini, 15v Power Supply ps27s, manual
• UPC: 675889069907
• MPN: MINI
