MOON 810LP Phono Preamplifier

MOON 810LP Phono Preamplifier - MOON

The ultimate phono preamplifier
“Over time the soundstage got even deeper and incredibly wide, with the unerring ability to clearly place and delineate individual musicians within a fully fleshed-out acoustic.” – Graham Abbott, SoundStage! Ultra

Suspension which eliminate microphonics for absolute best analog sound
“In terms of black backgrounds, top-to-bottom transient response, image definition, dynamic contrasts at both ends of the scale, and rhythm'n pacing, the MOON 810LP was worth its considerable price. It was a model of rhythmic and spatial organization.” – Michael Fremer, Stereophile

Design features:

• Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.

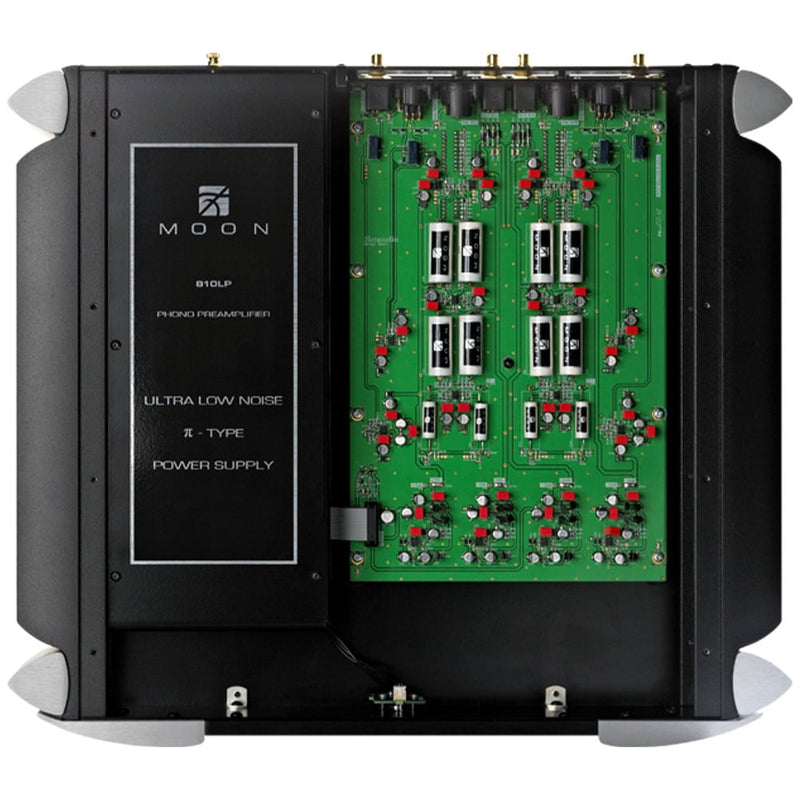

• The dedicated audio circuit board is mounted on a 5-point gel-based floating suspension, derived from our M-Octave technology, originally developed for our reference 850P Preamplifier.
• Fully compatible with 820S external power supply.
• Customized parts include metallized polypropylene film capacitors with very tight tolerances of 1%.
• Four-layer PCB tracings with dedicated ground and power planes using pure copper for low impedance characteristics.

Specifications:

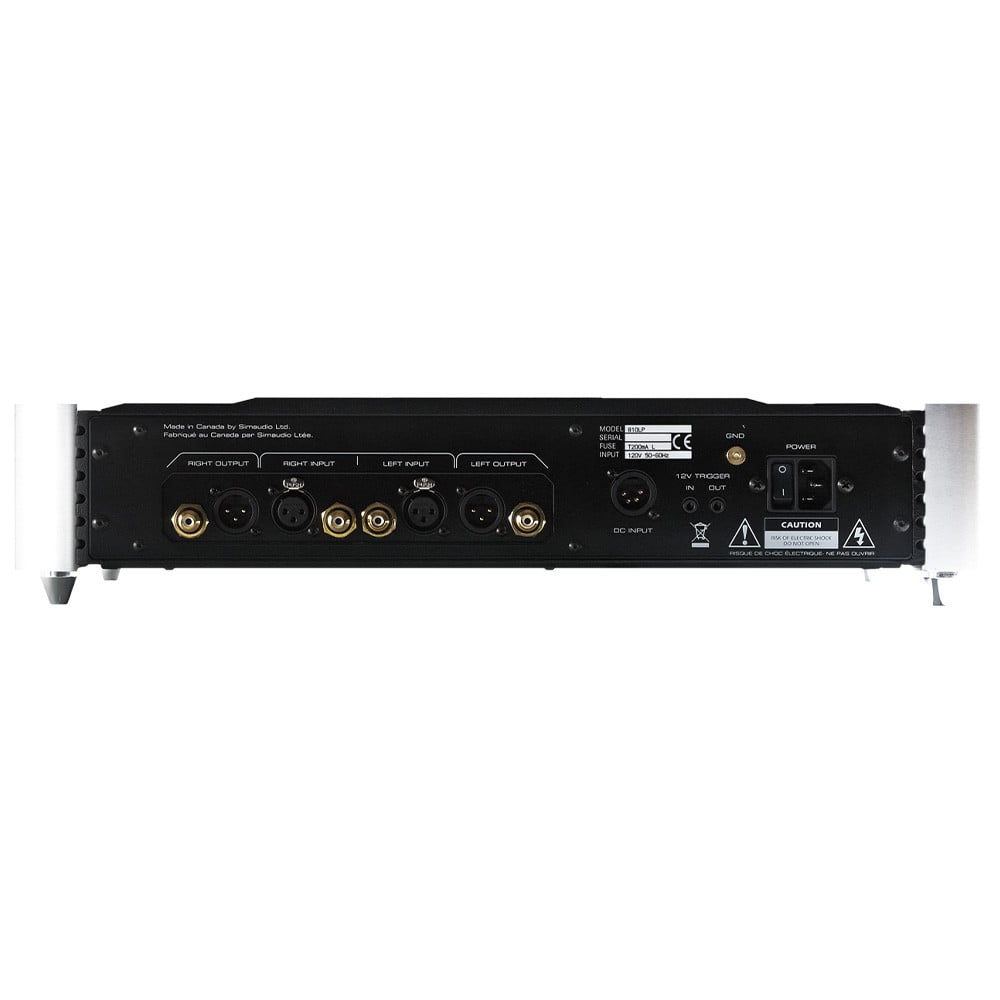

• Inputs (XLR / RCA): 1 pair / 1 pair
• S/N Ratio (full scale @40dB gain): 115dBr
• S/N Ratio (full scale @70dB gain): 95dBr
• IEC Curve Effect: -7dB @ 10Hz
• Frequency response: 20Hz - 20kHz ±0.1dB
• Crosstalk @ 1kHz: -106dB
• Output impedance: 50Ω
• THD (20Hz - 20kHz): 0.0008%
• Intermodulation distortion: 0.001%
• Input overload @40dB gain (XLR / RCA): 200mV RMS / 100mV RMS
• Input overload @70dB gain (XLR / RCA): 5mV RMS / 2.5mV RMS
• Shipping weight: 40 lb / 18 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47,6 x 10,2 x 42,7 cm

In The Box:

• AC power cable
• One (1) pen shaped plastic hand tool for making DIP-switch adjustments
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
