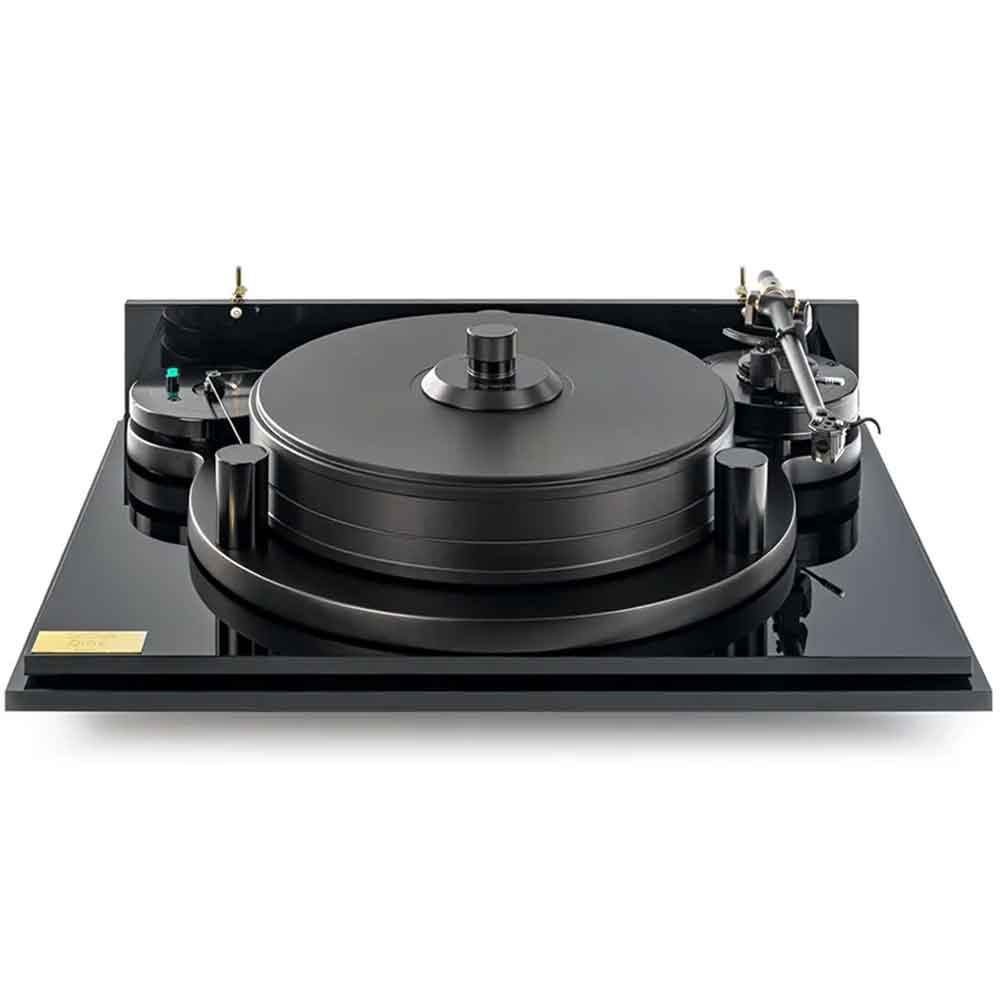

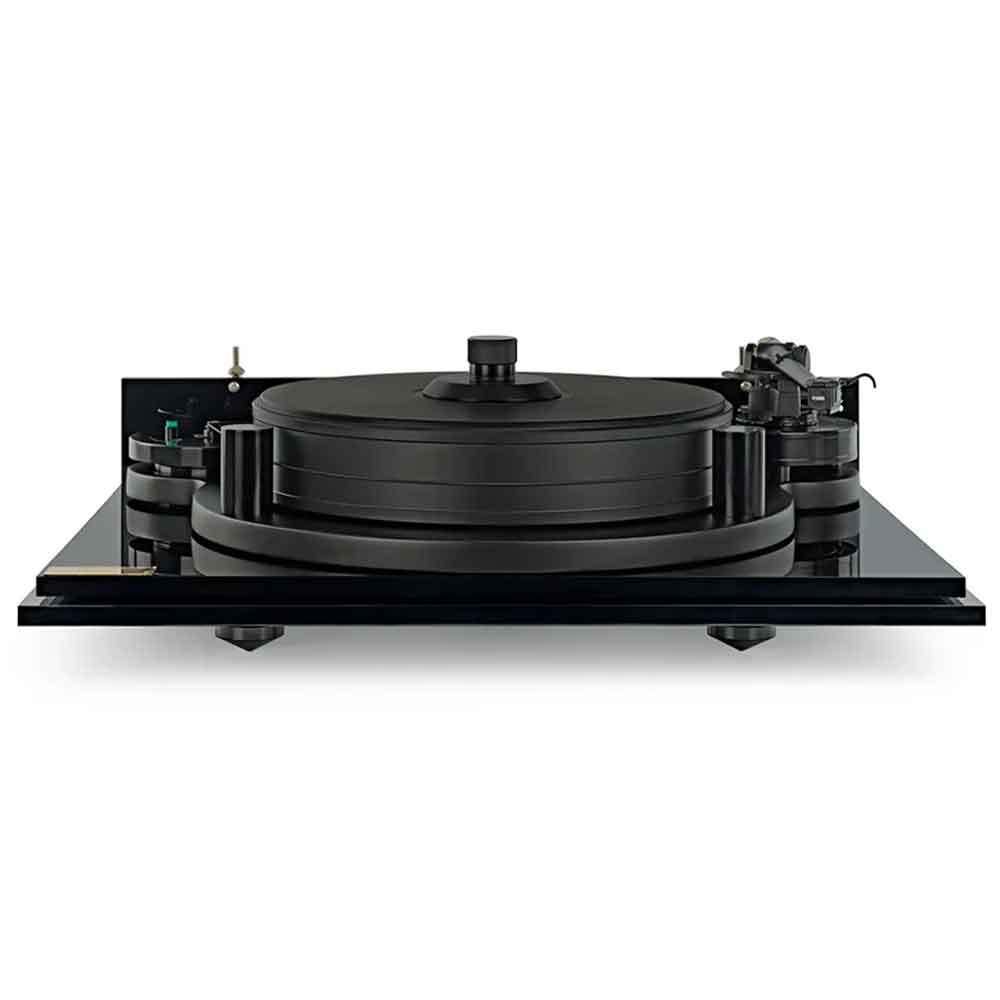

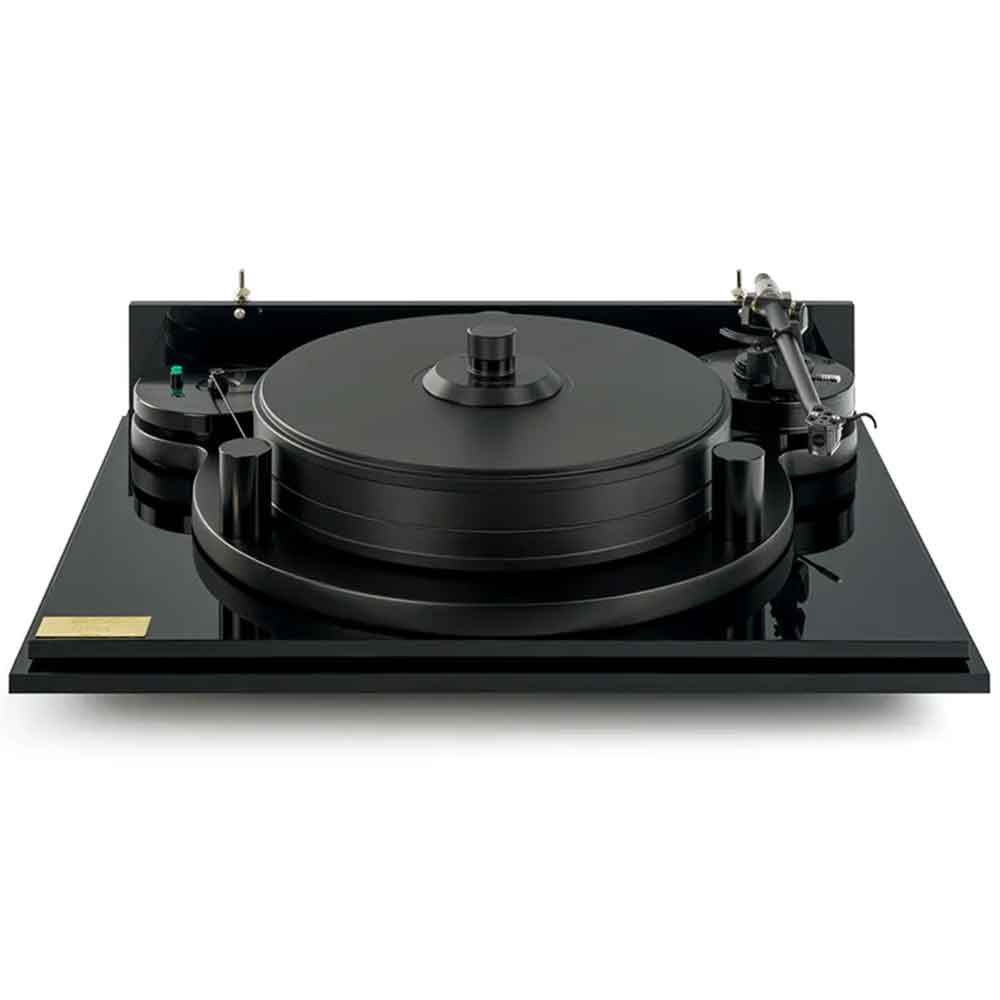

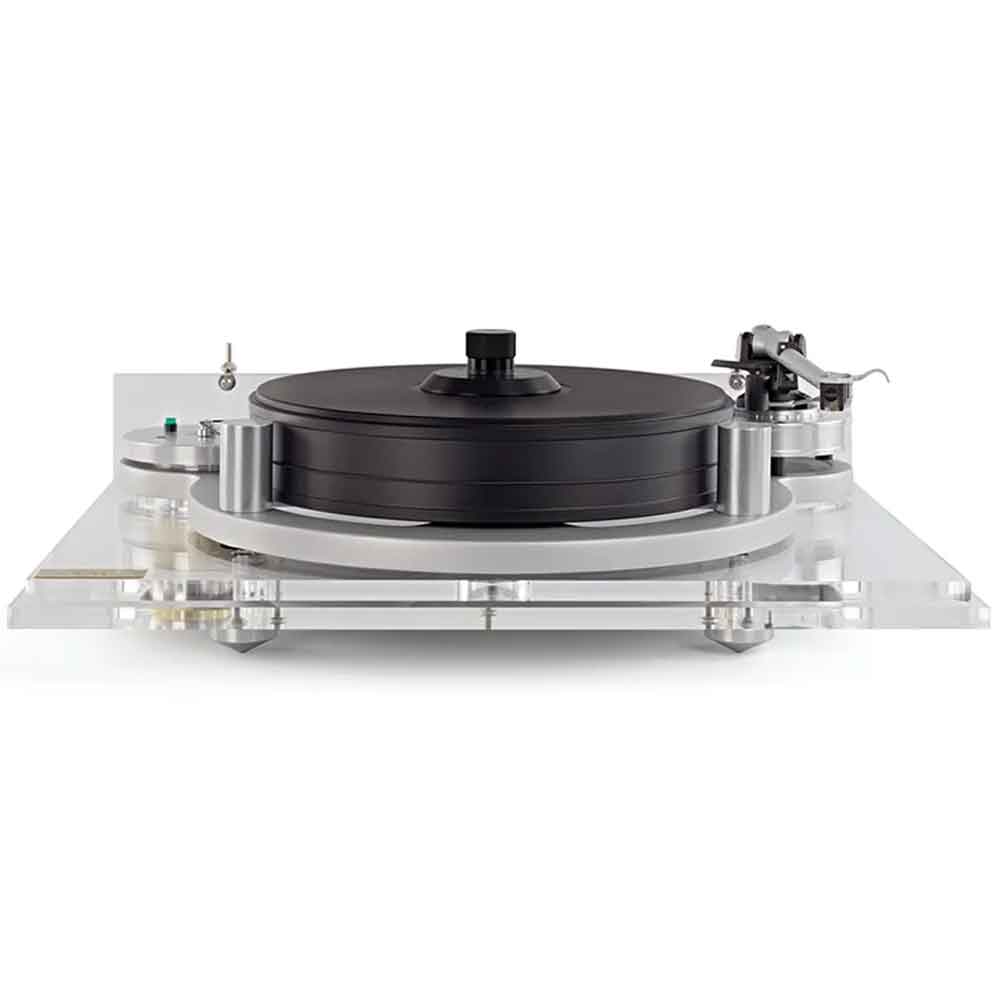

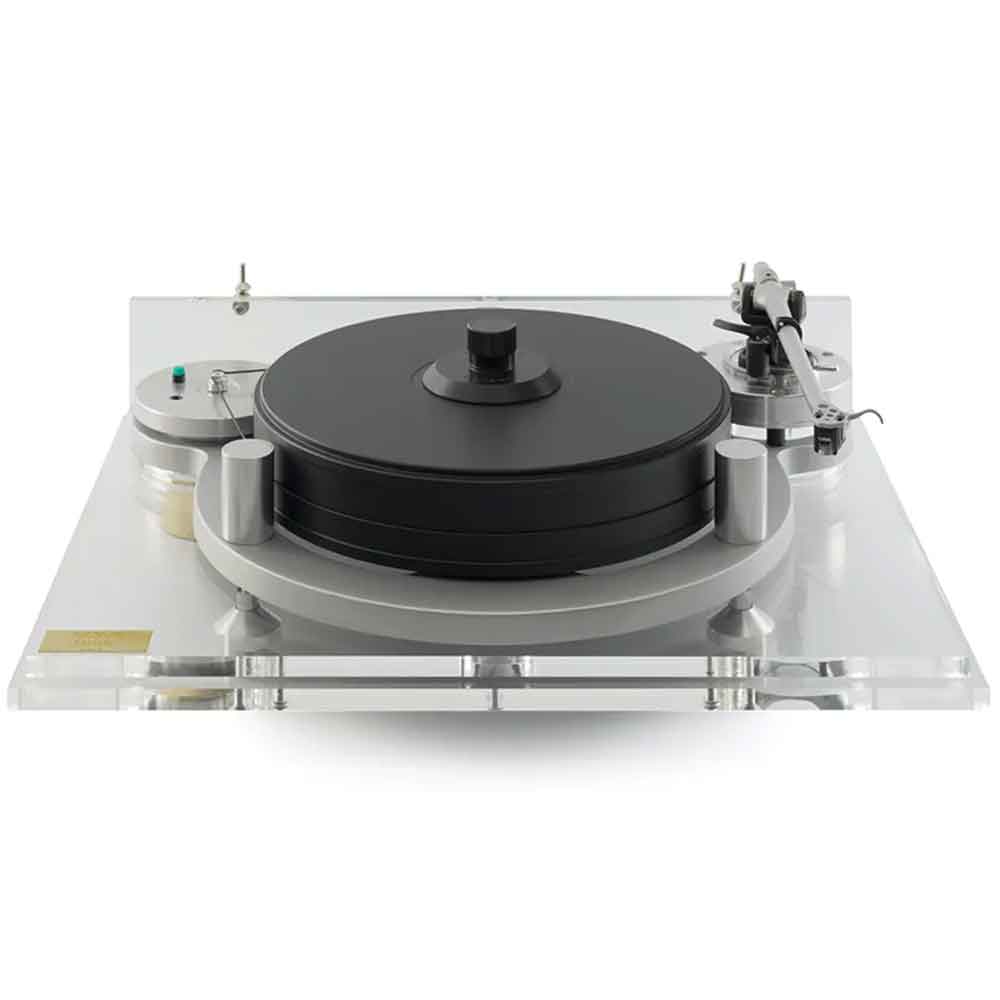

Michell Orbe Turntable - Michell
FLAGSHIP VINYL PLAYBACK SYSTEM
The Orbe is Michell's flagship turntable, taking all that was learned from developing the GyroDec to the next level. Delivering a true audiophile listening experience, the Orbe's detail, neutrality and rhythm has to be heard to be believed. 2 levels of isolation, a massive 60mm thick vibration damping platter and the most sophisticated power supply and motor configuration we have ever created, help raise the Orbe to levels of performance that will delight vinyl lovers for years to come.
Product Details:
Low contact area feet.
The solid aluminium feet of the turntable are shaped so the area in contact with the supporting surface is very small, this is done to minimise the transfer of vibrations from the supporting furniture into the turntable.
Dual high density acrylic bases.
Separated by 3 pin points the acrylic bases of the Orbe not only provide a rigid non resonant surface to fix the suspension system to, they also create a very efficient isolation platform to help eliminate structural feedback.
Three point spring suspension system.
Three suspension towers are fixed to the secondary acrylic base to hold the suspension springs in place and provide height adjustment for the sub chassis.
Weighted pendulum style sub chassis.
Hanging on the three suspension springs, this provides a rigid dense platform to mount the main bearing, platter and tonearm assembly, ensuring there is no movement between them, while also acting as a ‘resonance / vibration sink’ drawing away unwanted vibrations from the sensitive elements of the turntable.
Inverted oil circulating main bearing.
Contrary to traditional designs, our main bearing has the point of rotation at the top of the assembly, not at the bottom. This orientation allows us to fully lubricate the inside of the entire bearing while the platter is turning. We achieve this by way of a modified Archimedean screw that we machine into the inside bore of the bearing. The oil is drawn from a reservoir at the base of the main bearing up to the thrust ball at the top, fully lubricating as it goes, it then returns to the reservoir via a waste hole drilled into the bearing spindle. Lubricating the precision parts of the main bearing in this way means that any potential for noise or vibration created by the rotation of the platter is avoided.
Extra heavy Impedance-matched platter.
The platter material was chosen for its vibration dampening characteristics and because sonically it is a very similar material to vinyl, so it has a very neutral sound characteristic. The extra mass of the Orbe platter gives it great momentum when spinning aiding in speed stability.
Free standing motor unit.
The motor unit used to drive the turntable is completely separate to the turntable, meaning it doesn’t touch the turntable in anyway. The only connection between the motor and the turntable is the drive belt that drives the platter. This stops any noise or vibrations created when the motor is running, getting through to the sensitive parts of the turntable.
Orbe controller power supply.
The most sophisticated power supply we manufacture, the Orbe controller uses a large toroidal transformer, Never Connected™ circuitry and servo motor control technology to make sure the platter is always turning at the correct speed. All the time the platter is turning, the motor is reporting back what the RPM is, if this changes even slightly, the controller automatically adjusts its output to correct the change. The result is that the speed stability of an Orbe turntable is absolutely rock solid.

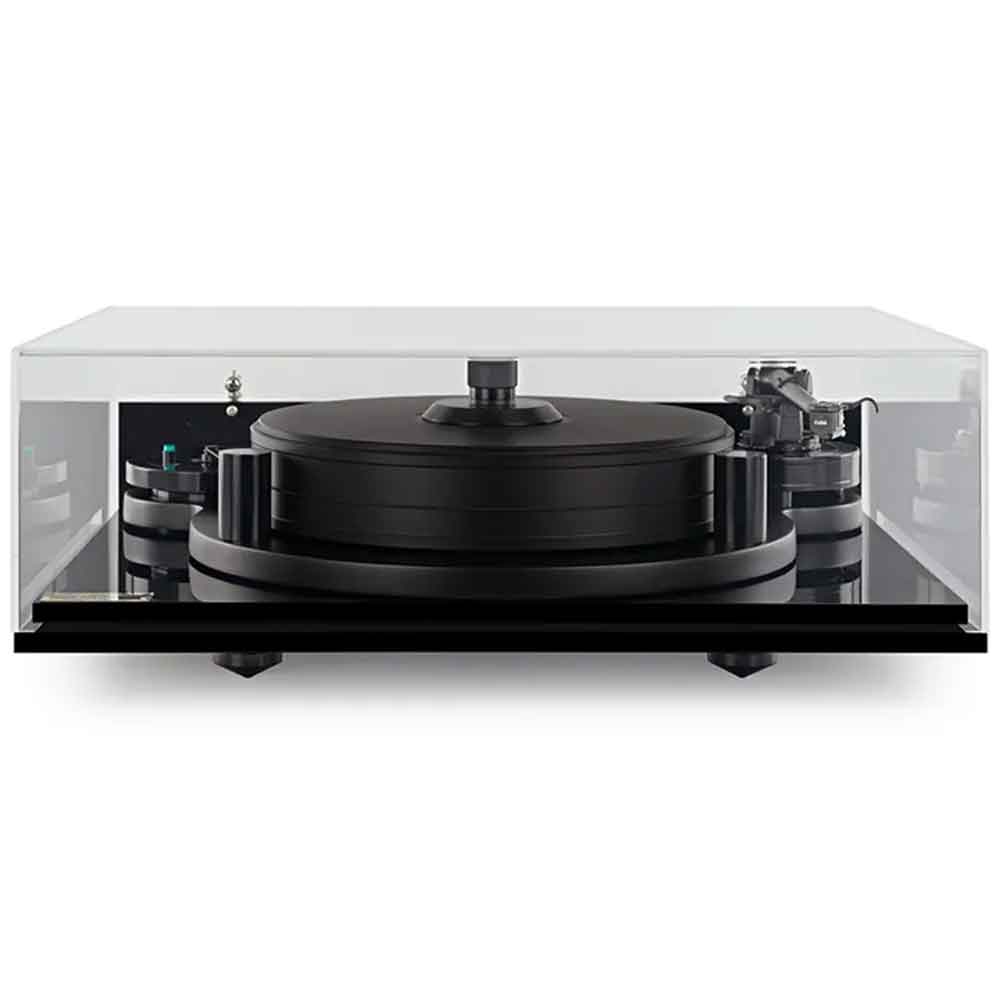

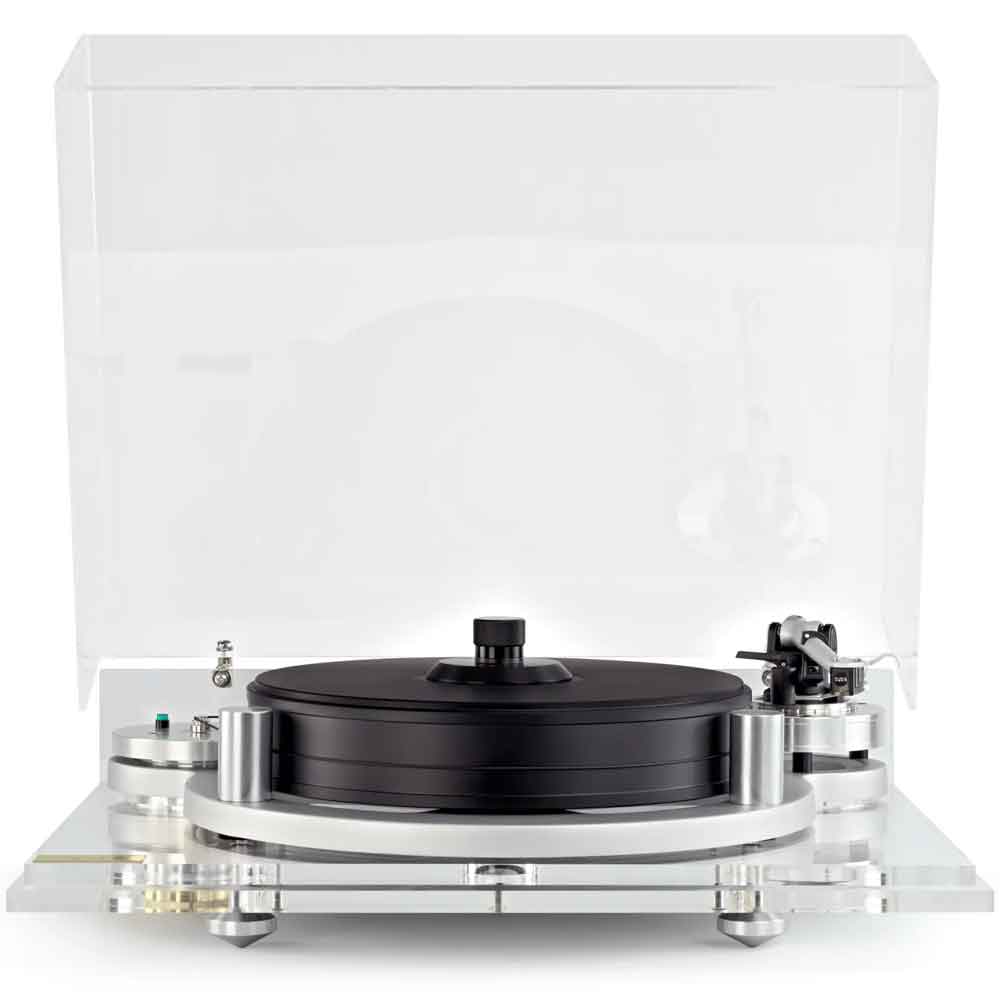

Hinged lid.
The turntable comes with a hinged clear acrylic lid to protect the turntable from dust and damage. The hinges are made in two parts that allow the lid to be easily removed if required.
Orbe record clamp.
The Orbe clamp is a screw-down design, which allows you to exert more force on to the vinyl when clamping it to the platter, than our standard clamps allow. This further helps flatten warped and uneven vinyl and eliminate resonance in the vinyl disk.
- Weight: 19kg
- Width: 53cm
- Depth: 41cm
- Height: 21cm
- Width (lid open): 53cm
- Depth (lid open): 49cm
- Height (lid open): 55cm

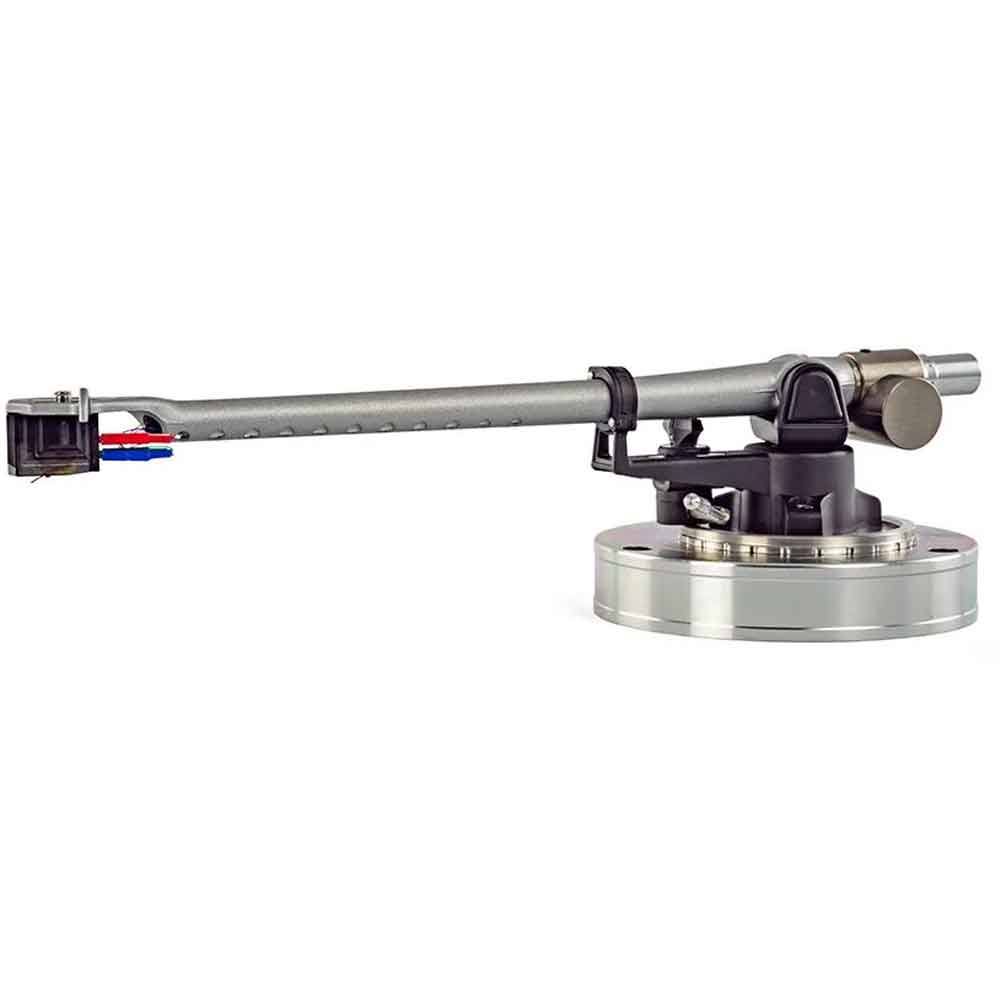

TECNOARM 2: REFERENCE CLASS TONEARM
The TecnoArm 2 is designed to offer a truly audiophile listening experience at exceptional value for money and easily competes with tonearms at three times the price!
Utilising a custom one piece arm tube, the tube is first shot - blasted to change the sonority (ringing tone) of the tube, we then drill 22 holes in the tubes underside to reduce it's mass. The underside of the integral head shell is machined to be perfectly parallel with the bearing position. The tonearm is then assembled using the new ultra-low friction polymer bearings and mounted on a redesigned mounting base.
The TecnoArm 2 is wired with our proprietary wiring loom and 99.9999% pure silver litz wire, from cartridge tags to phono plugs, with no internal wiring joints.
Our TecnoWeight counter weight allows you to set the tracking force for your chosen cartridge easily and our new VTA/SRA adjuster sets the height of your tonearm, helping you ensure the stylus tracks the vinyl groove at the correct angle.
The TecnoArm 2 has been designed to offer a truly audiophile listening experience with exceptional value for money. This is a tonearm that can easily compete with others three times the price!
- Effective mass - Low / 12.5g
- Mounting distance platter centre to arm hole centre 222mm
What to expect in the box:
- Orbe Turntable
- TecnoArm 2
