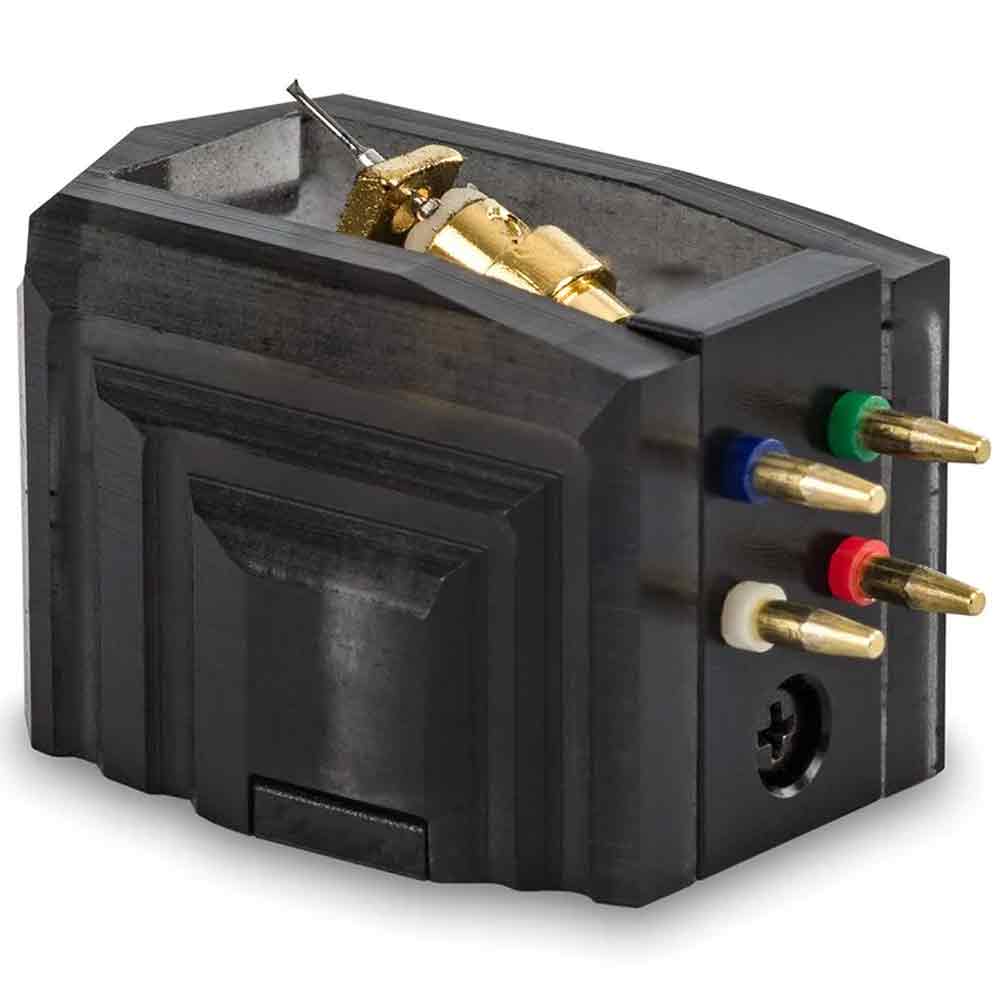

Michell Cusis M Moving Coil Cartridge

Michell Cusis M Moving Coil Cartridge - Michell

HIGH-END MOVING COIL CARTRIDGE
The Cusis M offers the audiophile an ultra high-end listening experience at a cost which belies its ability. It's quite simply one of the most accurate and musical moving coil cartridges available at any price.

All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge.

30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper.

The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.

The number of coils, resultant output and body material, have all been optimised for each model’s stylus assembly, to give the best possible audio output.

The construction of the cartridge has been carefully designed to eliminate vibration and resonance. The aluminium chassis is designed to absorb unwanted vibration and give a rigid platform to mount the cartridge parts

The body materials, shapes and exterior patterns have also been designed to further reduce vibration and resonance, resulting in truly unrivalled levels of detail and neutrality.

What to expect in the box:

• Cusis M Moving Coil Cartridge

Product Details:

• Tracking Force: 2.0g
• Loading: 00 Ω
• Frequency Response: 15-45000Hz
• Output Voltage: 0.25mV
• Weight: 8.1g
• Cantilever Materia: Boron
• Stylus Profile: Ultra-precise Microline
• Channel Balance: <1dB
• Channel Separation: 28dB
• Compliance: 8x10-6cm/dyne
• Tracking Ability: 70µ / 2.0g
• Internal Impedance: 3 Ω
• Type: Moving Coil
• Coil Material: Pure 30µ Copper
• Run-in Period: > 40 Hours
• Body Material: Carbon Loaded Acrylic
