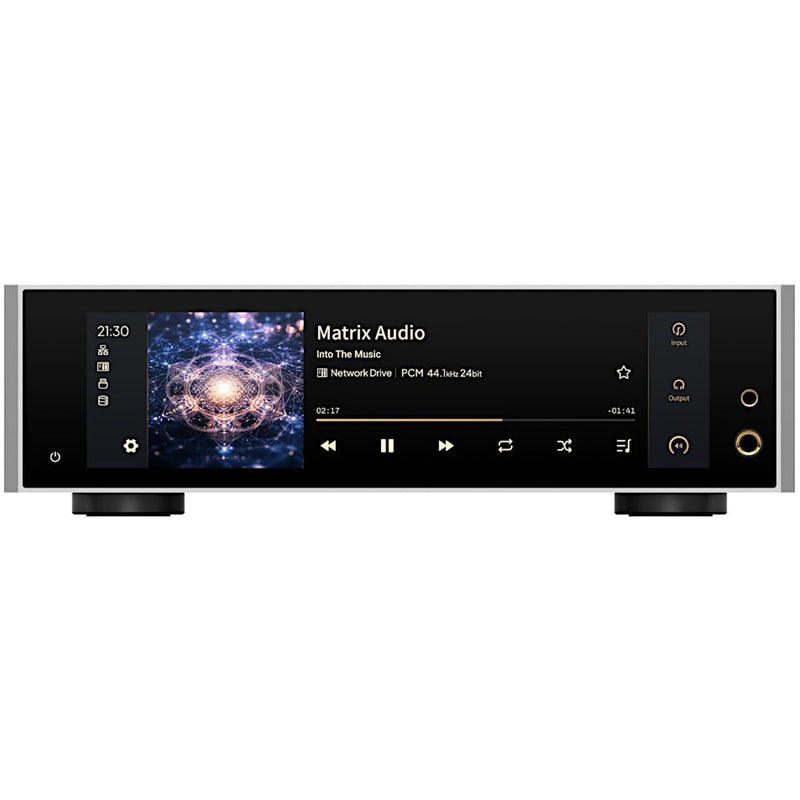

Matrix Audio TS-1 Music Streamer / DAC / Headphone Amplifier
High-Resolution Streaming • Balanced DAC Design • Reference Headphone Amplification
Next-Generation Desktop Hi-Fi
The Matrix Audio TS-1 redefines desktop audio with a sleek, minimalist design and high-end performance. Combining a network music streamer, advanced DAC, and powerful headphone amplifier in one compact chassis, the TS-1 delivers audiophile-grade sound whether you're streaming wirelessly or connected via USB.
Roon Ready ESS Sabre DAC Balanced Outputs Hi-Res Audio Certified Wi-Fi & Ethernet Streaming
Highlights & Benefits
All-in-One Design — Streamer, DAC, and headphone amplifier in one precision-machined aluminum body.
Roon Ready & Network Streaming — Stream high-resolution music from Roon, TIDAL, Qobuz, and more via Wi-Fi or LAN.
High-Performance DAC — Dual ESS Sabre ES9038Q2M chips deliver pristine, low-noise digital-to-analog conversion.
Balanced Headphone Output — 4.4 mm balanced and 6.3 mm single-ended jacks drive even the most demanding headphones.
Intuitive Control — Touch interface with high-resolution display for seamless navigation and playback control.
Technology & Design
Precision DAC Architecture — The dual ESS ES9038Q2M chipset ensures ultra-low distortion and high dynamic range across the full frequency spectrum.
Powerful Headphone Amplifier — Discrete Class AB output stage with high-current design for clean, dynamic sound.
Connectivity & Integration — Supports UPnP/DLNA, AirPlay 2, Spotify Connect, and Roon for flexible, multi-platform streaming.
Crafted Chassis — CNC-milled aluminum enclosure provides both thermal stability and modern aesthetics for any setup.
FAQ — Matrix Audio TS-1
Can I stream music directly without a computer?
Yes — the TS-1 supports Roon, AirPlay 2, and UPnP/DLNA playback directly over your network via Wi-Fi or Ethernet.
Does it work with all headphones?
Yes. The TS-1’s amplifier can easily drive a wide range of headphones, from in-ear monitors to full-size planar magnetics.
Can it be used as a standalone DAC?
Absolutely. Use the RCA or balanced XLR outputs to feed your external amplifier or active speakers.
Why Buy From Us
Authorized Matrix Audio Dealer
Full Manufacturer Warranty
Expert Hi-Fi Support & Setup Assistance
Free Shipping Nationwide
Technical Specifications
Product Type
Network Music Streamer / DAC / Headphone Amplifier
DAC Chips
Dual ESS Sabre ES9038Q2M
Supported Formats
PCM up to 32-bit/768 kHz, DSD512 (Native), MQA Full Decoding
Streaming Support
Roon Ready, AirPlay 2, Spotify Connect, UPnP/DLNA
Inputs
USB-C, Coaxial, Optical, Ethernet, Wi-Fi
Outputs
4.4 mm Balanced, 6.3 mm Single-Ended, RCA Line Out, Balanced XLR
Display
2.4" Color Touchscreen
Headphone Output Power
Up to 2000 mW @ 32Ω (Balanced)
Dynamic Range
Up to 125 dB (DAC)
THD+N
0.0003%
Network
Wi-Fi 2.4/5 GHz, Gigabit Ethernet
Chassis Material
Aluminum Alloy (CNC Machined)
Dimensions (W × H × D)
210 × 45 × 180 mm
Weight
1.8 kg
Warranty
1 Year (Manufacturer Warranty)
What’s in the Box
1 × Matrix Audio TS-1 Unit
1 × Power Adapter
1 × USB-C Cable
1 × Wi-Fi Antenna
1 × Quick Start Guide & Warranty Card
Protective Packaging
