MartinLogan Motion XT F200 Floor-standing Speaker in Satin White (each) - MartinLogan
Martin Logan's Motion XT line has some celebrated performance qualities: detailed highs, open and authentic midrange performance, and deep, musical bass response. The MartinLogan XT F200 is the pinnacle of that legacy of quality, with carefully designed drivers, cabinet, and crossovers that make it the flagship of the lineup. It's an elegant, refined speaker that looks and sounds like a work of art.
Upgraded Motion XT tweeter
Martin Logan's acclaimed Folded Motion XT tweeter uses a pleated diaphragm that works similarly to an accordion by "squeezing" air to create sound. The F200's upgraded Gen2 Obsidian version of this tweeter uses larger magnets for greater detail and accuracy. The new design places it inside a custom Folded Motion waveguide that enhances dispersion of high-frequency sound throughout your listening area.
Because it requires almost 90% less excursion than the typical 1" dome tweeter, response time is drastically reduced along with distortion. The diaphragm's increased surface area also provides wide, yet controlled sound dispersion to create a realistic and highly accurate soundstage. Music sounds amazingly detailed, but smooth and effortless, without a trace of harshness. And the "XT" version of this tweeter that gives the Motion XT series part of its name boasts a 40% larger radiating surface area than Martin Logan's standard Folded Motion design, for even greater bandwidth and efficiency.
Great performance from top to bottom

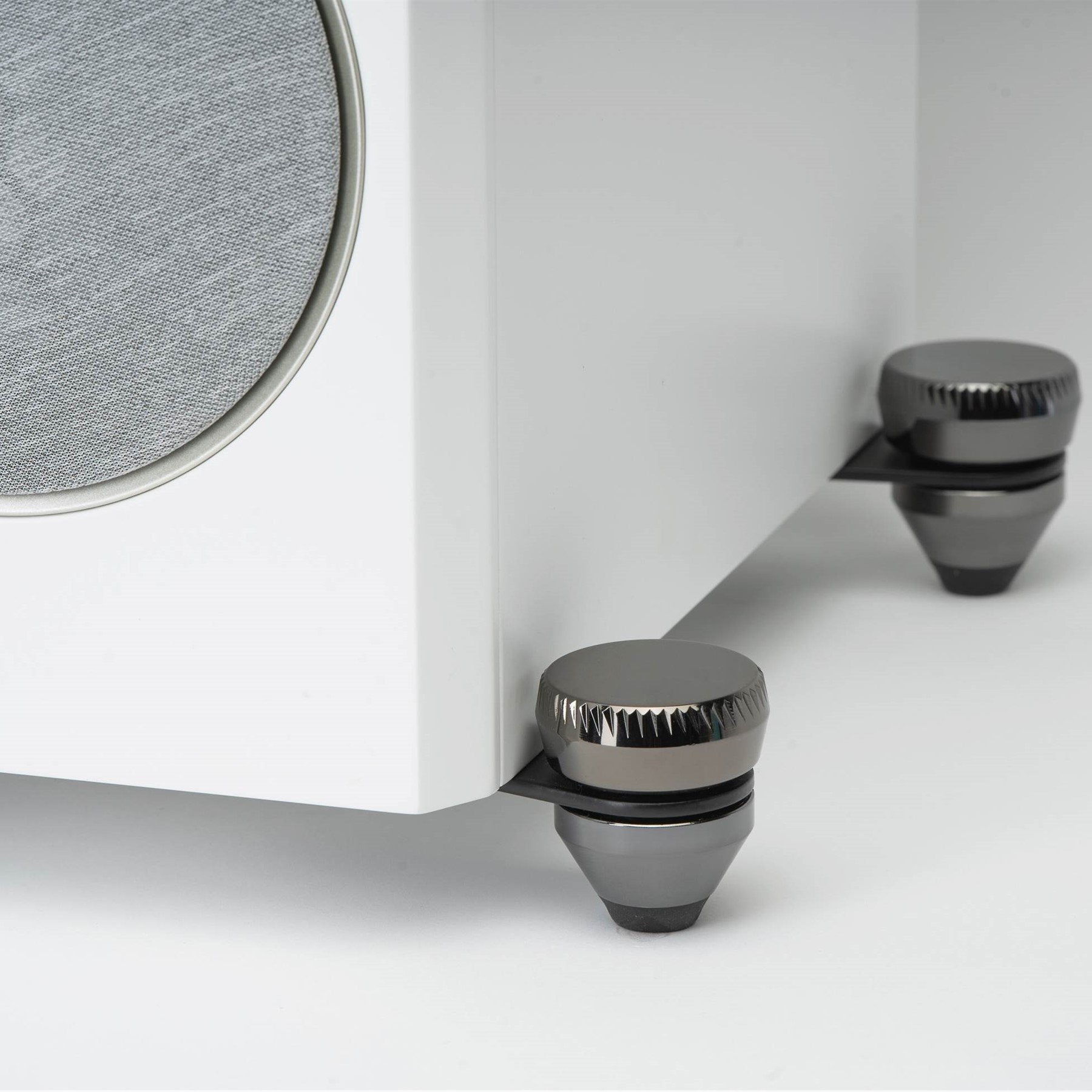

The F200 boasts a 6-1/2" Nomex-reinforced Kevlar® cone woofer for fast, clean midrange. Three 8" aluminum woofers deliver powerful bass performance that blends seamlessly with the rest of the drivers. A bottom-firing port offers extended bass performance that's also tight and tuneful. And the cabinet features new anti-vibration F.A.S.T. feet that can be installed and adjusted by hand.
Upgraded crossover network
Martin Logan's proprietary Vojtko crossovers are named after Martin Logan's chief audio technologist, Joe Vojtko. The latest Motion XT speakers feature upgraded McCracken-Vojtko crossovers, so named for the influence of the company's other well-known Joe — senior loudspeaker designer Joe McCracken.
No matter what they're called, the aim is always the same: each speaker's drivers are carefully selected or designed to operate within an intentional frequency range and specific performance parameters. That allows the crossover networks — built from high-quality capacitors and resistors — to be clean and uncomplicated, for purer sound.
Product Details:
- 1.25" x 2.4" Gen2 Obsidian Folded Motion® XT tweeter with custom waveguide
- 6-1/2" Nomex-reinforced Kevlar® cone midrange with cast aluminum basket
- Triple 8" aluminum cone woofers with cast aluminum baskets
- Bass-reflex (ported) cabinet with bottom-firing port
- Frequency response: 27-25,000 Hz
- Upgraded crossover network
- Sensitivity: 92 dB
- Nominal impedance: 4 ohms
- Recommended amplifier power: 20-600 watts

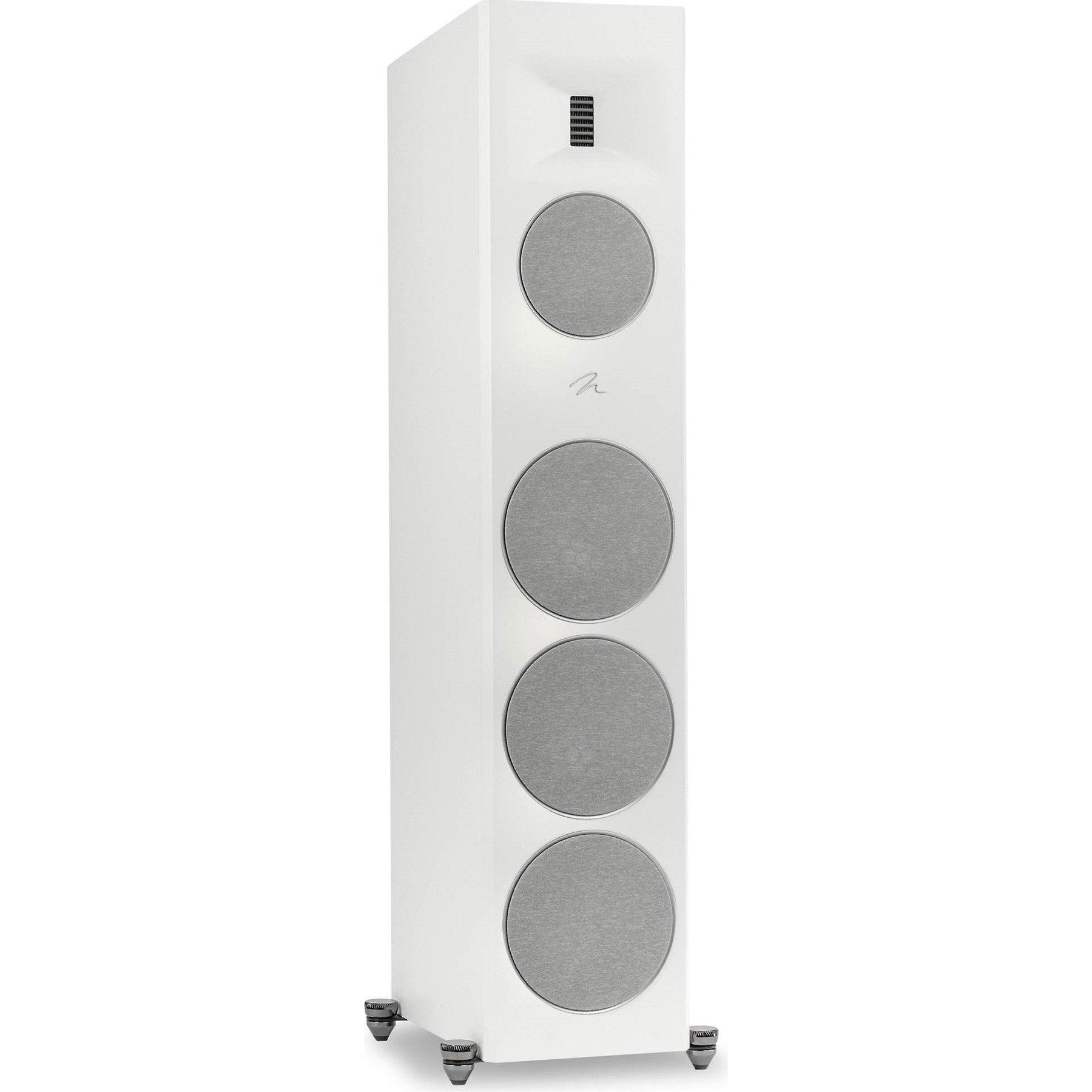

- Removable magnetic grilles
- Fully adjustable anti-vibration F.A.S.T. feet

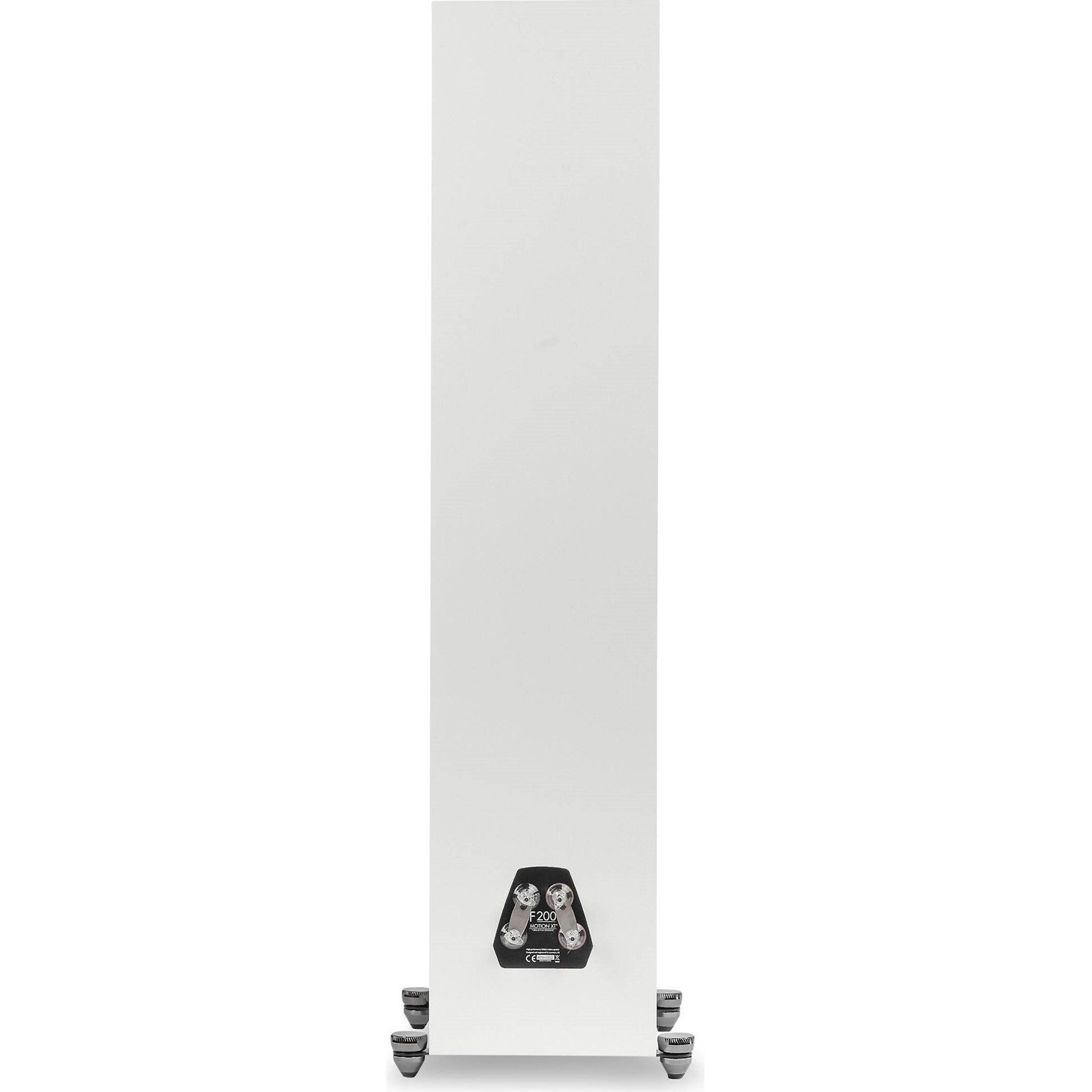

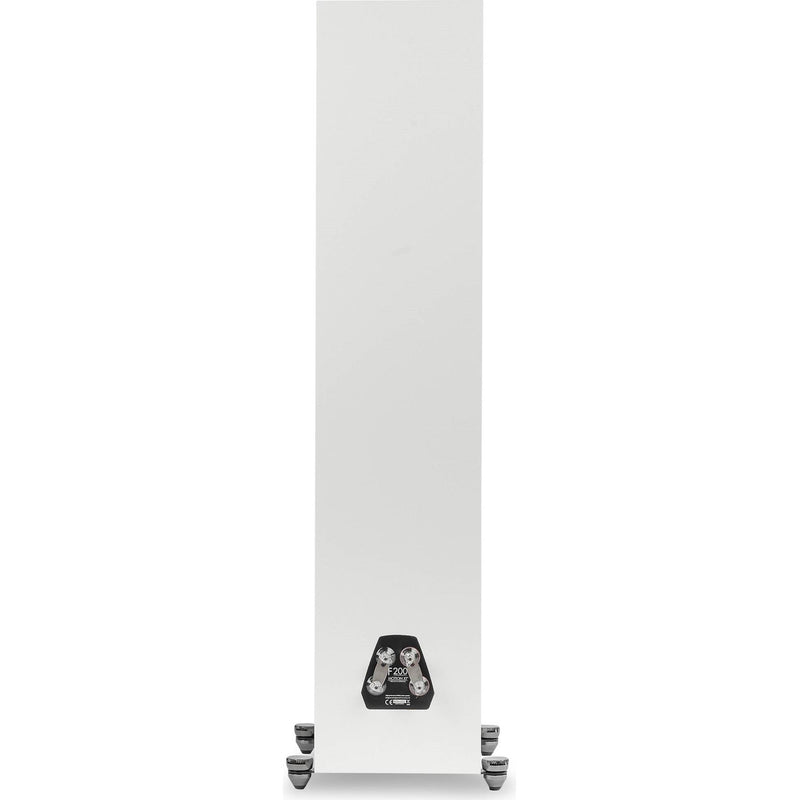

- Dual five-way binding post speaker terminals allow bi-amping or bi-wiring
- Warranty: 5 years
Dimensions and weight:
- 13 3/4" wide x 50-1/2" high x 16-9/16" deep
- 85 lbs.
What to expect in the box:
- Martin Logan Motion® XT F200 floor-standing loudspeaker
- 4 grilles
- 2 Jumper-straps
- 4 Outrigger feet
- 4 Rubber isolators
- 4 Spikes
- 4 Screws
- Hex-key
- Cloth speaker cover
- Owner's manual
