The Nº 5802 delivers outstanding digital audio capability through the Mark Levinson Precision- Link II DAC. The latest generation ESS Sabre 32-bit D/A converter with jitter elimination circuitry and a fully balanced, discrete current-to-voltage converter form the heart of the digital audio processing stage. Six digital audio inputs are provided: One AES, two coaxial and two optical S/PDIF, and one asynchronous USB for playback of high resolution PCM (up to 32 bit/384kHz) and DSD (up to 11.2MHz) files. The Nº 5802 includes MQA (Master Quality Authenticated) technology, which enables playback of MQA audio files and streams. A Bluetooth receiver equipped with aptX-HD enables the highest quality Bluetooth playback available.
Amplification

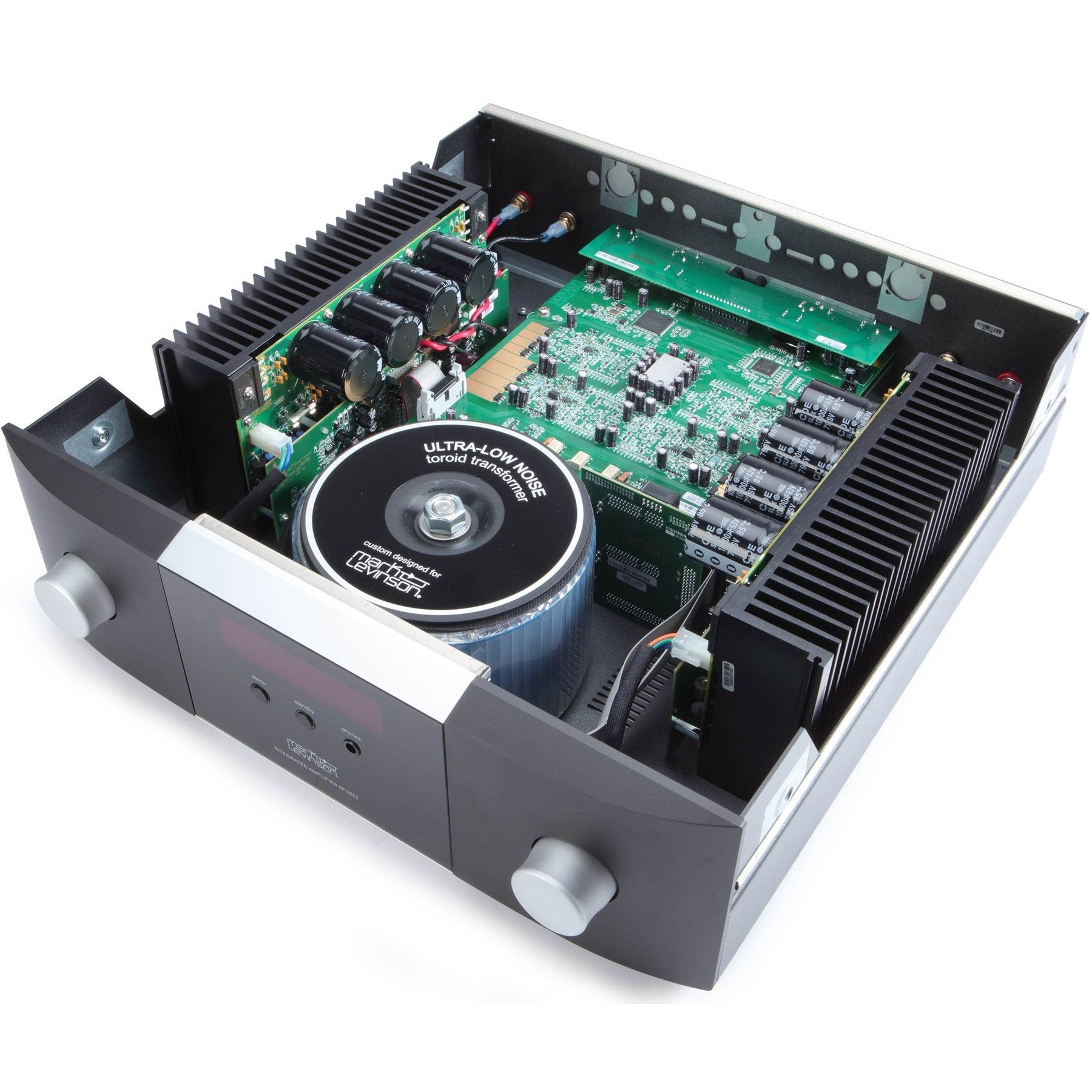

The fully discrete, direct-coupled, class AB amplifier channels get their power from an oversized (500+ VA) toroidal transformer with individual secondary windings for the left and right channels. The voltage gain stage employs a topology directly descended from the acclaimed Nº 534 amplifier, which is mated to an output stage comprising two high-speed driver transistors operating in class A and six 260V, 15A output transistors. Two Thermal-Trak devices in a unique configuration guarantee stable output bias regardless of load or temperature. Four 10,000-microfarad capacitors per channel, located directly on the output stage circuit board, easily provide enough current for a conservative 125W/channel at 8 ohms, nearly 250W/channel at 4 ohms, and stable operation down to 2 ohms. Variable line-level RCA outputs allow system expansion and flexibility.
Control
System integration and communication ports include Ethernet, USB, RS-232, IR input, and 12V trigger input and output. A newly designed, solid aluminum IR remote is included with the Nº 5805. Finally, an internal webpage allows setup, import and export of configurations, and software updates using a PC and standard web browser. In addition, third party drivers are available.
Bold new industrial design

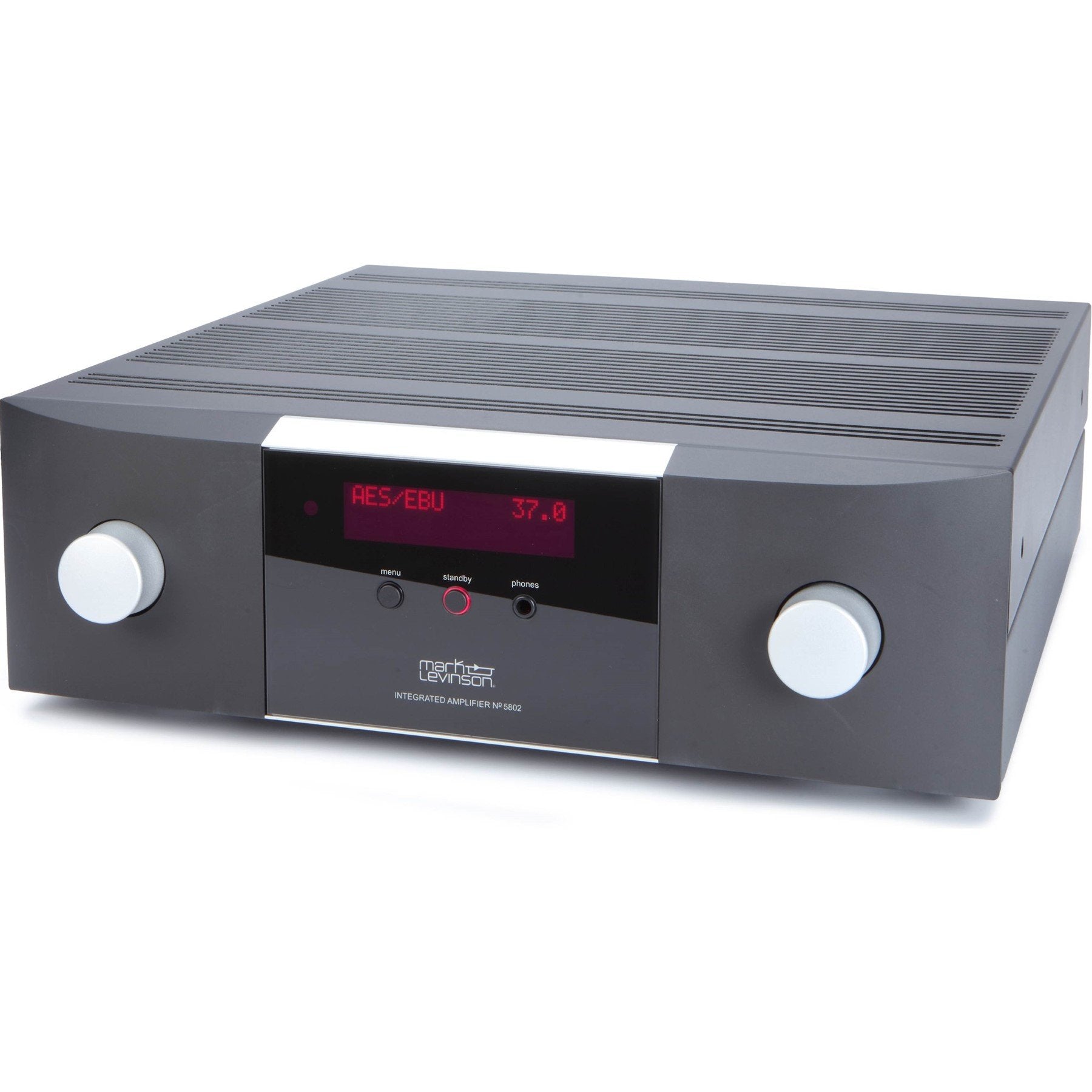

Robust materials, lavish finishes, and striking geometry are hallmark attributes of Mark Levinson designs. The one-inch thick, bead-blasted, black-anodized, solid aluminum front panels are machined and contoured to flow seamlessly into the sleek glass display, which itself is recessed into a clear-anodized aluminum bezel.
The iconic Mark Levinson hourglass knobs are redefined - machined with a gently curved profile transitioning into a rounded front, with feet to match. With debossed top cover vents, screen-printed logo behind the glass panel, and aluminum buttons, no detail has been overlooked. An elegant 5000 Series custom aluminum IR remote control is included.
№ 5802 Highlights
Digital Inputs
- 1 x AES ,1 x USB 2.0, 2 x coaxial S/PDIF, , and 2 x optical S/PDIF
- 384kHz/32 bit PCM and DSD 11.2MHZ capability
- Bluetooth audio input including AptX-HD support
- MQA full decoding on all digital inputs including asynchronous USB
Outputs
- Line outputs: 1 x RCA stereo (variable)
- Headphone output: 1 x 1/4-inch/6.35mm jack (front panel)
- Speaker outputs: 2 pairs high-current binding posts
Control
- Control ports: Ethernet (RJ45), RS-232 (DB9), 12V trigger input/output and IR input (3.5mm jack)
- Webpage setup, configuration import/export, software updates
- Included handheld IR remote control
- Control modules for third-party automation
Other
- EuP compliant / low-power standby
- All-new Nº 5000 series industrial design
- Designed, engineered and precision-crafted in the USA
- Packaged and sold individually
Specifications:
MOVING-MAGNET MODE
- Input Resistance: 47kΩ
- Input Capacitance: Selectable; 20, 70, 120, 170pF
- Gain: 39dB at 1kHz
- Total Harmonic Distortion: <0.01%, 1kHz, 2V RMS output; <0.05%, 20kHz, 2V RMS output
- Signal-To-Noise Ratio: >90dB (20Hz to 20kHz A-weighted, referred to 2V RMS output); >78dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output)
- Maximum Input Level: >190mV at 1kHz; >1.6V at 20kHz
MOVING-COIL MODE
- Input Resistance: Selectable, 37Ω to 1000Ω
- Gain: 69dB at 1kHz
- Total Harmonic Distortion: <0.01%, 1kHz, 2V RMS output; <0.06%, 20kHz, 2V RMS output
- Signal-To-Noise Ratio: >71dB (20Hz to 20kHz A-weighted, referred to 2V RMS output); >66dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output)
- Maximum Input Level: >6.5mV at 1kHz; >19mV at 20kHz
DIGITAL-TO-ANALOG CONVERTER STAGE
- Output Voltage: 5.7V RMS at maximum volume/full scale (0dBFS)
- Frequency Response: 20Hz to 20kHz, +0/–0.02dB (192kHz/24 bit signal); 20Hz to 20kHz, +0/–0.05dB (44.1kHz/16 bit signal)
- Total Harmonic Distortion: <0.0025%, 20Hz to 20kHz, at 3V RMS output (192kHz/24 bit signal); <0.003%, 20Hz to 20kHz, at 3V RMS output (44.1kHz/16 bit signal); <0.006%, 90kHz, at 3V RMS output (192kHz/24 bit signal)
- Signal-To-Noise Ratio: >100dB (20Hz to 20 kHz, 192kHz/24 bit signal, A-weighted); >98dB (20Hz to 20 kHz, 192kHz/24 bit signal, wideband, unweighted; >94dB (20Hz to 20 kHz, 44.1kHz/16 bit signal, A-weighted); >92dB (20Hz to 20 kHz, 44.1kHz/16 bit signal, wideband, unweighted) (referred to 2V RMS output)
- Sample Rates/Bit Depth: PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, or 384kHz; up to 32 bits; DSD: Native or DoP; single, double, or quad speed (2.8, 5.6, or 11.2MHz)
- Digital Processing: Full MQA decoding; PCM: Seven user-selectable digital filter settings; user-selectable up-sampling to 352.8/384kHz; DSD: Four user-selectable digital filter settings
General
- Analog Input Connectors (№5805 Only)
- 1 pair balanced line-level inputs (XLR)
- 2 pairs single-ended line-level inputs (RCA)
- 1 pair single-ended moving-coil phono inputs (RCA)
- 1 pair single-ended moving-magnet phono inputs (RCA)

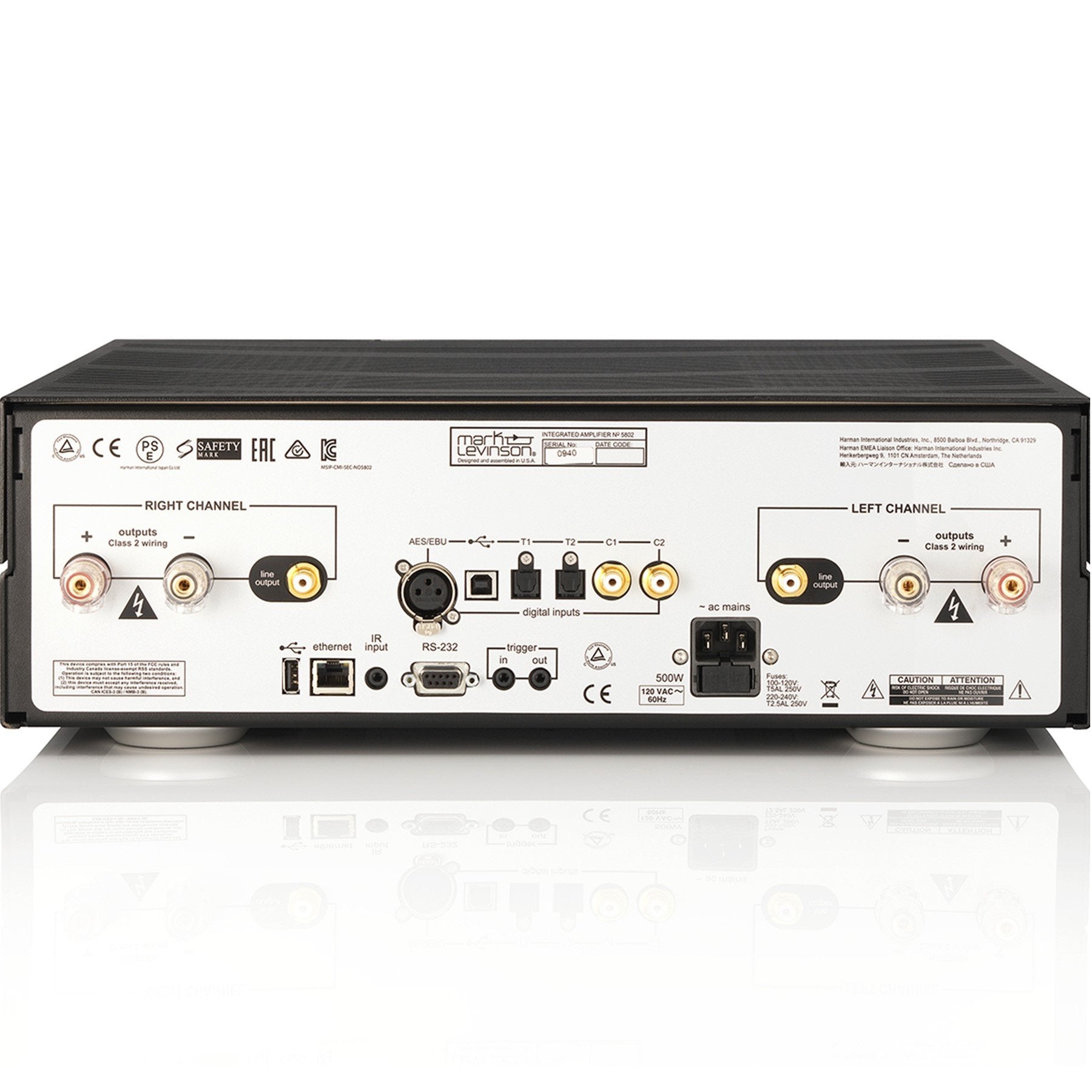

- Digital Audio Connectors:
- 2 optical digital inputs (Toslink)
- 1 asynchronous USB digital input (USB-B)
- №5805: 1 coaxial digital S/PDIF input (RCA)
- №5802: 2 coaxial digital S/PDIF input (RCA)
- №5802: 1 balanced digital AES/EBU input (XLR)
- Output Connectors
- 1 pair single-ended line-level outputs (RCA)
- 2 pairs loudspeaker outputs (High-current binding posts with banana sockets; accept spade lugs with ¼”/6.3mm spacing up to ⅛”/3mm thick)
- Control Connectors:
- 1 RS-232 port (DB9 connector)
- 1 IR input (⅛”/3.5mm phone jack)
- 1 programmable 12V DC trigger output (⅛”/3.5mm phone jack), 100mA maximum
- 1 programmable 12V DC trigger input (⅛”/3.5mm phone jack)
- 1 Ethernet port (RJ-45 connector)
- Mains Voltage: 100VAC, 115VAC, or 230VAC, factory set
- Power Consumption:
- Standby, “Green” mode: <0.4W
- Standby, “Power Save” mode: 7W
- №5805: Standby, “Normal” mode: 70W
- №5802: Standby, “Normal” mode: 45W
- №5805: Power on, quiescent: 120W
- №5802: Power on, quiescent: 95W
- №5805: Power on, both channels at ⅛ rated power: 240W
- №5802: Power on, both channels at ⅛ rated power: 215W
- Power on, maximum: 500W
- Dimensions/Weight (Unit)
- Height: 5.72”/145mm
- Height without feet: 5.25”/133mm
- Width: 17.25”/438mm
- Depth: 19.98”/507mm
- Weight (№5805): 62 lbs/28.1kg
- Weight (№5802): 61 lbs/27.6kg
