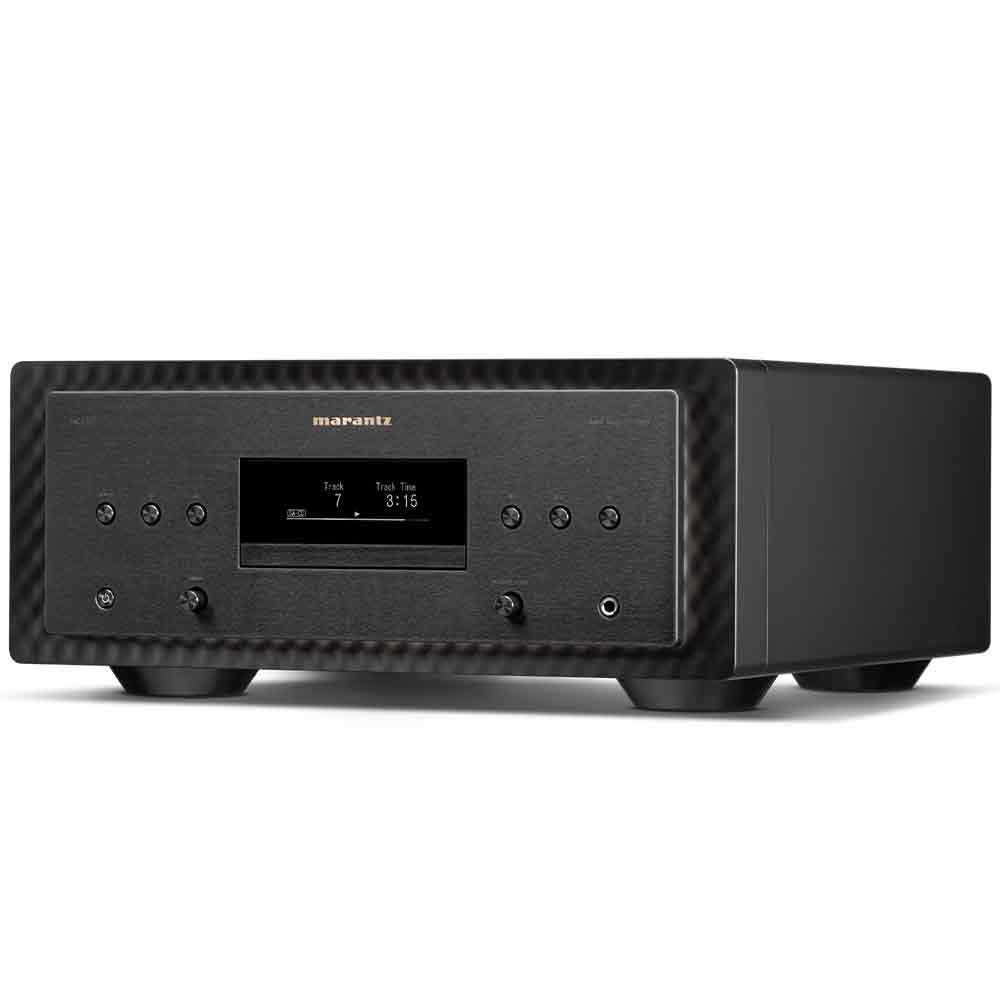

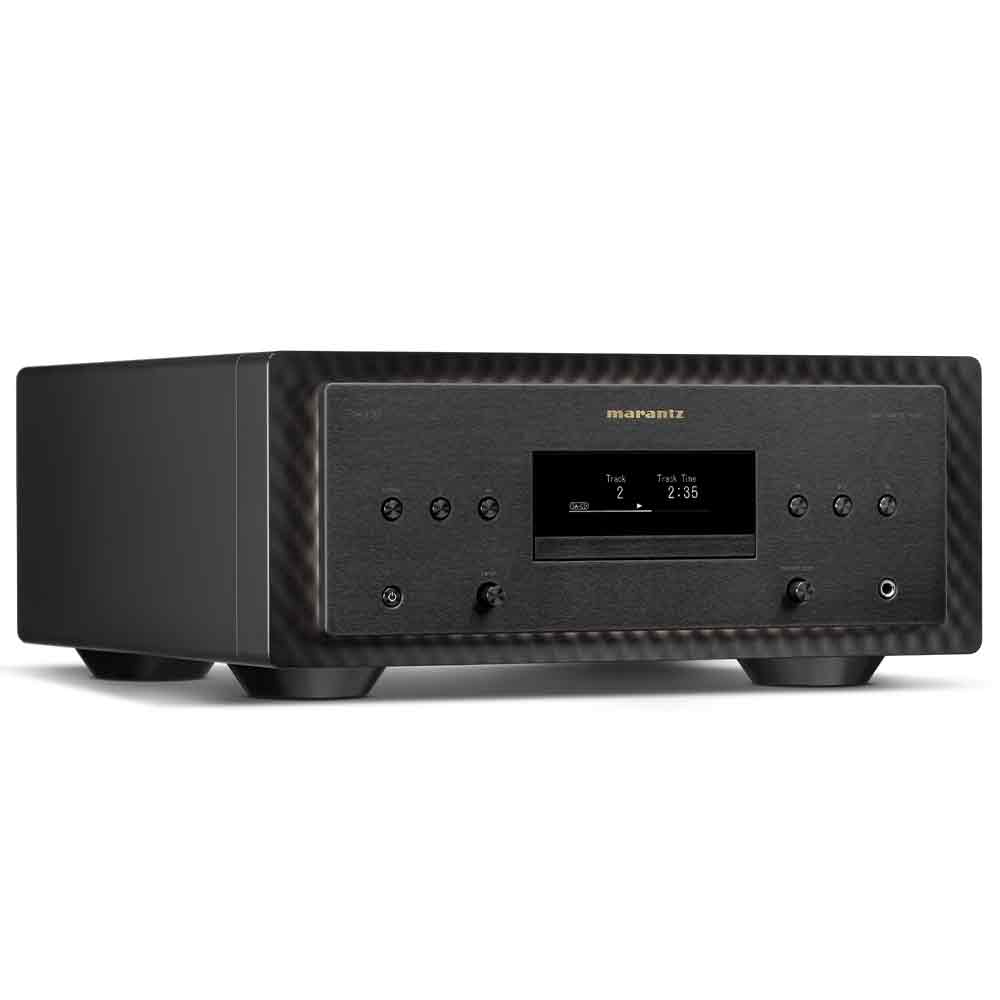

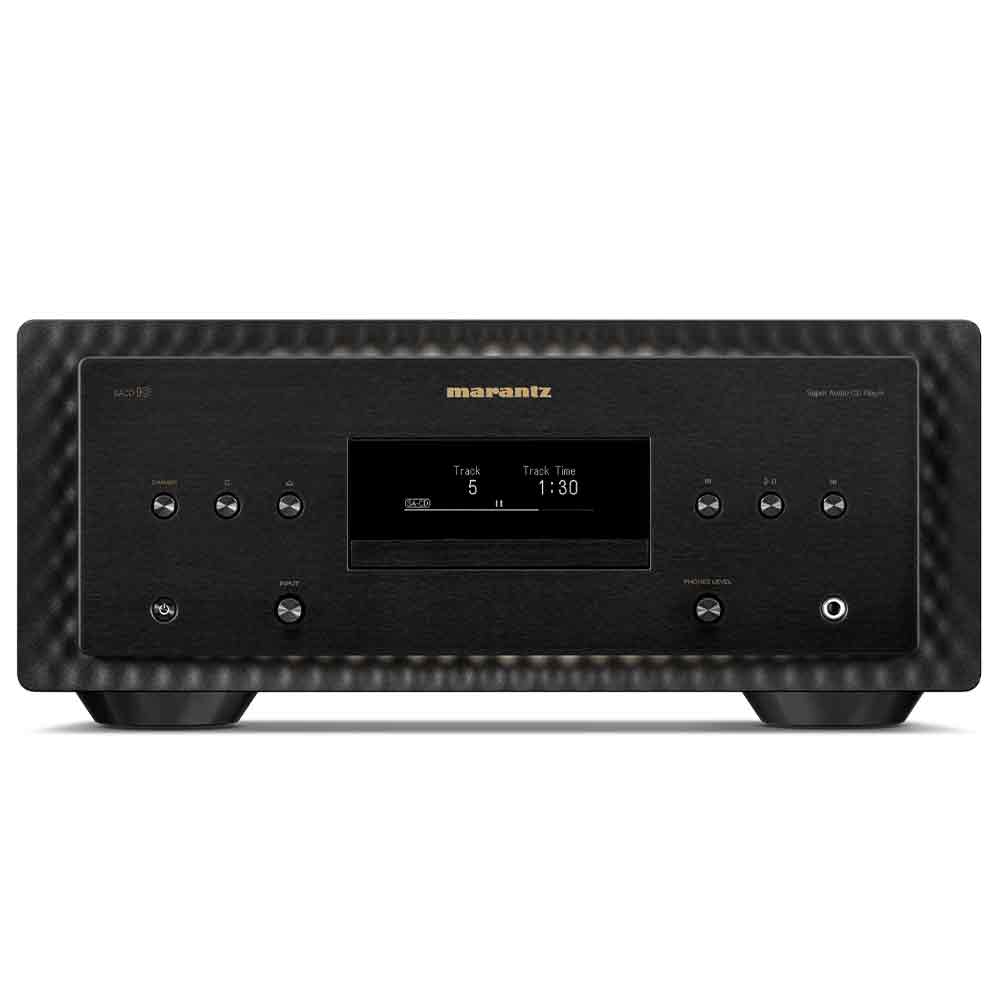

Marantz SACD10 Reference SACD Player in Marantz Black - Marantz
For the Marantz Champagne version Click Here.
The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 transport mechanism for maximum rejection of resonance.
- Marantz SACDM-3 transport mechanism
- DSD 256 and PCM 384 / 32 support
- Headphone amplifier
- Dual power supplies with toroidal transformers
- OLED display
- Marantz Industrial Design
Inspired by our past, engineered for our future
Featuring a proprietary SACDM-3 disc transport, CD playback, and DAC inputs, SACD 10 offers high-resolution audio support for external source components and digital inputs for other sources.
The Best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and HDAM module, SACD 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and remarkable design.
Sound Master Tuned
SACD 10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail than ever before.
Pristine Sound
Made for the ultimate CD and SACD enthusiast, SACD 10 is engineered with updated Marantz Musical Mastering and a next generation HDAM module for impeccably detailed audio reproduction.
High-res support
SACD 10 supports balanced sources via USB-A and USB-B DAC, plus DSD 256 and PCM 384 / 32 support. Connectivity options also include coaxial and optical digital outputs and inputs, and fixed level XLR and RCA analog outputs.
Marantz Industrial Design
With a brushed aluminum control surface, spun finish details, a thick-section aluminum structure, copper-plated, triple-layered chassis, , SACD 10 is in a class of its own. Available in two colorways, Marantz Black and Marantz Champagne to complement any setting.
What to expect in the box:
- SACD10 Reference SACD Player
- Remote Controller RC004PMND
- Battery Yes (AAA ×2)
- Power Cord Yes (ALL region : Audio Grade : OFC)
- Other Stereo RCA Cable ×1
- Remote connector cable ×1
- CoA card
Product Details:
- General
- Unit (W × H × D mm): 440 × 192 × 442
- Cabinet Size: 440 × 192 × 422
- Net weight: 33.0kg
- Packaging Dimensions (W × H × D mm): 600 × 379 × 540
- Packaging gross weight: 38.4kg
- Carton Color: 1 Color (Material color: Brown Printing: Black)
- Panel Color: Black / Marantz Champagne
- Front (Center) Panel: Aluminum
- Back-shell: Aluminum
- Front panel illumination: Yes (All sides, Dimmer)
- Side cover: Aluminum (Thickness: Max 15.8mm)v
- Top cover: Aluminum (Thickness: 12mm)
- Bottom Layer / Bottom plate: Triple layer copper-plated
- Foot: Solid aluminum with Copper
- Audio
- Frequency Response: SACD: 2Hz–50kHz (-3dB), CD: 2Hz–20kHz (±1.0dB)
- Harmonic distortion: SACD: 0.0004%, CD: 0.0015%
- S/N: SACD: 118dB, CD: 116dB
- Dynamic range: SACD: 112dB, CD: 98dB
- Line Output Level: UNBALANCED : 2.0Vrms, BALANCED : 4.0Vrms
- Headphone Output Level: 130mW / 32 ohms
- Power Consumption: 55W, Less than 0.3W (at Standby)
- Audio Feature
- Output Circuit: New HDAM
- Power Transformer: Toroidal
- Headphone Circuit: Discrete
- H/P Amp Gain Setting: Yes (Low / Mid / High)
- H/P On.Off Setting: H/P Off automatically, when in use
- DAC Circuit: New MMM-Conversion
- Dither: MMM-Stream (Dither 1, 2, Off)
- Noise Shaper: MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
- Digital Filter: MMM-Stream, Filter 1, 2 Selectable
- Jitter Reducer: Yes
- DAC Master Clock Design (No Support for Network Playback): Yes
- Asynchronous mode (for USB-B input): Yes
- Isolator (for USB-B input): Yes (Complete Isolation System Duo)

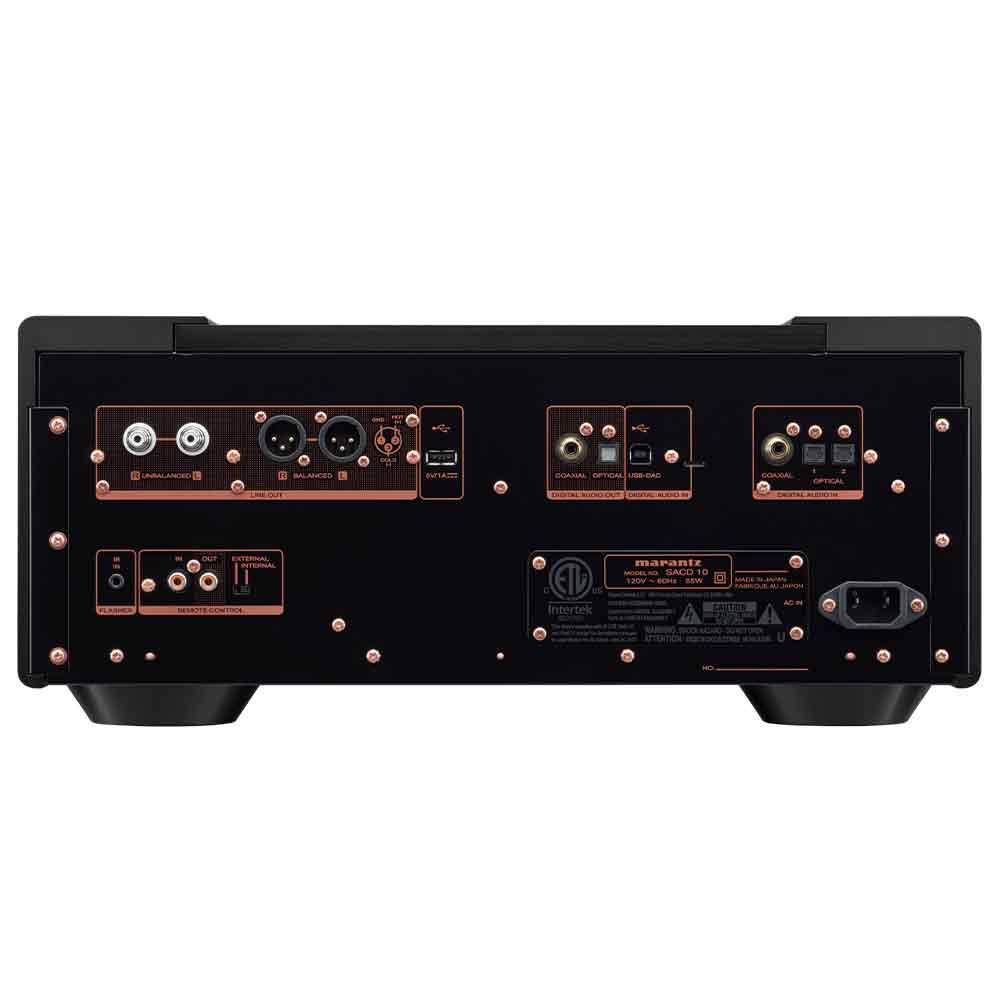

- Connectivity
- Fixed Analog Output (RCA): Cinch × 1, Thick nickel plated Maching copper L/R independent terminals
- Fixed Balanced XLR Output: 1
- Optical input / output (Maximum Support): 2/1, 44.1 kHz - 192 kHz
- Coaxial input / output (Maximum Support): 2/1, 44.1 kHz - 192 kHz
- Headphone Output: Yes (φ6.3 x 1)
- Remote Control Bus Terminal: Yes
- Remote Internal / External Switch: Yes
- AC Inlet: Yes
- MISC
- MPN: SACD10/U1B
- UPC: 747192142810
