Marantz SACD 30n Networked SACD / CD player with HEOS Built-in

Marantz SACD 30n Networked SACD / CD player with HEOS Built-in - Marantz

A master-tuned, elegantly designed SACD / CD player with integrated digital sources. Includes Marantz Musical Mastering processing and a very low-noise, crystal-clear pre-amplifier. The SACD 30n supports a wide variety of high-resolution files and streaming services. Pairs with the MODEL 30 integrated amplifier. Your music always sounds better on a Marantz.

Key Features:

• Best Marantz audio quality from any digital source.
• Tuned with passion by the Marantz Sound Master.
• Marantz CD/SACD transport mechanism reduces interference.
• Marantz HDAM circuitry for clean, optimal dynamics.
• DAC Mode, SACD/CD player, streamer and very low-noise pre-amplifier.
• Marantz Musical Mastering for pure analog audio from any digital source.
• Fixed level and independent variable output.
• Multiple inputs and outputs for component flexibility.
• HEOS® Built-in for whole-home integration and streaming options.
• Controllable by the leading voice control services.
• Designed to complement the MODEL 30 integrated amplifier.
• Available in Black and Silver Gold.

Technical Specifications

Network

• Engine: HEOS
• Computer music file streaming: WMA / MP3 / AAC, WAV192/24 / FLAC 192/24, ALAC 192/24, DSD 2.8/5.6
• DLNA DMP (Digital Media Player): (compatibility)
• DLNA DMR (Digital Media Renderer): (compatibility)
• Gapless Playback (Music Server, USB A): yes, (FLAC, WAV, AIFF, ALAC, DSD)
• Internet Radio: yes (TuneIn)
• AirPlay: yes (2)
• Cloud Music Service: Spotify Connect(except CN), Amazon Prime(except CN), Deezer Premium+(EU, NA), iHeart Radio(NA), Napster(EU, NA), Pandora(NA), SiriusXM(NA), SoundCloud(All), Tidal(EU,NA), Mood Mix(EU, NA), AWA(JP), QQ music(CN)
• Wi-Fi: yes 2.4GHz(11b/g/n), 5GHz(11a/n) PBC only
• WPS (Wi-Fi Protected Setup)
• WMM
• OFF mode
• Bluetooth: yes (SBC.AAC)

USB

• USB-B Input - USB-DAC: 1 (PCM:Up to 384kHz/32bit, DSD:Up to 11.2MHz)
• USB-B Input - Asynchronous mode
• USB-B Input - Isolator: yes (and digital inputs)
• USB-A Input - USB Mass Storage Audio Music File: at Rear) WMA / MP3 / AAC / WAV192/24 / FLAC 192/24 / AIFF 192/24, DSD 2.8/5.6
• USB-A Input - Support format: FAT 16/32, NTFS

Audio

• Audio Circuit: HDAM
• D/A Converter: MMM Conversion
• Power Transformer: Toroidal
• Dither: Not selectable
• Noise Shaper: Not selectable
• Digital Filter: MMM-Stream (Filter 1, 2)
• Jitter Reducer: yes (FLAC, WAV, AIFF, ALAC, DSD)
• Dual Clock (for 44.1/48kHz)
• Headphone Amp: HDAM-SA2, Full discrete headphone amp circuit, Gain setting (Low/Mid/ High), Auto detected plug on/off and turn on/off HP AMP

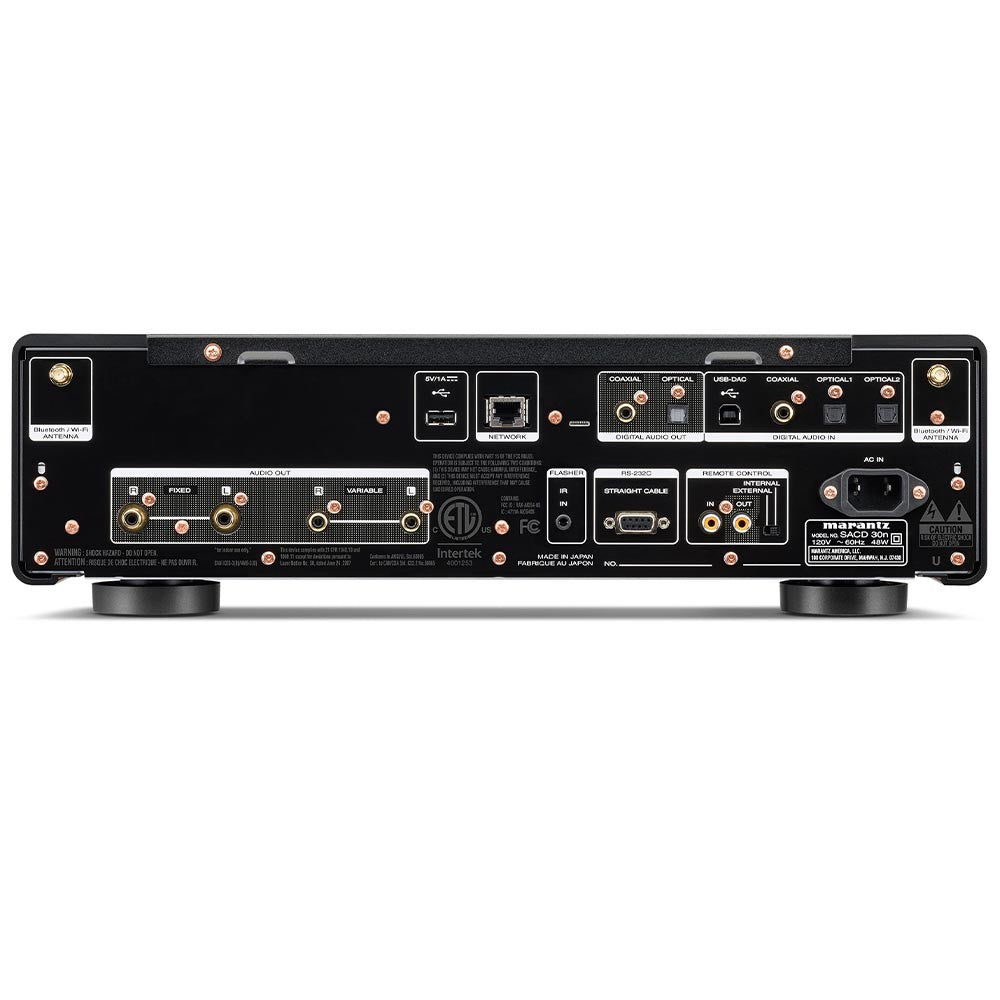

Audio

• Audio Digital IN - COAX IN: 1
• Audio Digital IN - OPTICAL IN: 2
• Audio Digital OUT - COAX OUT: 1 (on/off switchable)
• Audio Digital OUT - OPTICAL OUT: 1 (on/off switchable)
• Analog Audio OUT - RCA OUT: 1 L/R independent, gold plated high grade brass terminals
• USB - USB-A IN: Rear x 1
• USB - USB-B IN: Rear x 1
• Ethernet
• Wi-Fi antenna: yes (removable rod antenna)
• Headphone: yes (Φ6.3 x1)

UI

• Remote APP: HEOS app
• Display: OLED 3-line display (Dimmer 4-levels)
• Language: (EU9:EN/DE/FR/IT/NL/ES/SE/PL/RU, JP:JP/EN, NA:EN/FR/ES, CN:CN/EN)

Control

• Remote Controller: yes (New system remote controller to control SACD 30 and MODEL 30)
• RS232C
• Flasher Input: yes (x1)
• Remote In/Out: RC5 IN/OUT
• App control AMP/CD via Network Player
• Web Control
• IP Control
• Wake on LAN (Network Power Control)
• Certified Control 4
• DPMS Service
• Firmware Update: yes via DPMS(Network)
• H/P Amp Gain Setting: yes (Low/Mid/High)

Other

• Auto Power off
• Last Function Memory
• Power Consumption: 48W
• Power Consumption (Normal Standby): low power consumption in standby mode
• Power Consumption (Network Control-ON mode): Network off Mode 5 W
• W x H x D (inches): 17.4" x 5.1" x 16.7”
• Weight (lbs): 29 lbs 12 Oz
• AC INLET: yes (IEC)
• Quick Start Guide: Paper
• Variable Audio Output: yes (dedicated) (Digitl vol: JRC)
• Chassis Material: SECC
• Bottom Layer: single 3.0mm thick

Disc

• Disc Type: SACD/CD/CD-R/CD-RW, DVD-R/+R/-RW/+RW
• SACD
• SUPER AUDIO CD TEXT
• MP3
• WMA
• WAV
• DSD

Cosmetic

• Panel Color: SG / BK
• Front Center Panel: Aluminum
• Side cover: Aluminum
• Top cover: Steel
• Edge-lighting: yes (Dimmer)
• Function button: Aluminum

Optical Mechanism

• SACDM-3L
