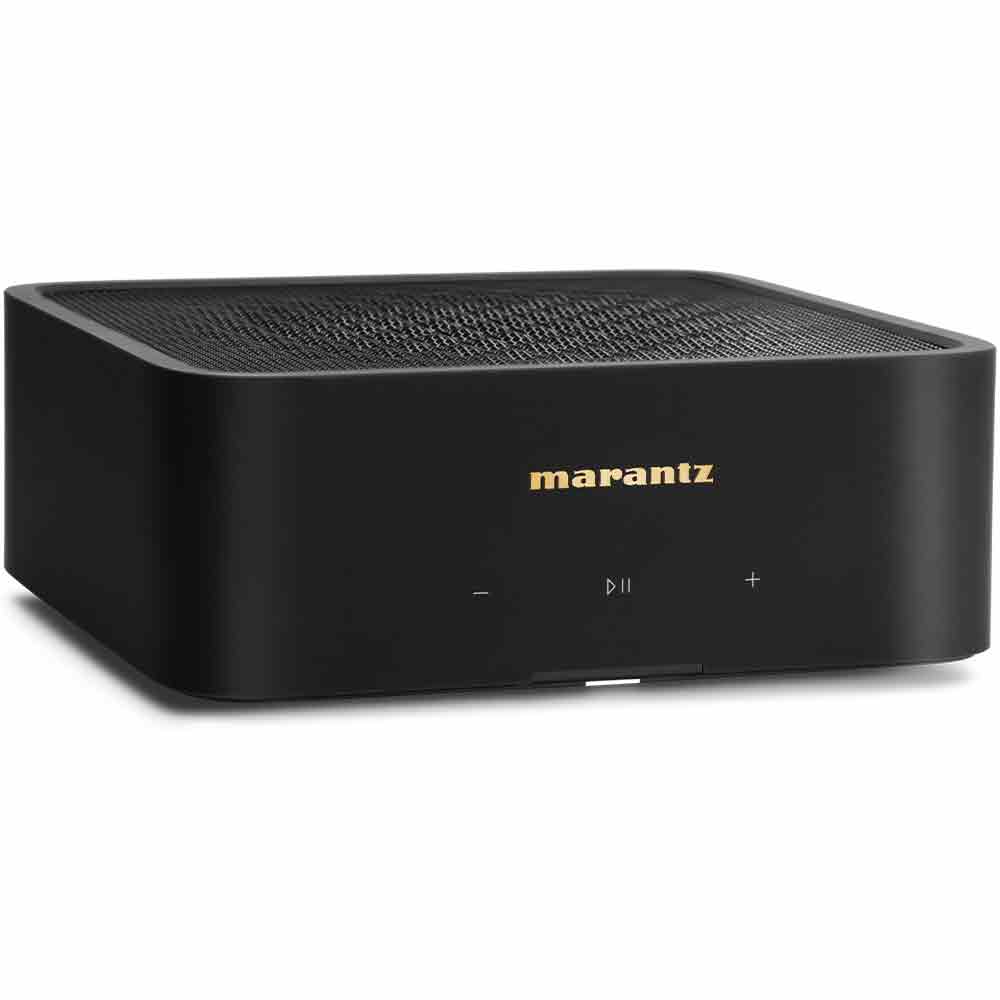

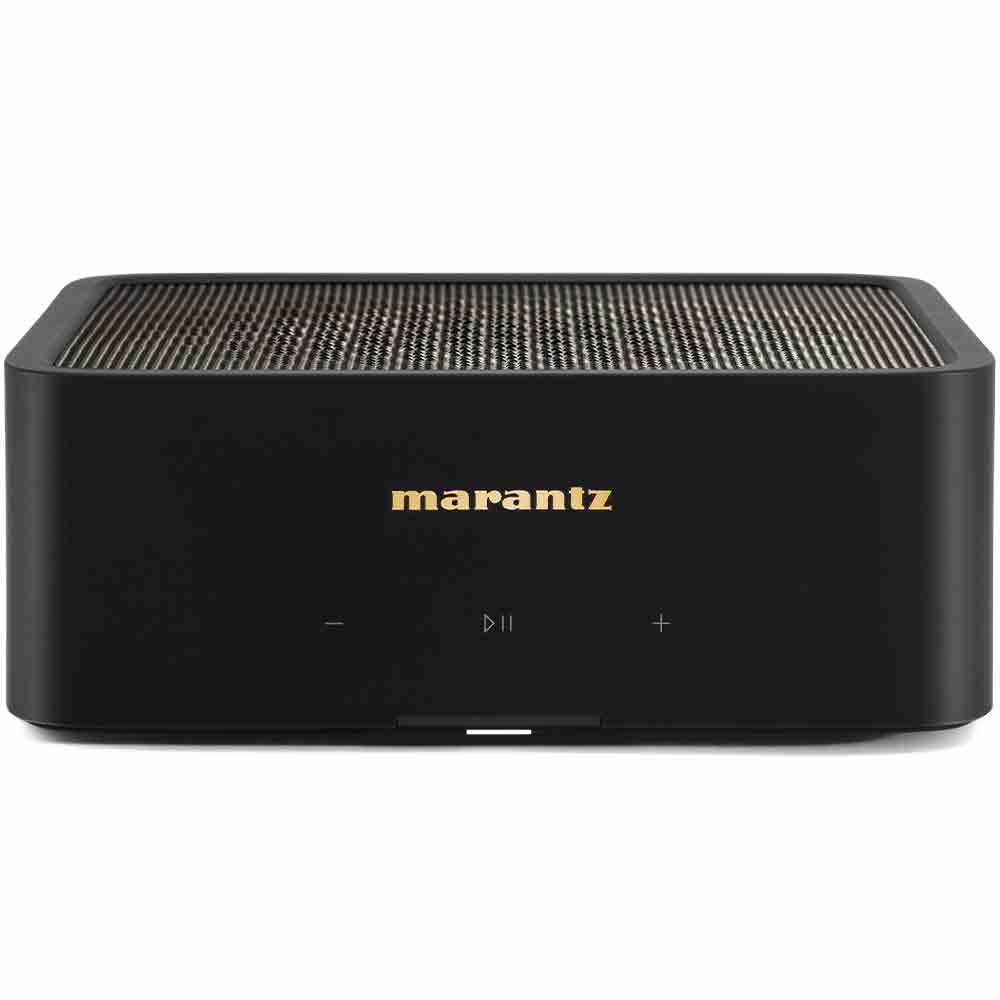

Marantz Model M1 Wireless Streaming Amplifier - Marantz
The New Shape of High-Performance Sound
Born from decades of Marantz heritage and engineering expertise, this new generation of wireless streaming amplifier transforms the way you listen to music and watch TV throughout your home .
True Marantz Power
MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces
High Resolution Digital Direct
However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.
Marantz Multi-Room
The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.
Marantz Musical Digital Filtering
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
TV Sound: Marantz Quality, Soundbar Simplicity
Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.
MODEL M4
An innovative and intelligent take on traditional distribution amplifier designs. MODEL M4 delivers superb Marantz sound throughout your home and gives you control over four zones with four independent HEOS streams.
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
What to expect in the box:
- Model M1 Wireless Streaming Amplifier
Product Details:
Amplifier
- Power Amplifier Rated output & THD (8 ohm): Power Amplifier Rated output & THD (8 ohm)
- Power Amplifier Rated output & THD (4ohm): 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
- Frequency Response: 20 Hz to 20 kHz : ±1 dB
- Connected loudspeaker Impedance: 4 – 16 Ω/ohms

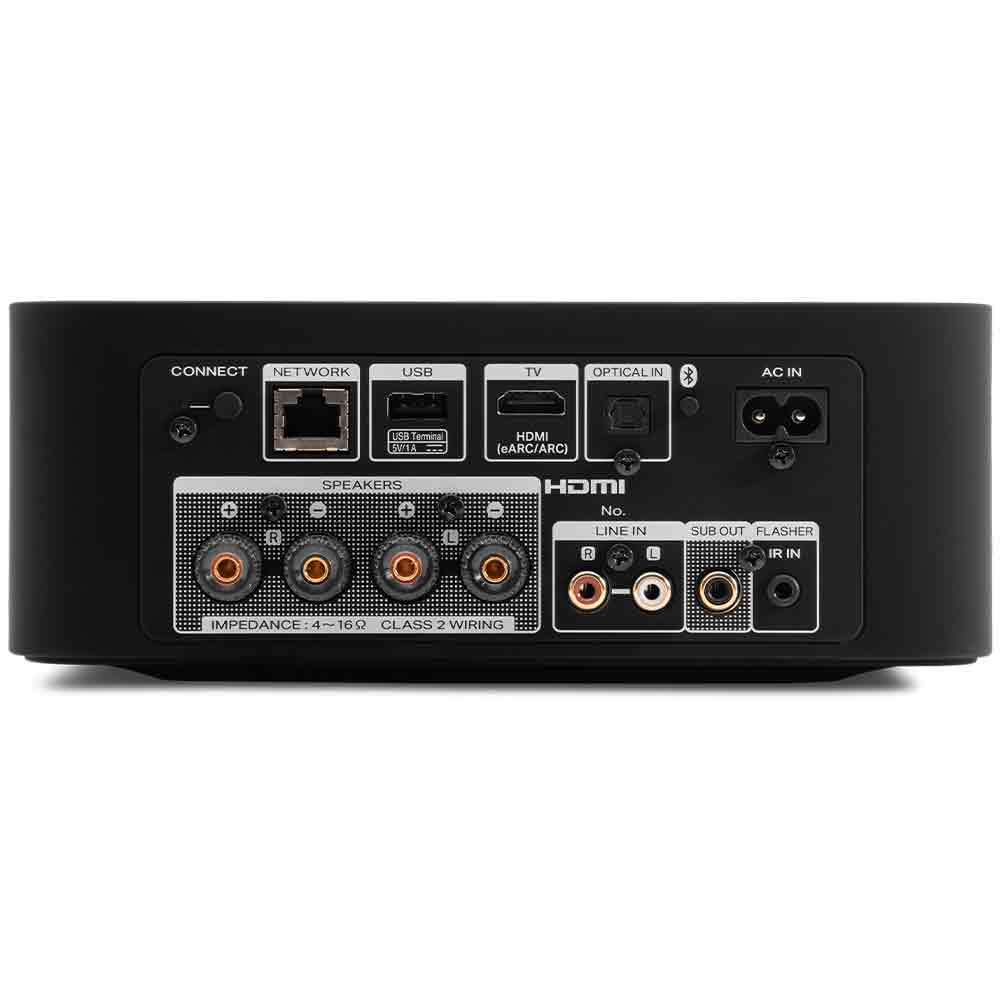

Audio Inputs / Outputs
- Loudspeaker Binding Posts: 4-way binding posts
- Digital Inputs: HDMI (eARC), TOSLINK (2)
- Analog Inputs: RCA L/R
- Subwoofer Out: RCA Mono
Audio Options
- Channel Assignments: Stereo (Default), Dual Mono
- Volume Limit: 80-100%
- Balance: -15dB to +15dB
- Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
- EQ: Bass, Treble -5dB to +5dB
- Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- TV Sound Grouping: Yes
Audio Format Support
- Decoding: Dolby Digital +, Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCM : Yes / Yes
- Stereo File Formats (HEOS network share or USB)
- WMA: up to and including 192 kbps
- AAC & MP3: up to and including 320 kbps
- WAV, ALAC, FLAC: up to and including 24-bit/192kHz
- DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth Receive: BT 5.X
- Bluetooth Transmit: No
- AirPlay: AirPlay 2
- Spotify: Spotify Connect
Music Services and Sources
- Music Services Supported (HEOS, subject to change and local availability): Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile device: Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage): Network share, DLNA
- USB Storage Device Playback: Yes (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity: Ethernet
- Wireless Connectivity: Dual band, 802.11 a/b/g/n/ac
- IR Input: 3.5mm
- IR Learning: Yes
- Control System Compatibility via TCP/IP: Crestron, Control4, AMX
- HEOS App: iOS, Android, Kindle Fire
- Trigger Output DC 12V: Yes (4
General
- Product Color: Black
- User Interface: Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (W x D x H) Inches: 9.41 x 3.31 x 8.54
- Dimensions (W x D x H) mm: 239 x 84 x 217
- Weight (lbs): 4.84
- Weight (kg): 2.2
- MPN: MODELM1/U1B
- UPC: 747192140786
