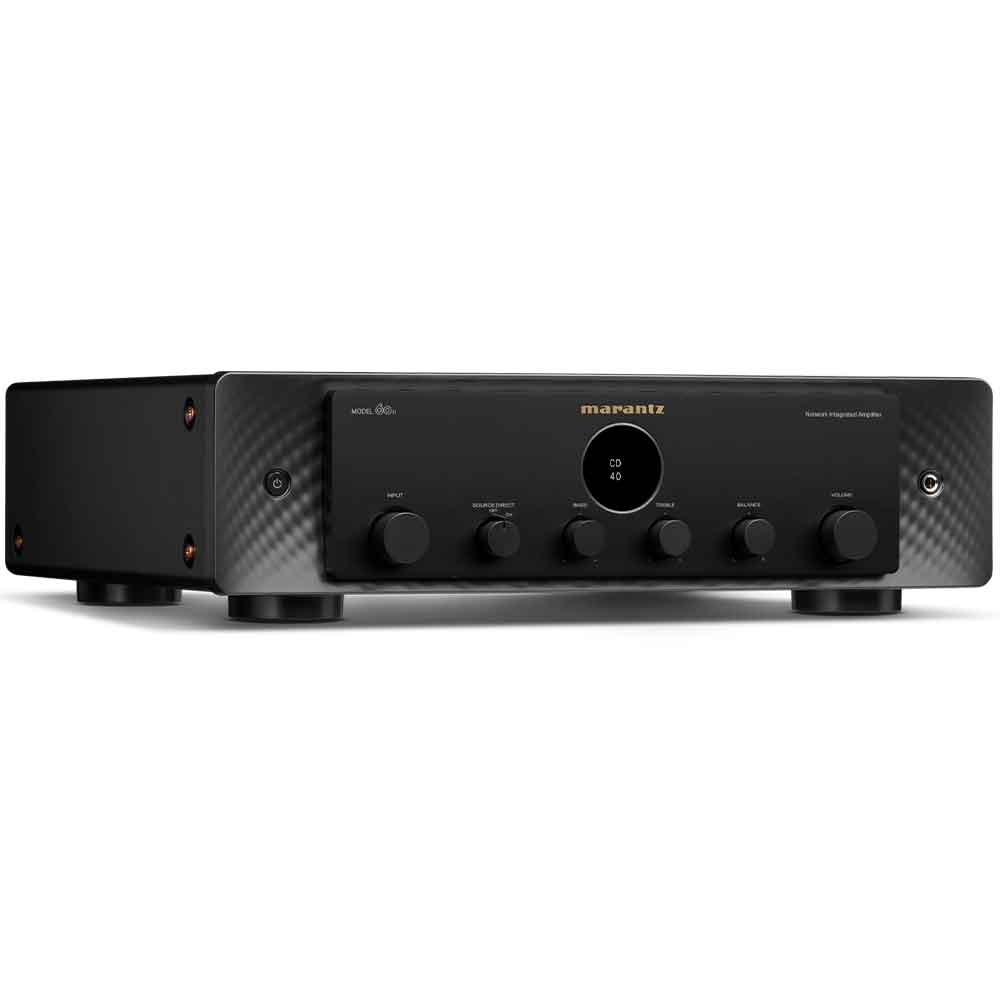

Marantz MODEL 60n Network Integrated Amplifier

Marantz MODEL 60n Network Integrated Amplifier - Marantz

The perfect blend of performance and connectivity
MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.

Superb Marantz Sound
Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.

High Resolution Streaming
Stream in high-resolution from today’s most popular music services, including TIDAL, with HEOS® Built-in.

Build Your Hi-Fi System
Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.

Enhanced TV Sound
Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

Marantz Industrial Design

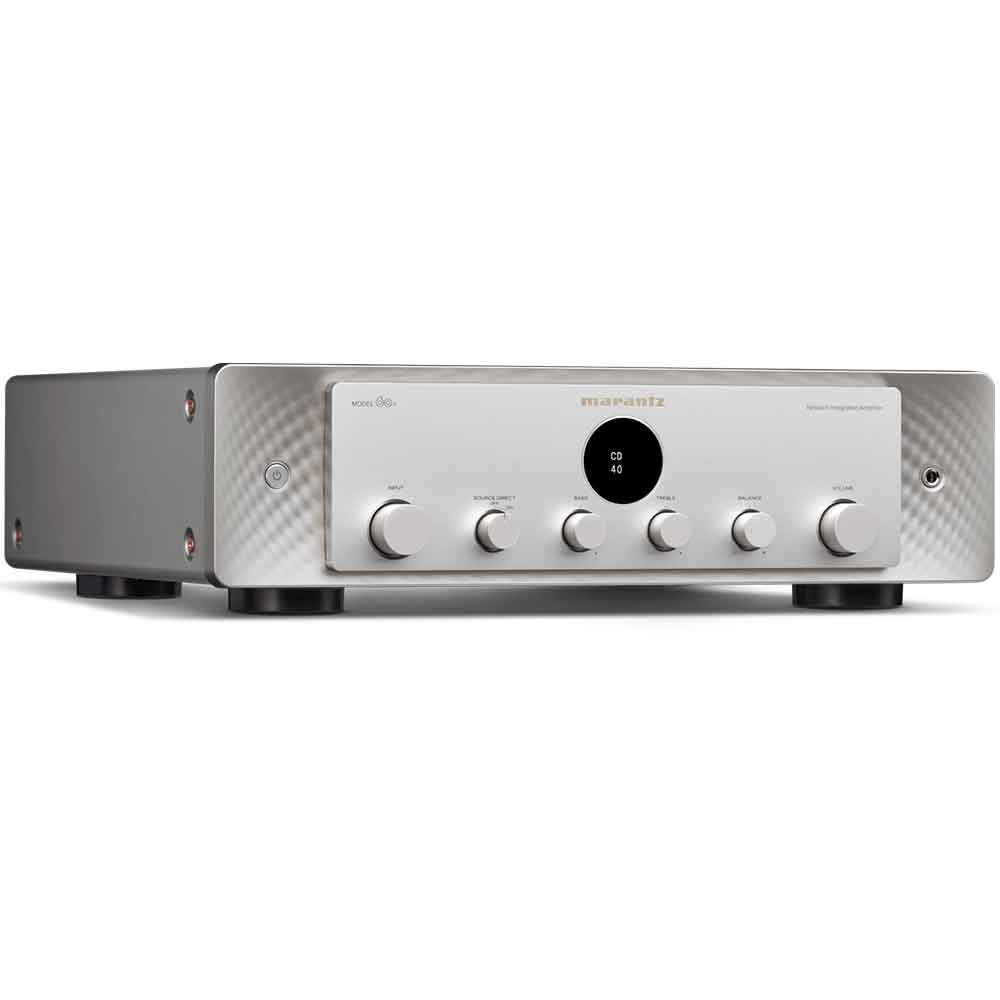

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.

For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD

Search for Songs Across Platforms
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

Your Whole Home in One Place
HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.

Hi-Resolution Streaming
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.

What to expect in the box:

• MODEL 60n Network Integrated Amplifier
• Remote Control RC006PM

Product Details:

• • Amplifier
  • Channels: 2
  • PSU Transformer: Toroidal
  • Speaker A / B: No
  • Speaker Terminals: Marantz SPKT-1+
  • Number of Terminals: 2
  • Power Output (8 / 4 Ohm RMS): 60 W / 80 W
  • Topology: Class A/B
  • Audio Components and Technologies
  • Current Feedback Topolog:y Yes
  • HDAM Version: SA3, SA2
  • High Grade Audio Components: Yes
  • Customized Components: Yes
  • Symmetric PCB Layout: Yes
  • Aluminum Extrusion Heat Sink: Yes
  • Copper Plated Chassis: No
  • Marantz Musical Digital Filtering: No
  • Linear Drive Power Supply: Yes
  • BI-AMP and Multichannel Option: No
  • Shottky Diodes: Yes
  • Control
  • D-Bus: Yes
  • DAC
  • Digital Inputs: Coaxial, Optical, USB-A
  • Max PCM Sample Rate: 192 kHz / 24-bit
  • Max DSD Sample Rate: DSD 4X (11.2 MHz)
  • HDMI: 1 ARC
  • HEOS
  • Streaming Technologies: Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
  • Streaming Services: (subject to change and local availability) Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
  • HEOS Multiroom and Streaming: Yes
  • Lossy Formats: MP3, WMA, AAC
  • Lossless Formats: DSD/DSF, FLAC, ALAC, WAV, AIFF Gapless Playback Yes
  • HEOS App: iOS, Android
  • Network
  • Wi-Fi / Wired LAN: Yes / Yes
  • Other
  • Display: Low-Noise OLED Monochrome
  • Preamp
  • Preamp Phono EQ: MM Standard
  • Tuner: FM / AM: No
  • Audio Adjustments: Bass / Treble EQ, Balance
  • Source Direct: Yes
  • Power Amp Direct: No
  • Analog Audio Inputs: 4
  • Balanced In / Out: No / No
  • Preamp Outputs: 1
  • Subwoofer Output: 1 Mono
  • Headphone Out: Yes
  • Specifications
  • Frequency Response 5 Hz-100 kHz
  • Total Harmonic Distortion: 0.02 %
  • Damping Factor: 100<
  • Input Sensitivity: MM 2 mV / 47 kOhm
  • Signal to Noise Ratio: MM/MC 87 dB / -
  • Input Sensitivity: High Level 190 mV / 20 kOhm
  • Signal to Noise Ratio: High Level 113dB(2V input)
  • Treble Control: ± 10 dB at 10kHz
  • Bass Control: ± 10 dB at 50Hz
  • Metal Front Panel: Yes
  • Power Consumption in W: 220
  • Standby Consumption in W: 0.3
  • Auto Power Off: Yes
  • Detachable Power Cable: Yes
  • Remote Control: RC006PM
  • System Remote Function: Yes
  • Maximum Dimensions (W x D x H) mm: 442 x 431 x 129
  • Carton Maximum Dimensions (W x D x H) mm: 527 x 517 x 255
  • Carton Weight (inc. product) in kg: 15.5
  • Maximum Dimensions (W x D x H) in: 17.4 x 17 x 5.1
  • Weight in LBS: 28.1
  • Carton Maximum Dimensions (W x D x H) in: 20.8 x 20.4 x 10.1
  • Carton Weight (inc. product) in LBS: 34.3
  • Black Version MPN: MODEL60N/U1B
  • Black Version UPC: 747192143657
  • Silver Gold Version MPN: MODEL60N/U1SG
  • Silver Gold Version UPC: 747192143664
