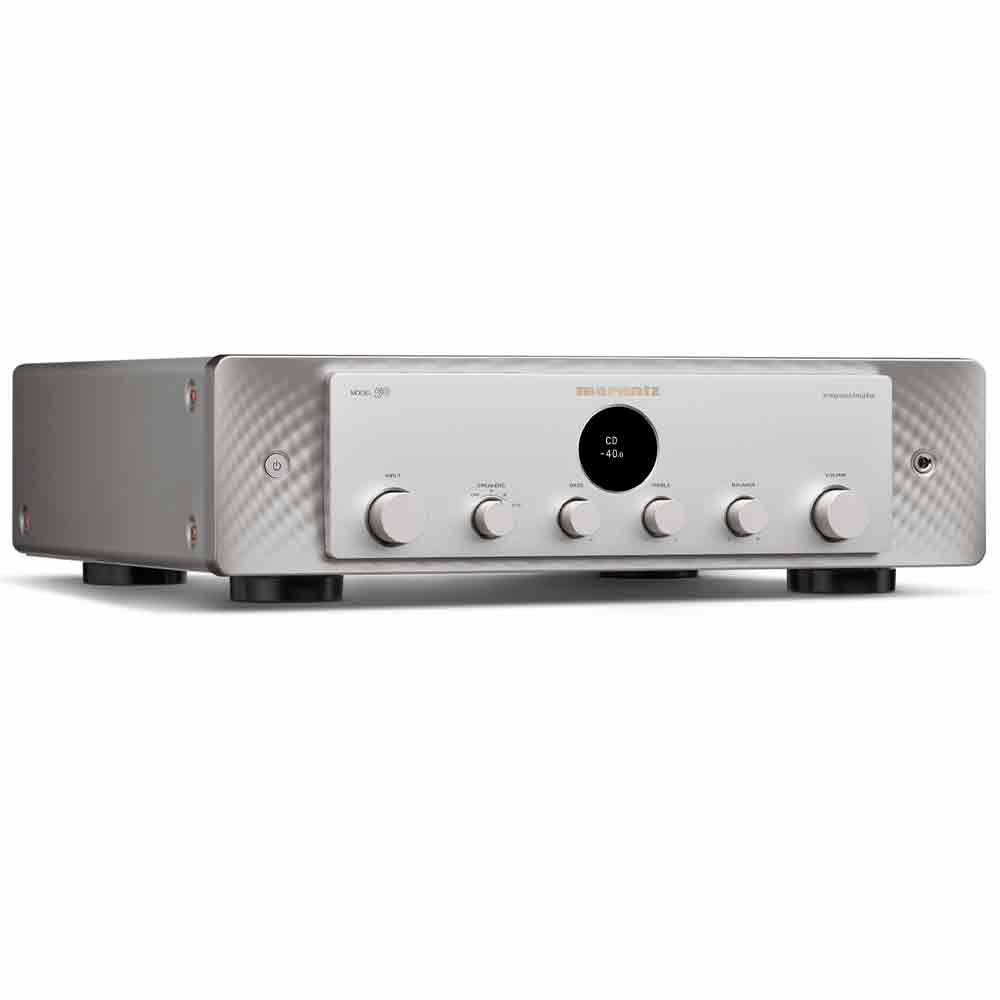

Marantz Model 50 Premium Integrated Stereo Amplifier With 70W And Custom HDAM

Marantz Model 50 Premium Integrated Stereo Amplifier With 70W And Custom HDAM - Marantz

An Evolution 70 Years
in the Making
Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern

Key Features

Powerful And Precise Class A/B Amplifier
Even difficult to drive loudspeakers will sound effortless with the high- current, dual-device amplifier in MODEL 50.

Six Analog Inputs
With a collection of available analog inputs, MODEL 50 can accept audio from myriad source components and includes upgraded connectors for CD and phono.

Moving Magnet Phono
The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

Stereo Preamp Out
MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.

Believe in Quality

Powerful Yet Precise
With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analog Purity and Simplicity
Analog is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry

Exquisite Style
We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

Product Details:

• Features
• Channels: 2
• Current Feedback Topology: Yes
• Phono EQ: Standard / Marantz Musical / Marantz Musical Premium: - / Yes / -
• HDAM version: SA3, SA2
• Power Transformer: Toroidal / El: Yes / -
• High Grade Audio Components: Yes
• Customized Components: Yes
• Symmetric PCB Layout: Yes
• Aluminium extrusion heat sink: Yes
• Balance / Bass / Treble / Loudness: Yes / Yes / Yes / -
• Others
• Linear Drive Power Supply: Yes
• Linear volume control: Yes
• Schottky diodes: Yes
• Solid Heat Sinks: Yes
• System block shielding: Copper / metal / none: none
• Bottom Plate: Triple
• Low noise OLED display: Yes
• Source Direct: Yes
• Power Amp direct: Yes
• Inputs/Outputs
• Audio Inputs: 6
• Phono Input: MM / MC: Yes / -
• Audio Outputs: 1
• Pre-out / Main-in: Yes + subwoofer / -
• Power Amp Direct IN: Yes
• Gold Plated Cinch: Yes
• Speaker A / B: Yes
• Speaker Terminals: Marantz SPKT-1+
• Number of terminals: 4
• D-Bus: Yes
• Headphone Out: Yes
• Specifications
• Power Output (8 / 4 Ohm RMS): 70 W / 100 W
• Frequency Response: 5 Hz–100 kHz
• Total Harmonic Distortion: 0.02 %
• Damping Factor: 100
• Input Sensitivity: MM: 1.4 mV / 47 kΩ
• Signal to Noise Ratio: MM/MC: 87 dB / -
• Input Sensitivity: High level: 185 mV / 16 kΩ
• Signal to Noise Ratio: High level: 116 dB (2 V input)
• Input Sensitivity: Power Amp Direct IN: 1.5 V / 15 kΩ
• Signal to Noise Ratio: Power Amp Direct IN: 125 dB
• Treble Control: ± 10 dB at 15 kHz
• Bass Control: ± 10 dB at 50 Hz
• General
• Available Colors: Gold / Silver / Black / Silver-Gold: - / - / Yes / Yes
• Metal Front Pane: Yesl
• Power Consumption in W: 220
• Standby Consumption in W: 0.3
• Auto Power off: Yes
• Detachable Power Cable: Yes
• Remote Control: RC003PMND
• System Remote Function: yes
• Maximum Dimensions (W x D x H) in inches: 17.4 x 16.97 x 5.12
• Weight in lbs: 31.30
• Carton Maximum Dimensions (W x D x H) in mm: 20.75 x 20.35 x 10.04
• Carton Weight (inc. product) in lbs: 38.58
• Black Version MPN: MODEL50
• Black Version UPC: 747192141110
• Silver/Gold Version MPN: MODEL50SG
• Silver/Gold Version UPC: 747192141127

What to expect in the box:

• Marantz Model 50
• Quick Start Guide
• Safety instructions
• Warranty (for North America model only)
• Power cord
• Remote control (RC003PMND)
• 2× R03/AAA batteries
