Marantz Model 30 Integrated Amp

Marantz Model 30 Integrated Amp - Marantz

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

An amp designed for the analog audiophile
The Marantz Model 30 is a music lover's dream. It features a dedicated high-grade RCA terminal for connecting a CD player and a separate phono input section that can handle turntables with moving magnet or moving coil cartridges. It delivers 100 watts per channel into an 8-ohm load, and it's 4-ohm stable, so you it can drive a wide range of speakers.

Marantz's Sound Master spent hours testing and tuning the Model 30's output to ensure that it reveals exquisite detail and musicality. And the company's designers gave it a unique and attractive look. It's a perfect visual and sonic match for the Marantz SACD 30 CD player.

High-end phono stage
It's not unusual for an integrated amp to have a phono input that can accommodate a turntable with a moving magnet cartridge. It's less common to see one that can handle a moving coil cartridge, which many audiophiles favor. Marantz equipped the Model 30 with a premium phono EQ that features a built-in MC head amplifier, and added a front-panel knob that allows you to adjust impedance to match a low-, medium-, or high-output cartridge.

Key Features:

• Custom-built preamplifier with Marantz HDAM technology.
• Tuned with passion by the Marantz Sound Master.
• Output: 100W + 100W (8ohm), 200W + 200W (4ohm).
• Fully-discrete design for signal purity.
• Custom HDAM®-SA3 circuitry for clean, optimal dynamics.
• Separate amp and preamp power supplies reduce interference.
• Toroidal transformer dedicated to preamp for clarity and power.
• Current feedback preamp design with its wide-range circuitry.
• MM/MC Phono input with its Premium Phono EQ circuit.
• Brass machined input terminals for CD and Phono.
• Marantz original high-quality/high-purity copper speaker terminals.
• Linear volume control with new electric volume system.
• Amplifier design inherited from our flagship models.
• Available in Black and Silver Gold.

Technical Specifications

Output Power

• Rated Output Power: 100W + 100W (8ohm), 200W + 200W (4ohm)

Features

• Amplifier Circuit: Switching Amplifier
• Power Transformer: Toroidal w/ case
• Volume: Electric
• Bass / Treble / Balance Control
• Source Direct
• Wide Range: 5Hz - 50kHz
• Total Harmonic Distortion: 0.005% (1kHz, 8Ω)
• Damping Factor: 500
• Input Sensitivity Phone input: MM: 2.3 mV / 39 kohm, MC: 250 μV / 100 ohm
• Input Sensitivity CD/LINE/RECORDER: 220 mV / 13 kohm
• Input Sensitivity Power Amplifier input: 1.1 V / 13 kohm
• Signal to Noise Ratio: PHONO (MM): 88dB, PHONO (MC): 75dB, CD: 107dB

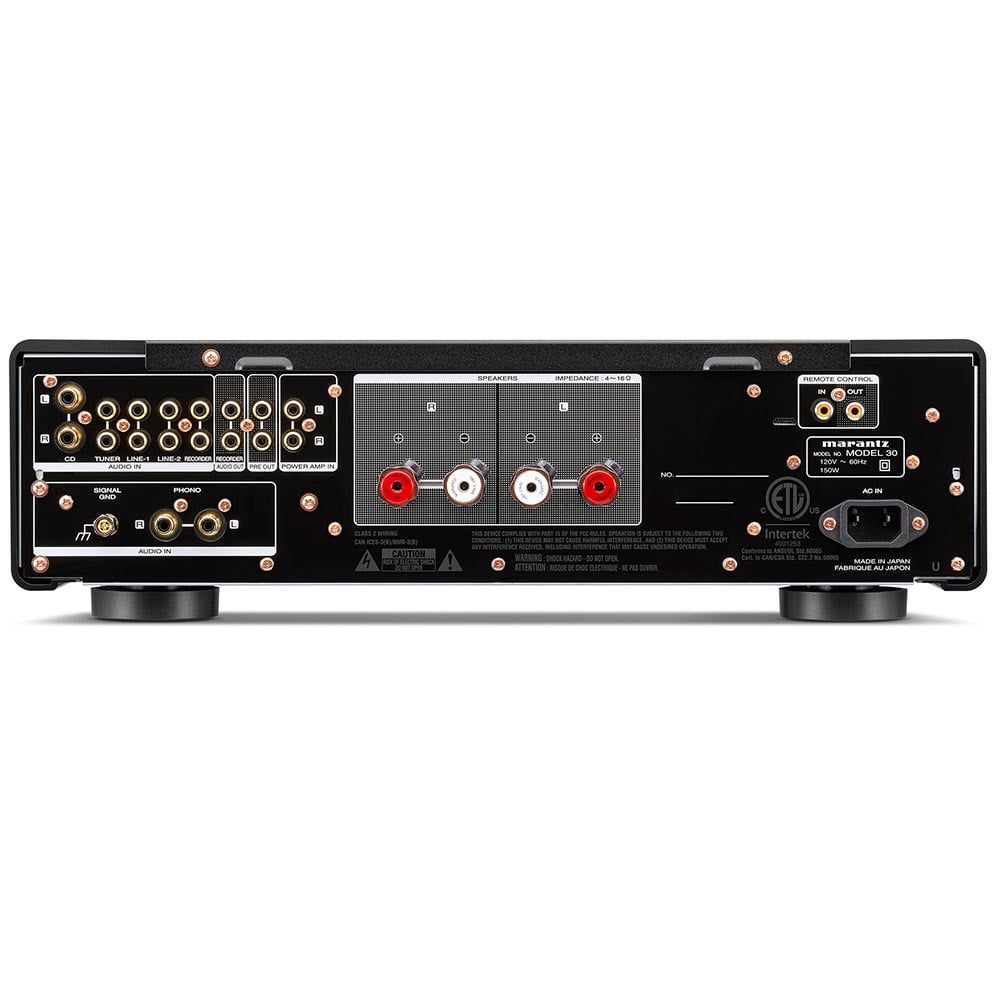

Terminal

• Phono Input: yes (MM/MC), Marantz Musical Premium Phono EQ
• Ext. Pre Input (Power Amp Direct)
• Preout
• Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out: 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals
• Speaker Terminal: Marantz Original SPKT-100+
• Remote Control Bus Terminal: yes (Cinch)

UI

• Display: yes (Porthole, OLED)

Control

• App Control via Network Player
• System Remote Controller: (New system remote controller to control SACD 30 and MODEL 30)

Other

• Unit (W x H x D in inches): 17.4" x 5.1" x 17”
• Packaging Dimensions (W x H x D in inches): 20” x 10.1” x 20.6”
• Weight: 32 lbs 3 Oz
• Packaging Weight: 37 lbs 8 Oz
• Power Consumption: 130W
• Power Consumption at Standby: 0.2W
• AC Inlet
• Quick Start Guide: Paper

Cosmetic

• Panel Color: SG / BK
• Front Center Panel: Aluminum
• Side cover: Aluminum
• Top cover: Steel
• Edge-lighting: yes (Dimmer)
• Volume Knob: Aluminum
• Input Selector: Aluminum
• Bass/Treble/Balance/ REC Out Sel knobs: REC Out-->PHONO (Aluminum)
• Power button: Aluminum
• Side screw: Copper plated
• Chassis Material: SECC
• Chassis Layer: Triple
• Foot: New (PM6006 type)
