Marantz Model 10 Reference Integrated Amplifier in Marantz Black - Marantz
For the Marantz Champagne version Click Here.
The Model 10 is a statement piece in every sense, the Marantz Model 10 represents the pinnacle of integrated amplifier design. Meticulously engineered in Japan, it blends analog warmth with cutting-edge digital precision, all encased in an heirloom-grade chassis. With its dual-mono layout, bespoke HDAM-SA3 circuitry, and an oversized toroidal transformer, the Model 10 delivers effortless dynamics and a luxuriously immersive soundstage. Whether you're pairing it with reference-level loudspeakers or rediscovering your vinyl collection through its audiophile-grade phono stage, the Model 10 doesn’t just play music—it unveils it.
By Audiolab's David Levitan
MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.
- 2 Channels
- 250 Watts per Channel
- All-New Marantz SMPS
- Fully balanced dual mono amplifiers
- Phono MM/MC
- Copper-plated chassis
Inspired by our past, engineered for our future
MODEL 10 is the new reference in amplifier design and the most powerful and finest sounding integrated amplifier Marantz has ever made.
The Best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Sound Master Tuned
MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.
Iconic Details Reimagined for Tomorrow

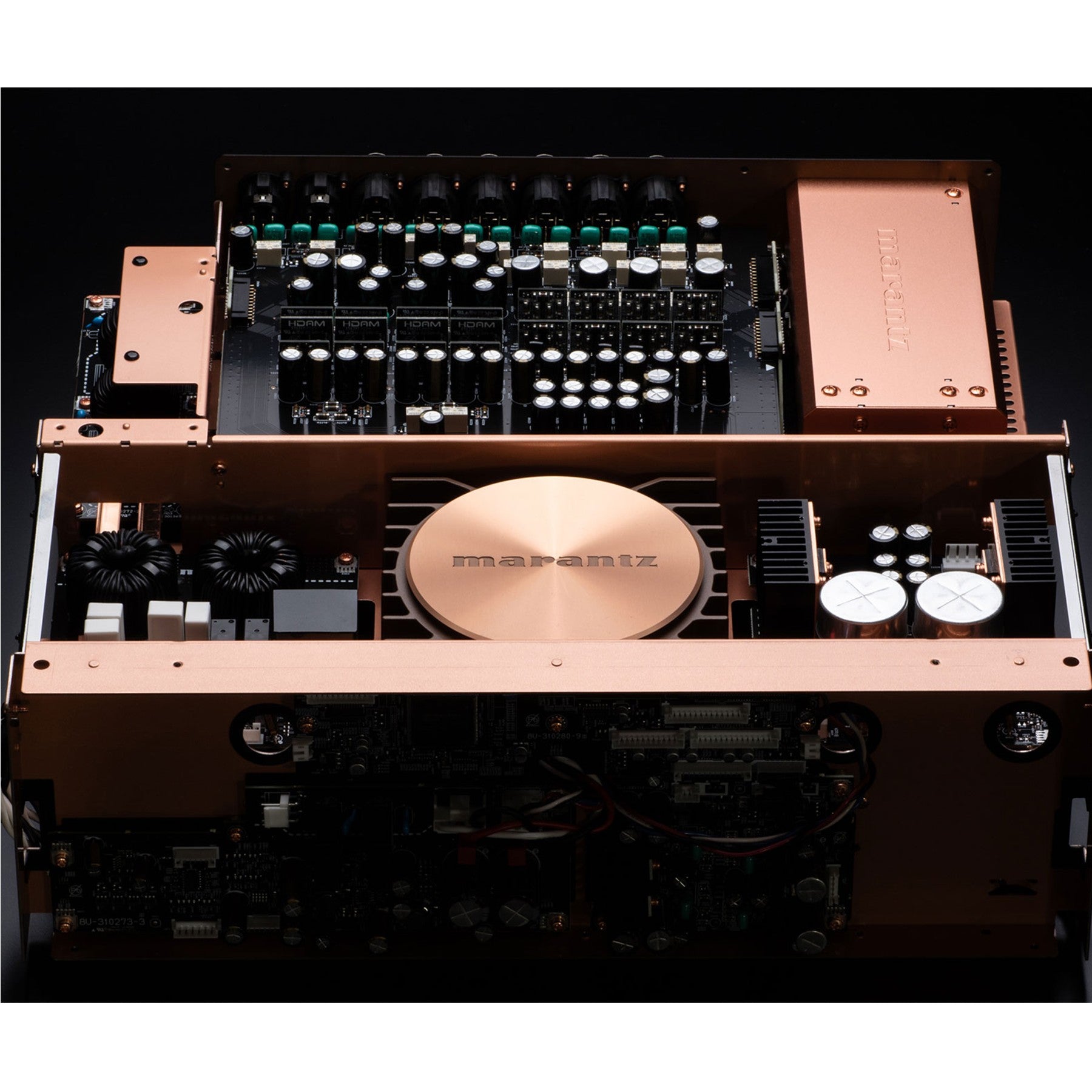

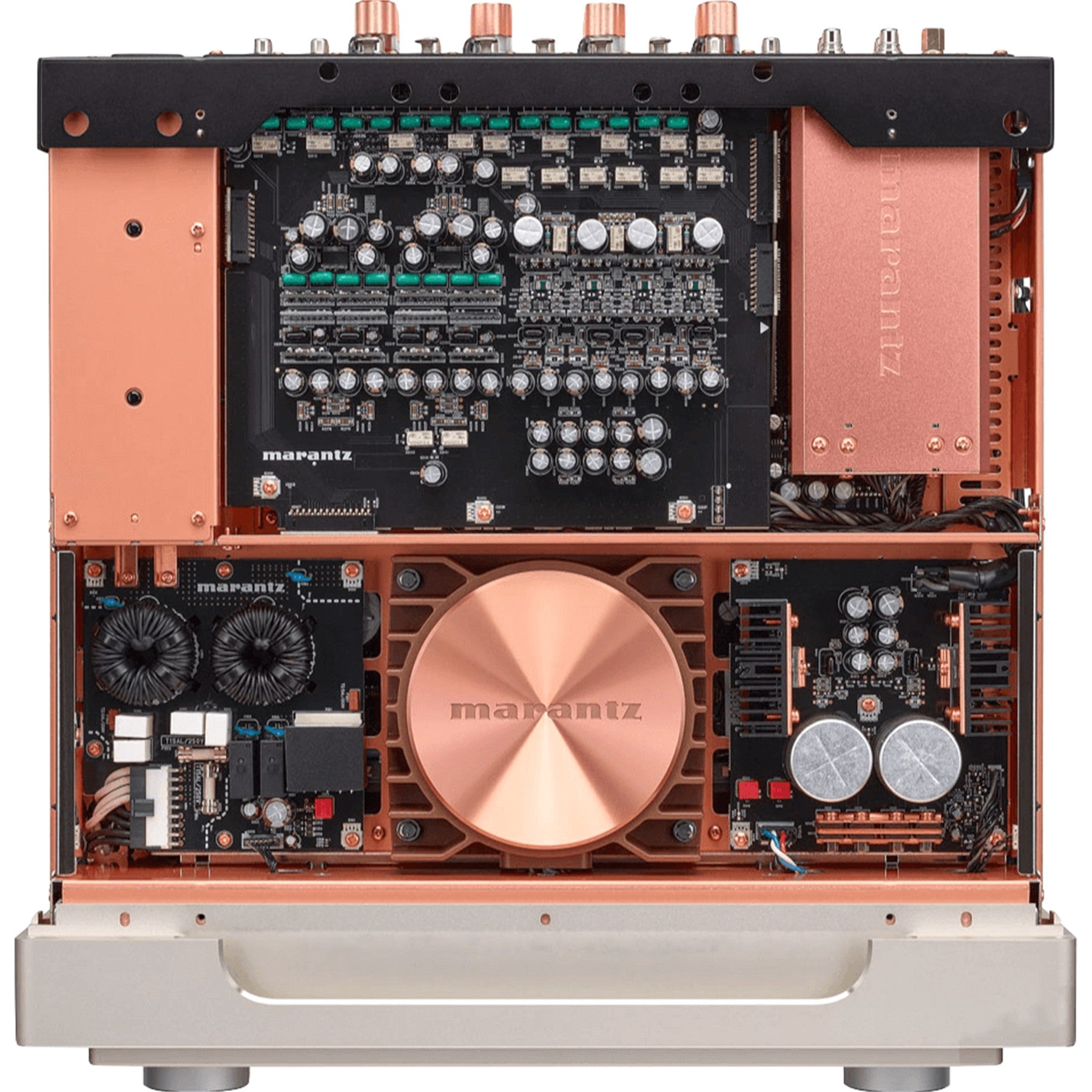

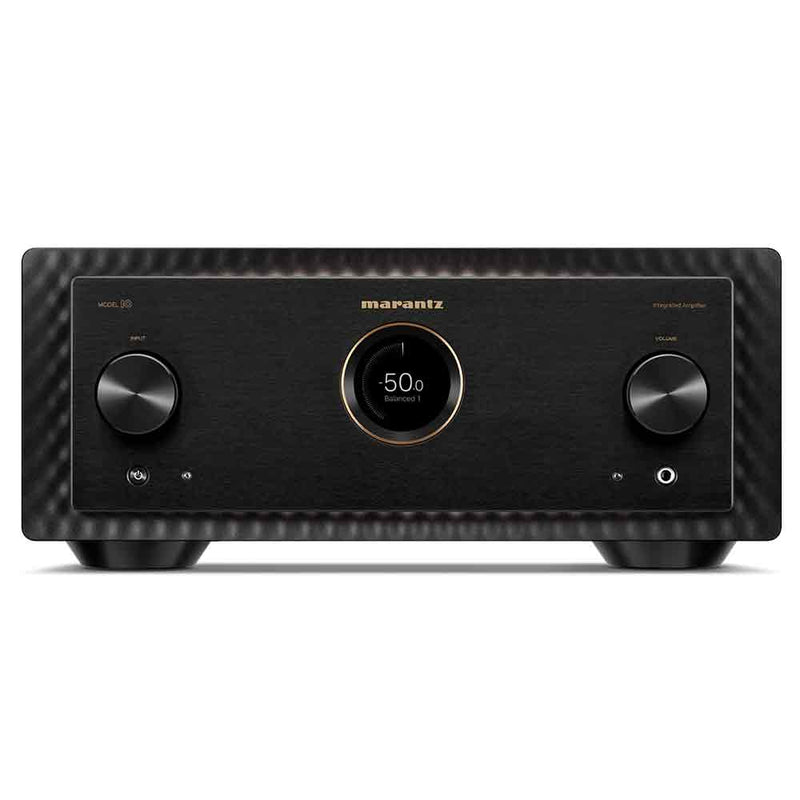

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.
Crafted in Shirakawa
MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.
What to expect in the box:
- Model 10 Reference Integrated Amplifier
- Remote Controller: RC004PMND
- Battery: AAA ×2)
- Power Cord
Product Details:
- General
- Unit (W × H × D mm): 440 × 192 × 473
- Cabinet Size: 440 × 192 × 422
- Net weight: 33.7kg
- Packaging Dimensions: (W × H × D mm) 600 × 379 × 540
- Packaging gross weight: 39.0kg
- Carton Color: 1 Color (Material color: Brown Printing: Black)
- Panel Color: Black / Marantz Champagne
- Front (Center) Panel: Anodized machined aluminum
- Back-shell: Anodized machined aluminum
- Front panel illumination: Yes (All sides, Dimmer)
- Side cover: Aluminum (Thickness: Max 15.8mm)
- Top cover: Aluminum: (Thickness: 6mm)
- Top cover (Centor): ventilation hole material: Stainless mesh
- Interior illumination: Yes, dimmable
- Rear Panel: Copper Plated
- Chassis Material: Copper Plated
- Bottom Layer / Bottom plate: Triple layer Copper plated
- Volume Knob: Solid aluminum (Bearing construction)
- Input Selector: Solid aluminum (Bearing construction)
- Foot: Solid Aluminum with Copper
- Heatsink for Power Amplifier Extruded Aluminum
- Audio
- Rated Output Power: 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %), 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %)
- Speaker Impedance: 4~16ohm
- Frequency Response: 5Hz~60kHz +0dB/-3dB, 20Hz~20kHz +0dB/-0.3dB
- Total Harmonic distortion: 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
- Damping Factor: 500 (8ohm, 20Hz-20kHz)
- Input Sensitivity Phono input: MM: 3.6 mV / 39 kohm, MC (Low): 400 µV / 33 ohm, MC (Mid): 400 µV / 100 ohm, MC (High): 400 µV / 390 ohm
- RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
- Phono Maximum Input: MM: 80mV, MC: 8mV
- Input Sensitivity: CD/LINE/RECORDER 350 mV/47kohm (Unbalanced), 700 mV/36kohm(Balanced), (Gain = 42dB)
- Input Sensitivity: Power Amp input: Unbalanced: 1.58V / 47kohm (Gain : 29dB), Balanced: 3.16V / 15kohm (Gain : 23dB)
- SN Ratio: PHONO: (MM): 88dB, PHONO (MC): 76dB, LINE1, LINE 2, RECORDER: 122dB, Balanced: 122dB
- Headphone Output Level: 130mW / 32 ohms
- Tone Control: BASS: 50Hz ±10dB, TREBLE: 15kHz ±10dB
- Power Consumption: 270W, 0.1W (at Standby)
- Audio Feature
- Power Amplifier Circuit: Switch Mode BTL
- Power Trans: Toroidal transformer in shielding case for preamplifier section only
- SMPS for Power amplifier: L/R independant
- Pre Amplifier Circuit: New HDAM High Grade, Full balance
- Volume: Electric / Variable gain
- Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
- Type of Tone Control: Electric
- Headphone Circuit: HDAM-SA2+ Diamond buffer
- Source Direct: Yes
- Power amp mode turn off Pre-Amp power supply: Yes
- Mono mode: Yes, Switch Stereo / Bi-Amp on Rear Panel

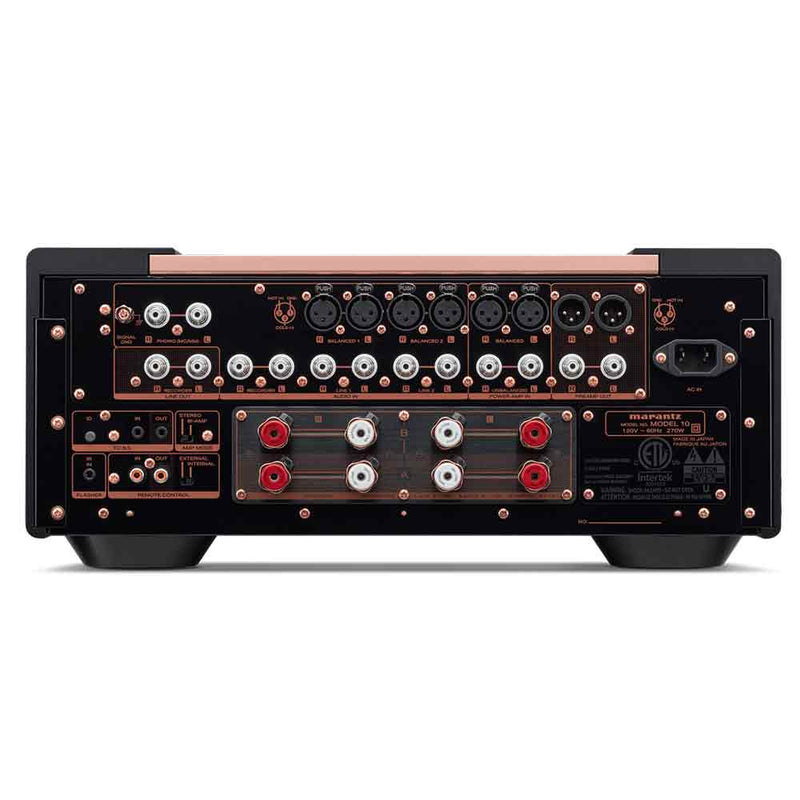

- Connectivity
- Audio / Video
- Phono Input: Yes (MM / MC), Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position), PHONO (MC Low): 400 μV / 33Ω, PHONO (MC Mid): 400 μV / 100Ω, PHONO (MC High): 400 μV / 390Ω, PHONO (MM): 3.6 mV / 39kΩ
- Analog Input (include Phono) / REC Out (RCA): 4 /1 (LINE1, LINE2, PHONO: Thick nickel plated independent terminals), (RECORDER: Thick nickel plated independent terminals)
- Balanced XLR input: 2
- Power Amp Direct: Yes [RCA (Thick nickel plated independent terminals) / XLR]
- Pre out: Yes [RCA (Thick nickel plated independent terminals) / XLR]
- 2 sets of Speaker Output: Yes (Bi-wiring)
- Speaker Terminal: Marantz Original SPKT-100+ 2 (High quality and high-purity copper plated)
- Headphone Output 1 (Turns off the speaker automatically when headphone is inserted)
- Control/ Other
- Remote Control Bus Terminal: Yes (RC-5 In / Out)
- Remote Internal / External Switch: Yes
- Flasher Input: Yes
- AC Inlet: Yes
- Other: F.C.B.S. (Floating Control Bus System)
- Remote Controller: 10 series Universal Remote control
- Unit control (Button) Tact Switch: 1, POWER
- Unit control (Knob) 2, VOLUME, INPUT SELECTOR
- LED: POWER: 1 White, Protection: 1 Orange, Illumination (Edge): White, Interior: White
- Front Panel Display: New HD TFT Color Display
- Dimmer for Front Display: 20 steps
- Level meter: Yes (HD Display)
- Volume Display: -infinity/-99.5dB - 0dB / 0.5 step (default), 0-100 / 0.5 step, switchable
- Last Function Memory: Yes
- Auto Standby Mode: Yes
- Remote Controller: RC004PMND
- Battery: Yes (AAA ×2)
- Power Cord: Yes
- (ALL region / Audio Grade / OFC)
- Other CoA card
- MISC
- MPN: MODEL10/U1B
- UPC: 747192142940
