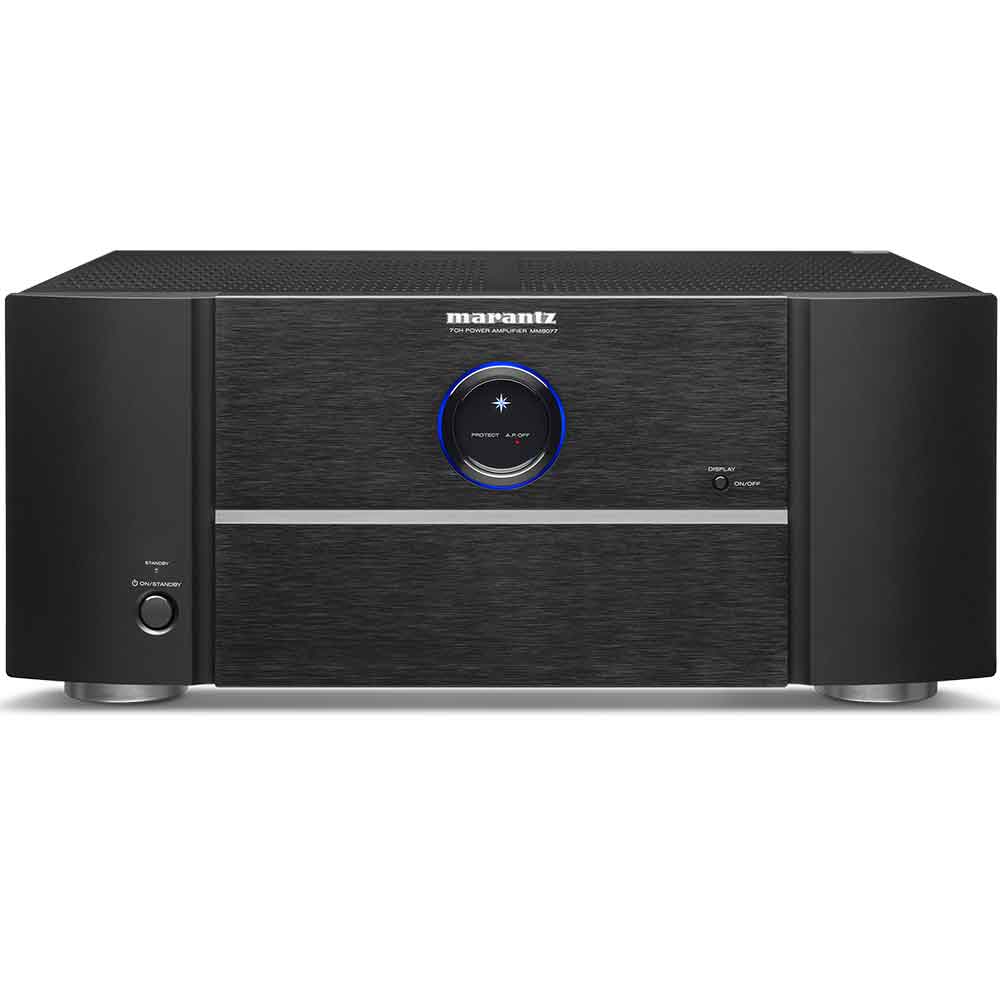

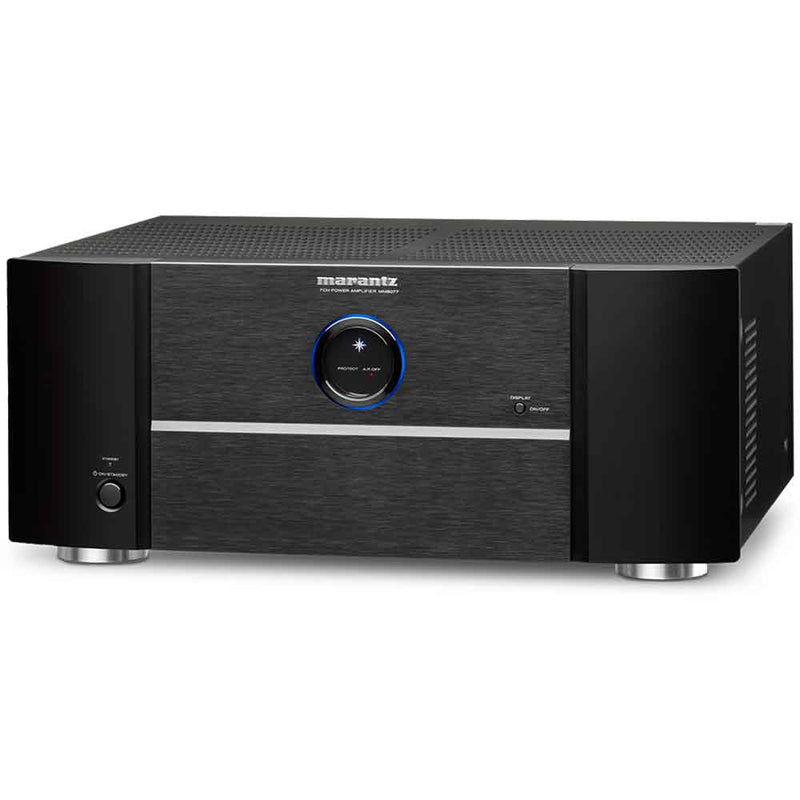

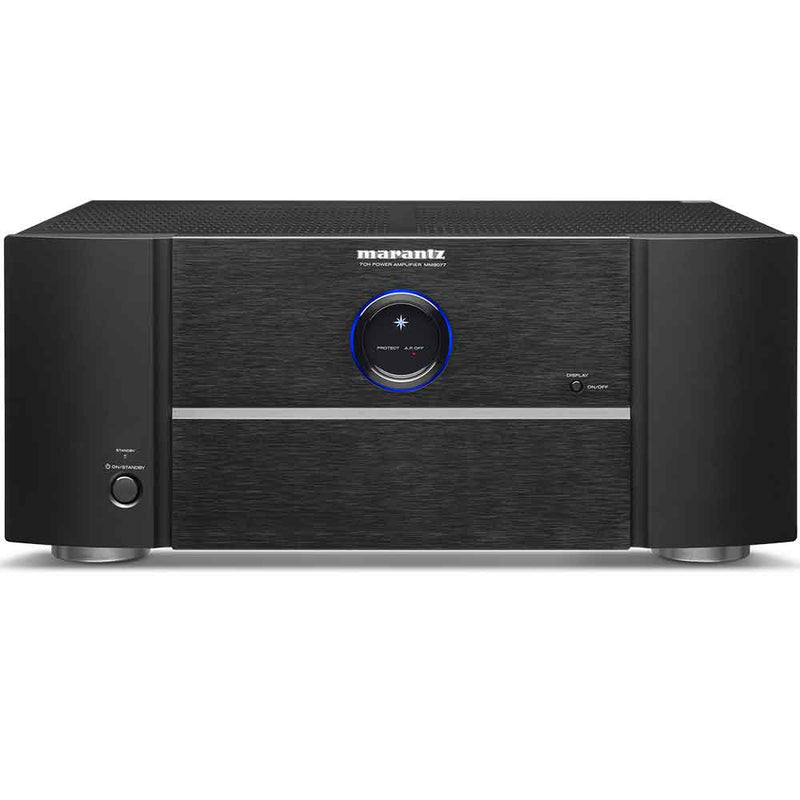

Marantz MM8077 7-Channel Power Amplifier

Marantz MM8077 7-Channel Power Amplifier - Marantz

Precise Power and Superior Sound
This 7-channel amplifier was designed to deliver the essential entertainment experience.

Masterfully Built
MM8077 is built to deliver on its promise of high-performance power. It’s no-nonsense, yet elegant design ensures that every ounce of amplification is available whenever you require it.

Clean And Consistent Power
The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.

Sound Master Tuned
The Marantz Sound Master meticulously tuned MM8077 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Unique Current Feedback
Featuring our unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today’s high resolution audio formats.

What to expect in the box:

• MM8077 7-Channel Power Amplifier

Product Details:

• Features
• Number of Channels: 7
• Current Feedback Topology: Yes
• Discrete Amplification: Yes
• Power Transformer: Toroidal
• Chassis: Copper Plated

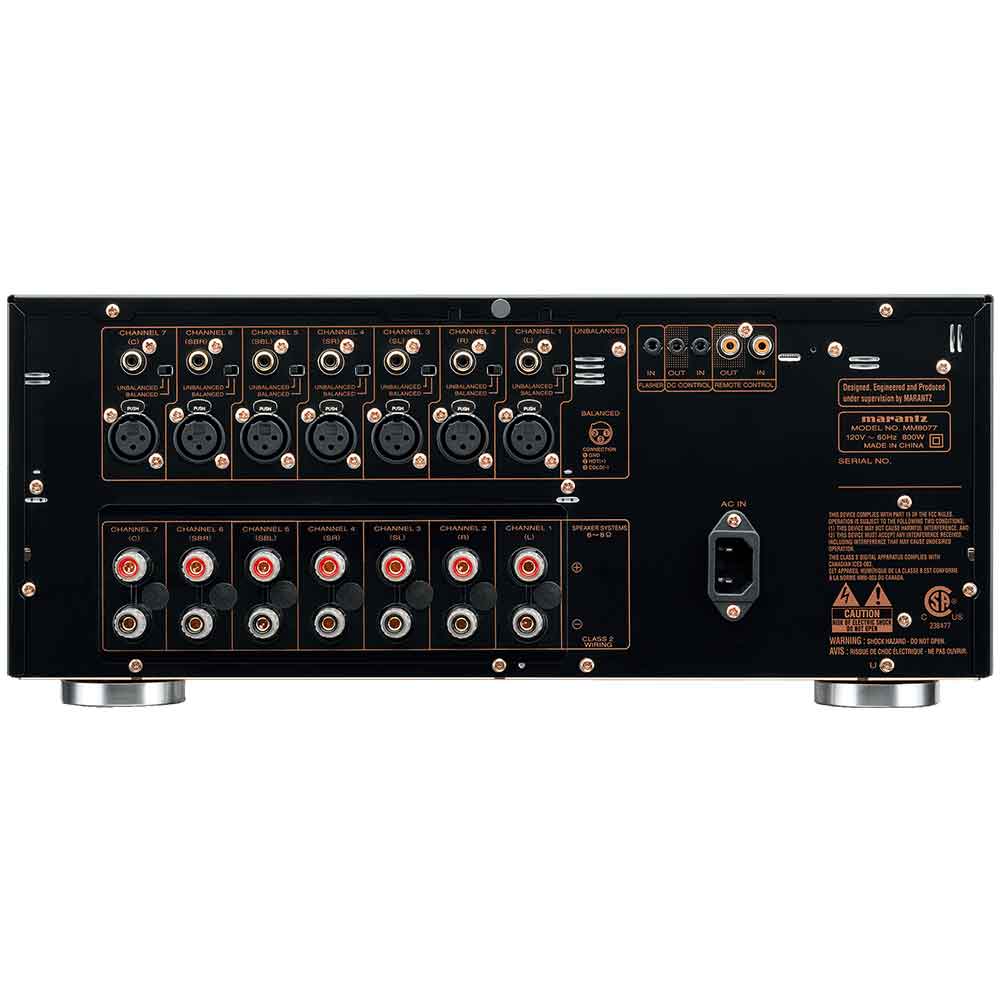

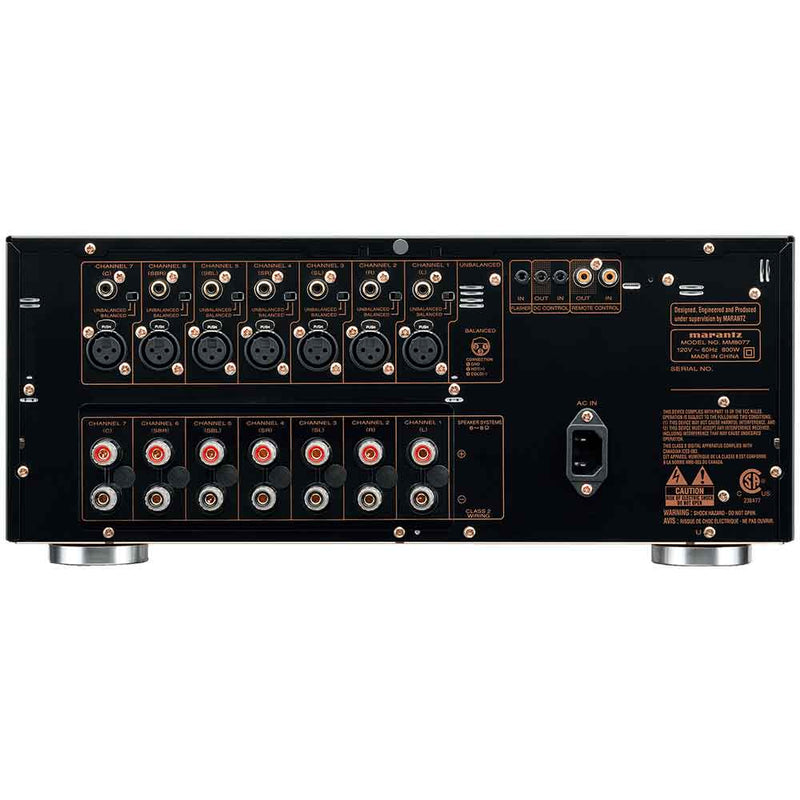

• In Outputs
• Main Amplifier InBalanced & Unbalanced: 7ch (Exclusive use by a selector switch.)
• DC Triggers: 1 In / 1 Out
• D-Bus Remote (RC-5) In/Out: 1 In /1 Out
• Flasher In/IR Receiver In/Emitter out: 1/0/0
• Specifications
• Power Output: 150W (20Hz-20kHz, 0.08%)
• S/N Ratio: 105dB
• Freq. Response (Analog In): 8Hz-100kHz (+/- 3dB)
• General
• Color: Black
• Front Panel: Aluminum/Glass-reinforced resin
• Power Requirement: AC 120 V, 60 Hz
• Power Consumption: 800W (Standby: 0.4W)
• Dimensions W x H x D (Inchs): 17.32" x 7.29" x 15.1"
• Weight (lbs): 45.41
