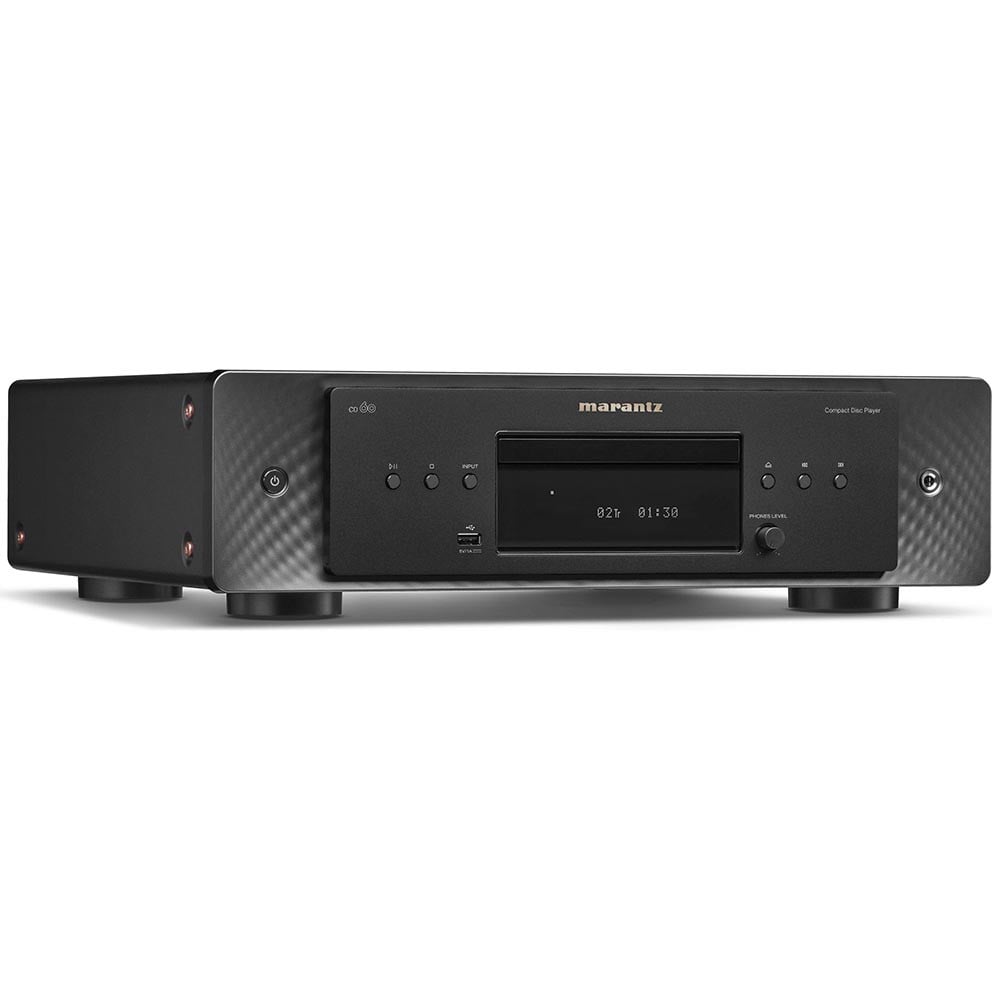

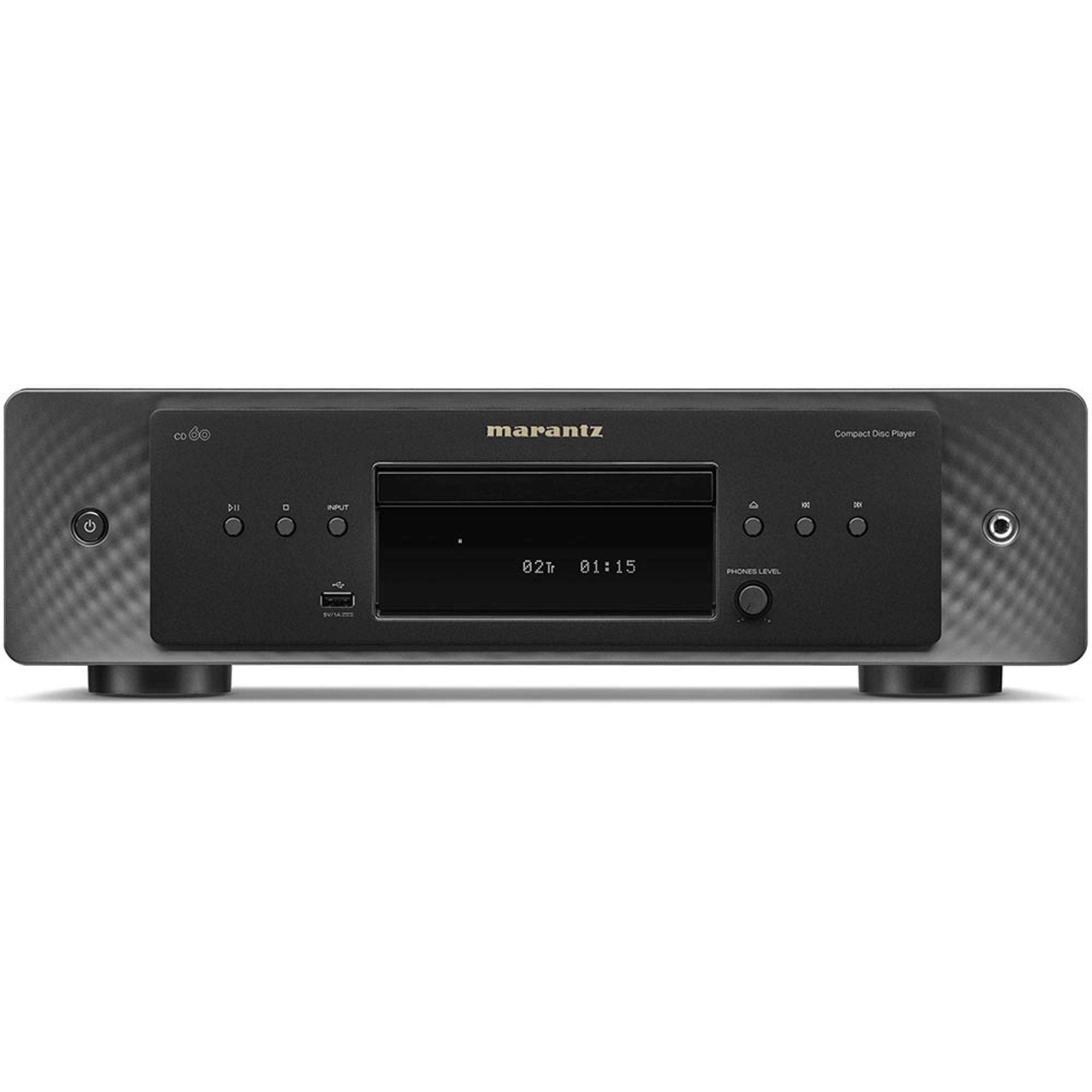

Marantz CD 60 Compact Disc Player

Marantz CD 60 Compact Disc Player - Marantz

Extraordinary sound and peerless style—Marantz CD 60 celebrates your CD collection with a player engineered to sound better than any other in this class. Built with high-quality materials and Sound Master tuned, CD 60 adds precision CD playback to MODEL 40n or any high-quality audio system.

Hear your CDs for the first time
Marantz has been making high-performance CD players since the dawn of the format. Following in the footsteps of its great-sounding predecessors, the CD60 offers warm, detailed sound. The company's proprietary analog audio circuitry provides super-accurate signal transfer and nimble transient response.

This player's smooth-operating disc transport gets a nice, stabilizing assist from its sturdy double-bottomed steel construction and substantial aluminum faceplate. At north of 16 pounds, it's got satisfying heft.

DAC options and headphone amp
The CD60 features a new reference-class DAC that provides up to 24-bit/192kHz resolution. And whether you're playing a CD or using the front-panel USB port to play from an external USB flash drive, a selectable digital filter lets you tailor its performance to your listening preference. You can also use the optical or coaxial digital outputs if you want to connect to an outboard DAC.

Its built-in HDAM®-SA2 headphone amp has three gain settings for a perfect match with pretty much any headphones.

Features:

• Hyper Dynamic Amplifier Modules
• Optimized HDAM Circuit
• High-Current Power Supply
• Plays Hi-Res Audio USB Sources
• Reference-Quality Digital-to-Analog Conversion
• Customizable Digital Filter
• High-Performance Headphone Amplifier
• Full-System Remote Control
• Tuned with Passion

Technical Specifications

Power

• Power Consumption: 38W, 0.3W (Standby)

Audio

• Frequency Response: USB DSD:2Hz - 50kHz (-3dB), USB PCM:2Hz - 50kHz (-1.5dB), CD:2Hz - 20kHz
• Harmonic Distortion: USB DSD :0.0006%, USB PCM 24bit: 0.0005%, CD: 0.0015%
• S/N: USB DSD: 110dB, USB PCM 24bit: 118dB, CD: 118dB
• Dynamic Range: USB DSD: 110dB, USB PCM 24bit: 118dB, CD: 101dB
• Line Output Level: 2.2Vrms
• Variable Output Level: no
• Headphone Output Level: 28mW / 32 ohms

Features

• Output Circuit: New HDAM + HDAM-SA2
• Power Transformer: EI
• Headphone Circuit: High slew rate op-amp + HDAM-SA2
• H/P Amp Gain Setting: Yes (Low / Mid / High)
• Audio Options: Digital Out On/Off+Dimmer
• DAC Circuit: ES9016K2M
• Digital Filter: Filter 1, 2 Selectable

Connectivity

• Disc: CD / CD-R / CD-RW
• Playability of Files Recorded on CD-R/RW: MP3, WMA
• USB-A: 1 (Front), Mass Storage Class, 5V/1A
• USB Drive Format: FAT16, FAT32
• Supported Audio File Format: MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, DSD (DISF / DSF)

Control

• Remote Control Bus Terminal: Yes (RC-5 In / Out) with External / Internal Select Switch
• RS232C: No
• Flasher Input: Yes (U ver)

Cosmetic

• Panel Color: Silver Gold / Black
• Front Center Panel: Aluminum
• Back Shell: Molded
• Side Cover / Top Cover: SECC
• Edge Lighting: No
• Chassis Material: SECC

Other

• Product Dimensions (W × H × D): 442 × 129 × 396mm
• Weight: 7.5kg
• Packaging Dimensions (W × H × D): 525 × 249 × 511mm
• Carton Weight (incl. product): 10.2kg
