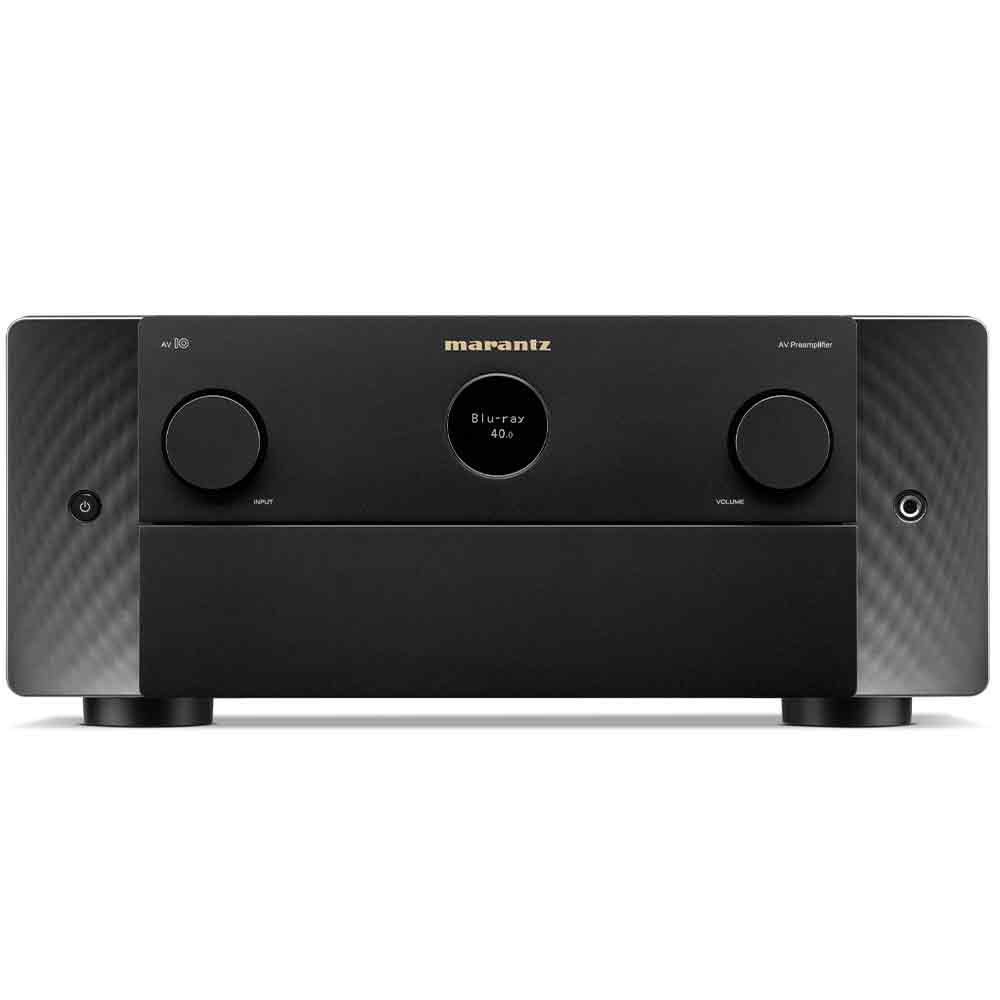

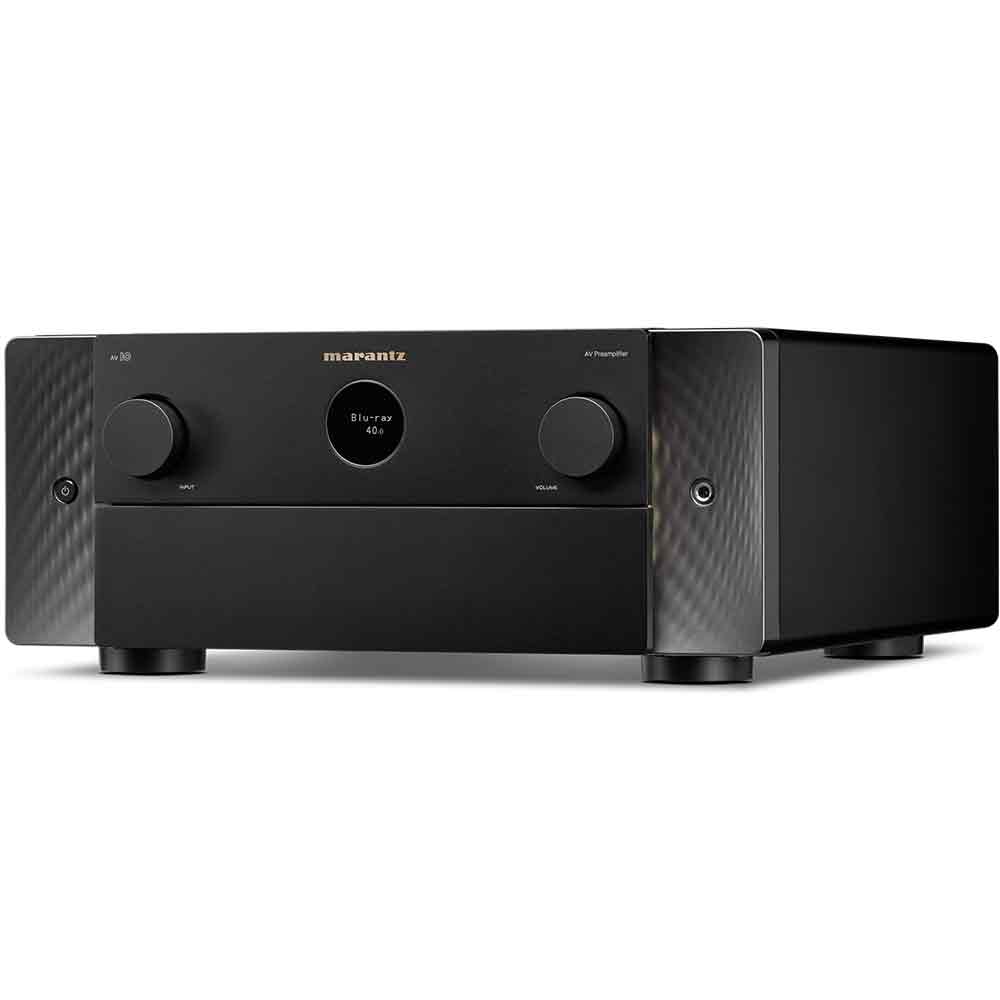

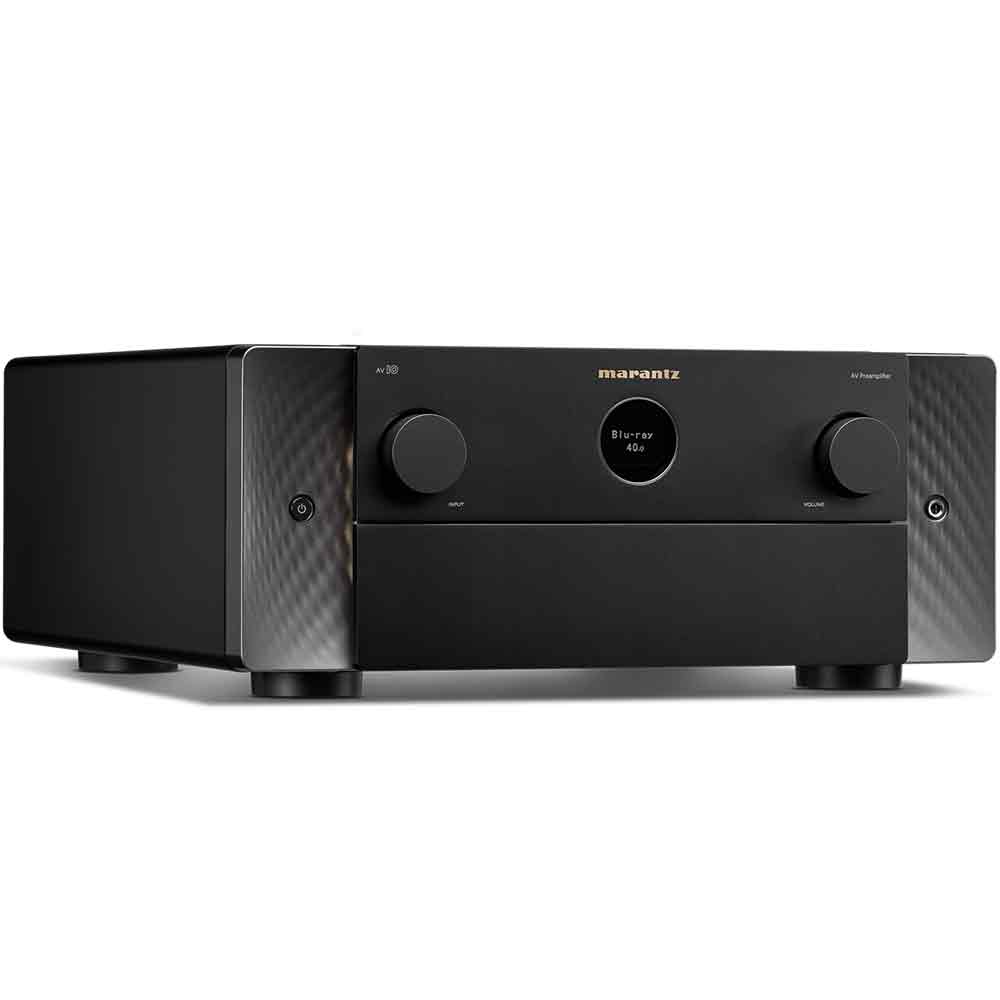

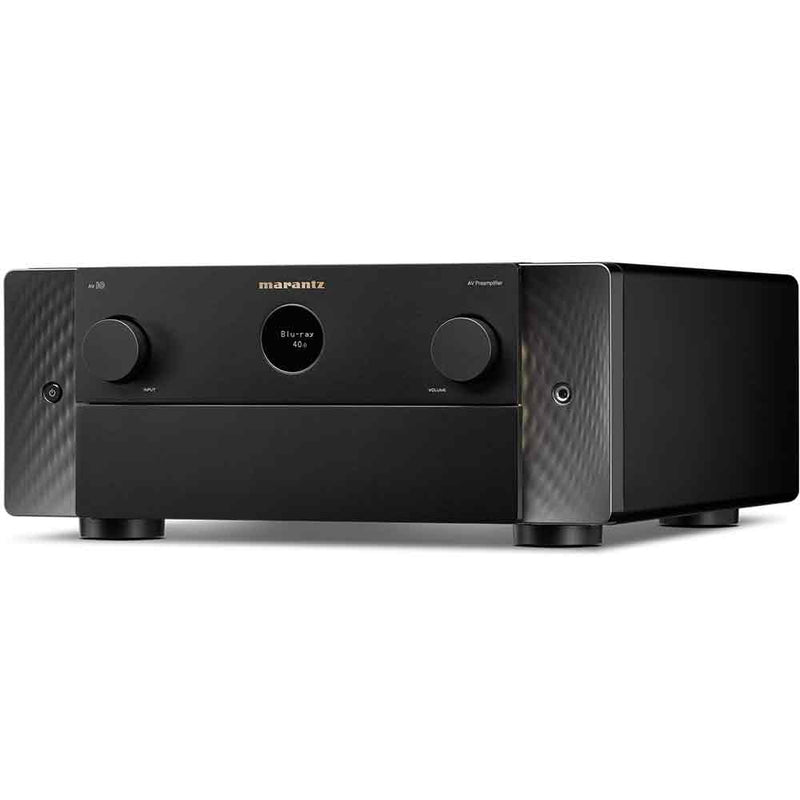

Marantz AV 10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor

Marantz AV 10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor - Marantz

AV 10 represents the highest measure of performance and capability for reference-level home theater systems. Marantz Sound Masters meticulously tuned AV 10 for amazing performance with careful parts selection to create the most memorable home theater experiences possible.

• Crafted in Shirakawa, Japan
• 15.4 Channels
• 7 HDMI Inputs plus eARC
• 8K and Dolby Atmos
• 3D Audio
• HEOS Built-in
• 5 Year Warranty

The Apex of Home Cinema
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Exquisite Design
A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Sound Master Tuned
The Marantz Sound Master meticulously tuned AV 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader
AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

Search for Songs Across Platforms
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

Your Whole Home in One Place
HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.

Hi-Resolution Streaming
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.

What to expect in the box:

• AV 10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor
• remote control
• batteries
• antennas
• wire labels
• quick start guide
• Audyssey microphone
• cardboard microphone stand
• 2 External Detachable Antenna
• AC cord

Product Details:

• Multichannel Surround
• DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
• DTS Neo:X / DTS Neural:X: No / Yes (15ch)
• DTS Virtual:X: Yes
• IMAX Enhanced: Yes
• Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
• Dolby ProLogic Ilz / Dolby Surround: No / Yes
• Auro 3D: Yes
• 360 Reality Audio / MPEG H: Yes / Yes
• Multichannel Stereo: Yes
• Max Number of Processing (Preamp) Channels: 15.4
• Sound Enhancements
• Copper Plated Chassis: Yes
• Power Transformer: Toroidal / EI: Yes / No
• Current Feedback Topology: Yes
• Hyper Dynamic Amplifier Modules (HDAM): Yes
• Pure Direct: Yes
• Gold plated RCA terminals: Yes
• Clock Jitter Reducer: Yes
• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
• Audyssey LFC: Yes
• Dirac Live upgradability: Yes
• Compressed Audio Enhancer: MDAX2: Yes
• Network
• HEOS Multi-room and Streaming: Yes
• Bluetooth Re-transmit for Bluetooth headphones: Yes
• Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
• Network Audio Sharing: Yes
• Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
• Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• DSD Audio Streaming: Yes (2.8/5.6MHz)
• FLAC HD 192/24: Yes
• WAV 192/24: Yes
• ALAC 192/24: Yes
• Gapless Playback: Yes (FLAC, WAV ,ALAC ,DSD)
• AirPlay Audio Streaming: Yes (AirPlay2)
• Internet radio: Yes (TuneIn)
• Spotify*: Yes (connect)
• Pandora: Yes
• SiriusXM: Yes
• Other Streaming Services *: Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
• Roon Tested: Yes
• Compatible with Remote APP for Smart Phones: Marantz AVR Remote
• Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
• Ethernet Ports: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
• HDMI
• HDMI Inputs: Back / Front: 7 / No
• HDCP2.3 support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• HDMI to HDMI Scaling: 1080P/4K to 8K
• GUI Overlay on HDMI: Yes
• HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
• 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
• HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
• Enhanced ARC: Yes
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate / Quick Frame Transport: Yes / Yes
• 3D Signal Pass-Through: Yes
• 8K signal pass-through / scaling / GUI overlay: Yes / Yes / Yes
• 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
• HDMI pass-though in standby mode: Yes
• Picture Adjust / Noise Reduction: No / No
• CEC: Yes
• DSD Audio Capability: Yes
• Audio Return Channel: Yes
• Auto LipSync: Yes
• Multi-Room CI
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes / Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout: No / Yes
• Zone HDMI Output from HDMI Source: Yes
• IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 2
• HDMI Diagnostics: Yes
• Others
• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
• Front Display: 2 line FLD + port hole OLED
• Graphic User Interface - GUI: Modern HD GUI
• GUI Languages: 3
• Setup Assistant: Yes
• Smart Select: Yes
• Firmware Update by Network / USB: Yes / Yes
• Variable Cross Over: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: Yes
• Auto Power off: Yes
• Sleep Timer: Yes

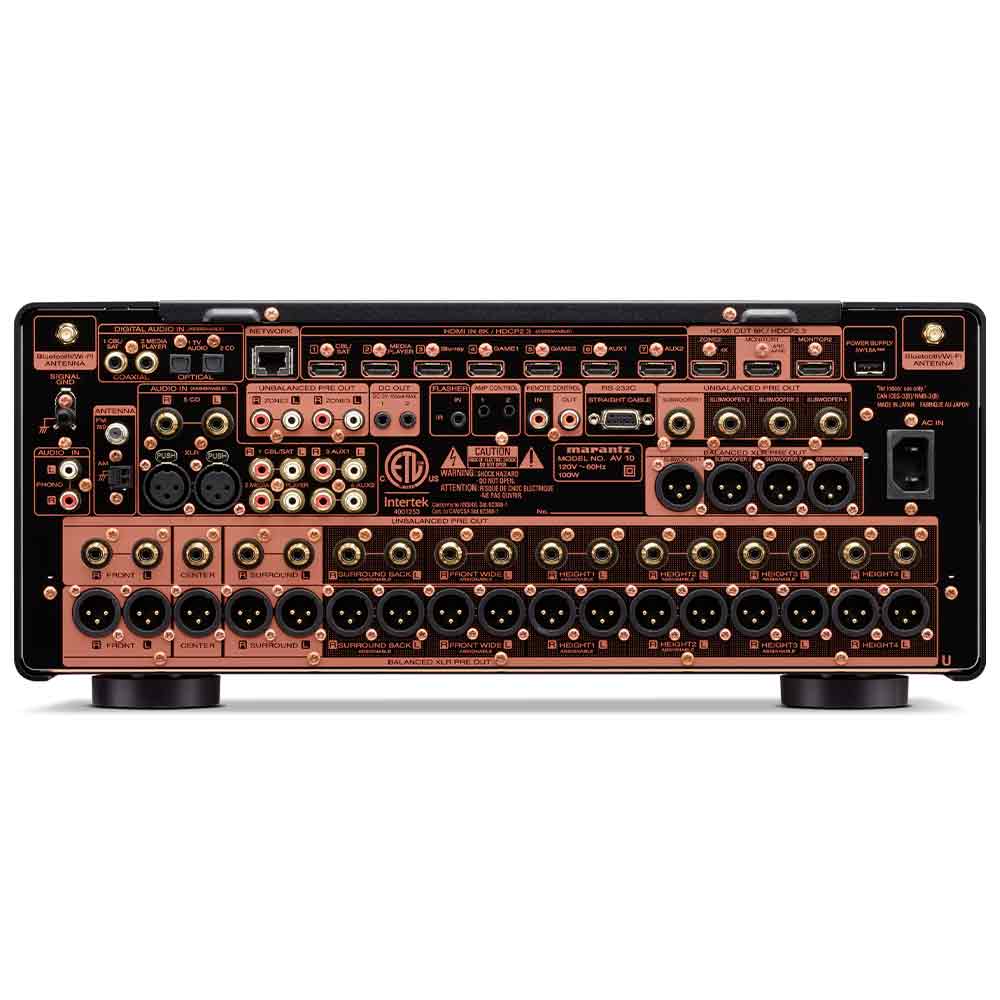

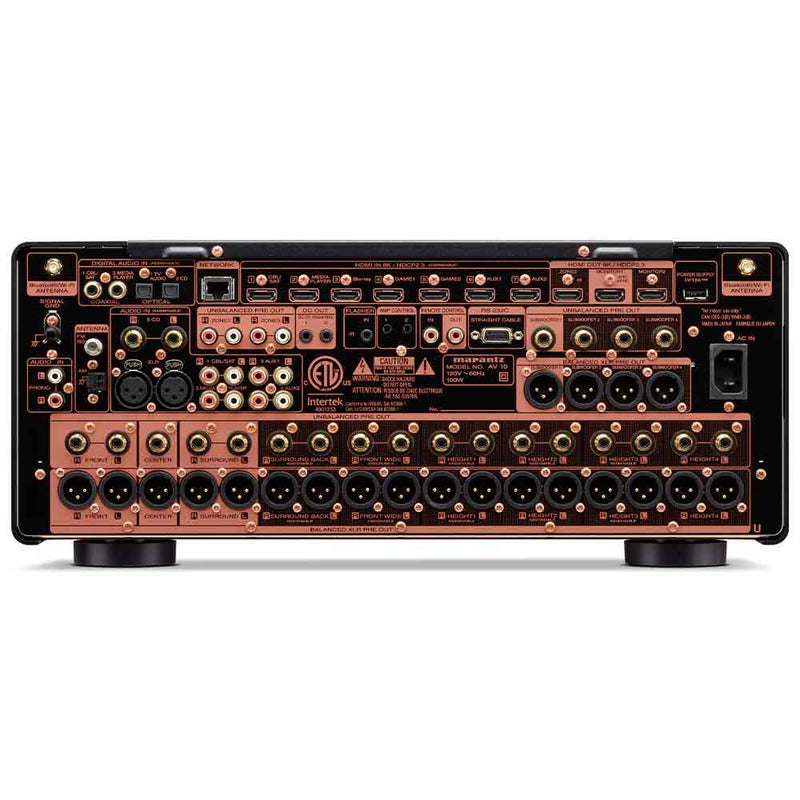

• Inputs Outputs
• Composite In / Out: No / No
• Component In / Out: No / No
• HDMI In / Out: 7 / 3
• Multi-Room Video Out: Video / HDMI: No / Yes
• Analogue In / Out: 5 (1x XLR) / No
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: analog / digital: 2 / No
• Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
• Subwoofer Out: 4 (independent)
• Speaker A / B: assignable pre out
• Bi-amp drive: assignable pre out
• Multi-Room Speaker Terminal: pre out
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
• USB Audio / Made for iPod / Made for iPhone: Yes / No / No
• AM/FM Tuner: Yes
• General
• Metal Front Panel: Yes
• System Remote Control: RC047SR
• Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
• Power Consumption in W: 100
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: Less than 2.0
• UPC: 747192137410
• Maximum Dimensions
• Antenna:Horizontal:(W x D x H) in inches: 17.4 x 19.8 x 7.4
• Antenna:Vertical :(W x D x H) in inches:( 17.4 x 19.8 x 9.9 )
• W/o Antenna:(W x D x H) in inches: 【 17.4 x 19.0 x 7.4 】
• Weight in lbs.: 37.0
