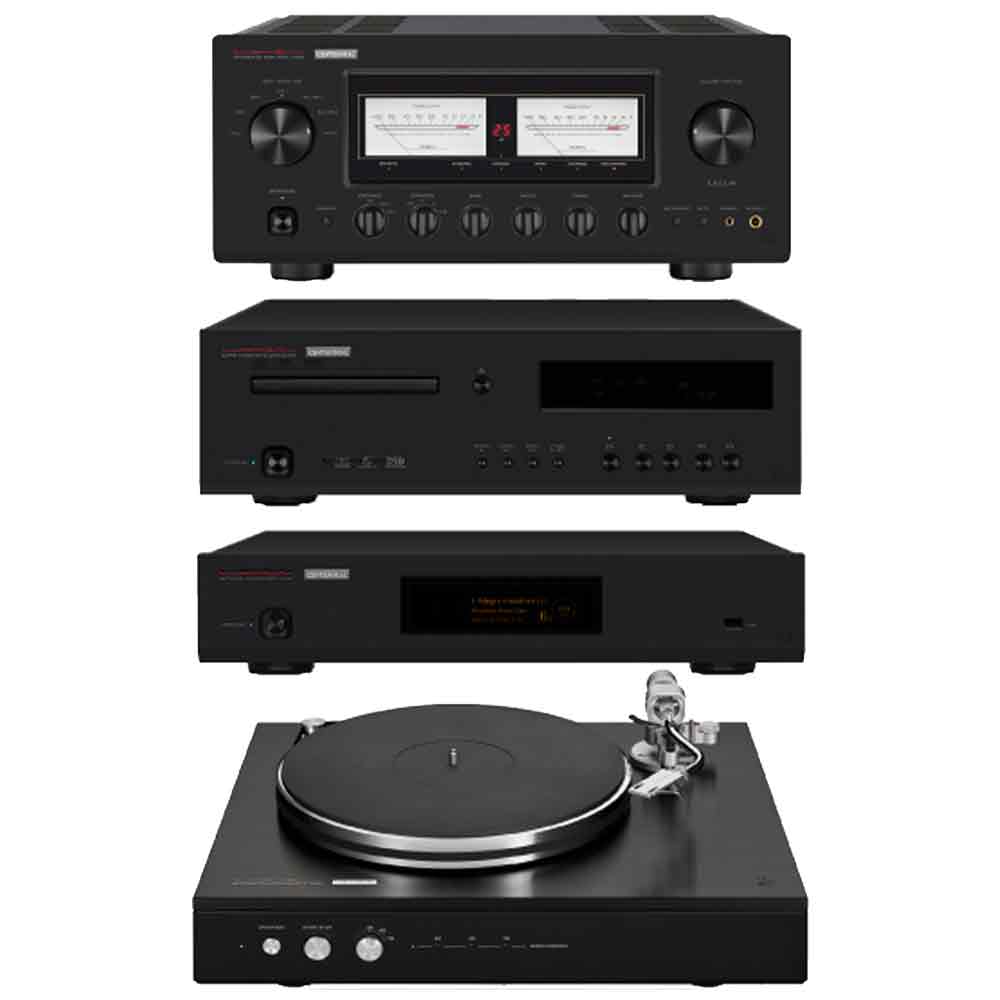

Luxman Centennial Stack Black Edition - Luxman

100th Anniversary Limited Edition

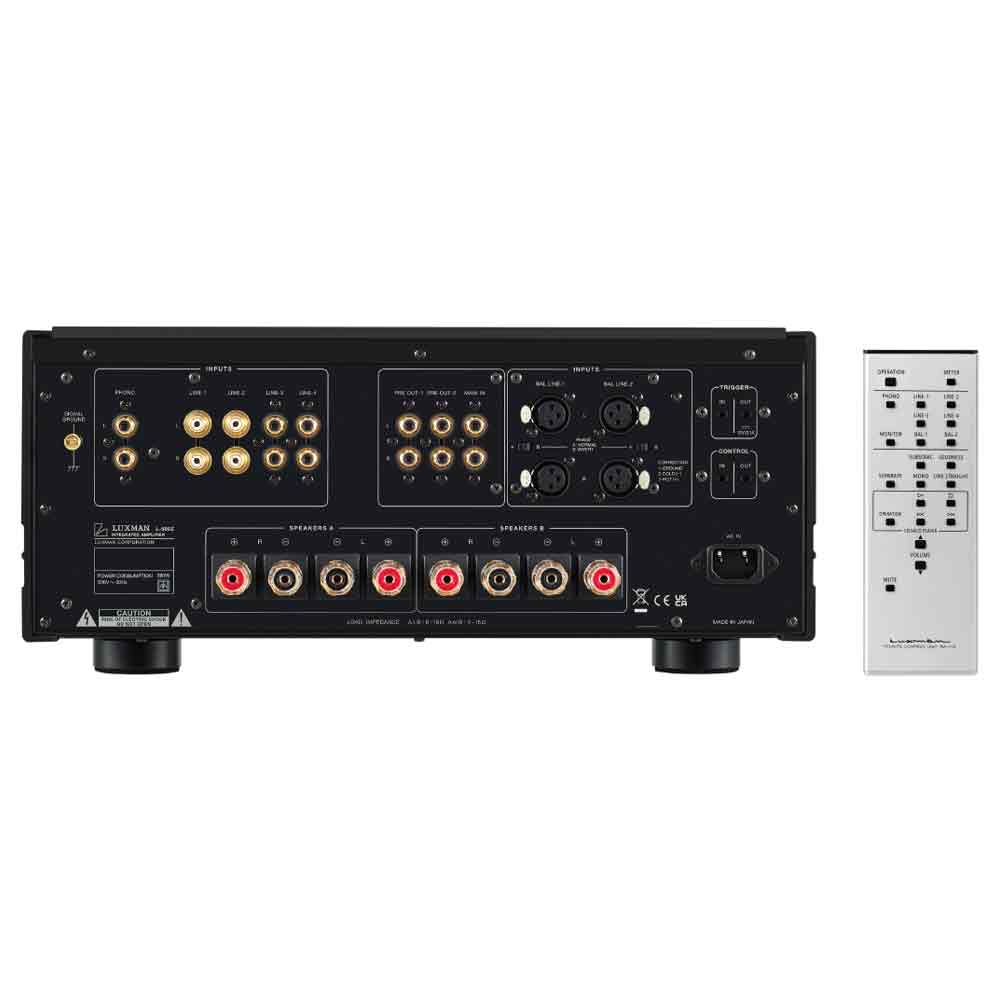

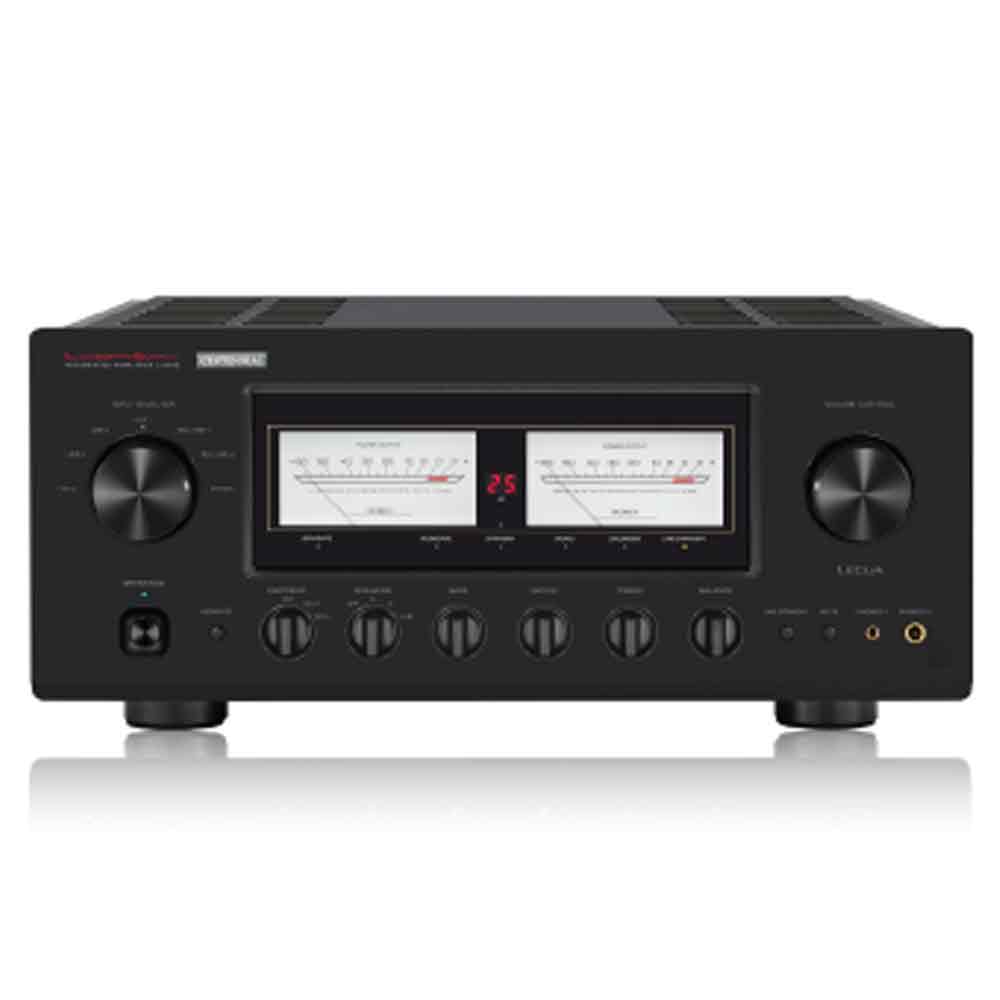

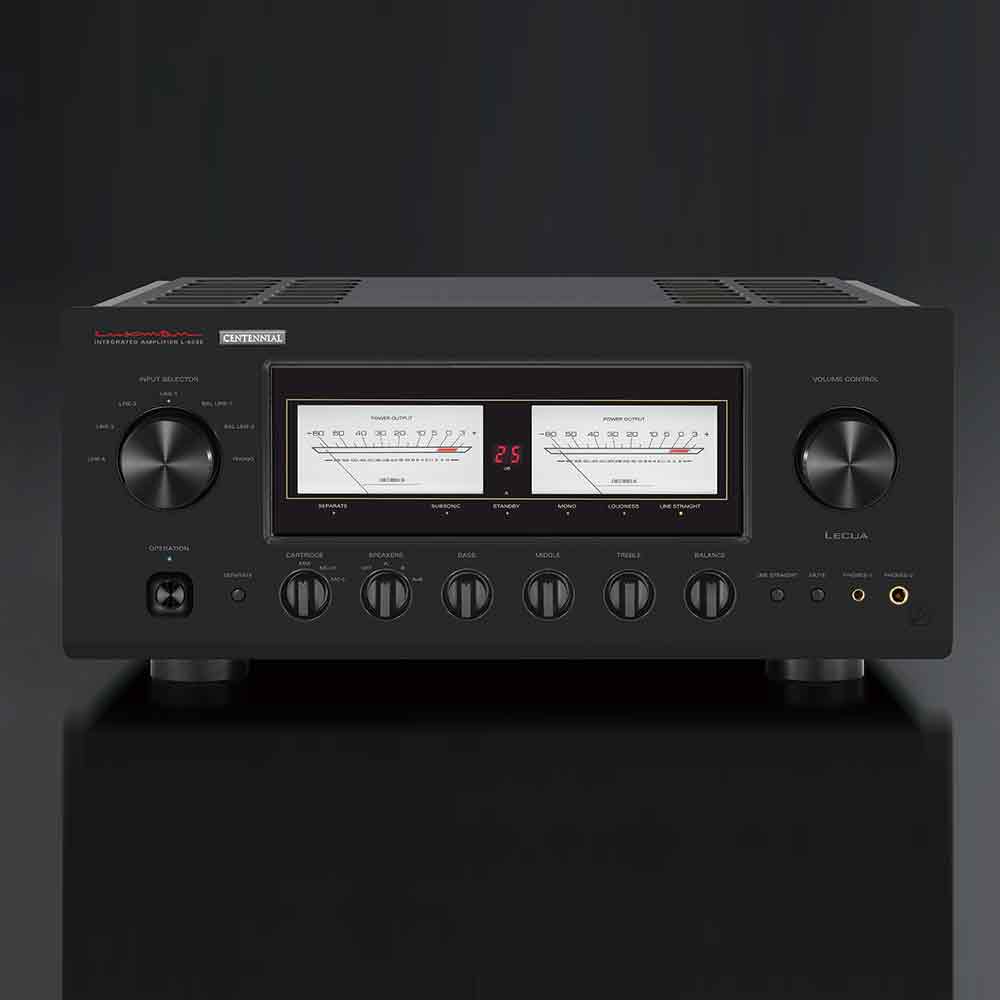

Luxman L-509ZB Integrated Amplifier

Taking Luxman's Z-Series integrated amplifiers to a performance peak.
Introducing Luxman's next-level “single-chassis separates” concept, pursuing the ideal with a new, all-in-one flagship amplifier. Taking Luxman's Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use Luxman's new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by Luxman's new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, Luxman is combining Luxman's passion for music with improved technology.

Luxman's latest amplification feedback engine literally brings music to life with LIFES* Version 1.0
By feeding back only the distorted components generated in the audio signal’s journey to the final amp stage, LUXMAN’s proprietary “ODNF” amplification circuitry achieves excellent static characteristics and natural sound quality as if it were a “non-feedback” system. During the development of the M-10X flagship stereo power amplifier launched in 2021, technical concepts explored there were retained and the circuit configuration, which had become very complex over years of improvements has been completely redesigned to realize “LIFES” exquisite, high-fidelity sound and defines an amplification feedback engine blueprint for Luxman's next generation of components. The L-509Z is equipped with independent LIFES modules operating simultaneously in each of its fully discrete pre and power sections. The L-509Z is a pre-main amplifier that is worthy of the “single-chassis separates” concept that incorporates quality separate units into a single, elegant chassis and has achieved an elevated level of musicality and unprecedented detail in comparison to other amplification circuits. The output section utilizes three stage Darlington bipolar transistors in quadruple-paralleled push-pull configuration to achieve outstanding output power and near perfect power linearity performance comparable to a standalone power amplifier, developing 120W+120W at 8 ohms and 220W+220W at 4 ohms. The result is spectacular sound quality with an abundance of energy.

Product Details:

  • Rated output
  • 120W + 120W (8Ω)
  • 220W + 220W (4Ω)
  • Input sensitivity/ input impedance
  • PHONO (MM): 2.5mV/47kΩ
  • PHONO (MC-H): 0.3mV/100Ω
  • PHONO (MC-L): 0.1mV/40Ω
  • LINE: 180mV/47kΩ
  • BAL.LINE: 180mV/79kΩ
  • MAIN IN: 1.1V/47kΩ
  • Output voltage: PRE OUT: 1V
  • Frequency response
  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)
  • Total harmonic distortion
  • 0.007% or less (8Ω, 1kHz)
  • 0.03% or less (8Ω, 20Hz to 20kHz)
  • S/N ratio (IHF-A)
  • PHONO (MM): 87dB or more
  • PHONO (MC-H): 70dB or more
  • PHONO (MC-L): 62dB or more
  • LINE: 106dB or more
  • Volume adjustment: LECUA-EX
  • Amplification feedback circuit: LIFES 1.0
  • Output configuration: Bipolar 4-parallel push-pull
  • Damping factor: 330
  • Max. amount of tone control
  • BASS: ±8dB at 100Hz
  • TREBLE: ±8dB at 760Hz
  • TREBLE: ±8dB at 10kHz
  • Power supply: 230V~(50Hz) / 115V~(60Hz)
  • Power consumption
  • 390W
  • 150W (under no signal), 0.5W (at standby)
  • External dimensions
  • 440(W) x 193(H) x 463(D) mm
  • front side knob of 20mm and rear side terminal of 37mm included in depth
  • Net weight: 29.4kg (main unit)
  • Speaker terminal Supported Y-lug terminal dimension
  • Width of part a: 16mm or less
  • Width of part b: 7mm or more
  • Connection may not be performed depending on the shape of the Y-lug terminal.

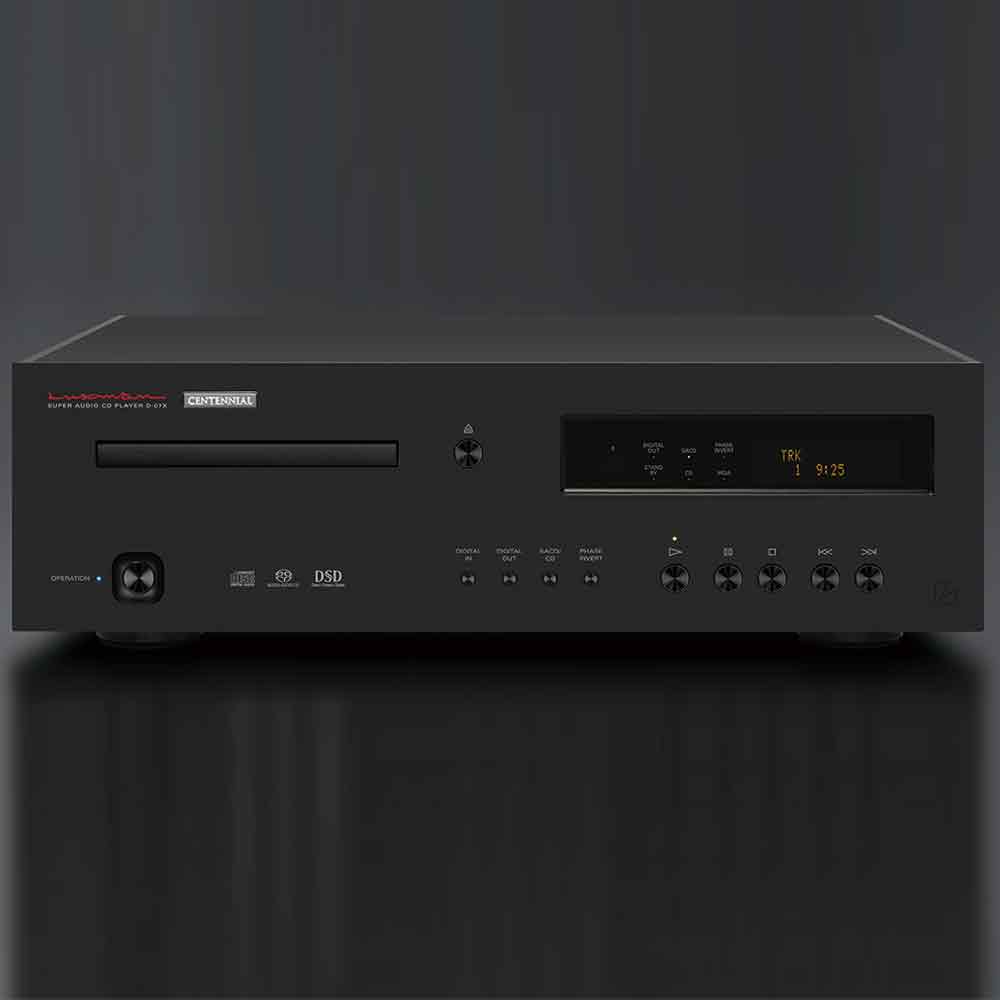

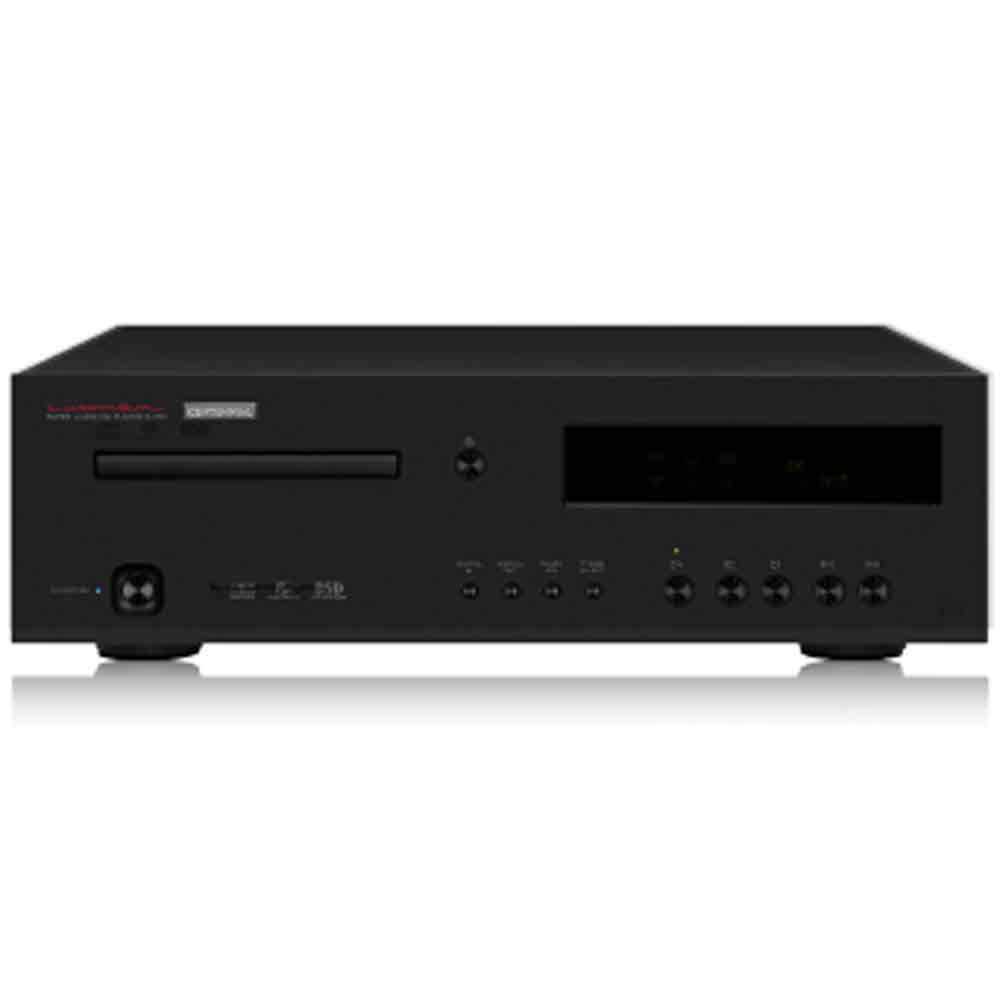

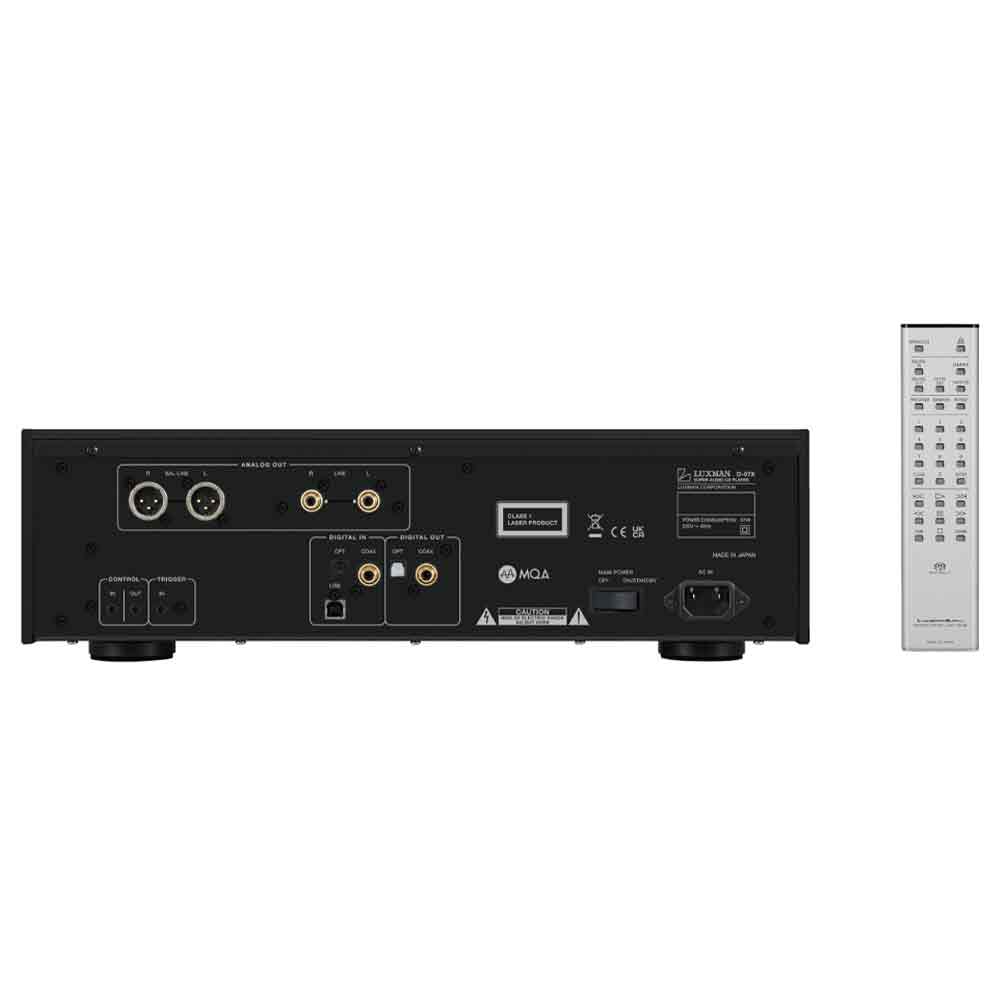

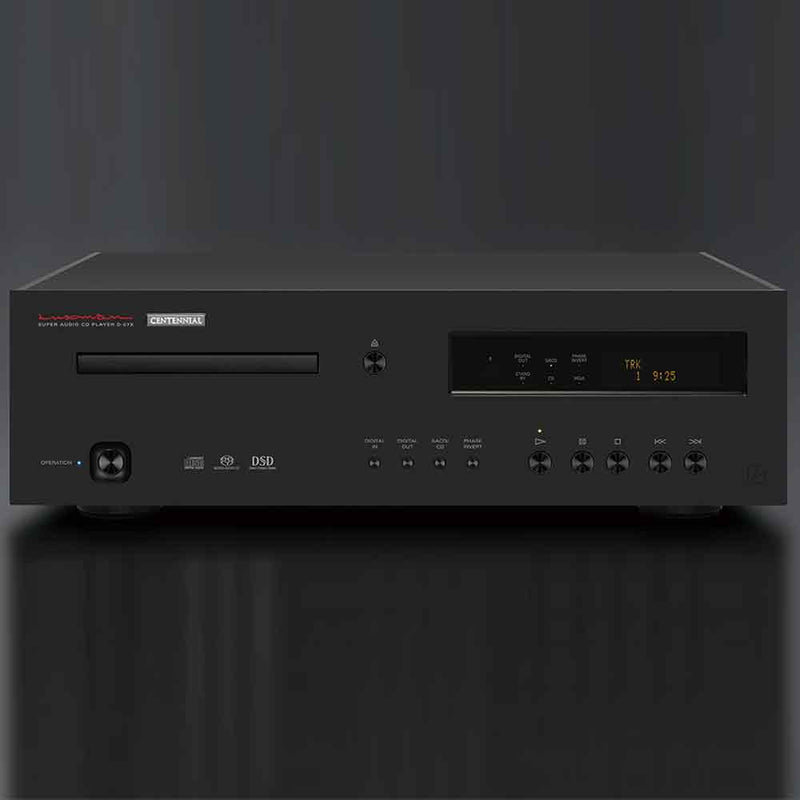

Luxman D-07XB SACD PLAYER/DAC

Inheriting LUXMAN’s outstanding flagship pedigree A new class of digital media player
Many of the audio formats available today are undergoing a transformational period. By providing digital circuitry that supports advanced, high resolution file formats and the latest DAC environment, this model brings out unprecedented excitement from CDs and SACDs, which are still in an important position as audio media. The D-07X inherits the luxurious styling and outstanding performance of Luxman's flagship model, the D-10X. This advanced digital media player delivers overwhelming performance. It truly conveys the ambience and feeling of recorded music over a wide range of media, delivering the finest listening experience.

Advanced DAC circuitry, reproducing digital media with excellent sound quality
Following standards set by Luxman's D-10X flagship model, high-end BD34301EKV DAC chips manufactured by Rohm Co., Ltd. in dual monaural configuration lie at the core of the digital circuitry that processes various digital media from discs, such as CDs and SACDs, to the latest high resolution audio files with exceptional quality. Over a USB input from a PC, Mac, NAS for audio, etc., the D-07X supports a wide range of format encoding up to PCM768kHz/32 bit and DSD22.4MHz. Bulk Pet transfer, which equalizes transmission load, can also be selected by using Luxman's dedicated driver software. Furthermore, for the popular high-quality format MQA (MQA-CD/MQA file), which expands the field of optical discs, streaming USB, COAX, and optical. The clocking system is designed to support accurate digital signal processing and is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to a minimum. There is also a built-in, 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.

Product Details:

  • Supported discs: SACD, CD (CD-R, CD-RW, MQA-CD)
  • Supported sampling Frequencies
  • USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
  • USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
  • Coaxial / Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
  • Analog output voltage / impedance
  • Unbalanced: 2.4 V / 300 Ω, Balanced: 2.4 V / 600 Ω
  • For SACD / DSD : 2.3 V
  • Frequency response
  • CD: 5 Hz to 20 kHz (+0, -1.0 dB)
  • SACD: 5 Hz to 38 kHz (+0, -3.0 dB)
  • USB: 5 Hz to 47 kHz (+0, -3.0 dB)
  • Total harmonic distortion
  • CD: 0.0016 %
  • SACD: 0.0007 %
  • USB: 0.001 %
  • S/N ratio (IHF-A)
  • CD: 122 dB
  • SACD: 125 dB
  • USB: 122 dB
  • D/A converter: ROHM BD34301EKV (monaural mode) x 2
  • Power supply: 230 V~(50 Hz) / 115 V~ (60 Hz)
  • Power consumption: 37W
  • Dimensions: 440(W) x 132(H) x 410(D) mm, front side knob of 2 mm and rear side terminal of 8 mm included in depth
  • Net weight: 17.0 kg

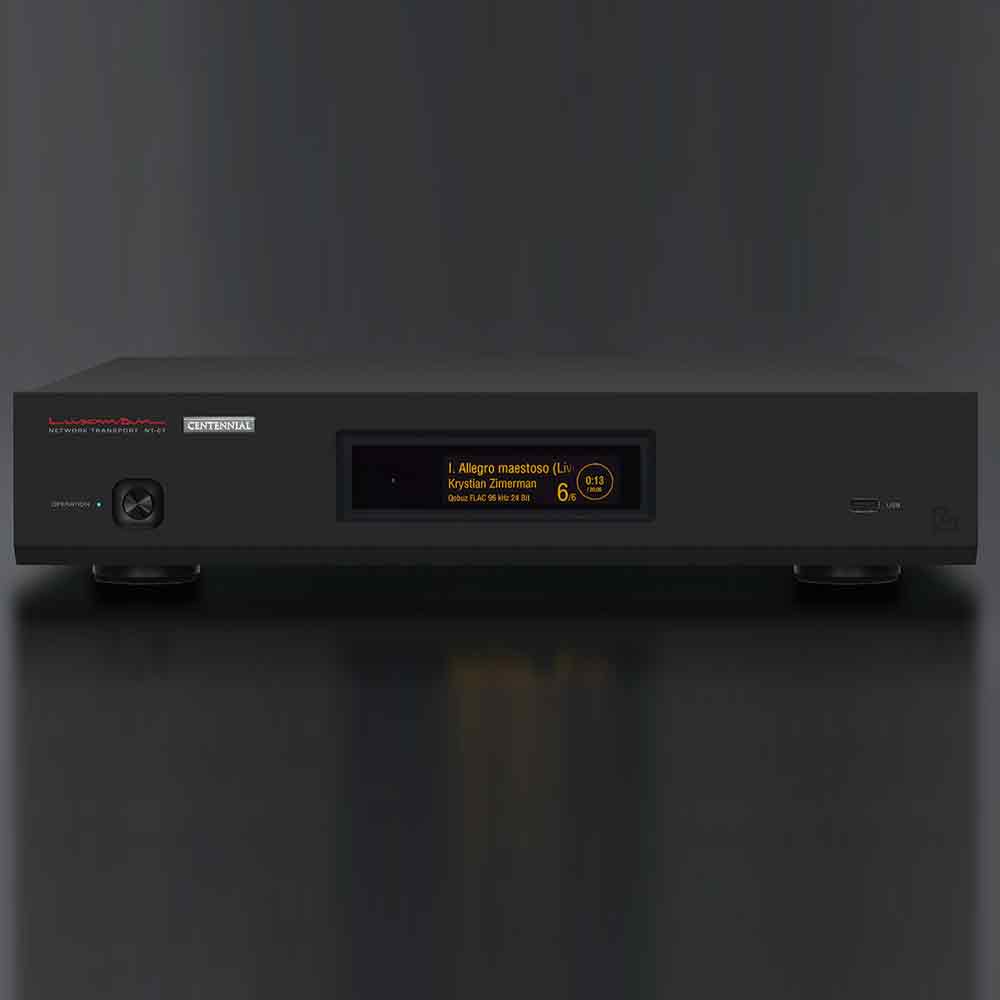

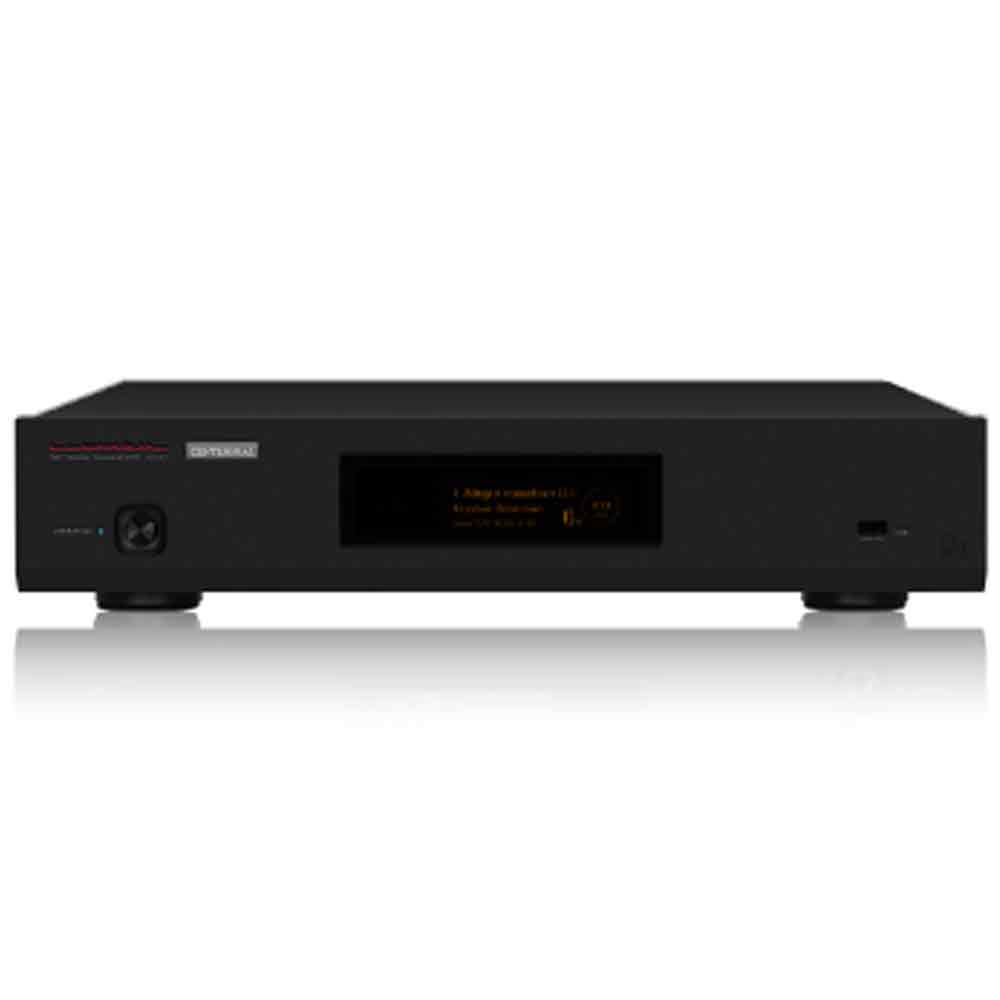

Luxman NT-07B Network Transport/Streamer

Cutting edge, multiple source music streaming: Sophisticated and versatile network transport
LUXMAN’s first network transport NT-07. Combining the latest digital audio technology with LUXMAN’s know-how, the NT-07 uses a thoroughly audio-focused approach to curate a wide variety of available sources with superb sound quality and a sophisticated yet comforting operational environment. In addition to USB digital audio and HDMI connectivity, streaming data from NAS and other popular music streaming services provide a variety of options for the listener to experience a new dimension of breathtaking audio quality. The NT-07, which has been rigorously fine tuned for supreme audio playback quality, offers all listeners a new musical experience for the future in combination with existing D/A converters.

Transport functions that create an advanced network audio environment
LUXMAN’s new NT-07 transport system creates an advanced network audio environment in combination with your D/A converter (USB, optical, or coaxial digital equipped models). The principal sound source options are NAS (Network Attached Storage), which supports the industry standard OpenHome platform, external USB storage directly connected to the main unit and a wide variety of popular music streaming services. The core processing stages are equipped with Luxman's latest generation of high-speed application processor modules that handle a wide range of complex functions effortlessly with satisfying operability.

Product Details:

  • Digital input
  • Network: 1000 Base-T (gigabit · ethernet)
  • HDMI: PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
  • Digital output
  • USB (USB2.0), OPT, COAX
  • HDMI: PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
  • Storage connection
  • USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS)
  • Supported sampling frequencies
  • USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
  • DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
  • COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit)
  • Corresponding format formats
  • WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)
  • Streaming protocols
  • UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready
  • Power supply
  • 230 V~(50 Hz) / 115 V~ (60 Hz)
  • Power consumption
  • 27 W (HDMI in/output when connected to USB storage)
  • 5.9 W (HDMI in/output when USB storage is disconnected)
  • Dimensions
  • 440(W) x 92(H) x 398(D) mm
  • front side display of 3 mm and rear side terminal of 13 mm included in depth
  • Net weight
  • 10.3 kg (main unit)

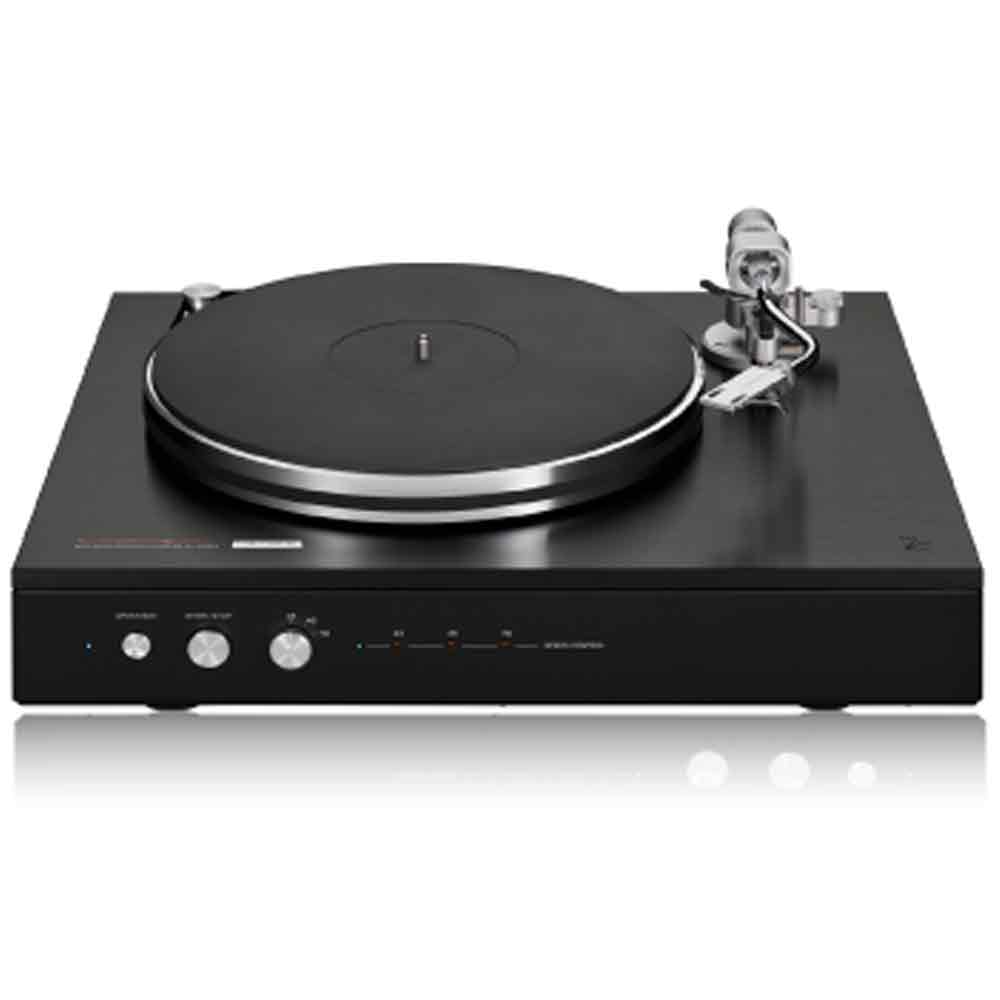

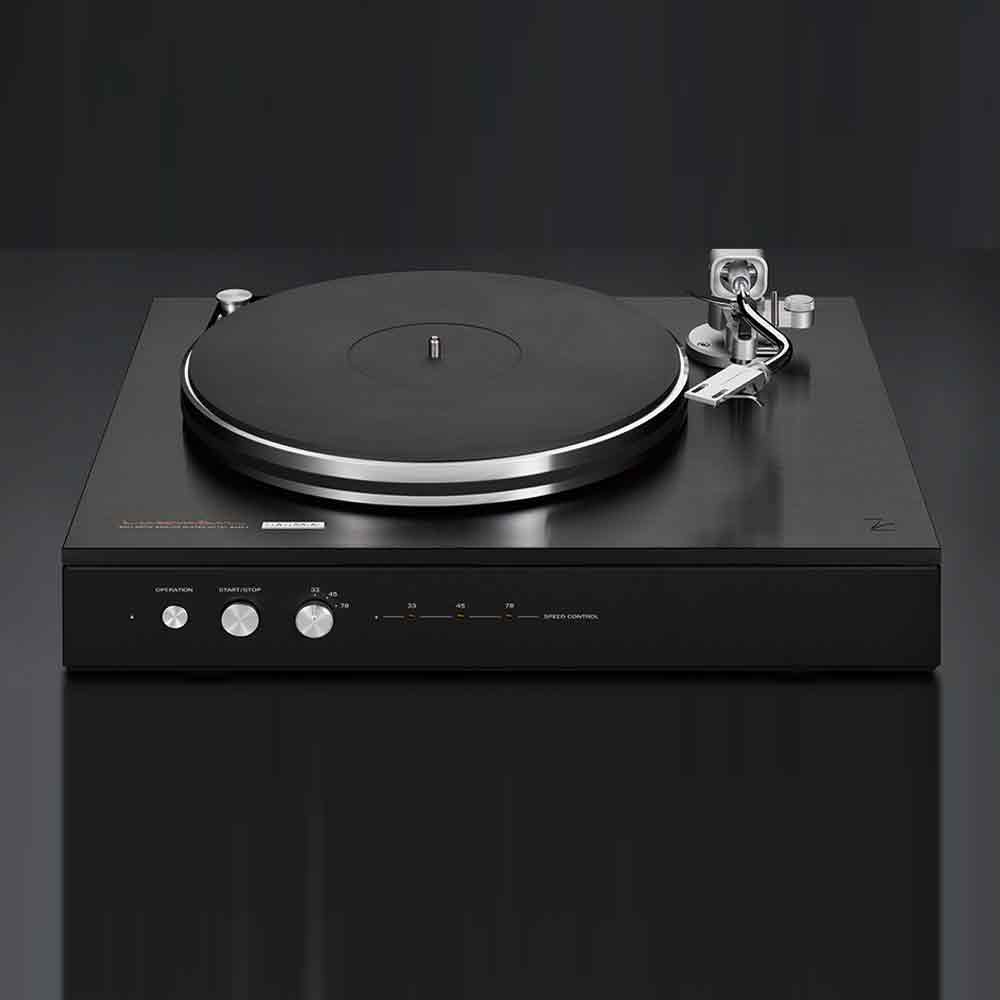

Luxman PD-151 MKIIB Turntable

The charm of timeless vinyl playback deepens thanks to Luxman's LUXMAN PD-151 MARKII, A new standard in the pursuit of functional beauty.
The PD-151 was developed for the music listener to fully enjoy the luxurious audio experience unique to analog, with vinyl phonograph records continuing popularity as an attractive music playback medium. Inheriting that model’s excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is Luxman's highly anticipated new model. The PD-151 MARKII has arrived as a new benchmark for belt-drive integrated analog players. Luxman delivers genuine analog vinyl playback excellence, inviting the listener into a world different from digital audio.

New tonearm with knife edge bearing
The PD-151 MARK II has been newly equipped with LUXMAN’s original static balance type tone arm, the LTA-309, featuring knife edge bearing technology developed by the Japanese brand SAEC, with over 40 years of experience. The arm base is machined aluminum, which minimizes the contact area, mounted to suppress unwanted vibration while ensuring rigidity. In addition to basic adjustment mechanisms, such as stylus pressure and anti-skating, LTA-309 also supports fine settings to optimize playback quality, such as arm height adjustment, according to the mounted cartridge. This S-shaped tonearm employs an H4 bayonet mount headshell, allowing easy install of phono cartridges, such as the LUXMAN LMC-5.

Product Details:

  • Turntable Platter
  • Drive system: Belt drive system
  • Motor: Brushless DC motor with PID control
  • Material: Machined aluminum, Surface finish: Diamond cut
  • Revolution: 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
  • Revolution adjustment range: ±6% (each rotation speed adjustable independently)
  • Wow and flutter: 0.04% or less (W.R.M.S.)
  • Weight: 4.0kg (Platter)
  • Tone arm section
  • Type: Static balanced, S shaped, universal type
  • Bearing: Concealed knife edge
  • Effective length: 222.5mm
  • Overhang: 18mm
  • Tracking error angle: ±3° or less
  • Applicable cartridge weight: 4 to 10g (including headshell 17 to 23g)
  • Adjustable height range: 15mm
  • Anti-skating: 0 to 4g
  • Main unit
  • Power source: 230V~50Hz / 115V~60Hz
  • Power consumption: 6W
  • Dimensions: 465(W) × 133(to the upper surface of the platter) (H)× 393(D) mm
  • Net weight: 15.8kg (main unit), 17.2kg (with dust cover)

What to expect in the box:

  • L-509ZB INTEGRATED AMPLIFIER
  • D-07XB SACD PLAYER/DAC
  • NT-07B NETWORK TRANSPORT/STREAMER
  • PD-151 MKII B TURNTABLE
