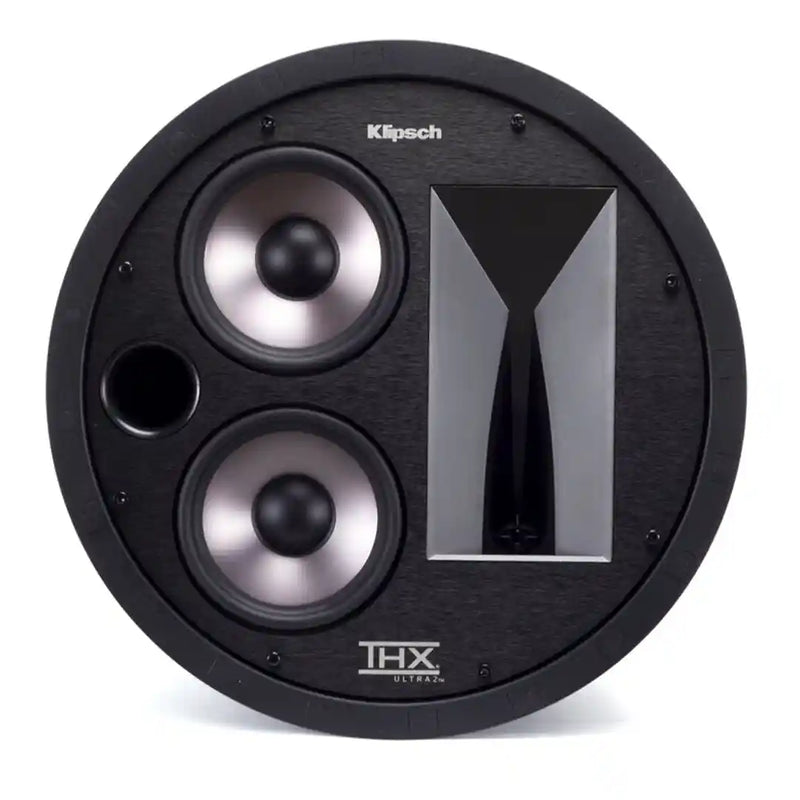

The Klipsch THX-5002-L In-Ceiling Speaker brings high-performance cinema sound to a discreet architectural design that installs almost entirely out of sight. THX Ultra2 Certified and engineered for demanding home theater applications, the THX-5002-L combines dual 5.25-inch Cerametallic woofers with a horn-loaded 1-inch titanium tweeter to deliver the dynamics, clarity, controlled dispersion, and output capability expected from Klipsch's THX architectural speaker family.
A key feature of the THX-5002-L is its specialized Variable Coverage Technology horn. The 1-inch titanium tweeter is mounted in a 45-degree skewed horn with selectable 60°, 90°, or 110° coverage characteristics, allowing the speaker's high-frequency output to be directed toward the listening area even when the loudspeaker must be installed overhead. An enclosed tuned-port chamber provides consistent woofer performance independent of the surrounding ceiling cavity, making the THX-5002-L an exceptionally versatile option for concealed high-performance home cinema systems.
Key Features & Innovations
THX Ultra2 Certified performance — the Klipsch THX-5002-L In-Ceiling Speaker is engineered for high-performance home cinema applications and can be integrated into systems designed for reference-level playback in large theater spaces.
Dual 5.25-inch Cerametallic woofers — Klipsch's rigid, lightweight Cerametallic cones provide excellent damping characteristics, helping the drivers deliver powerful, controlled output without unwanted flex or resonance.
1-inch titanium tweeter — the lightweight titanium high-frequency driver delivers detailed, dynamic reproduction while providing the efficiency needed for demanding cinema playback.
Variable Coverage Technology — Klipsch VCT allows the high-frequency horn to provide 60°, 90°, or 110° coverage characteristics, helping installers tailor dispersion to the room and listening area.
45-degree skewed horn — the angled horn architecture directs high-frequency energy away from a simple straight-down firing pattern, helping create precise imaging and localized sound fields from an overhead installation.
93dB sensitivity — high efficiency allows the THX-5002-L to achieve substantial output while making effective use of available amplifier power.
100W continuous / 400W peak power handling — substantial dynamic capability makes the speaker suitable for demanding multichannel movie and music playback when paired with appropriate amplification.
45Hz–20kHz frequency response — impressive low-frequency extension for an architectural loudspeaker gives the THX-5002-L the bandwidth needed for a variety of theater and multichannel applications.

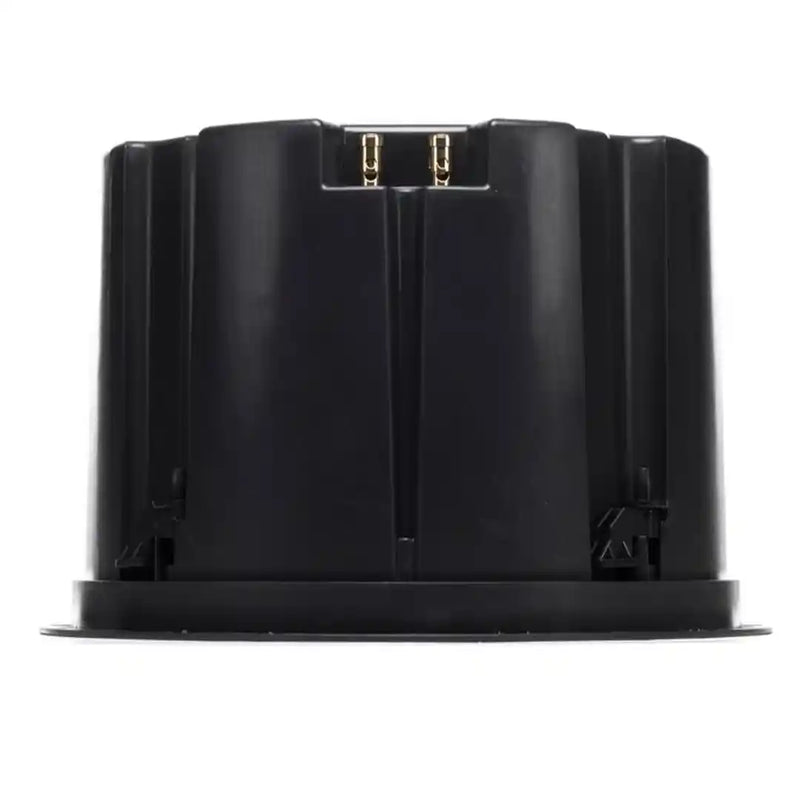

Enclosed tuned-port woofer chamber — the dual woofers operate within their own controlled enclosure, helping maintain consistent bass performance regardless of the size or construction of the surrounding ceiling cavity.
Front-flush bass-reflex port — the tuned enclosure vents through a 1.6-inch-diameter port that terminates at the front of the speaker, allowing the bass-reflex system to function properly after installation.
Timbre-matched THX Cinema Series — the THX-5002-L is designed to integrate with other Klipsch THX-certified architectural speakers, allowing concealed in-wall and in-ceiling models to be combined within the same theater.

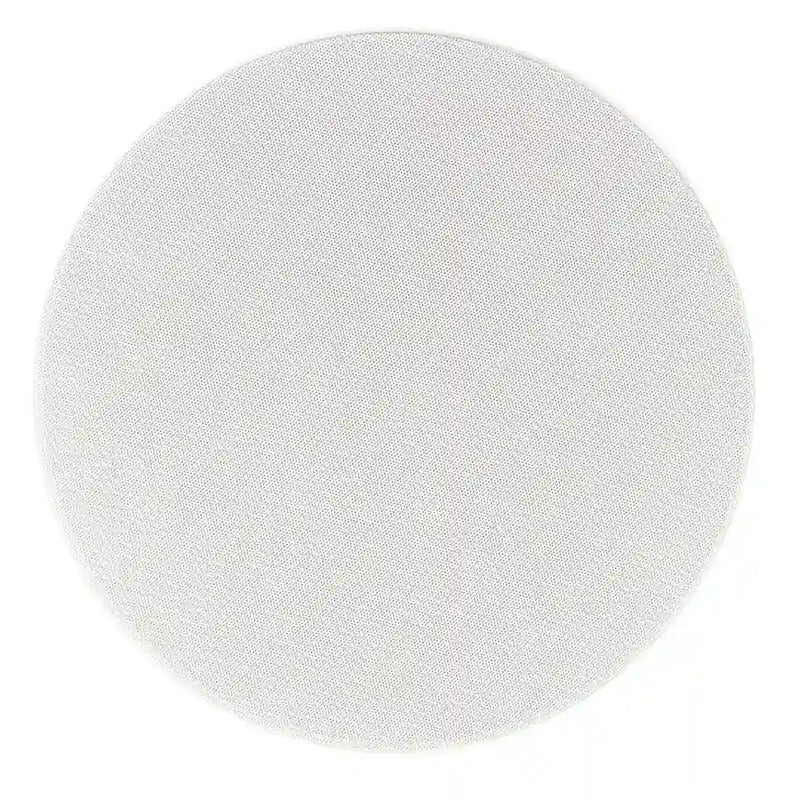

Edge-to-edge magnetic grille — the flat, paintable grille uses powerful magnets for a secure, flush fit while helping the installed speaker visually disappear into the ceiling.
FAQ — Klipsch THX-5002-L
What is the THX-5002-L designed for?
The THX-5002-L is a high-performance in-ceiling loudspeaker designed for home theater and multichannel music systems. Its angled Variable Coverage Technology horn allows sound to be directed toward the listening area, making it considerably more flexible than a conventional straight-down-firing ceiling speaker.
What does Variable Coverage Technology do?
Klipsch Variable Coverage Technology uses a specialized horn geometry to control high-frequency dispersion. The THX-5002-L employs a 45-degree skewed horn with 60°, 90°, and 110° coverage characteristics, helping direct high-frequency energy toward the intended listening area for more precise imaging and localized sound.
How is the THX-5002-L different from the THX-5002-S?
The THX-5002-L is the direct-radiating model and uses a single 1-inch titanium tweeter with a Variable Coverage Technology horn to provide more precise localization. The THX-5002-S is the dedicated surround model and uses two titanium tweeters in vertically stacked Tractrix horns to create a more diffuse surround field. Both models use dual 5.25-inch Cerametallic woofers and are THX Ultra2 Certified.
How much amplifier power can the THX-5002-L handle?
The THX-5002-L is rated for 100 watts continuous and 400 watts peak. Its 93dB sensitivity also helps it achieve substantial output with compatible AV receivers and multichannel power amplifiers.
Does the THX-5002-L have its own enclosure?
Yes. The dual Cerametallic woofers operate in an enclosed tuned-port chamber. This helps provide consistent bass performance regardless of the volume or construction of the ceiling cavity surrounding the speaker.
Can the THX-5002-L be used with other Klipsch THX speakers?
Yes. Klipsch designed the THX-5002-L to be timbre matched with its other THX-certified products, allowing it to be combined with compatible Klipsch in-wall, in-ceiling, surround, and theater speakers in a complete concealed cinema system.
