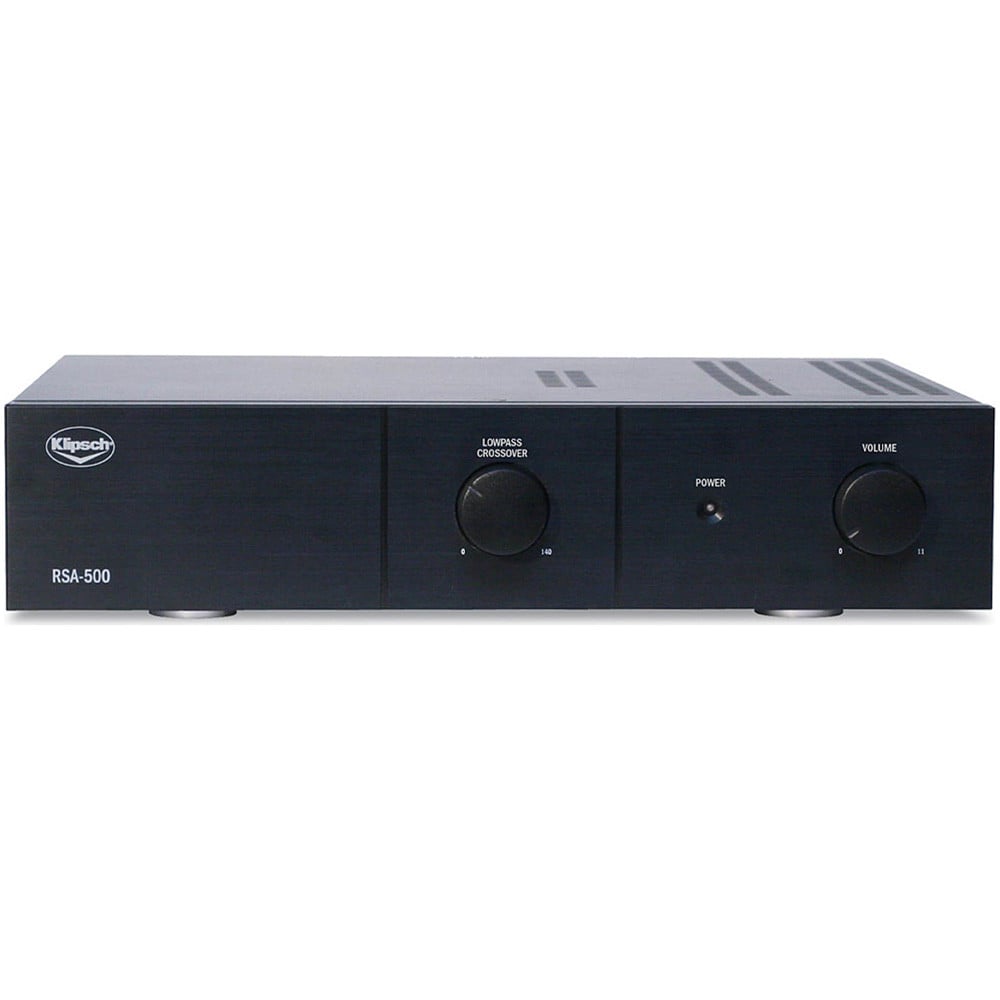

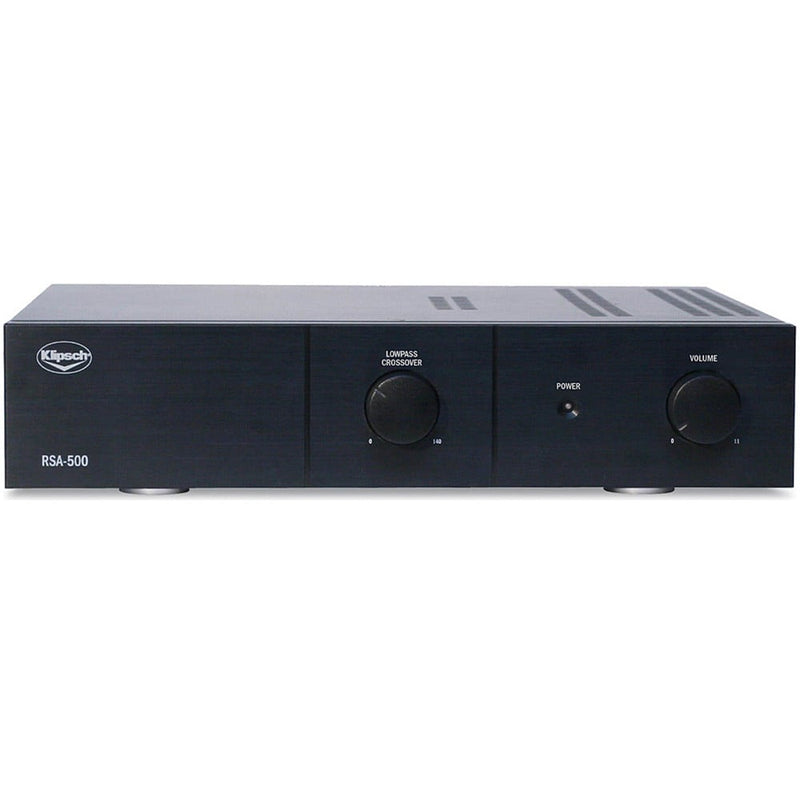

Klipsch RSA-500 Subwoofer Amplifier in Black

Klipsch RSA-500 Subwoofer Amplifier in Black - Klipsch

While the RSA-500 subwoofer amplifier was primarily designed for use with the RW-5802 in-wall subwoofer, it also features custom settings for the AW-800-SW outdoor subwoofer and the RW-5101-C in-ceiling subwoofer

This high-powered device will drive up to two of any of these subwoofer modules and delivers 300 watts into an 8-ohm load (one subwoofer module) and 500 watts into a 4-ohm load (two subwoofer modules). It also comes with rack ears for fast and secure placement into any standard 19-inch rack.

To keep end users from inadvertently tampering with performance levels, the majority of the RSA-500's controls are housed on its rear panel. The fuse is also included on the back for quick and easy replacement. A detachable IEC power cord allows for the simple removal and reinstallation of the entire amplifier unit. The RSA-500 was also designed to “play nice” by offering standard input/output connectivity that will support any type of system.

Features:

• EQ switch for use with different subwoofers
• Selectable signal-sensing or voltage triggered auto-on/off circuit
• 300 watts continuous into 8 ohms or 500 watts continuous into 4 ohms
• Line and speaker level inputs
• Rack ears included

Specifications:

• FREQUENCY RESPONSE: 20Hz-1kHz ± 3dB
• ENCLOSURE TYPE: Use only with RW-5802, RW-5101-C and AW-800-SW subwoofer enclosures (either one or two)
• AMPLIFIER: BASH Hybrid
• AMPLIFIER POWER: FTC Rated Power: 300W into 8 ohms, 500W into 4 ohms, 20Hz-1kHz @ <1.5% THD Dynamic Power: 875W into 8 ohms,
• AUTO POWER ON: 2 second ON delay, 15 minute OFF delay
• LOW PASS CROSSOVER: Continuously variable from 40-120Hz
• INPUTS: 2 Gold-plated speaker binding posts, 2 Gold-plated RCA phono jacks plus single LFE
• OUTPUTS: 2 Gold-plated unfiltered RCA phono jacks plus single LFE
• PHASE: Switchable between 0 and 180 degrees
• DIMENSIONS: 3.5" (8.9cm) H x 17" (43.2cm) W x 12.6" (32cm) D (without rack ears)
• WEIGHT: 18 lbs. (8.2kg)
• FINISH: Black anodized aluminum face plate
• VOLTAGE: 110/120 VAC 60Hz
• FEATURES: Selectable EQ, Speaker Level In, Low voltage trigger, rack ears included
